Chinese Advance HCD1000 Marine Gearbox planetary gearbox for Marine Engine used
- Category: >>>
- Supplier: Xiamen Sitaiqi Industry & Trade Co. Ltd.
Share on (60459466507):
Product Overview
Description

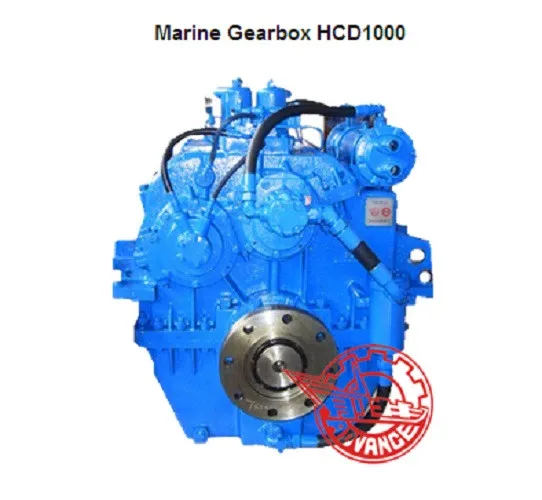

Chinese Advance Marine Gearbox planetary gearbox HCD1000 for Marine Engine used
Description:
Marine Gearbox HCD1000 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in compact in structure, large in ratio, and convenient in dis- and reassembly and maintenance.
Main Data:
| Input speed | 600-1900r/min | ||
| Reduction ratio | 3.429,3.96,4.391,4.45,4.905,5.06 | Trans. capacity | 0.735kw/r/min |
| 5.474 | 0.68kw/r/min | ||
| 5.833 | 0.65kw/r/min | ||
| Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
| Rated thrust | 140KN | ||
| Center distance | 450mm | ||
| L×W×H | 1082*1280*1345mm | ||
| Net weight | 1900kg | ||
| Flywheel | SAE21,18 | ||
| Bell housing | SAE00,0 | ||
Application:
Marine Gearbox HCD1000 is suitable for passenger, fishing, and various engineering and transport boats.
