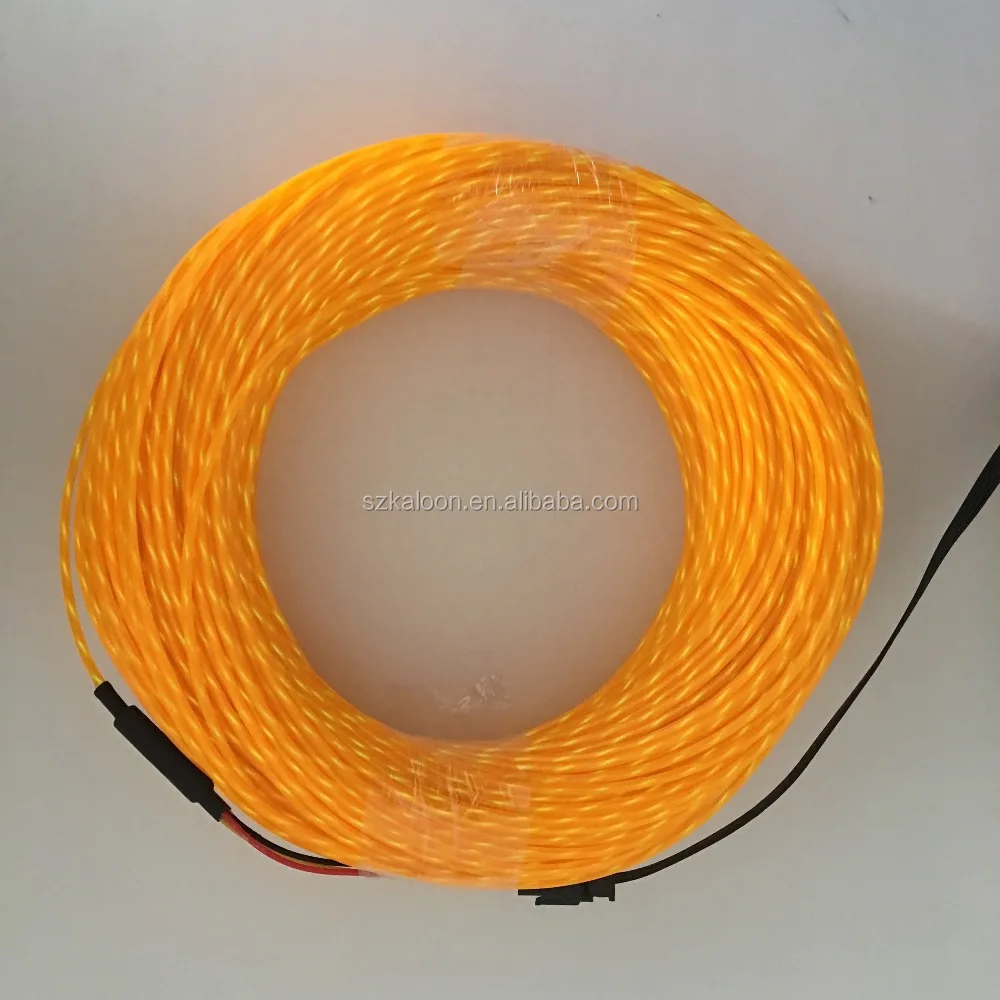

3,2 мм чеканка EL провода струящийся el провода для бега

Product Overview

Description



Hot sale multi color electroluminescent el light wire with inverter



Electroluminescence (EL) is an optical phenomenon and electrical phenomenon in which a material emits light in response to the passage of an electric current  or to a strong electric field.



It is a updated and safe light resource, widely used for indoor&outdoor advertising in nowadays especially for china,South Africa,Korea,USA,Mexico,Japan,and other European countries.





Color: red ,yellow, green, blue, white, purple, lime, greenblue, pink, orange

Diameter: 2.3mm or 3.2mm





Features:



Working voltage	50-120v
Optimal operating voltage	110v
Working frequency	800MHz-1200Hz
Optimal frequency	1000Hz
Static capacitance	6.5nf/m(20’C RH <80%)
Illumination intensity	200CD/M2(110V1000Hz)
Power consumption	43mW/M(110V1000Hz)
Lifetime	6000-7000hours(100v,1KHz)
Working temperature	-20’C-+70’C
Relative humidity	RH<90%
Storage temperature	-10’-+40’C
Storage relative humidity	RH<65%





DC3V inverter,. 2AA, drive 0-3m chasing wire





DC12V inverter, drive 1-10m chasing wire

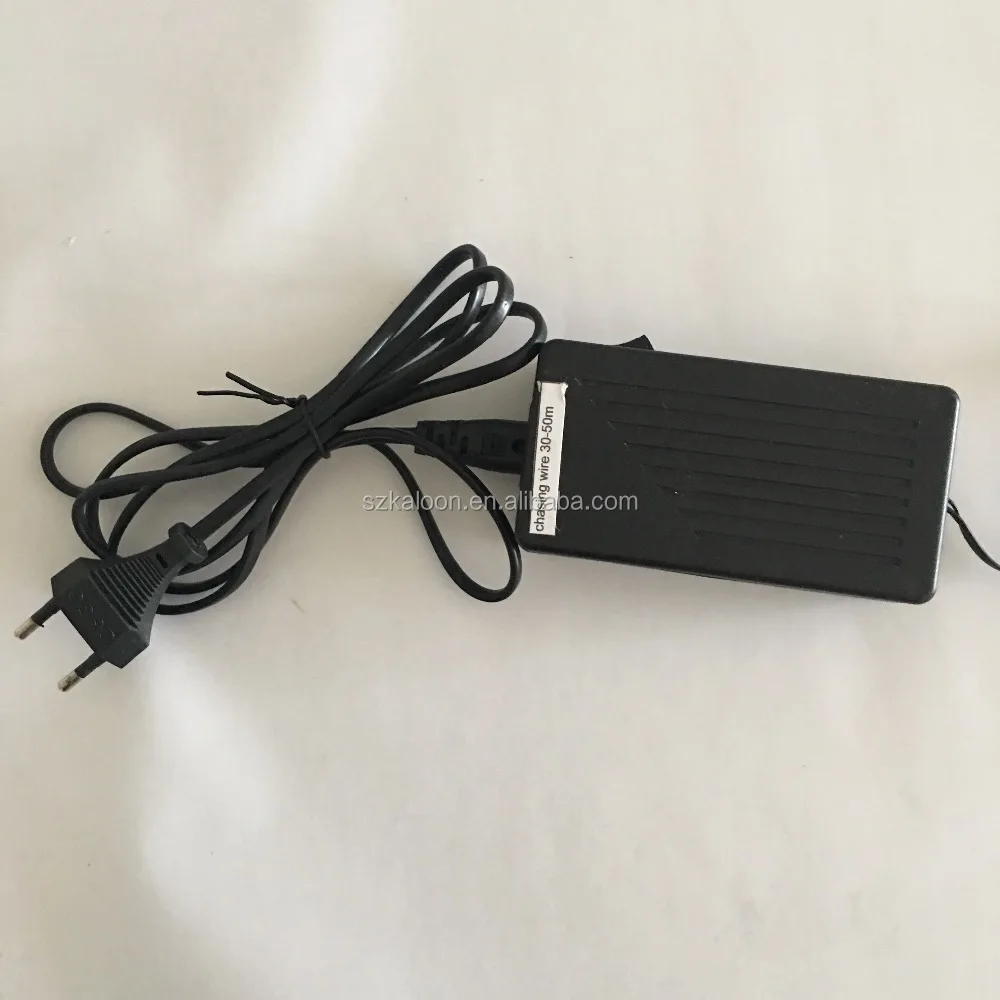

AC80-240V inverter, drive 1-50m el chasing wire
