disposable medical bacterial & viral HME Filter
- Category: >>>
- Supplier: Ningbo Boya Medical Equipment Co. Ltd.
Share on (60459521845):
Product Overview
Description
Product Description

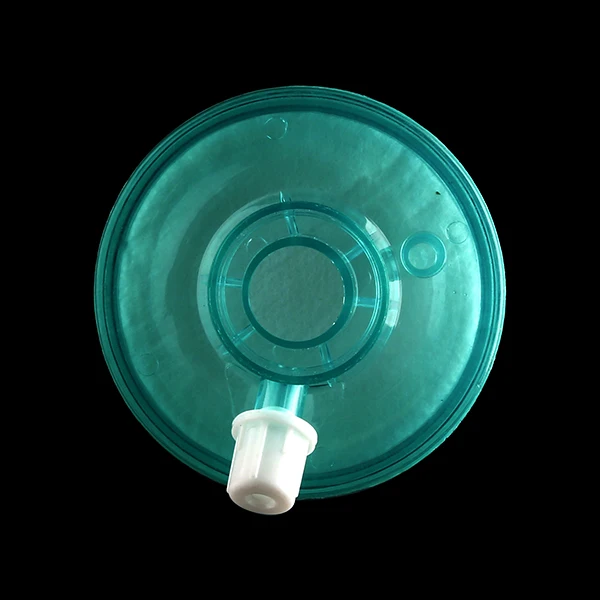

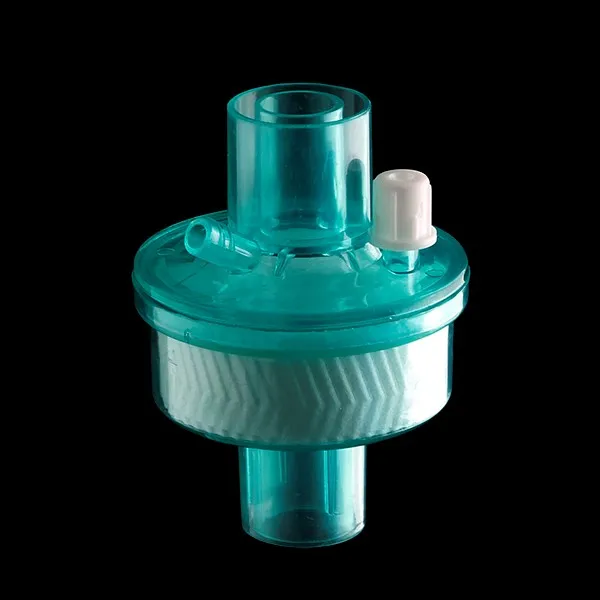

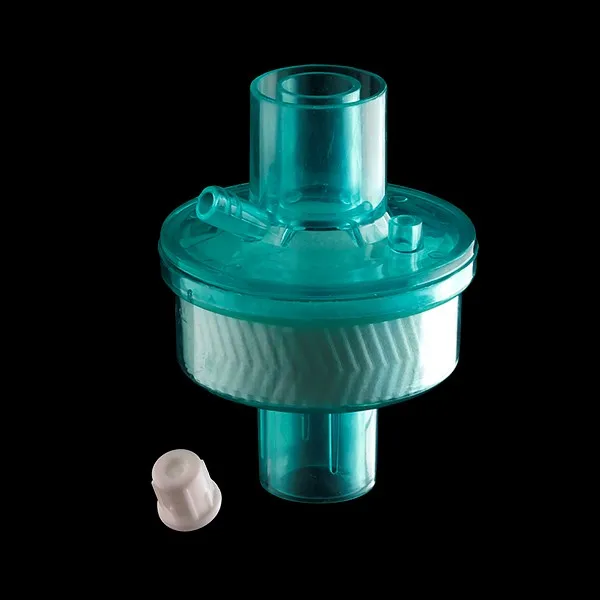

Disposable HME Filter
Disposable breathing system filter(HMEF) is used for bacteria, particle filtration in breathing machine and anesthesia machine and to increase the gas moisture degree. Also can be equipped with pulmonary function machine to filter the spray with bacterial from the patient.
Specification
| Dimensions | h. 76.0 mm; w. 58.0 mm |
| Materials of construction | Filter media: Polypropylene & filtering membrane Housing: K-resin |
| Moisture Output | 32.7mg/H2O @ VT 500ml |
| Filtration Efficiency | BFE 99.999%* VFE 99.99%* |
| Resistance (cm H20) @ 30LPM | 1.6 |
| Dead space | 53ml |
| Tidal Volume | 200-1500ml |
| Connections | 22M-15F/ 22F-15M |
| Weight | 27g |
| Gas Monitoring Luer Port | Yes |
Sterilized by EO, single use;
CE0197, TUV ISO13485 is approved
Packed sample in lavender color

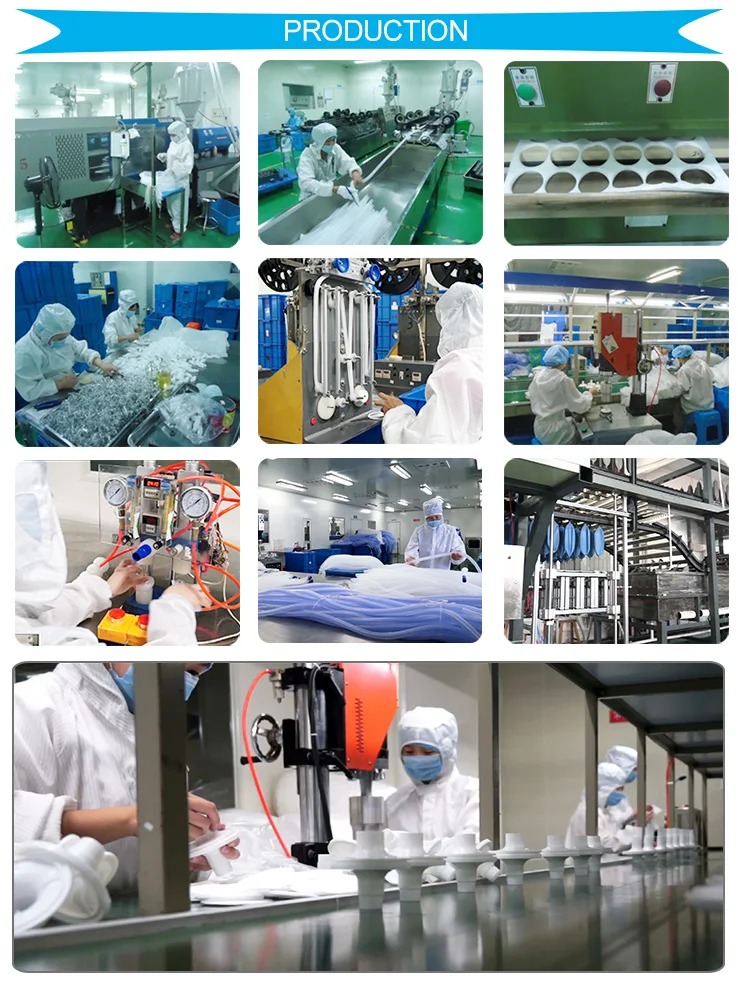

Production Flow
Our Services
OEM
SAMPLES

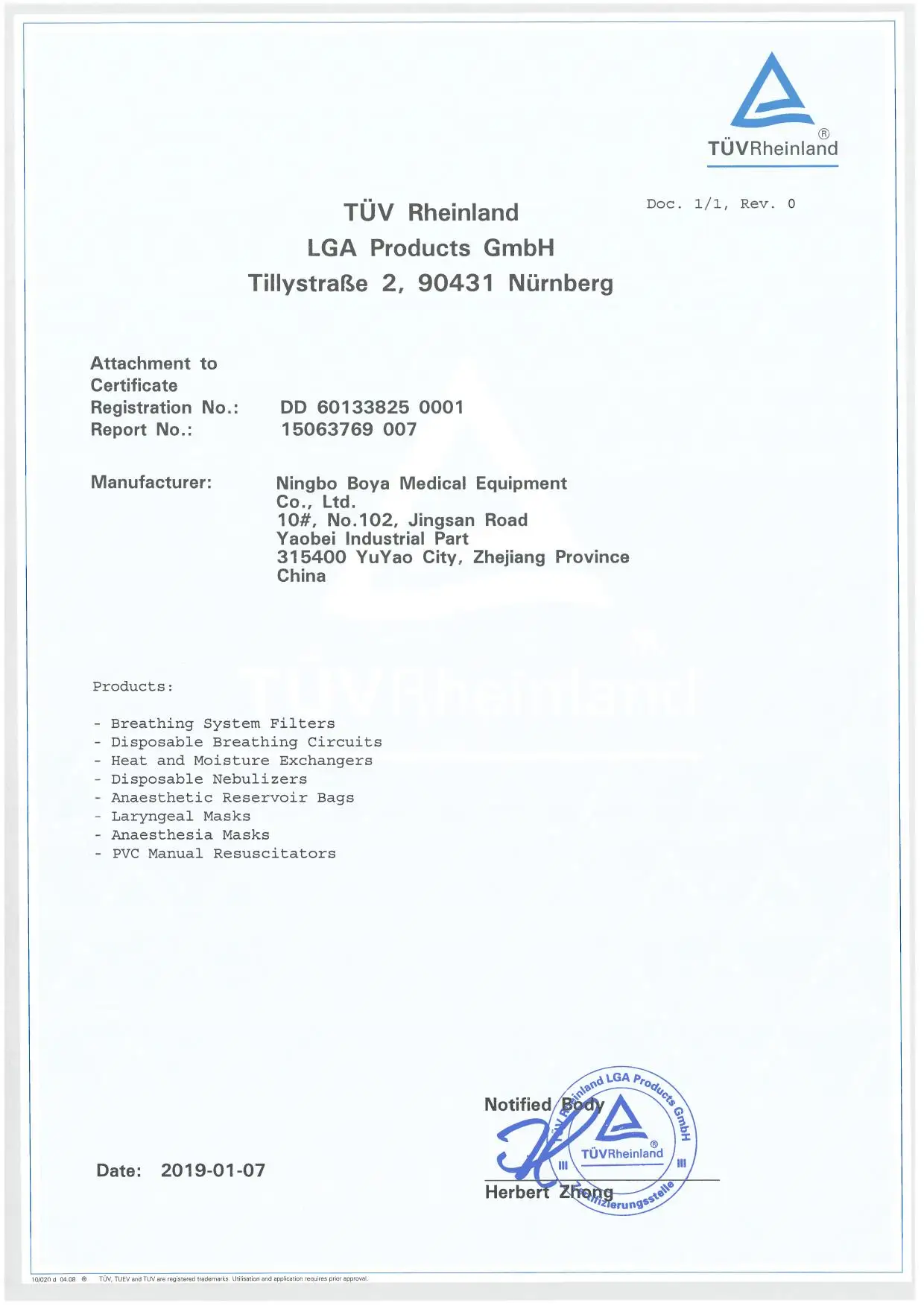

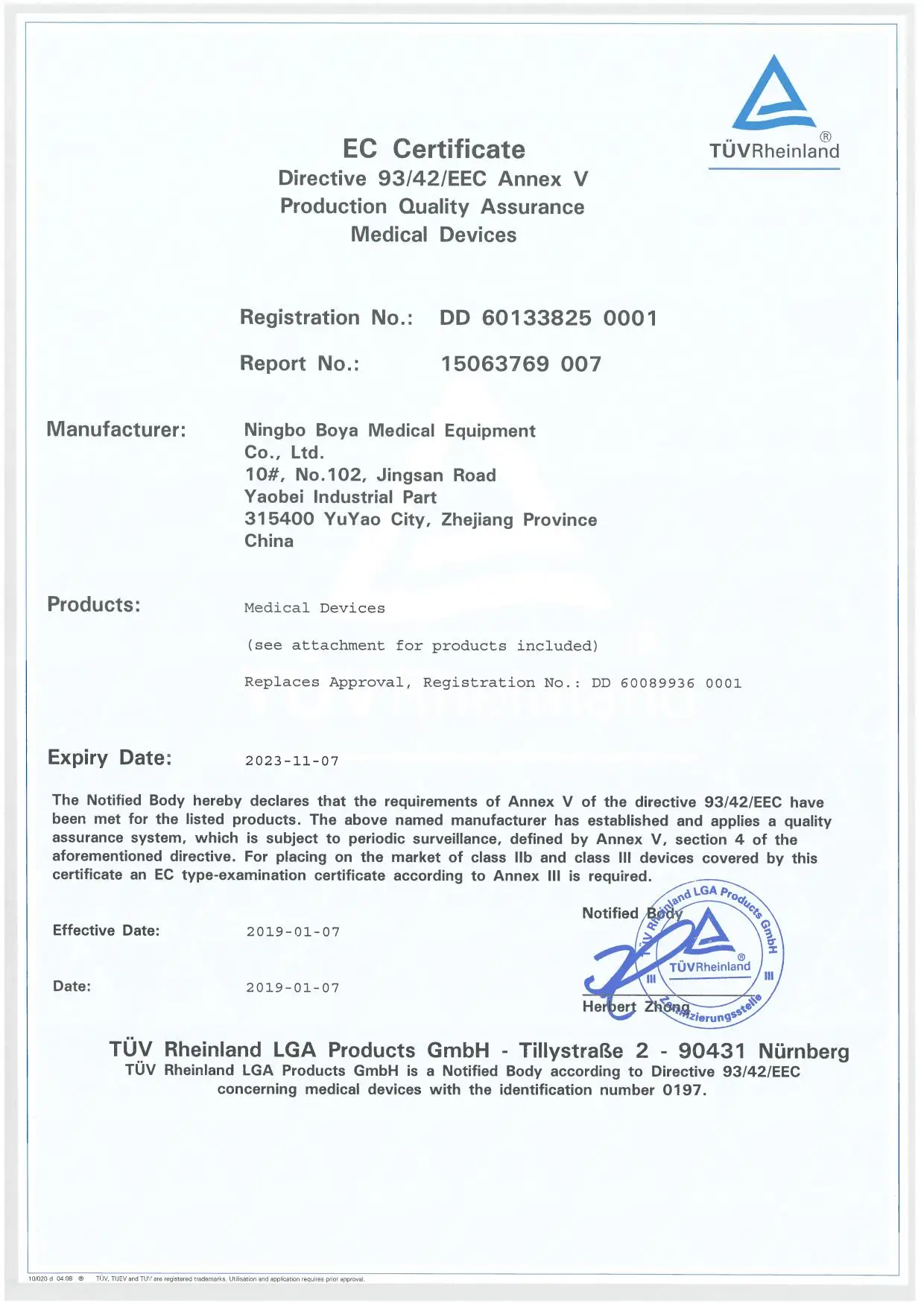

Certificate: CE&ISO13485
Packaging & Shipping
Exhibition
