Умный домофон ток обратно беспроводной двусторонний домофон система MT126 переговорное устройство
- Category: >>>
- Supplier: Shenzhen Mingte Tech Co. Ltd.
Share on (60459674508):
Product Overview
Description
Overview

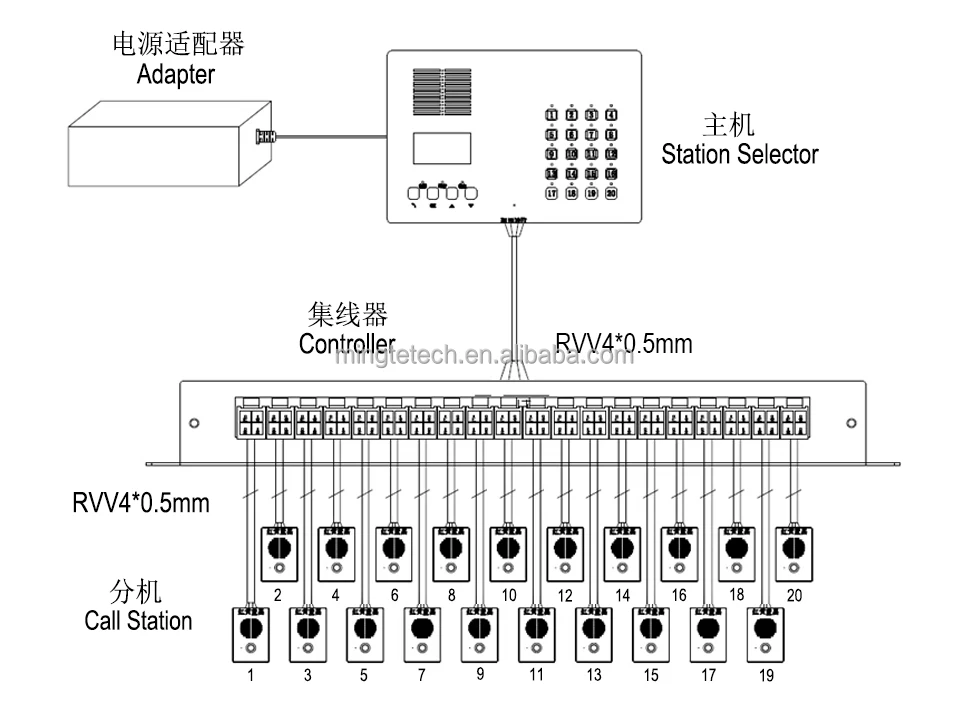

The MINGTE smart intercom system-MT126 is composed of station selector, call station and hub. MT126 is a single channel system expandable to 20 call stations, which combines easy operation & installation for clear, convenient and reliable communication. The system communication complies with GA/T72-2005 and its range can extend up to 150 meters.
Features
1 :Reliable, highly versatile and expendable, easy wiring, installation & operation
2 :Designed to provide vital communication between station selector & call station
3 :Monitoring for call station via selector, automatic record & saving to SD card by selector
Applications
1 :Call Station, Fuel Dispensers, CNG Dispensers, Fuel Stations, CNG Stations, Fuel Company, CNG Company
Components

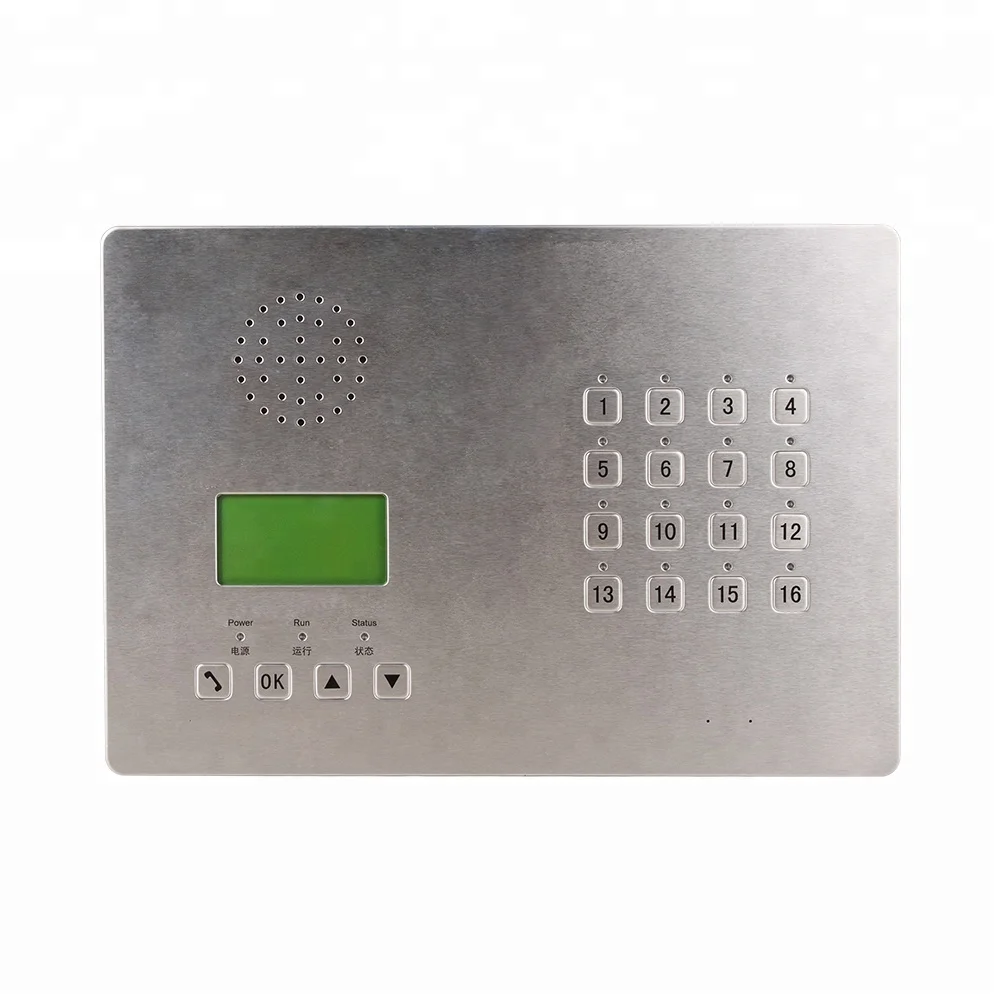

1 :Station Selector
Features:
1 :Industrial design & grade, anti-vandal with whole metal material
2 :Anti-oxidant & anti-corrosion with aluminum alloy surface
3 :Anti-static (standard: GB/T17626.4-2006 L1)
4 :Lightning-proof & surge-resistant (standard: GB/T17626.5-2008 L2)
5 :LCD displays info & allows easy call identification
6 :24 panel keys’ lifetime up to 200K times, with power adapter
7 :Recording & saving function, support 8G SD card (expandable)
Specifications
CATEGORY | Station Selector |
POWER SUPPLY | DC9-12V ± 5% |
POWER | Standby: ≤1W, Working: ≤3.5W |
CALL STATIONS CONNECTION | ≤20 units( No cascading selector) |
COMMUNICATION | Double-talk, time: 2 minutes |
SNR(SIGNAL TO NOISE RATIO) | Calling channel≥25dB Replying channel≥30dB |
RINGING SOUND LEVEL | ≥55dB |
WORKING TEMPERATURE | -40-+65°C |
DIMENSIONS(MM) | 320mm(W)x51mm(D)x220mm(H) |
WEIGHT | 2200g Packing & accessories not included |
2 :Call Station
Features
1 :Industrial design & grade, anti-vandal with whole metal material
2 :Anti-oxidant & anti-corrosion with aluminum alloy surface
3 :6 Call station numbers, anti-static (standard: GB/T17626.4-2006 L3)
4 :Lightning-proof & surge-resistant (standard: GB/T17626.5-2008 L2)
5 :Panel keys’ lifetime up to 100K times, weather-resistant (IP54)
Specifications:
CATEGORY | Call Station |
POWER SUPPLY | DC9-12V ± 5% |
POWER | Standby: ≤1W*20 Units Working: ≤1.1W*20 Units |
STATION SELECTORS CONNECTION | 1 Unit |
COMMUNICATION | Double-talk, time: 2 minutes |
SNR(SIGNAL TO NOISE RATIO) | Calling channel≥25dB Replying channel≥30dB |
WORKING TEMPERATURE | -40-+65°C |
DIMENSIONS(MM) | 58mm(W)x90mm(H) |
WEIGHT | 220g Packing & accessories not included |

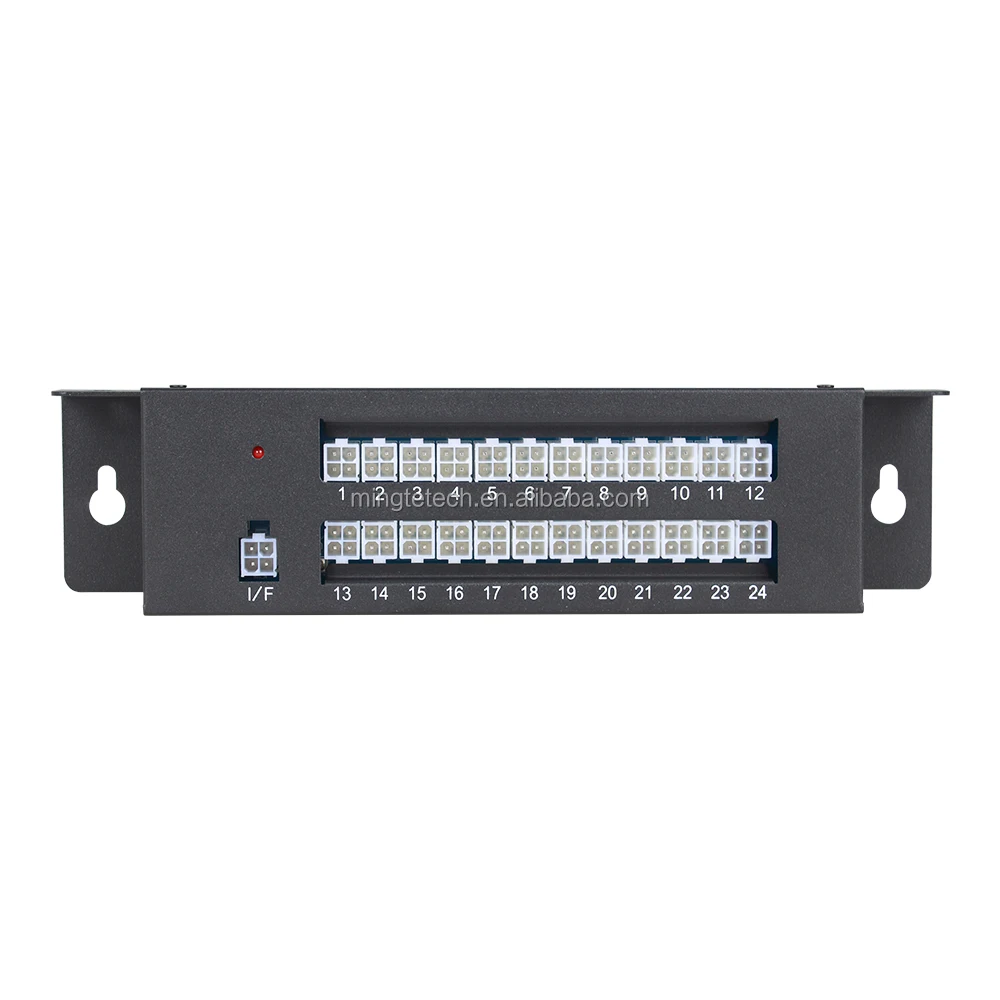

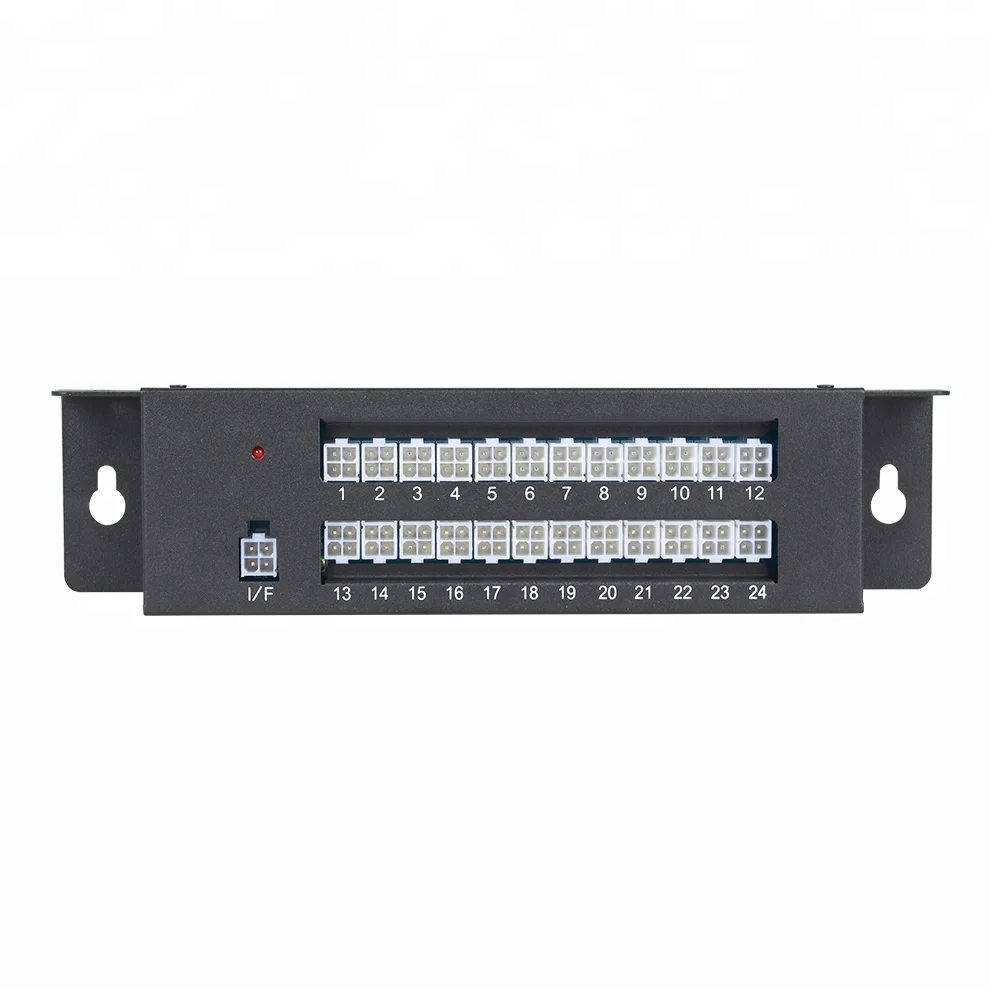

3 :Hub
Features:
1 :Provides electronic switching and configuration management
2 :Connects to 1 station selector and up to 20 call stations
Company Information
Established in 2005, Shenzhen Mingte Tech Co., Ltd. is a leading and professional worldwide provider for Smart Card Readers, Card Collectors & Dispensers and Banknote Validators. Specializing in design, development, sales and manufacturing, MINGTE provides OEM and complete custom payment solution for every imaginable applications, including ATMs, CDMs, Kiosk Terminals etc.
MINGTE offers a variety of manual dip, manual swipe, motorized, standalone, contactless, mobile payment types and single feed bill acceptors with a experienced technical team. More than 85% employees have almost 10 years’ experience in the field of smart card payment.
MINGTE has obtained various patents relating to smart card reader technologies, and passed various quality inspection tests from China Bank Card Test Center, EMV Consortium, and China Ministry of Information Industry.
Sales & Service
1. MINGTE provide Communication Protocol, SDK for customers to develop.
2. MINGTE provide technical support to customers when they met problems in develop processing.
3. MINGTE provide high-quality products to customers.(Every products will pass three times strict tests before delivery)
4. MINGTE provide OEM products to customers.
5. MINGTE provide a high efficiency team and pleasure purchase process to customers.
Payment & Shipping
1. Verious payment ways: T/T, Paypal, Western Union, etc.
2. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
3. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
4. Customers specifying freight forwarders or negotiable shipping methods!
5. Delivery Time: 3-7 days for samples; 2-7 weeks for batch goods.
