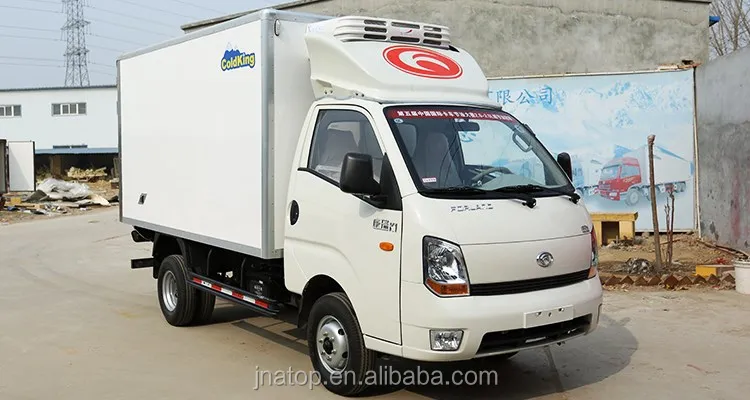

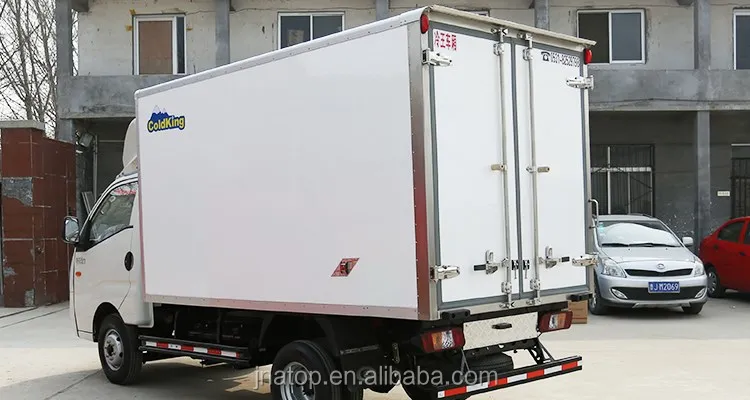

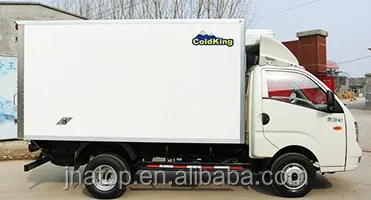

4,0 T Легкий Foton K1 2800 шасси РЕФРИЖЕРАТОРНЫЙ грузовик
4,0 T Легкий Foton K1 2800 шасси РЕФРИЖЕРАТОРНЫЙ грузовик
4,0 T Легкий Foton K1 2800 шасси РЕФРИЖЕРАТОРНЫЙ грузовик
4,0 T Легкий Foton K1 2800 шасси РЕФРИЖЕРАТОРНЫЙ грузовик
4,0 T Легкий Foton K1 2800 шасси РЕФРИЖЕРАТОРНЫЙ грузовик
4,0 T Легкий Foton K1 2800 шасси РЕФРИЖЕРАТОРНЫЙ грузовик
4,0 T Легкий Foton K1 2800 шасси РЕФРИЖЕРАТОРНЫЙ грузовик

4,0 T Легкий Foton K1 2800 шасси РЕФРИЖЕРАТОРНЫЙ грузовик

Share on (60459680764):


Price:

Quantity:


Product Overview

Description


Truck Chassis
\t
Chassis Brand
\t
Foton
\t
Chassis Model
\t
K1 2800
\t
Steering Wheel
\t
Left Hand Drive truck body
\t
Drive Train
\t
4 x 2 truck body
\t
Cab Style
\t
Single Cab reefer truck
\t
Seating Capacity
\t
2 reefer truck
\t
G.V.W
\t
4,000Kgs
\t
Kerb Weight
\t
2,150Kgs truck body
\t
Rated Payload
\t
1,850Kgs reefer truck
\t

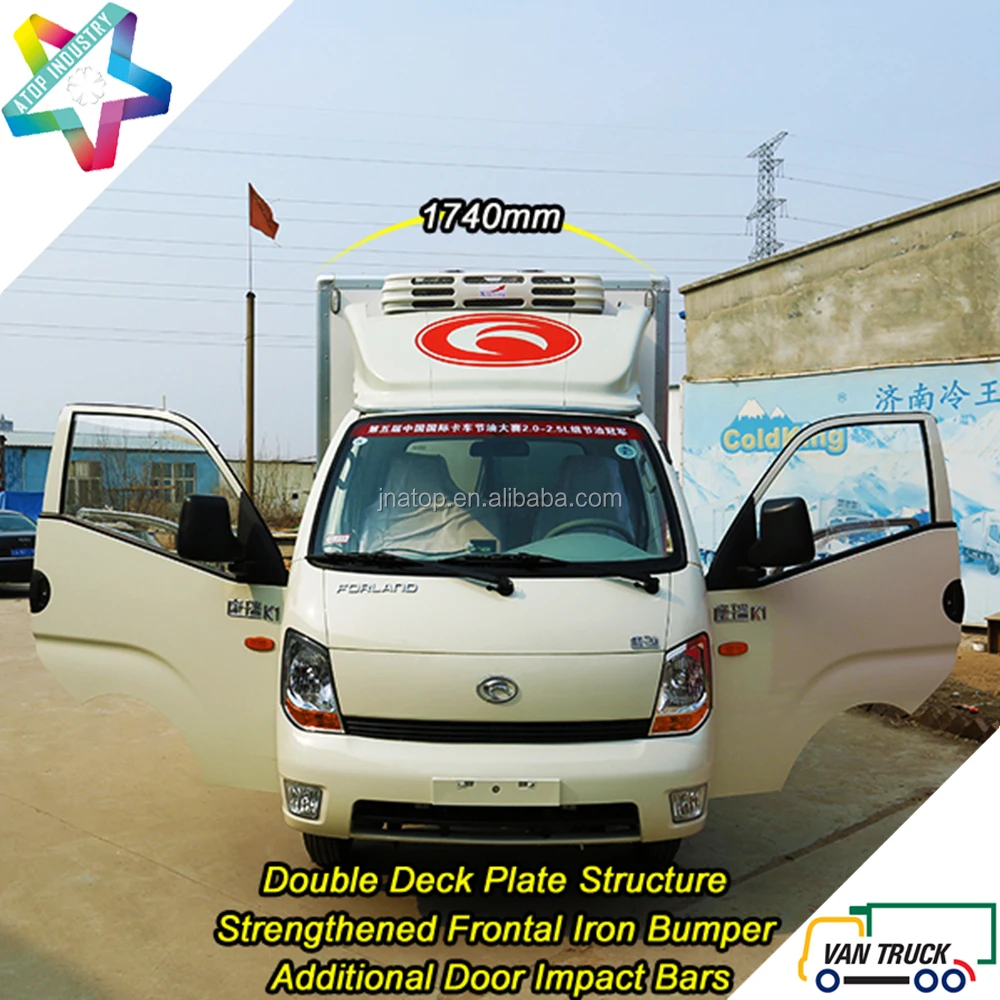

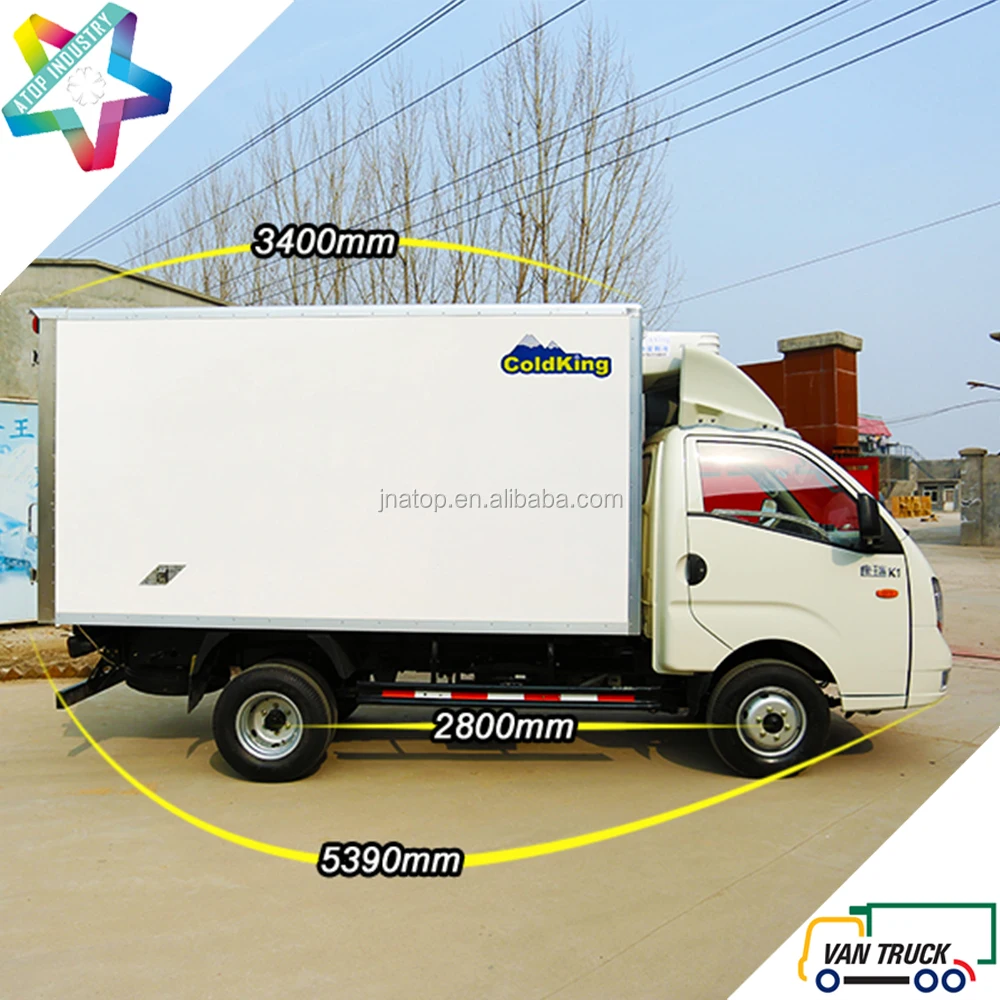

Overall Dimension
\t
5.39m(L) x 1.74m(W) x 2.67m(H)
\t
Wheelbase
\t
2,800mm truck body
\t
Max. Speed
\t
90km/h  reefer truck
\t
Tires
\t
6.00-15 (6+1) truck body
\t
Front Track
\t
1,385mm  reefer truck
\t
Rear Track
\t
1,280mm  truck body

Left Hand Steering Wheel Rim; Manual Tiltable Steering Column; With Three Points Pre-Tensioner Seat Safety Belt; With Auto Windows; With AM/FM + AUX + USB Audio Device; With Fabric Seat Covers; With 2 Audio Speaker;

\t

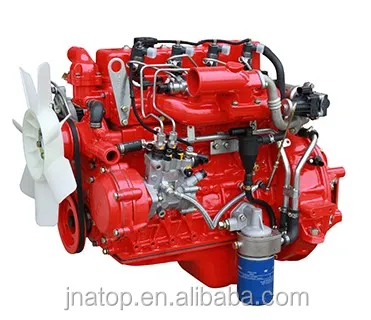

Engine Brand
\t
QUANCHAI
\t
Engine Model
\t
4A1-68C40 reefer truck
\t
Engine Emission
\t
EURO 4  truck body
\t
Displacement
\t
1,809cc   reefer truck
\t
Max. Power
\t
50Kw (69Hp)  truck  body
\t
Max. Torque
\t
170N.m   truck body
\t
No. of Cylinder
\t
4  reefer truck
\t
Key Features
\t
Intercooled; High Pressure Common Rail Direct Fuel Injection; Waste Gated Turbocharger

Hydraulic Power Assisted Rack & Pinion;Leaf Spring With Live Beam Axle Suspension.

Vacuum Boosted Hydraulic System truck body

Manual Adjustable & Manual Folding Side Mirrors; Front Fog Light reefer truck

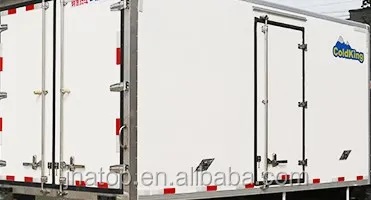

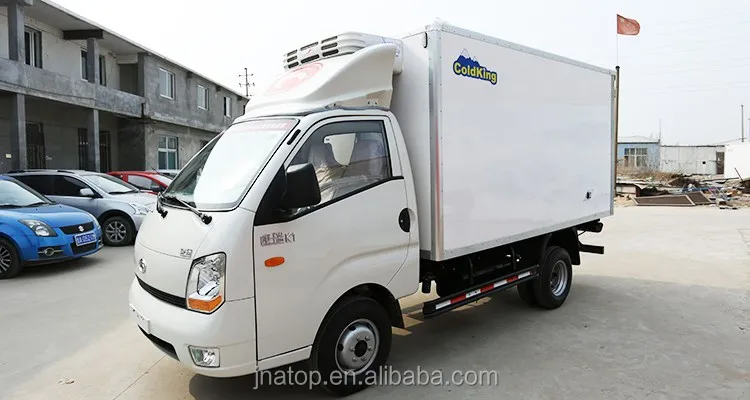

Truck Body Details
\t
Key Features

\t
ColdKing refrigerated body is made of all-closed sandwich structure panels, which is made by special technology to vacuum form complete panels. We use free-Freon molding polyurethane foam as inner insulation materials. The internal and external coverings are integral FRP sheets (fiberglass reinforced polyester), therefore, homogeneous construction (without any metallic reinforcements).
\t

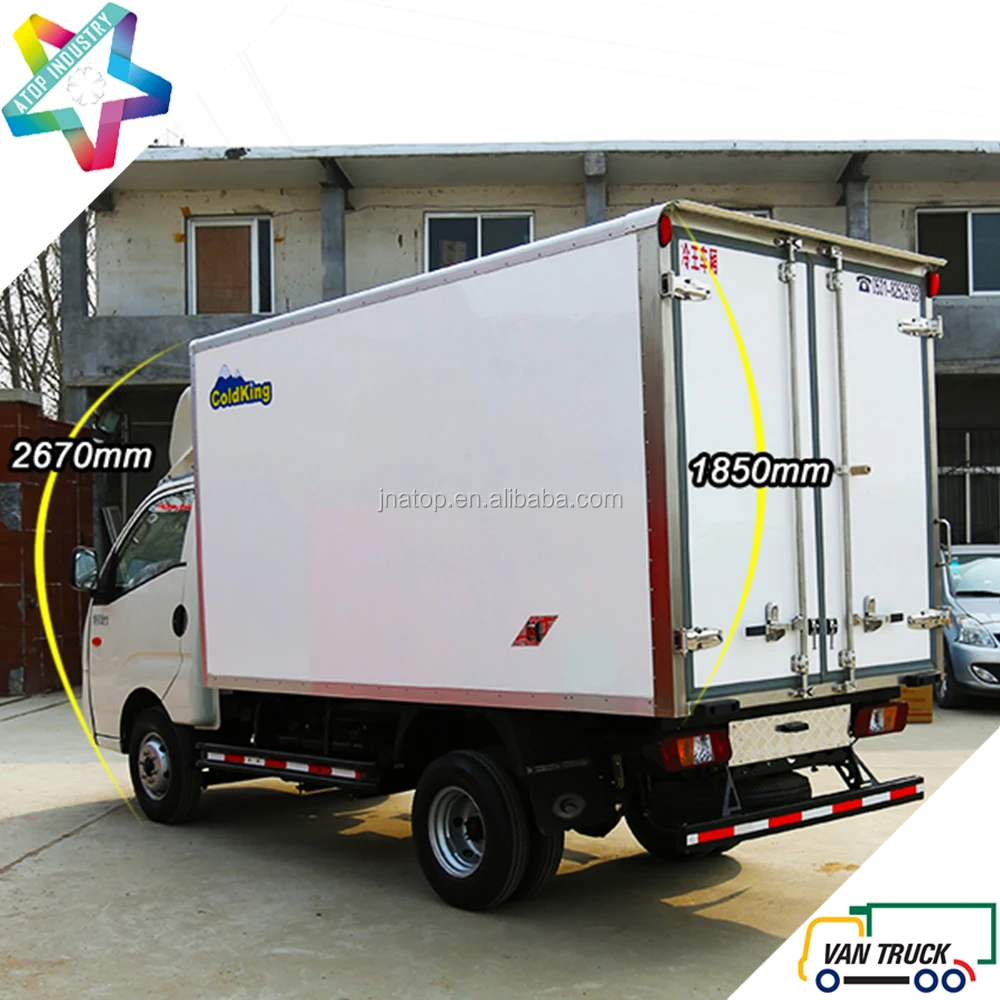

Truck Body Outer Size
\t
3.4m(L)x1.74m(W)x1.85m(H)
\t

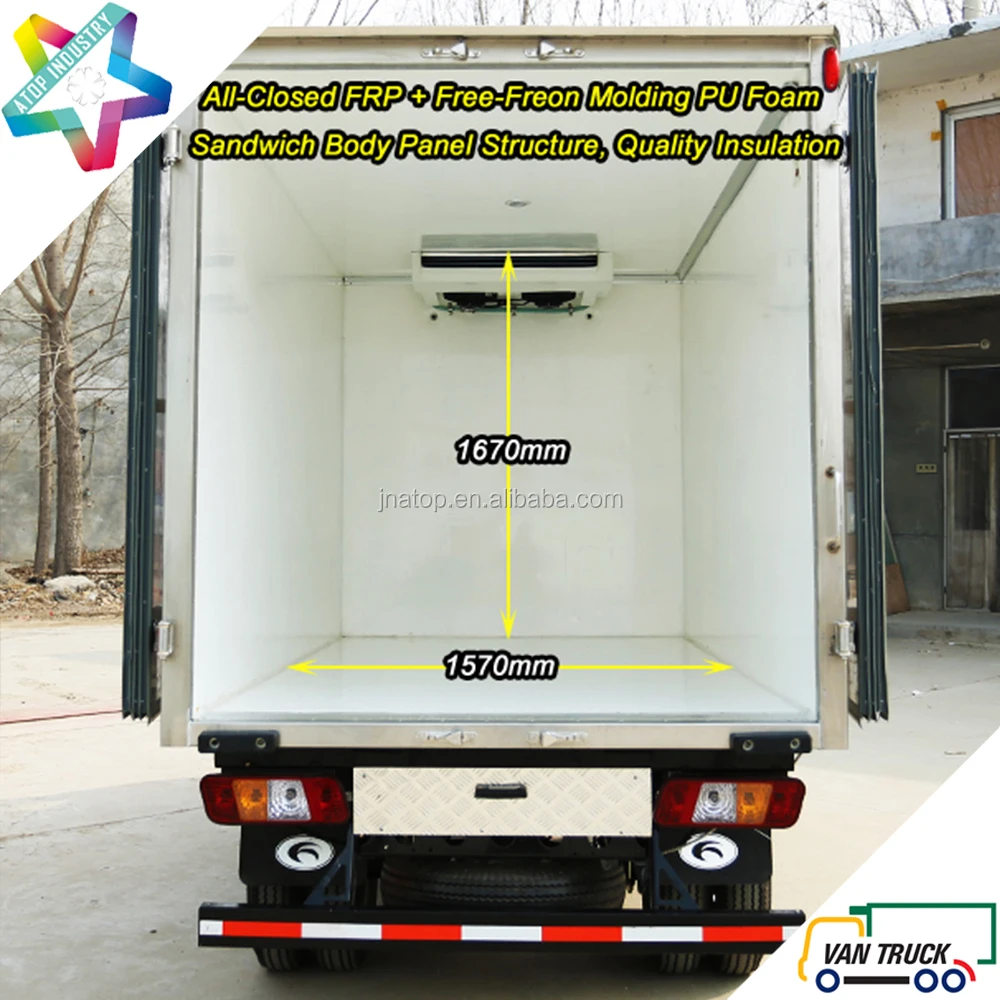

Truck Body Inner Size
\t
3.23m(L)x1.57m(W)x1.64m(H)
\t
Roof/Floor Panel
\t
105mm Thickness
\t
Side Wall Panel
\t
85mm Thickness
\t
Front Wall Panel
\t
85mm Thickness
\t
Rear Door Panel
\t
85mm Thickness
\t
Panel Structure
\t
All Closed Sandwich
\t
Panel Insulation
\t
FRP + PU Foam + FRP
\t
Side Door Quantity
\t
None truck body
\t
Side Door Location
\t
None reefer truck
\t
Side Door Type
\t
None truck body
\t
Side Door Size
\t
None reefer truck
\t

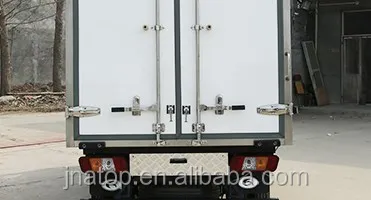

Rear Door Type
\t
Full Size Double Opening Rear Door, Right Hnad Rear Door Open First truck body
\t
Multi-Temperature System Type
\t

None, Optional reefer truck  truck body

\t
Truck Body Flooring
\t
FRP Reinforced Flooring For Pallet Trolley Operation truck body  reefer truck
\t
Cargo Control System
\t
None, Optional reefer truck truck body
\t
Ceiling Light
\t
2 (Two) Sets of 12/24V Multi-Voltage LED
\t
Marker Light
\t
2 Sets Of White LED On Front;
2 Sets Of Red LED On Rear
\t
Ceiling Light Switch
\t
1 (One) Set of Automatic Time-Delayed 12/24V Multi-Voltage Switch
\t
Insulating Curtain
\t
European Standard -40C PVC Strip Curtain System For Rear Doors
\t
Refrigeration Unit Service Ladder
\t
None, Optional reefer truck truck body
\t
Refrigeration Unit Service Platform
\t
None, Optional reefer truck truck body

White Color FRP Sheet Panel Skin reefer truck truck body

Full Size Double Opening Rear Door With Stainless Steel Lock Sets & Hinges reefer truck truck body

FRP Reinforced Flooring For Pallet Trolley Operation reefer truck truck body

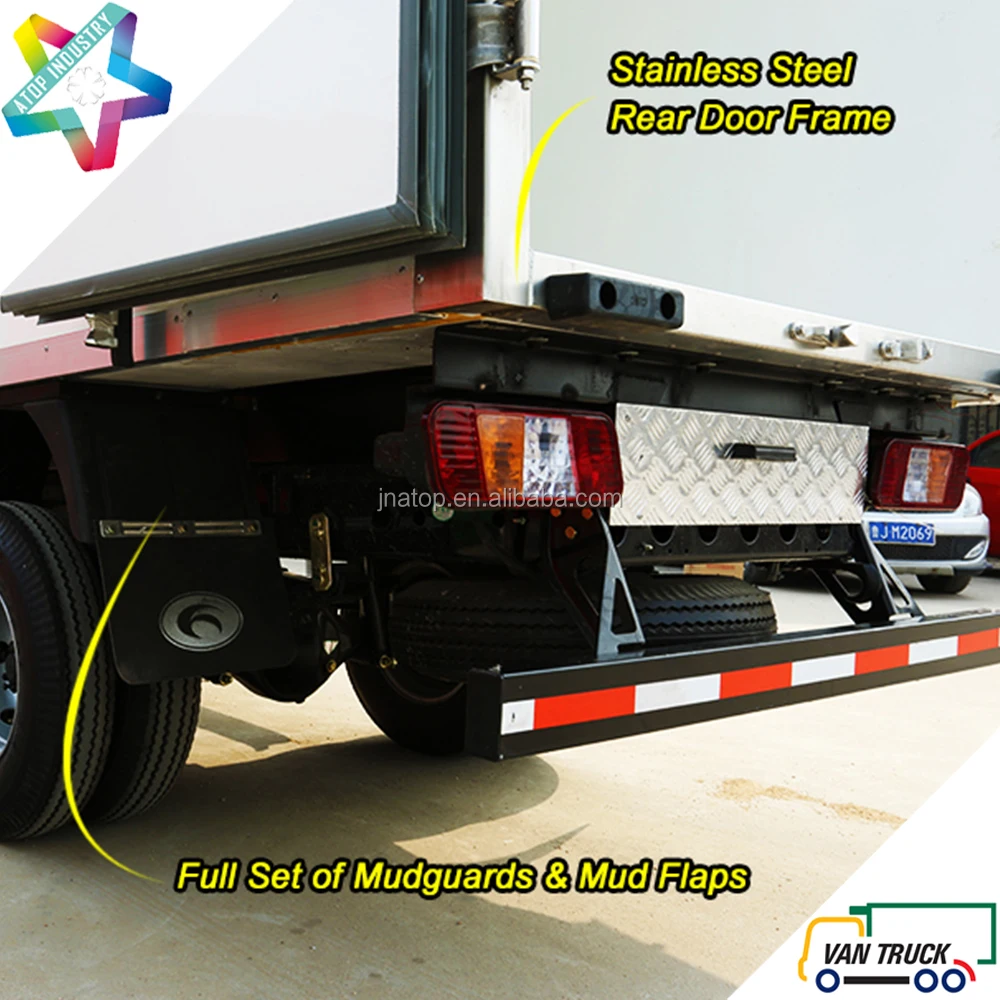

Stainless Steel Rear Door Frame With Rubber Bumper reefer truck

Anodized Aluminum Alloy Decoration Profiles reefer truck truck body

Refrigeration Unit
\t
Refrigeration Unit Brand
\t
Kingtec
\t
Refrigeration Unit Model
\t
S293E
\t
Refrigeration Unit Type
\t
Truck Engine Driven, Split
\t
Refrigerant
\t
HFC R404a
\t
Airflow Volume
\t
1380m3/h
\t
Refrigeration Capacity
(+30C Ambient/Road )
\t
1880W (@ -20C);
3320W (@ 0C)
\t
Refrigeration Capacity
(+30C Ambient/Standby)
\t
1255W (@ -20C);
1980W (@ 0C)
\t
Defrost
\t
Automatic Hot Gas
\t
Compressor
\t
Model/Type
\t
Swash plate with magnetic clutch
\t
Number of Cylinders
\t
6 reefer truck
\t
Displacement
\t
147cc reefer truck truck body
\t
Max. Recommended Speed
\t
3,000rpm

The road compressor is powered by the vehicles engine and while a second compressor is powered by an electric motor. reefer truck

It possible to use elecetric standby to drive the unit.The stand-by units are installed in the condensing units.

Powerful  evaporator provided 1380m3/h (810 cu ft/min) airflow volume

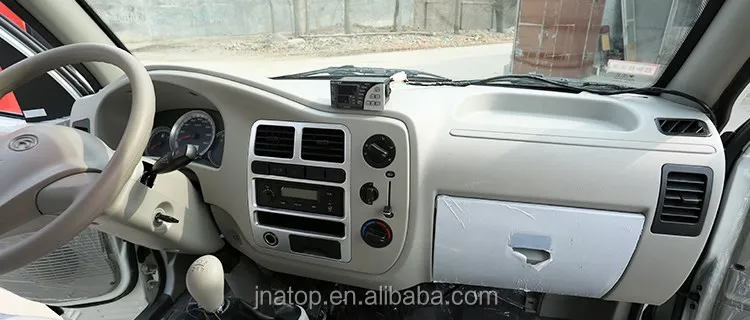

Smart in-cab control and wiring harness

Optional Items

Side Door

Customized size single opening side door

Cargo Control System

Smart & customized cargo Loading control system

Access Ladder

Foldable zinc-coated access ladder for side door and/or rear door.

Roll carts

Roll carts for rapid and efficient loading, delivery and unloading goods.

Multiple Temperature Partition

Multiple temperature purpose longitudinally moveable, insulated transverse partition wall.
