1550nm EDFA Optical Amplifier with Best EDFA Amplifier Price

Product Overview

Description



Huatai HA5100 series EDFA is a 1550nm EDFA Optical Amplifier with Best EDFA Amplifier Price . This kind of optical amplifier is designed for the application of single channel or 1~8 continuous ribbon channels (ITU wavelength). Generally, fiber CATV system operates in single wavelength that has no strict requirement on gain flatness. HA5100 booster amplifier is featured with low NF, high-saturated output power. It is applicable for central bureau, sub-bureau and line relay, as well as other optical communication network. HA5100 is applied most commonly and widely compared with other optical amplifier in CATV system.

Product features

1. 1540~1563nm operating wavelength


2. Low noise, high output, high reliability


3. APC, ACC, ATC controlled selection (HA5100/P)


4. Powerful RS232 supervisory instruction

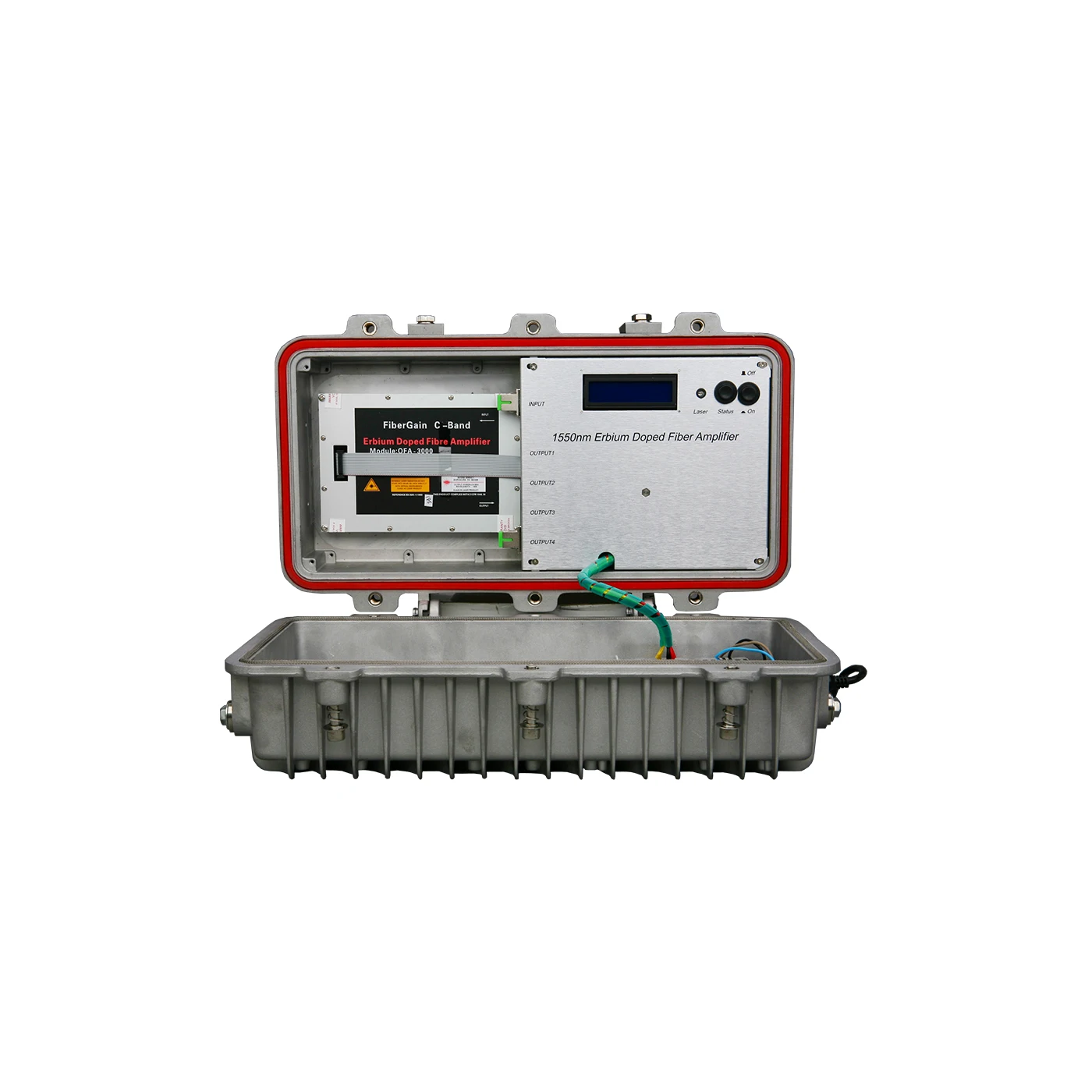

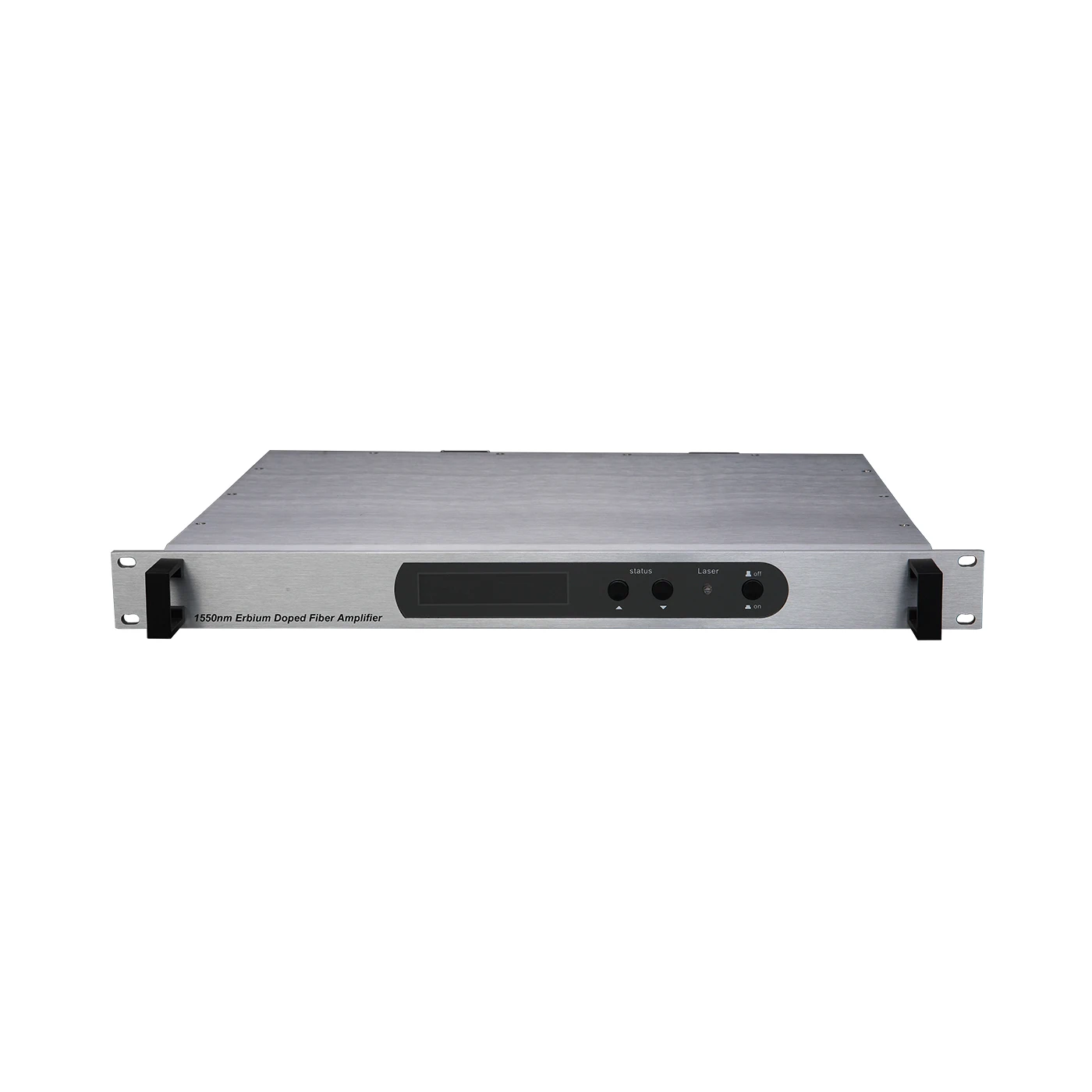

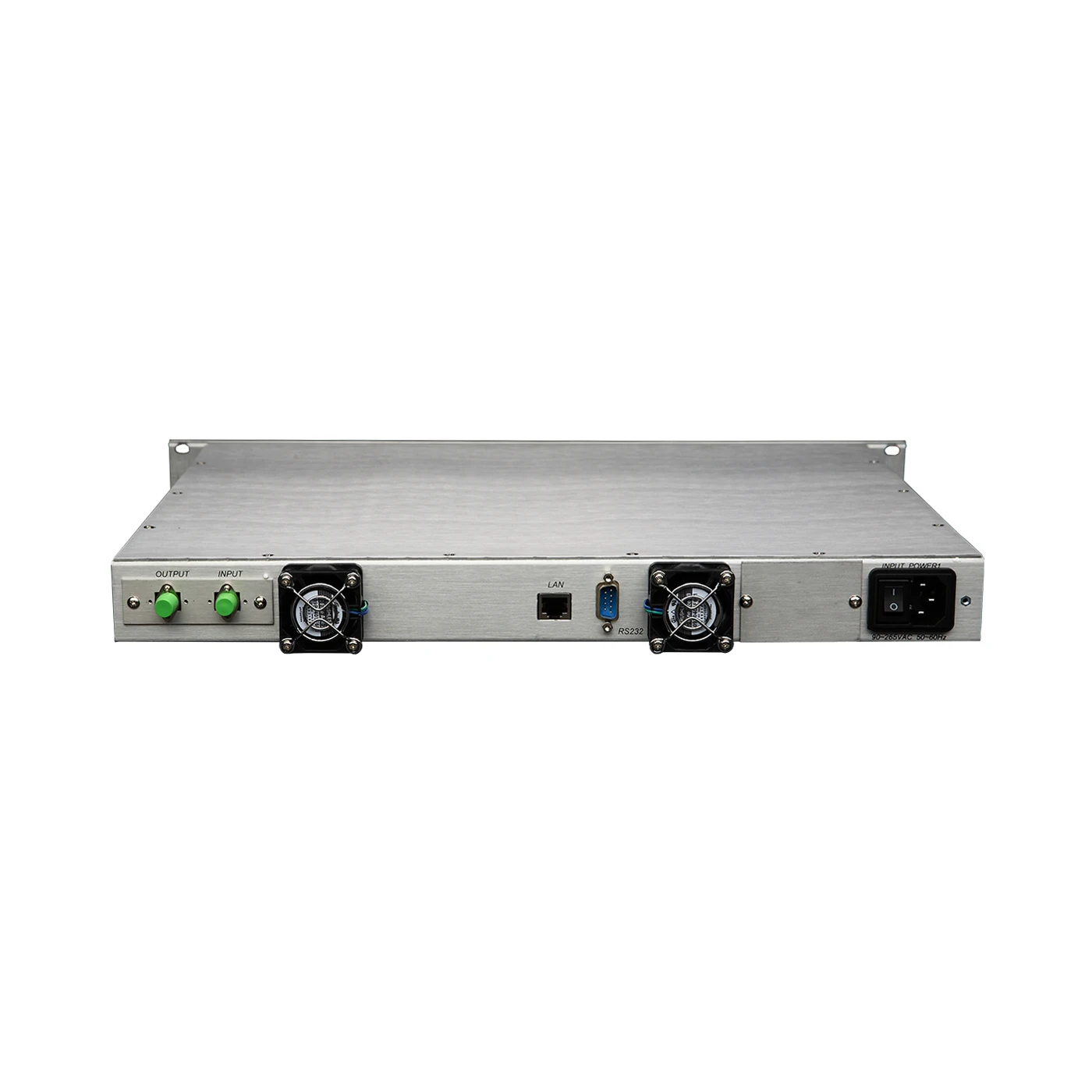

5. Three exterior option: 1U (19” stander), 3D (12.4”, 3U, Desk-type) and modulator


6. 1U and 3D exterior, offering status appearance and diagnosing fault with LCD, standard RS232 communication interface, SNMP network management function


7. Application of 3D models to adapt to laboratory


8. Excellent P/P ratio



Application

• AM CATV


• Digital CATV


• DBS & MMDS


• FTTP


• FTTx PON


• Laboratory application



Technical Index

Performance			Index			Supplement
			Min	Typ	Max
Optic feature	Operation Wavelength range(λ)	(nm)	1540		1563	CATV
	Input power	(dBm)	-10		+10
	Maximim output power1)	(dBm)	+10		+26	Pin=0dBm
	Output power adjustable range	(dBm)	-6		0	HA5100/P
	Number of output ports		1		8	SC/APC
			1		16	LC/APC
	Difference of each output power	(dB)	-0.5		+0.5
	Noise figure (Pin=0dBm)	(dB)			6.3	HA5126
	Polarization dependence loss	(dB)			0.3
	Polarization dependence gain	(dB)			0.3
	Polarization mode dispersion	(ps)			0.3
	Input/output isolation	(dB)	30
	Pump power leakage	(dBm)			-30
	Echo loss	(dB)	55			APC
General feature	SNMP network management interface		RJ45
	Communication interface		RS232
	Power supply	(V)	90		265	220VAC
			30		72	-48VDC
			23		25	+24VDC
	Power Consume	(W)			50
	Work temp.	(℃)	-5		65
	Storage temp.	(℃)	-40		80
	Operating relative humidity	(%)	5		95
	Size (W)×(D)×(H)	(mm)	19×14.5×1.75 ( " ) 483×368×44 ( mm )			1RU (19”)
			12.4×15.4×5.25 ( " ) 315×391×133 ( mm )			3D (12.4”, desk-type)
			15.7×9.6×6.5 ( " ) 399×244×165 ( mm )			Out-door



Remark: 1. Output power can be customized by user.
