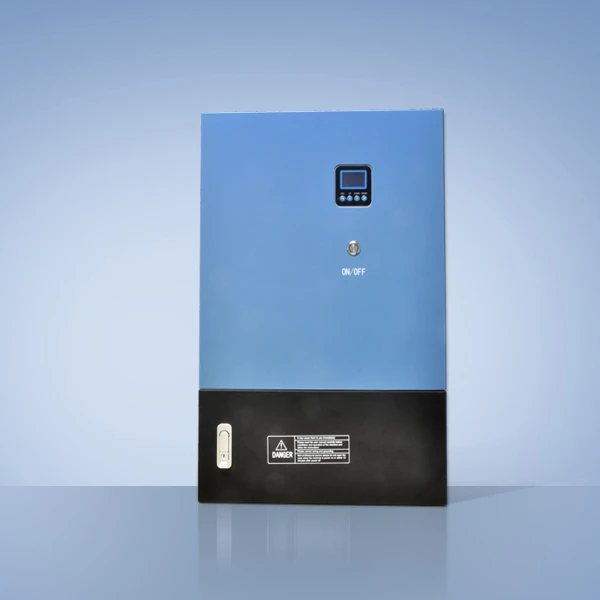

Three phase AC pump 45kw Fully Automatic Operation Solar Pump Inverter Pumping System
- Category: >>>
- Supplier: Shenzhen Hober Technology Electronics Ltd.
Share on (60459734530):
Product Overview
Description
Solar Pump Inverter Specifications
Model | HSPH45KH | ||
Solar Panel DC Input | Max Voc Voltage | 780V | |
Min Vmp Voltage | 400V | ||
Recommend Vmp Voltage | ≥500V (Only Solar), ≥560 V (Hybrid Power) | ||
Max MPPT Efficiency | 99% | ||
Max Input Current | 135 A | ||
Number Of Strings | 1 | ||
Over load Power | 67.5KW | ||
Note | Automatic. MPPT Function to Identify the Voc and Vmp of Solar Panel,without programming | ||
Hybrid AC/Generator Input | Voltage | 3 Phase 380/400/440V | |
Max Input Current | 103 A | ||
Hybrid Mode | Automatic. AC supplement automatic while solar is in low power mode and AC disconnect automatic while solar power recovery | ||
AC Output (For Pump, Rerator, Fan Parameters) | Max Adapted AC Pump Horse Power | 60 HP | |
Max Adapted AC Pump Power | 45KW | ||
Drive Mode | 3Phase Variable Frequency Drive | ||
Max Output voltage | 380/400/440V | ||
Max Output frequency | 50 ~ 60 Hz (support program range 15 to 60Hz) | ||
Max Output Current | 142.5 A | ||
Max Efficiency | 97% | ||
Water Level Sensor(Borehole / Tank) | Yes | ||
GPRS SMS Monitor&Controller | YES(Optional) | ||
Support Remote Monitoring & Control System (SPMCS) | YES(Optional) | ||

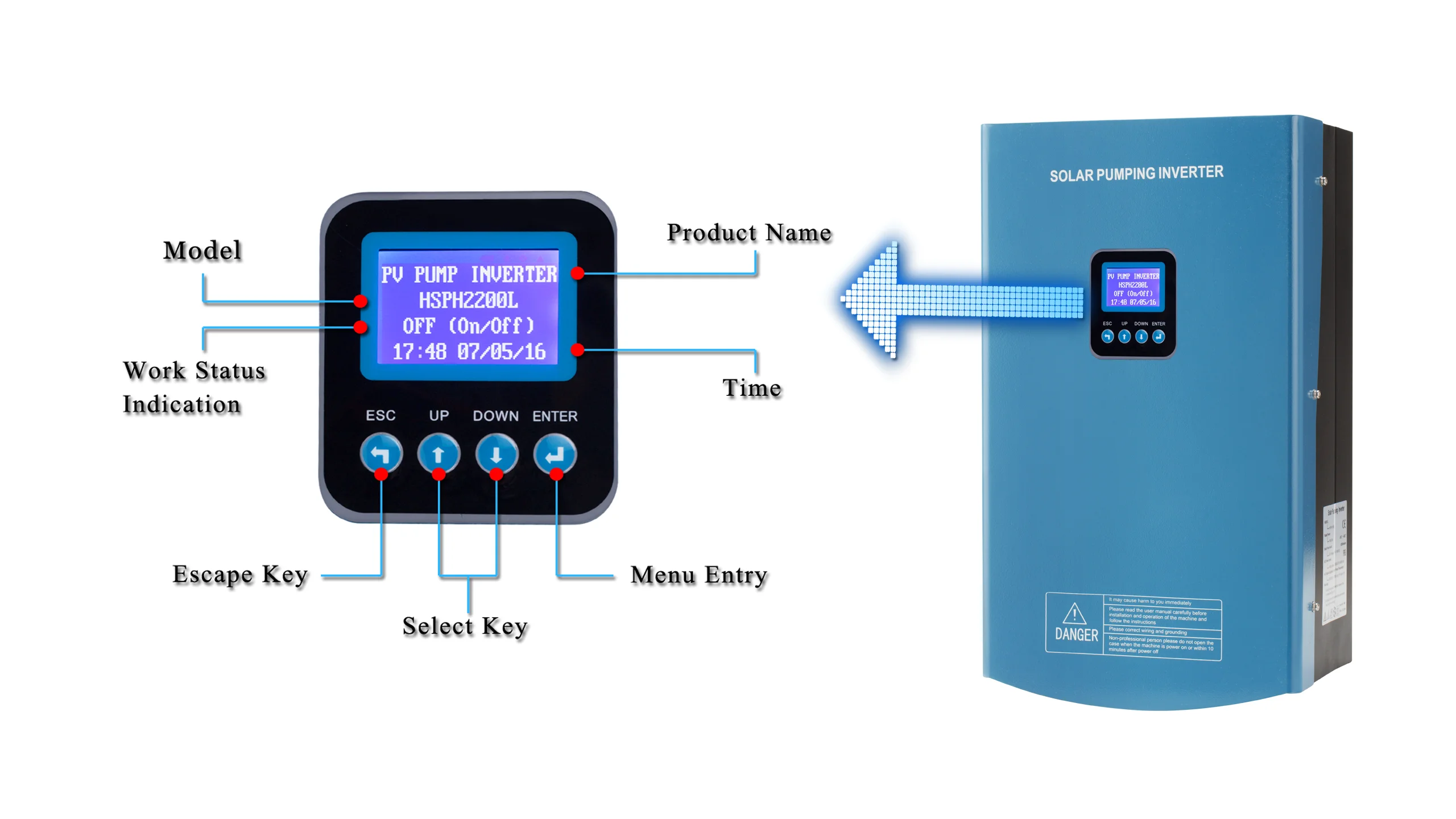

Display | LCD display | ||
Waterproof | IP21 | ||
Noise | < 75dB | ||
Cooling Method | Force Cooling by Fan | ||
Operating Enviornment | Operating Environment Temperature | -10 to 60℃, Above 60℃ need to derate load | |
Max Humidity | 95%RH | ||
Using Altitude | < 3000m, Above 3000m need to derate load | ||
Others | Prohibiting the installation location: direct sunlight, thick dust, corrosive gas or oil mist, flammable gas, liquid.etc | ||

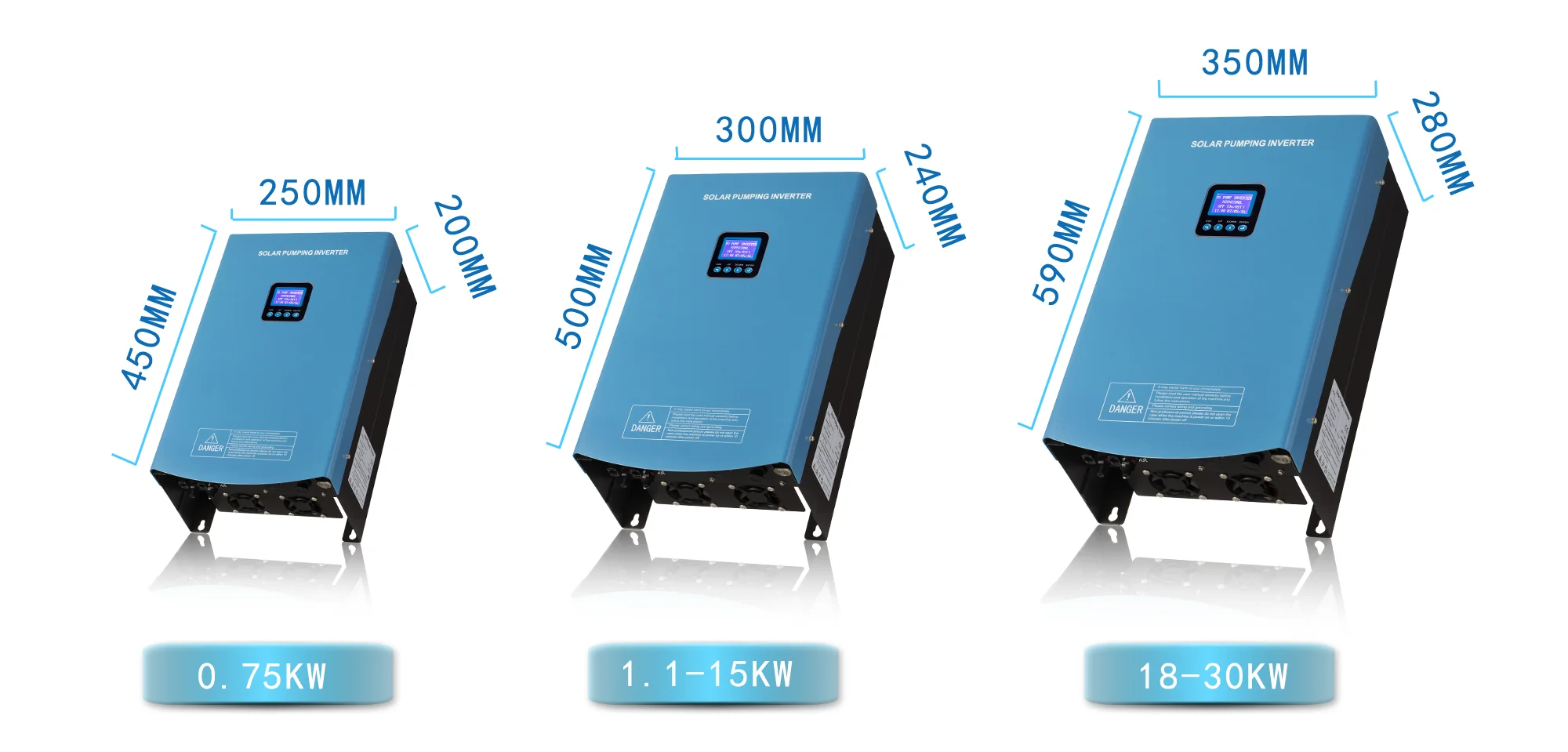

Package | Size | 760*480*450 MM | |
Weight | 52KG | ||

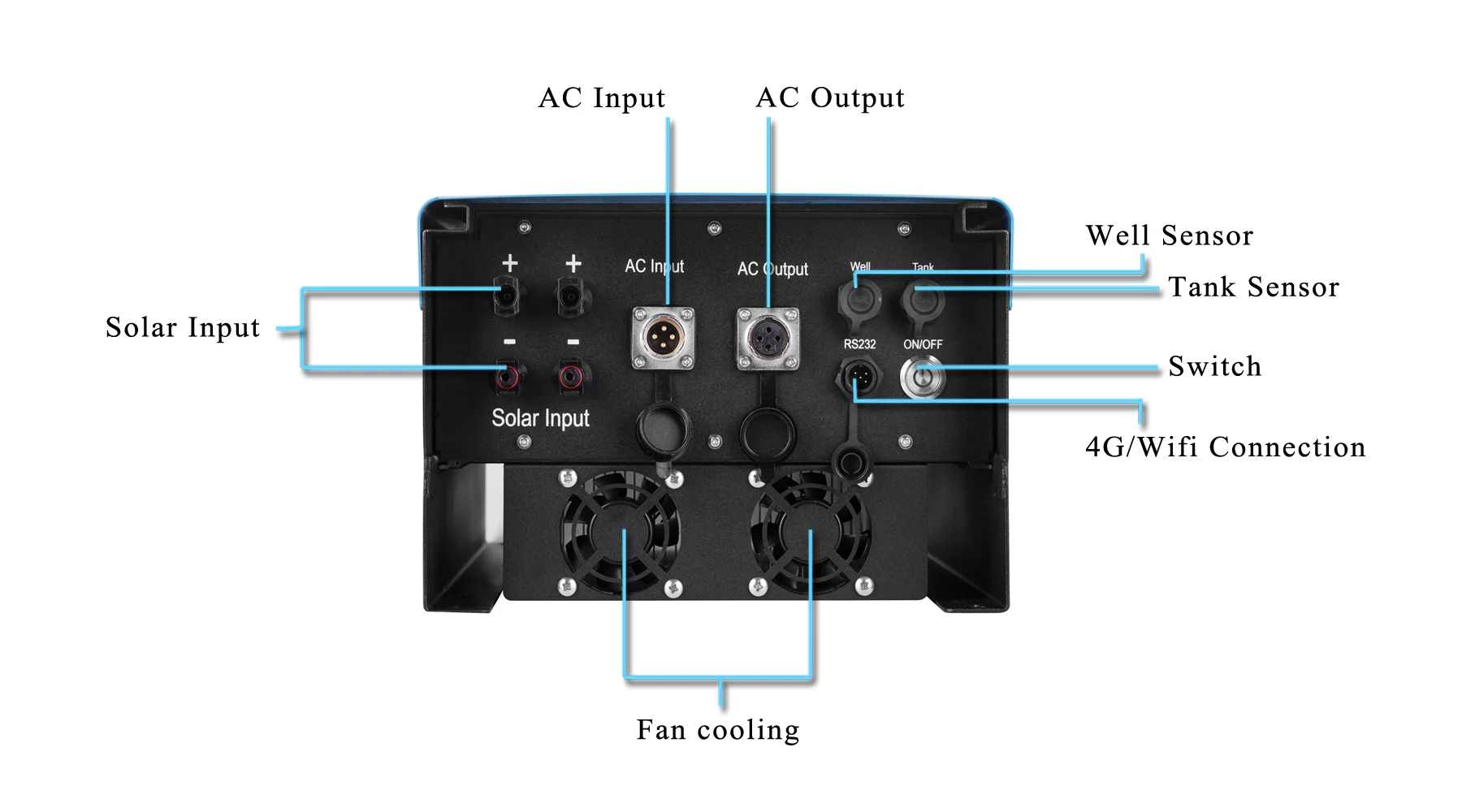

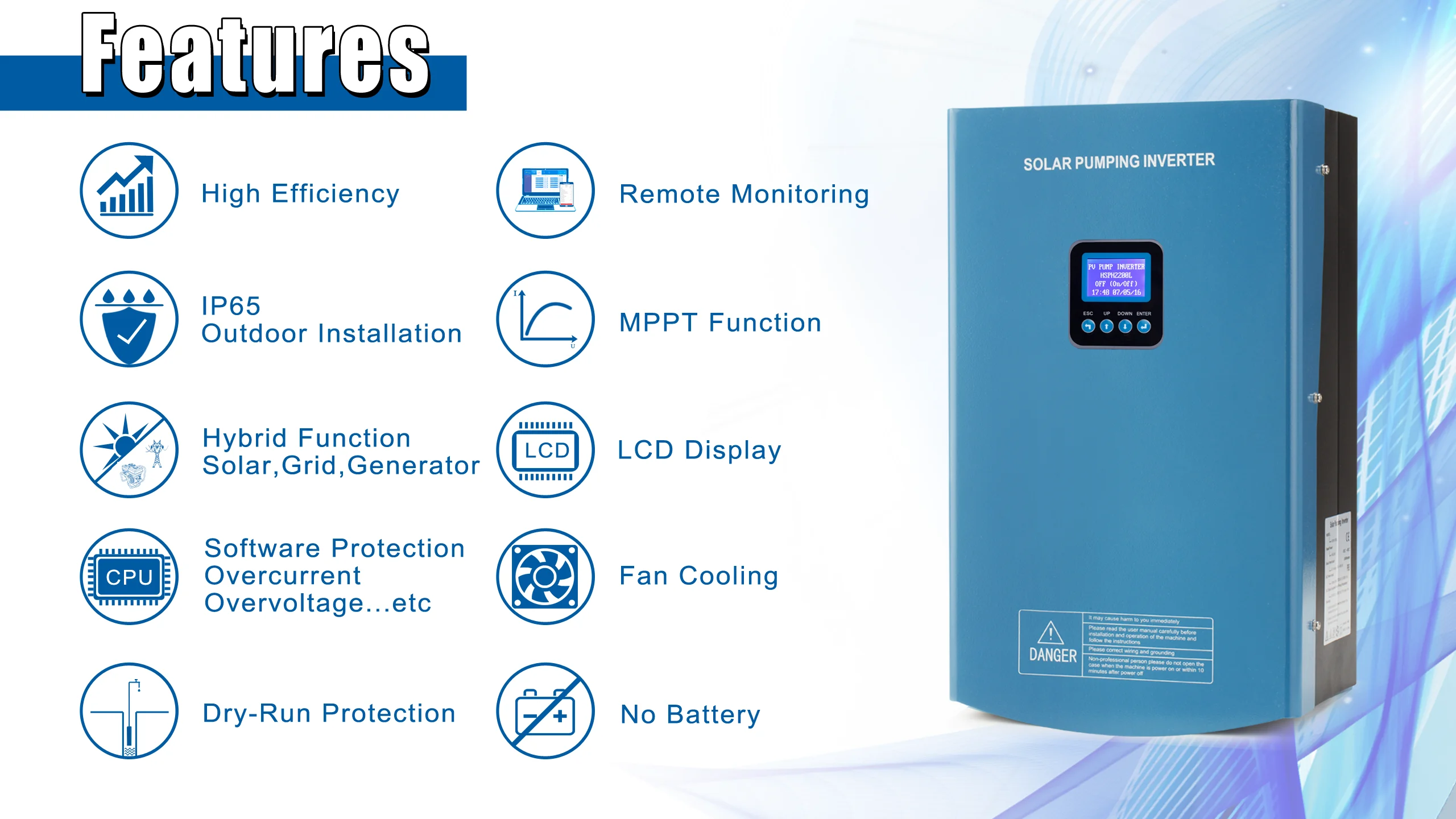

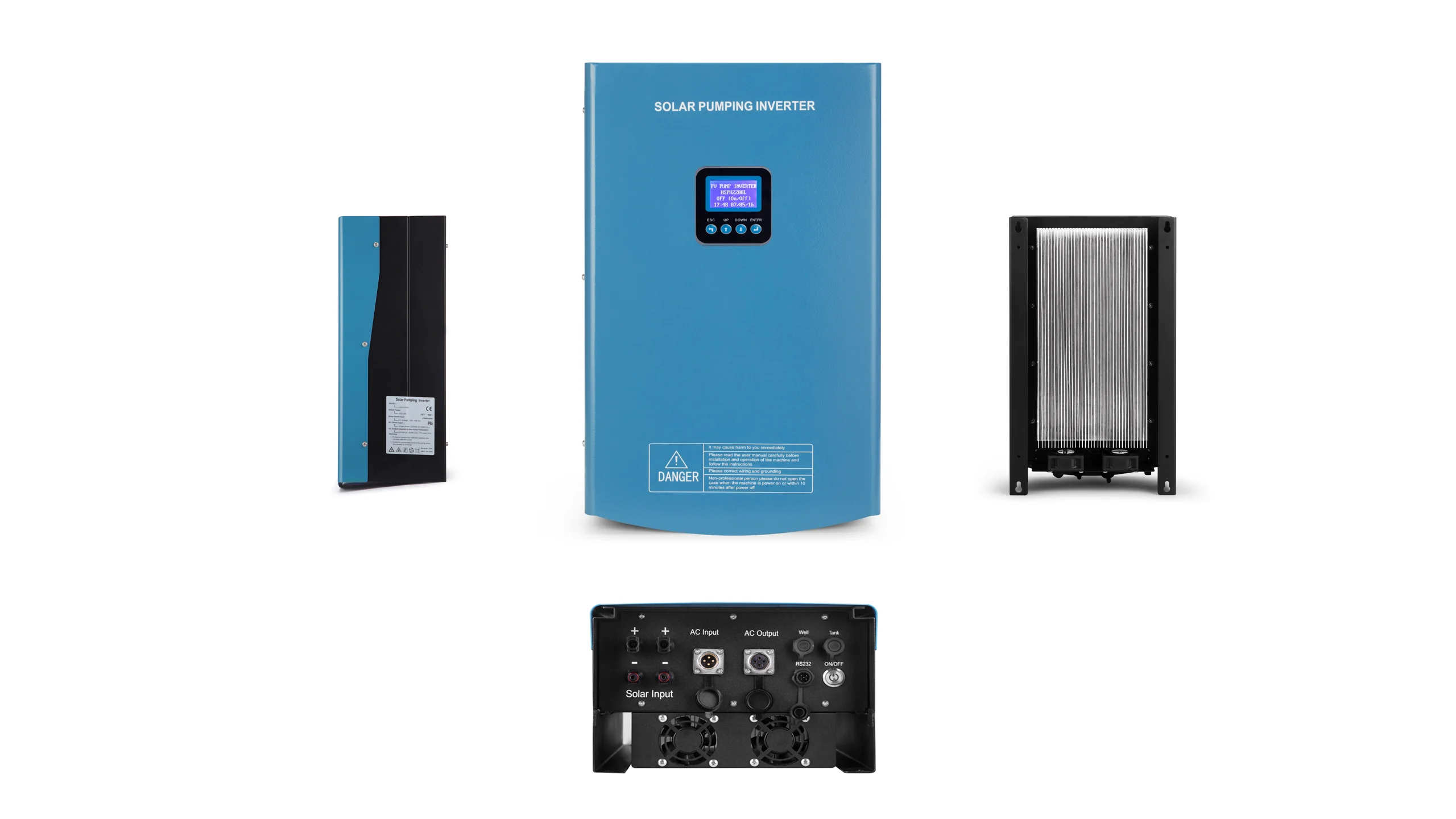

Solar Pump Inverter Description
Your Order are safer with Alibaba Trade Assurance
> On-time shipemnt and pre-shipment product quality safeguards
> Refund up to the covered amount agree with us
> Our Trade Assurance Limit: US $33,000

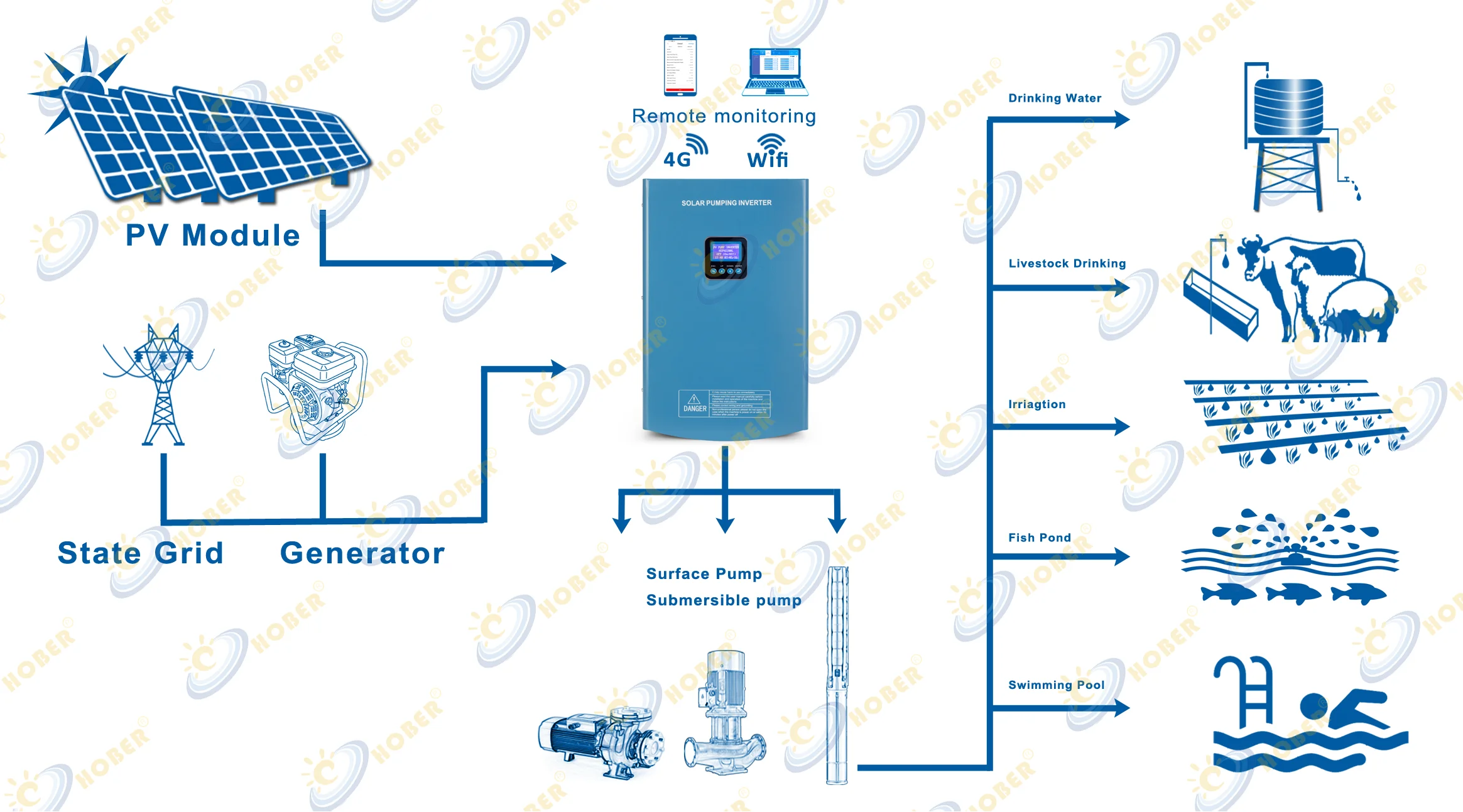

Product Application
Company Profile
FAQ
Q1: Are you trading company or manufacturer?
Q4 : How about the delivery time?
3-5 days for sample order;7-15 days for bulk order.
We are a professional manufacturer in China and we provide OEM service
Q2:What is the warranty of inverter?
Standard warranty for 2 years and can be extended to 5 years
Standard warranty for 2 years and can be extended to 5 years
Q3:What is your main market?
Our brands are well known in Africa, Middle East, Southeast Asia and South America.
Our brands are well known in Africa, Middle East, Southeast Asia and South America.
Q4 : How about the delivery time?
3-5 days for sample order;7-15 days for bulk order.
Q5 : What's your payment terms for sample?
We accept T/T, Western Union, Paypal, Ali online payment...etc
