SEWO Bi directional 304 Stainless Steel Full Automatic Access Control Swing Barrier Gate
- Category: Gates >>>
- Supplier: Shenzhen Sewo Science & Technology Co. Ltd.
Share on (60459909278):
Product Overview
Description
Product Description

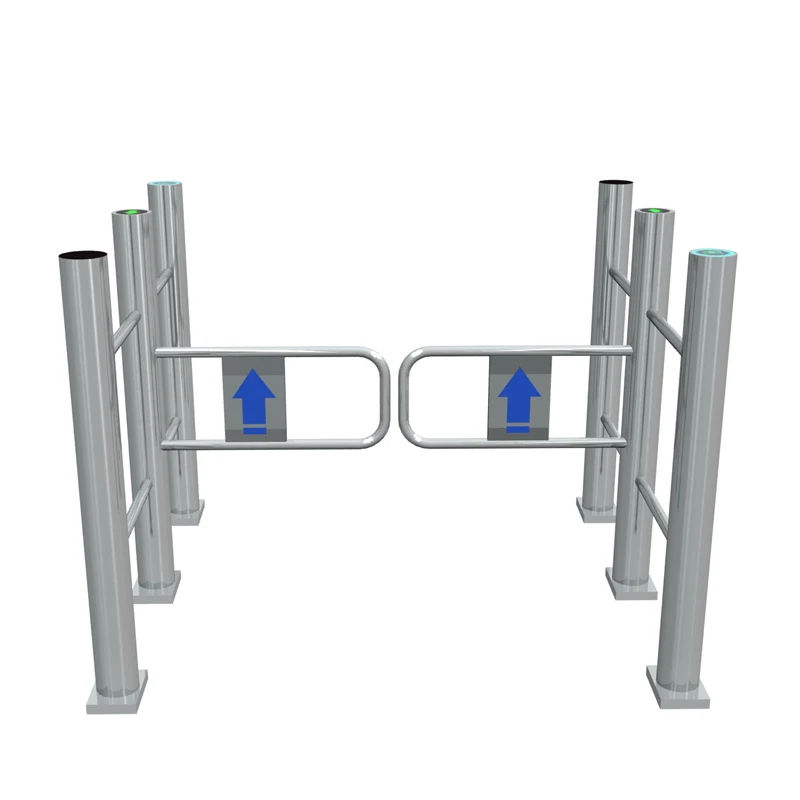

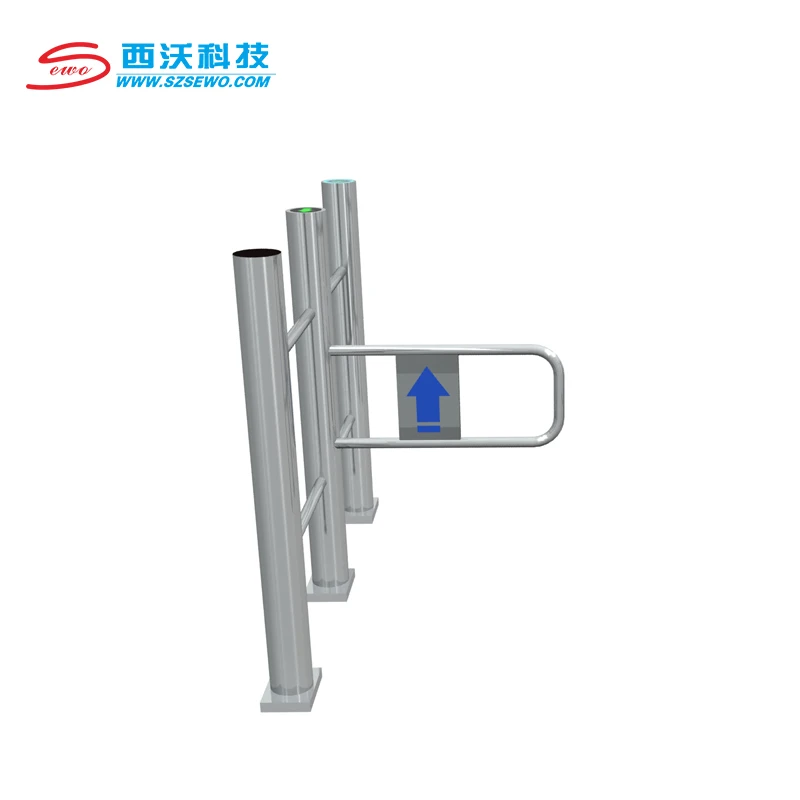

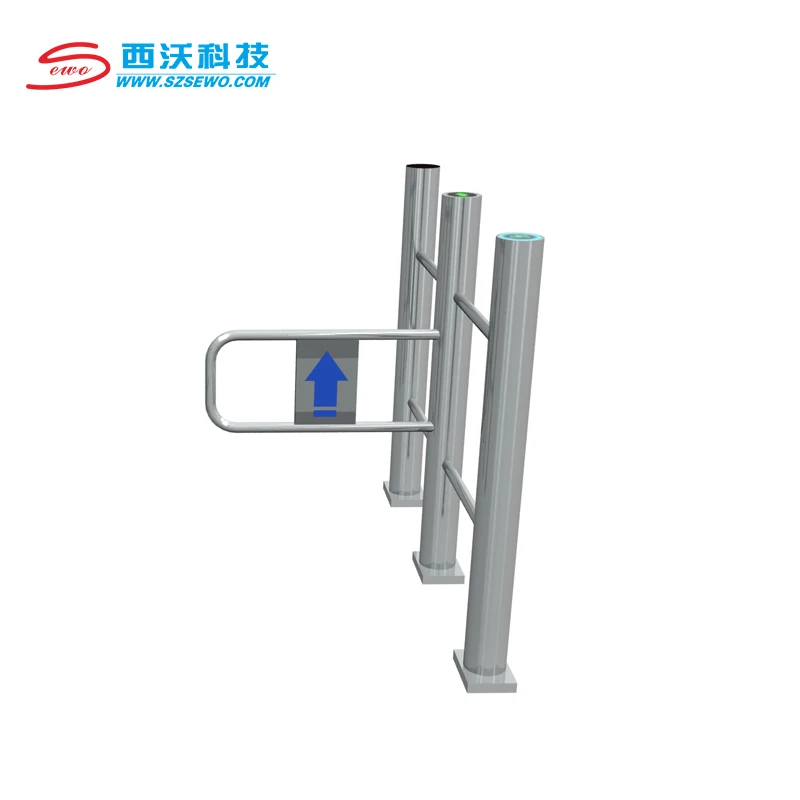

SEWO Bi-directional 304 Stainless Steel Full Automatic Access Control Swing Barrier Gate
1, SEWO-5311 series Cylinder Swing Barrier Gate was specifically designed for persons with disabilities. It has an innovative design to enable quicker and easier passage and to fit into tight spaces. Its cabinet was designed to withstand the impact of wheel chairs and carts. It can be for one-way and two-way, pedestrian traffic control. Operation in either a 1 X 90° Or 2 X 90° Bi-directional mode. These gates are also used to complement our turnstile and optical turnstiles especially where passage of larger items is required. With an opening of up to 900mm, items such as wheelchairs, trolleys and oversized packages are easily accommodated.

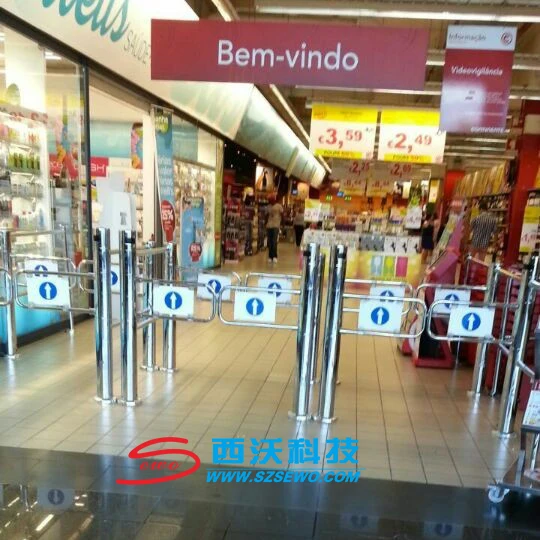

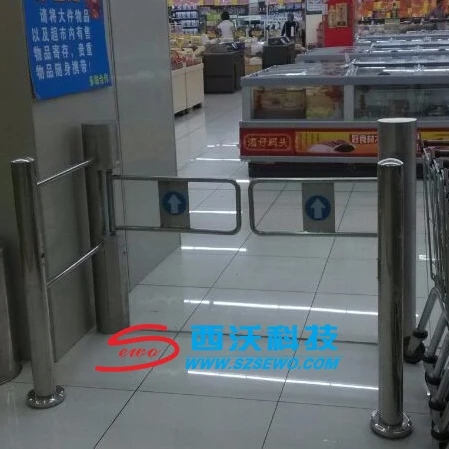

2. Cylinder swing Barrier Gate is suitable for both indoor and outdoor(tent). It could be wildly used in the place where intelligentized management is needed such as station, port, subway, factory, mansion, intelligent community, hotel, club, marketplace, enterprise and institution etc.
Advanced Features:
turnstiles are mainly used in parks, subway, customers, airport, bus station, office building, scenic spot, community, attractions, and exhibition hall doors, residential, Construction Sites, Industrial Plants, Marquee Golf Tournaments, State Fairs, Special Sporting Events and Festivals!
1. Compact appearance,adapt to varied situation(no install place for card reader ), Reliable and durable, low noise and stable operation;
2. Standard electrical interface, various card reader acceptal to our swing gate & can be controlled by computer, Single/Double Directional Optional which can be controlled by both ways or single way;
3. When power off, the gate will be dropped down (optional set free passage when power off) to the request of fire protection, and automatically closes when power on;
4. Surface of mechanical electroplated with yellow dichromic acid, antirust and durable;
5. The swing gate installed Infrared sensor interfaces, could be expanded to Infrared testing function.
6. The horizontal bi-directional movement of the arm allows patrons to pass smoothly through the ADA swing gates, prevent pedestrians from being nipped and from being hurt;
7. Breakdown Self-checking and alarm indication, easy for maintenance and using;
8. The motor will stop working in case of the swing encounter of obstruct;
9. The swing gate arm will lock in case of not receving the open signal;
10. Arms synchronization. (adjustable): Arms are automatically locked until opening signal is received;
11. Anti illegal entering alarm: Light and sound alarm is generated when the illegal invasion and the tail followed;
12. Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the channel in the pre-set time after the opening. The passing time is adjustable;
2. Standard electrical interface, various card reader acceptal to our swing gate & can be controlled by computer, Single/Double Directional Optional which can be controlled by both ways or single way;
3. When power off, the gate will be dropped down (optional set free passage when power off) to the request of fire protection, and automatically closes when power on;
4. Surface of mechanical electroplated with yellow dichromic acid, antirust and durable;
5. The swing gate installed Infrared sensor interfaces, could be expanded to Infrared testing function.
6. The horizontal bi-directional movement of the arm allows patrons to pass smoothly through the ADA swing gates, prevent pedestrians from being nipped and from being hurt;
7. Breakdown Self-checking and alarm indication, easy for maintenance and using;
8. The motor will stop working in case of the swing encounter of obstruct;
9. The swing gate arm will lock in case of not receving the open signal;
10. Arms synchronization. (adjustable): Arms are automatically locked until opening signal is received;
11. Anti illegal entering alarm: Light and sound alarm is generated when the illegal invasion and the tail followed;
12. Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the channel in the pre-set time after the opening. The passing time is adjustable;
Specification
Model | Different Arm Size For Single Pole Barrier Gate |
Housing Dimension | 1200L*280W*980H(MM) |
Housing Material | 202 or 304 grade stainless steel optional |
Passing speed | 30 person/min |
Working Voltage | AC220V±10V, 50HZ |
Net Weight | 90KG |
Gross Weight | 100KG |
Motor voltage | 220V |
Rated Power | 80W |
Control type | IC/ID/Barcode control |
Transmission | Sine Linkage |
Boom length | ≤700mm |
Frequency | 50~60Hz |
Logic voltage | 24v |
Working temperature | -30°C--+70°C |
Working mode | one directional |
Operating humidity | ≤90% non-condensing |
Communication Interface | RS485/RS232 |
Operation life | ≥5 million times |
Quality Assurance
Company Profile
Shenzhen Sewo Science & Technology Co., Ltd.
Shenzhen Sewo Technology Ltd. Is a professional high-tech enterprise, which integrates the development, manufacturing, marketing , and service of Smart Parking Management System, Flap Barrier, Tripod Turnstile, Swing Gate, Parking Guidance System, Barrier Gate, Parking Lock, Access Control Systems and other related security products.
Our company pays much attention to bringing and developing new technique and products since the foundation in 2003. Our brand “SEWO” has also ranked among the top 10 famous brands of car parking systems and facilities in China. With nearly ten years to steady development, our R &D team has strong capacity to be committed to continuously creating high quality products and service. With the first-class production equipment, technical quality and service, we won the trust of customers and the market recognition. Our products have been well used by customers from enterprise institutions, infrastructure enterprises, government institutions, transportation enterprise, housing districts, commercial organizations,etc.
With our exquisite technology and strict quality testing system, we passed “CE” and “ ISO9001:2008” international quality assessment standards. We have established many branch offices and gained much agents at home. Our sales and service network spreads all over the world. We also have extensive sales channels in Southeast Asia, the Middle East, Africa, Europe, and America.
With our belief of “Sincerity is essence of enterprise; High quality is the way of existence”, we will keep on endeavoring to make cost-effective intelligent parking system products in China. We warmly welcome customers or agents all over the world to join us to construct an intelligent , safe, convenient and harmonious society.
Our company pays much attention to bringing and developing new technique and products since the foundation in 2003. Our brand “SEWO” has also ranked among the top 10 famous brands of car parking systems and facilities in China. With nearly ten years to steady development, our R &D team has strong capacity to be committed to continuously creating high quality products and service. With the first-class production equipment, technical quality and service, we won the trust of customers and the market recognition. Our products have been well used by customers from enterprise institutions, infrastructure enterprises, government institutions, transportation enterprise, housing districts, commercial organizations,etc.
With our exquisite technology and strict quality testing system, we passed “CE” and “ ISO9001:2008” international quality assessment standards. We have established many branch offices and gained much agents at home. Our sales and service network spreads all over the world. We also have extensive sales channels in Southeast Asia, the Middle East, Africa, Europe, and America.
With our belief of “Sincerity is essence of enterprise; High quality is the way of existence”, we will keep on endeavoring to make cost-effective intelligent parking system products in China. We warmly welcome customers or agents all over the world to join us to construct an intelligent , safe, convenient and harmonious society.
FAQ
1, What is the strength of your company in this industry?
Our company pays much attention to bringing and developing new technique and products since the foundation in 2003. Our brand “SEWO” has ranked among the top 10 famous brands of car parking systems and facilities in China.
2, What is the advantage products of your company?
Shenzhen Sewo Technology Ltd. Is a professional high-tech enterprise, which integrates the development, manufacturing, marketing , and service of Smart Parking Management System, Flap Barrier, Tripod Turnstile, Swing Gate, Parking Guidance System, Barrier Gate, Parking Lock, Access Control Systems and other related security products.
3, How about the quality of your product?
With our exquisite technology and strict quality testing system, we passed “CE” and “ISO9001:2008” international quality assessment standards. Our company also has won many honors,such as “China Top 10 Parking Management System Supplier”, “AAA grade quality, service and prestige enterprise in China”, and so on. Professional R&D team has strong capacity to be committed to continuously creating high quality products and service.
4, How about some customization request?
We support OEM / ODM service , more than 20 years industry experience will bring appropriate design for you, no only products, but also a smart access management solution expert.
5, Do you have agency for after-sales service?
Any question about products , you can find our sales anytime. We will provide life-time technology support. We have established many branch offices and gained much agents at home. Our sales and service network spreads all over the world. We also have extensive sales channels in Southeast Asia, the Middle East, Africa, Europe, and America. We warmly welcome customers or agents all over the world to join us to construct an intelligent , safe, convenient and harmonious society.
6, How about the delivery time?
Regular products need 5-10 working days.
Usually the customized products need 15-20 working days, actual delivery time according to your product request.
Usually the customized products need 15-20 working days, actual delivery time according to your product request.
