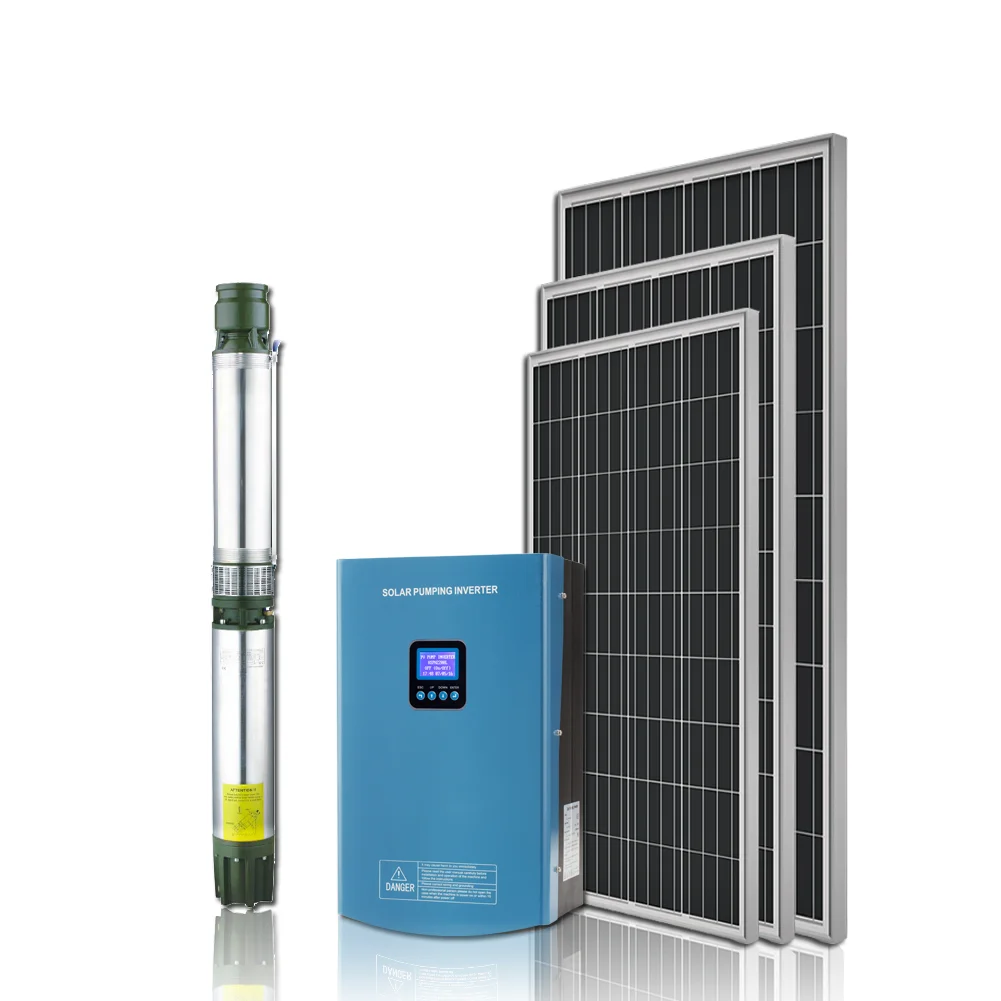

Solar water Pumping System is consist of PV panel,pumping inverter/controller,AC/DC pump .
Solar Pump Inverter are conver the DC power of the PV array to 3ph-AC power
and drives the pump,according to the power of PV array output,regulates output frequency and let PV output max power at all time.
Product Introduction
Product Advantage:
Hybrid(Solar,AC Power,Battery,Diesel generator)
Automatic switching
MPPT MEPT function
Solar Booster for saving solar panels
Metal Shell,Waterproof IP65
Setting working time,Control the flow
Film capacitor 100000 working hours
Work with any 3 phase pump
Features:
1.Convert the DC power of solar array into AC power to the water pump.Soft start and Variable Frequence drive the pump.
2.Second Generation of MPPT Function:Automatic /don't need set MPPT voltage by LCD/LED.Efficiency is Max to 30% higher than the inverter who need to set the MPPT Voltage,more output water flow.
3.One key for startup/Stop,support to adjust the output water flow also.
4.Without battery,storing water is more efficient than storing electricity,reduce the cost of constrution,operating and routine maintenance
dry run protection by software/Well sensor,waterpfoof.
6.water level detactive of tank for over flow,Optional of pressure sensor for long
distance between the well and tank.
7.Mobile phone control or computer remote monitoring through RS485/GPRS/wifi/Ethernet(optional)

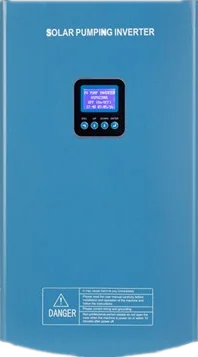

Solar Pump Inverter Parameters
Model
HSPH2200H
DC Input
Rated Power(W)
2200W
Min DC Input Voltage(V)
460V
Max DC Input Voltage(V)
750V
Rated Power of DC Input
Voltage Request(V)
500-750V
AC Output
Rated Power AC
Voltage(V) 3 phase
380V
Rated Power AC
Current(A)
7.2A
Inverter efficiency
99%
Output frequency(Hz)
0~50/60
Others
Water Level Sensor (Water of Well)
Yes
Water Level Sensor(Water of tank)
Yes
AC Switcher
Optional
GPRS Monitor &Controller
Optional
Protection type
IP65 DC input Low/Over Voltage
DC Input Anti-Reverse
Output overload,Output short circuit
Over temperature
Sensor of Water Empty/Full
Lighting
Operation Limit
Noise(1 m)
<50dB
Operation environment temperature
-10 to 60Degree
Humidity
15%-+95%RH
Using altitude(m)
<4000Altitude higher than 1000m pls consider to use less loads
Others
Prohibiting the installation location:direct sunlight,thicking dust,corrosive gas or oil mist,flammable.etc
Adapted Pump
Support Pump's HP
≤3HP
Rated Power(W)
≤2200W
Rated Frequency(Hz)
0~50/60
Rated Voltage
AC-380V-3 phase
Project and Product Application
Company Information
Certifications
Our Services
1,-Global leading professional inverter manufacturer
2,-Perfect product quality:100% full bum-in test
3,-Test report:CE,RoHS,UL,ISO9001-2008
4,-Monthly production capaciy:1,000 pcs

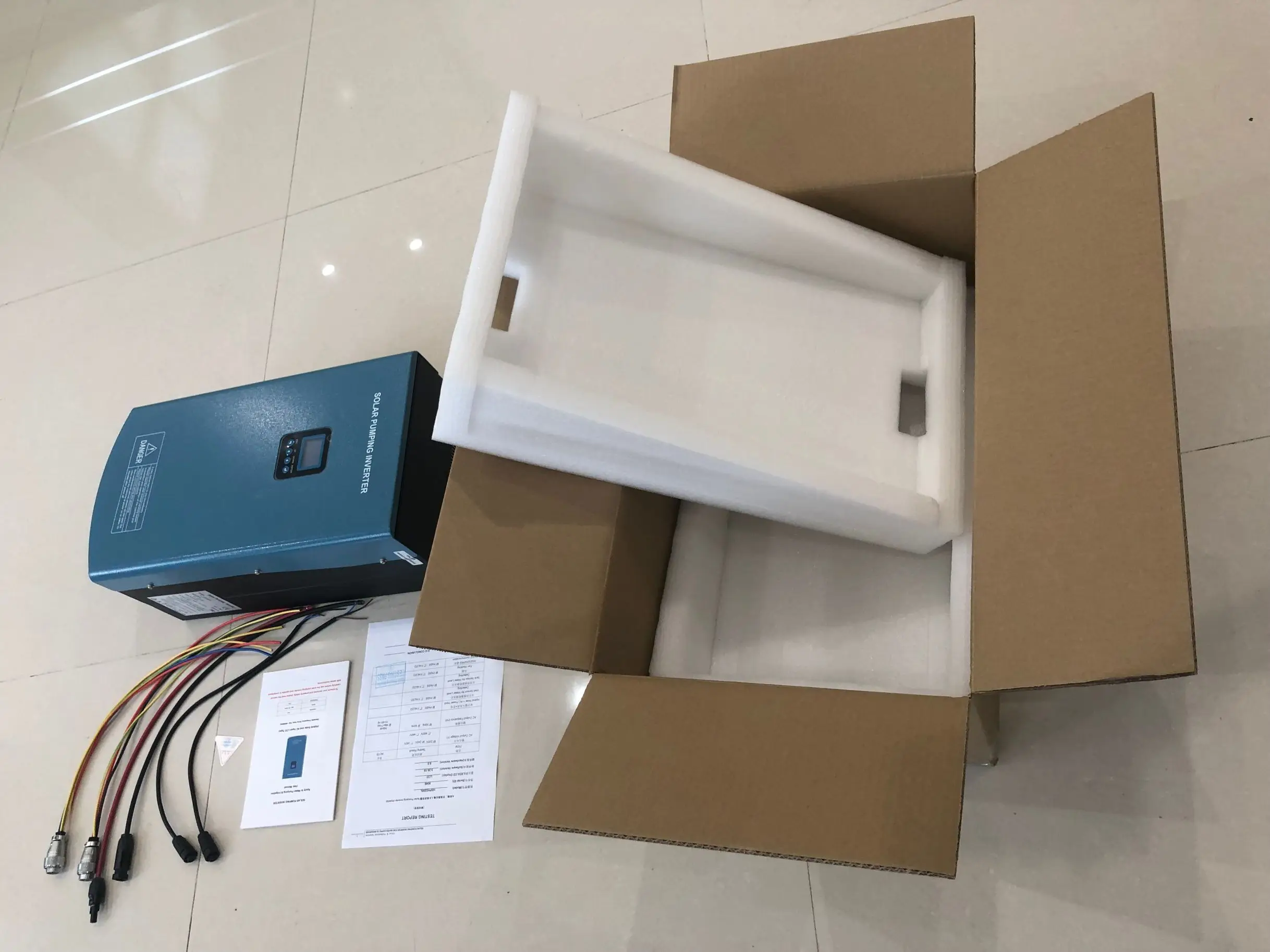

Packaging & Shipping
