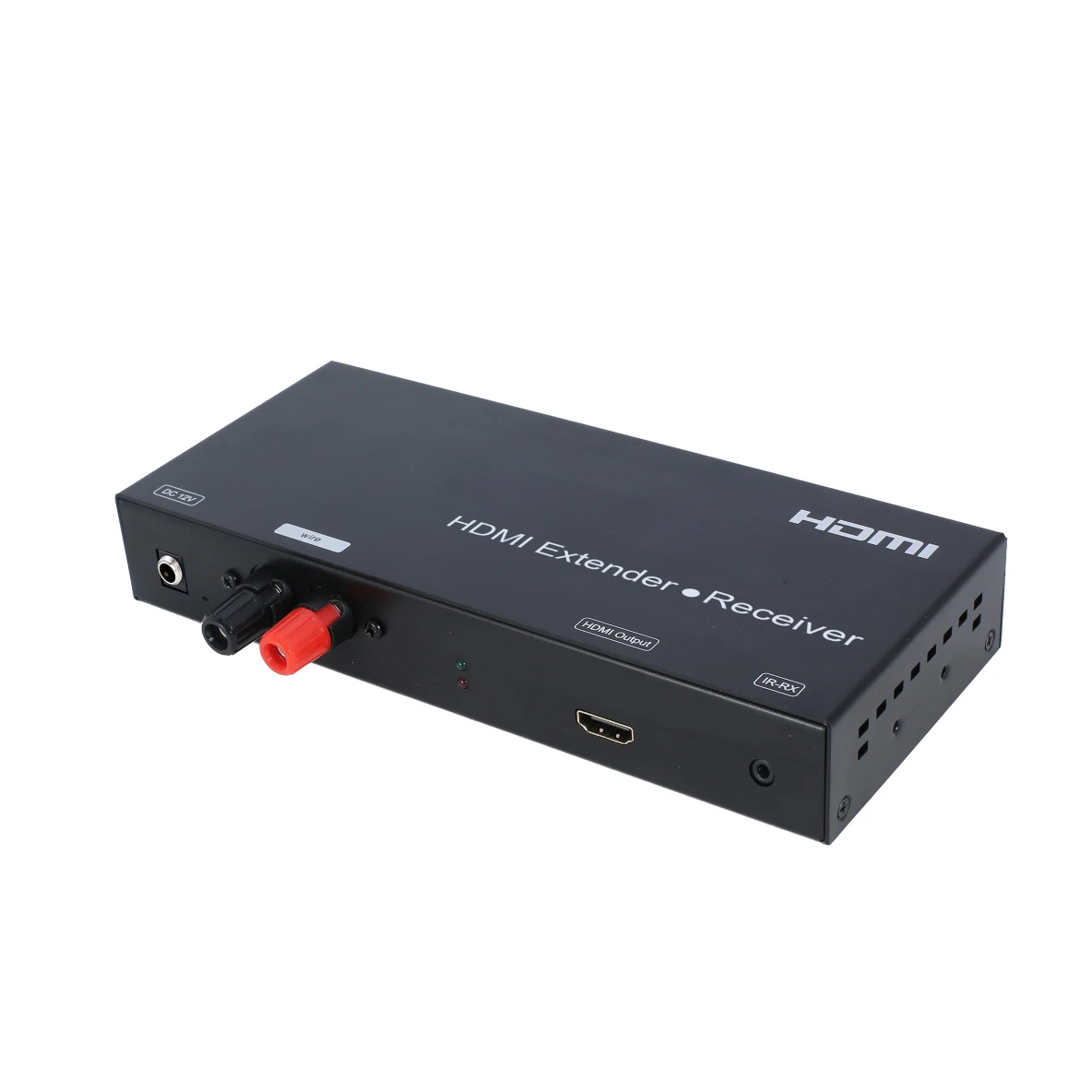

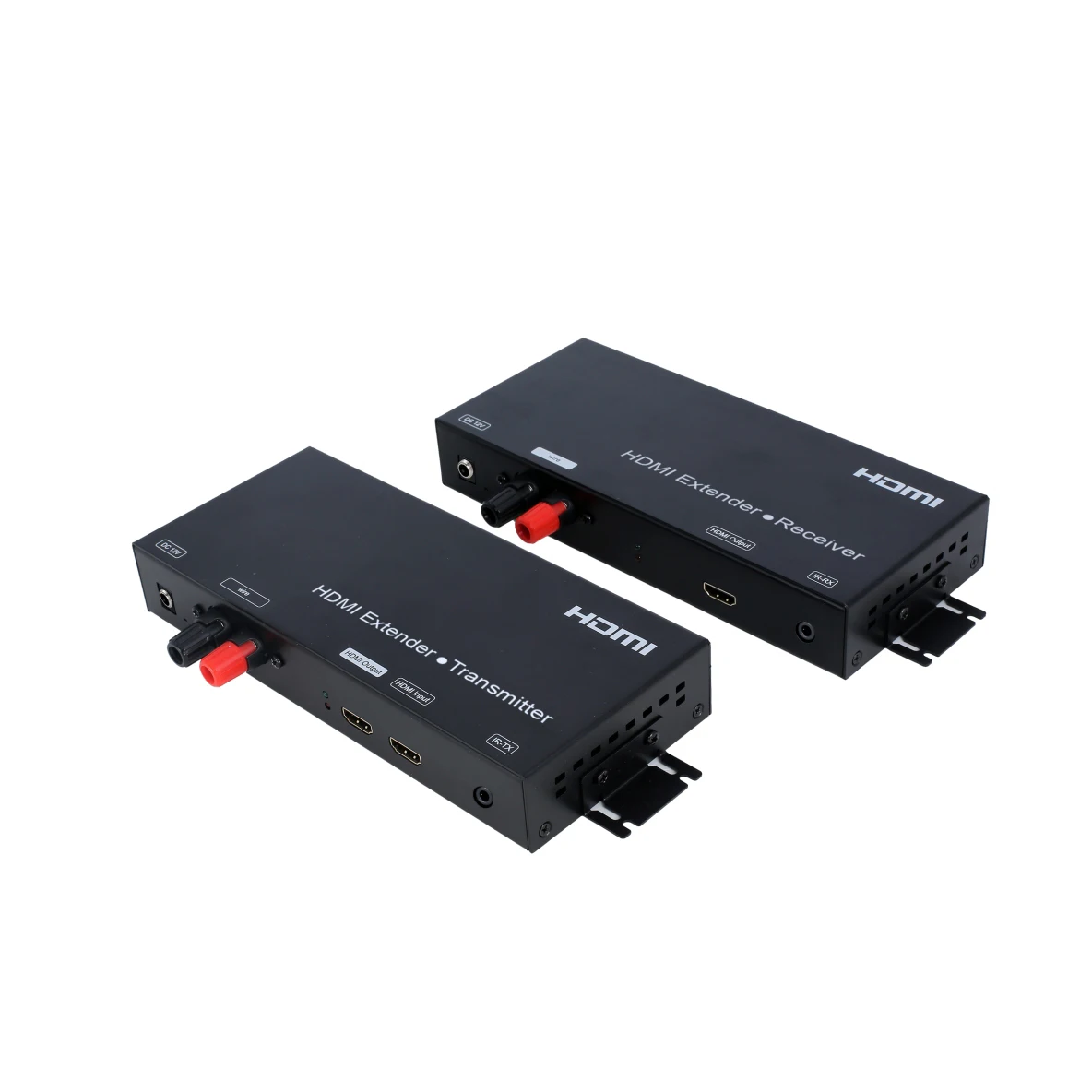

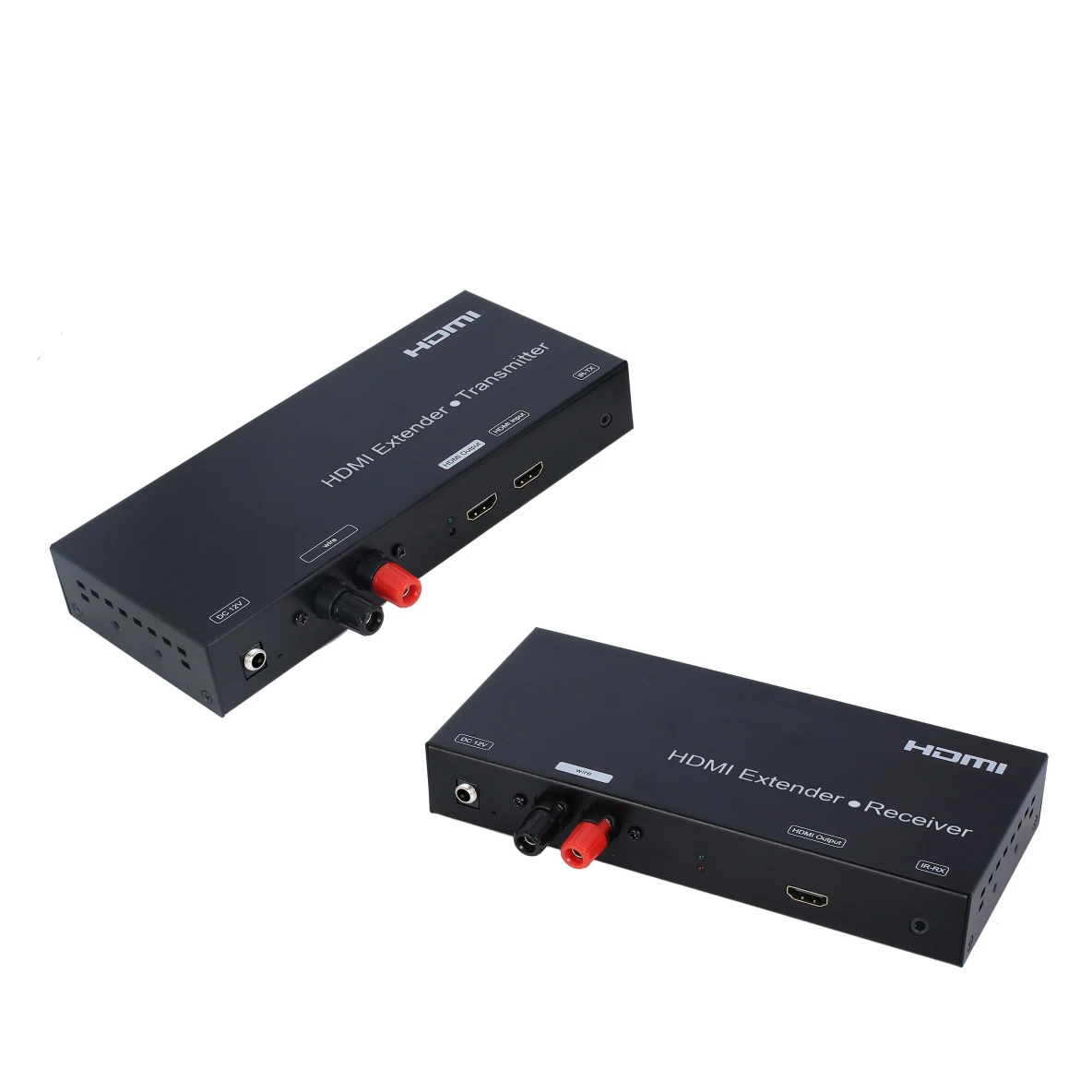

Ultra 4K HDMI Extender over optic, with IR control, 10.2 Gbps, 7.1 channel Audio

Share on (60460177879):


Price:

Quantity:


Product Overview

Description



60KM Ultra HD 4K HDMI Extender Over Fiber


Features


* Transmit from 1m to 60KM
* Support resolution up to Ultra HD 4kx2k @60hz,YUV4:2:0.
* Support bandwidth up to10.2Gbps.
* Support Single /Multi mode, Single /Duplex fiber(Optional).
* Support HDCP2.2 input, HDCP 1.4 output.
* Support HDCP1.4 input, HDCP1.4 output.
* With Automatic EDID for rapid integration of source and display.
* Support LPCM1, Dolby True HD, DTS-HD Master Audio .
* Locking power supplies
* Surface-mountable.



Specification


Operating Temperature Range
-5 to +35℃(+23 to +95℉)
Operating Humidity Range
5 to 90%RH (No Condensation)
Video Input(Transmitter)
1xHDMI Type A, 19-pin, female
Video Output(Receiver)
1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)
1m~60Km single / Multimode single / Duplex fiber optical cable

Module type required
SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format
4Kx2K@30Hz, 1080P @60Hz, 1080i, 720P, 576P, 480P
Audio Format

Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input
HDCP 2.2, HDCP 1.4
HDCP Output
HDCP 1.4

Power consumption
Transmitter: 3watts(Maximum)

Receive: 3watts(Maximum)

Dimension (L×W×H)
Transmitter: 96*100*25mm Receive: 96*100*25mm
Net Weight
475g (Pair)

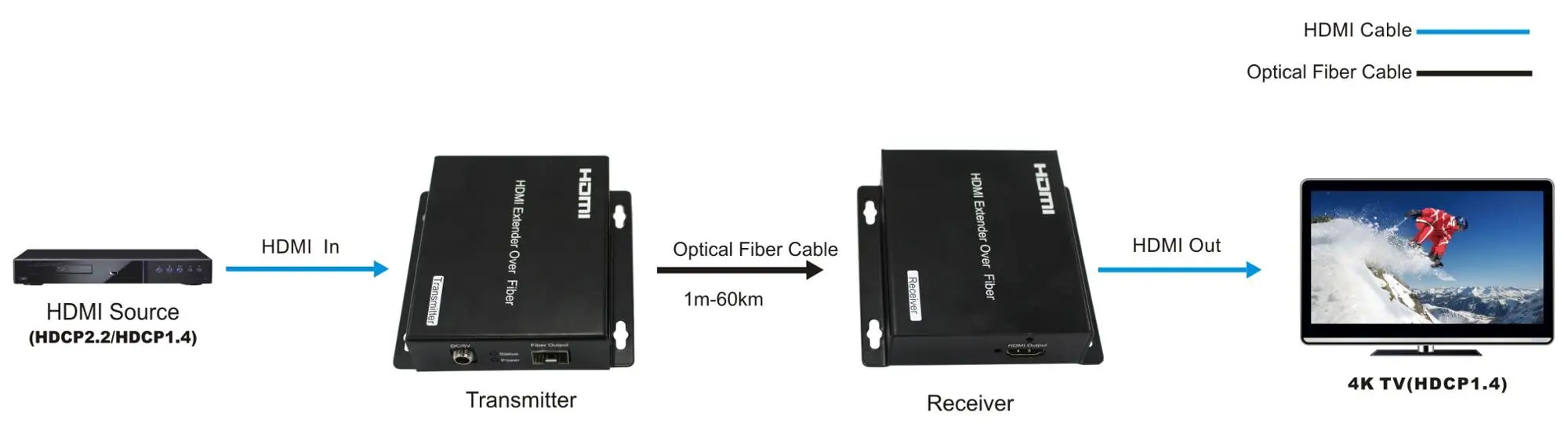

Wiring Diagram






Certifications






Packing & Delivery


PACKING CONTENTS
1). Main Unit. HDMI Extender Over Fiber
2). DC5V 2A Power Supply X2
3). Operating Instructions
