overseas service centre available dx5/dx7 MAX printer large format 1.6M eco solvent printer
- Category: >>>
- Supplier: Qingdao Max Industrial Limited
Share on (60460244035):
Product Overview
Description
factory price MAX-printer large format 1.6M eco solvent printer
MAINTOP software 1 pcs FREE
eco solvent ink 4L FREE
cleaning reagent for nozzle 1L FREE
Product Description
1) With one DX5 print head,180 nozzles/row*8 lines, resolution 1440DPI.
2) 2*4 color C/M/Y/K printing, CISS ink supply system.
3) Hiwin leadrail made in Taiwan,more stable movement of carriage, without sliding noise .
4) Equiped with front and back heating stytem,controled individual.
5) Equiped with platform sucking fans strongly. Dry fans customers optional.
6) Automatic feeding system for roll materials which width 1.6m 1.9m and 3.2m

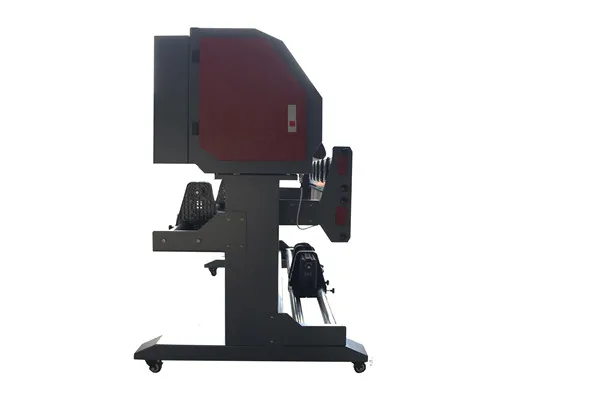

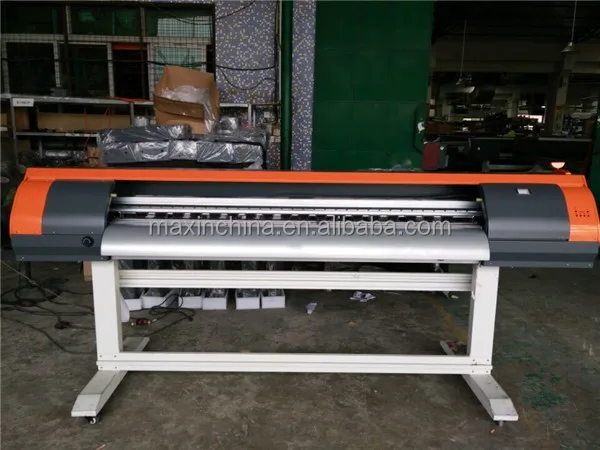

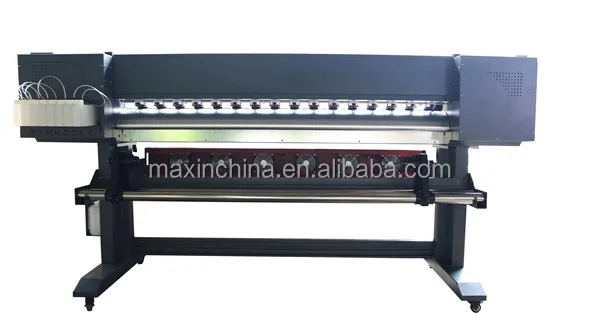

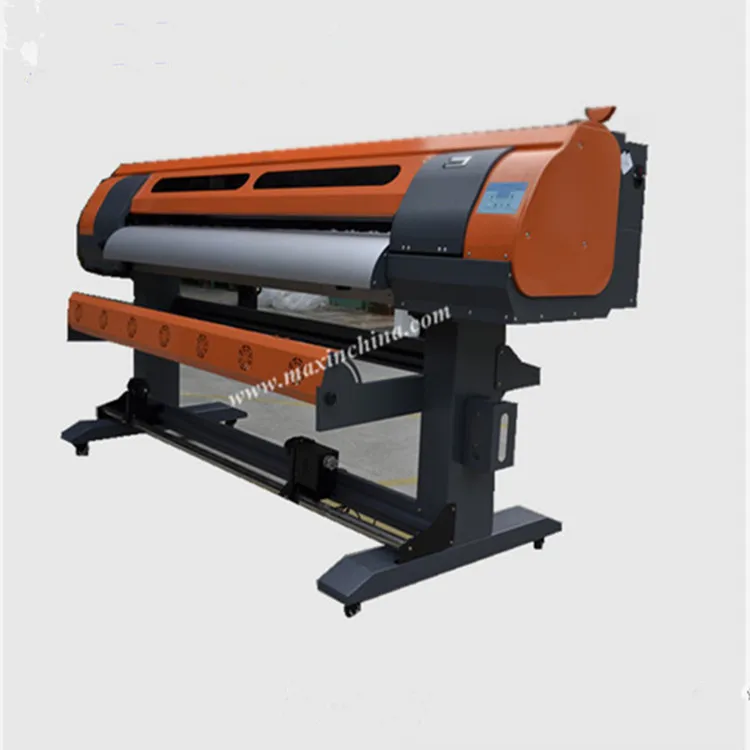

Real Pictures
| Model | MAX-printer:1600 | ||
| Print Head | Micro Piezo electric printhead Dx5/DX7 | ||
| Number of Printhead | 1 Heads | ||
| Maximum Print Width | 1600mm (63") | ||
| Printing Resolution | 360x360 360x720 360x1080 720x720 720x1080 1440x1440 (dpi) | ||
| Print Speed | 2 PASS | 34m2/hr | |
| 4 PASS | 17m2/hr | ||
| 6 PASS | 12m2/hr | ||
| 8 PASS | 8m2/hr | ||
| Ink | Type : | Water based dye, pigment ink, water based sublimation ink | Eco-Solvent Ink |
| Ink droplet | 3pl-21pl | ||
| Color : | 2*4 Colors (CC, MM, YY,KK) | ||
| Capacity : | 440ml of each ink cartridge *8 pcs | ||
| Ink Supply System : | Block brake type of ink supply system | ||
| Media | Width : | 1600mm (63") | |
| Type : | PVC, flex banner, vinyl, paper, mesh, one-way vision | ||
| Special Function | Printhead Height | 1.5-3mm Above Media Adjustable | |
| Heating System | Intelligent embedded heating system | ||
| Cooling system | Fan equipped | ||
| Auto Media feeding System | Equipped (Max Media Weight 25kg) | ||
| Auto Printhead Cleaning System | Anti-clogged Flash Function & Moisturing System | ||
| Auto Take Up System | Optional, 25kg heavy type take-up system | ||
| Print Interface | USB 2.0 | ||
| Control station | Windows7 /32bit | ||
| Work flow | Rip and print at the same time, print after rip | ||
| Image format | Bitmap, Tiff, Jepg, EPS, PDF, CAD | ||
| RIP Software | Maintop 5.3 (standard) PhotoPrint 10.0 (optional) | ||
| Input Power | AC 220V/10A , 50Hz/60Hz | ||
| Machine Dimension/N.W | (LxWxH) 250 * 66 * 126cm | ||
| Package Dimension/G.W | (LxWxH) 2.7M*0.76M*0.74M/250KGS | ||
| Operation Environment | Temperature : 18~32 0C Humidity : 46%~65% | ||

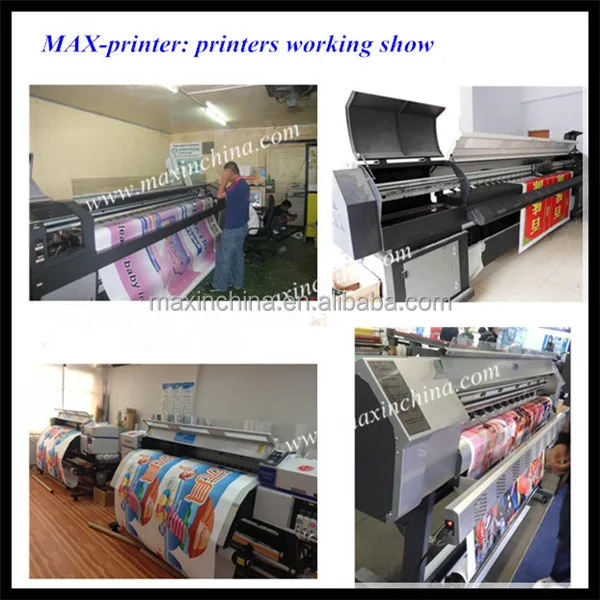

Samples
Packaging & Shipping
Our Services
1.24hours*7days*365 techicians online serives,by email,video,call,remote control and skype.
2.one year warranty, supply spare parts freely
3.two times checking for machine before shipping,provide pictures and videos for customers to confirm
4.update software free of charge
MAX-AIM: CUSTOMER FIRST, QUALITY FIRST & SERVICE FIRST
