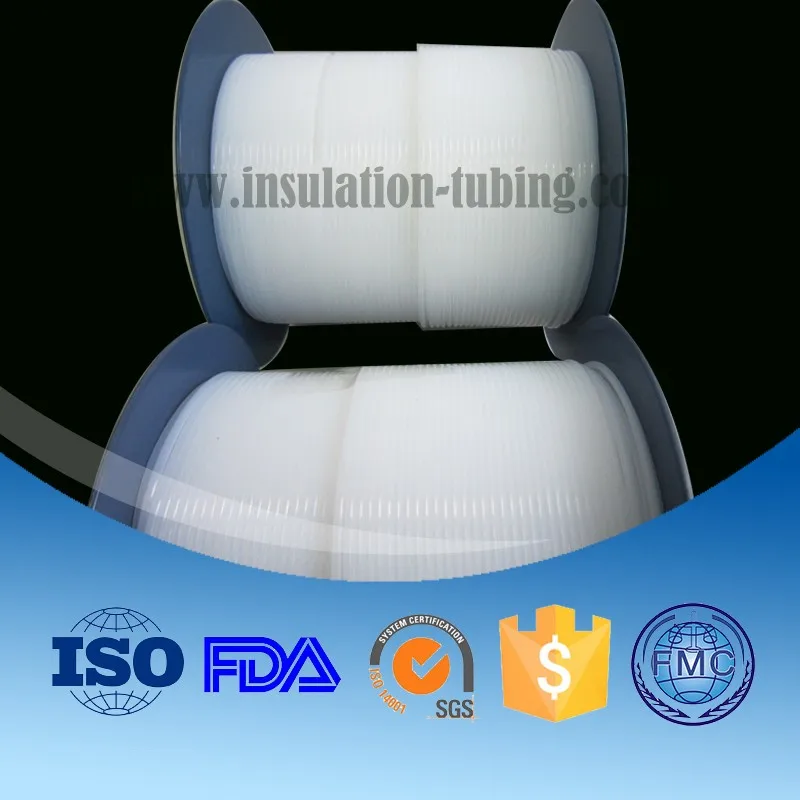

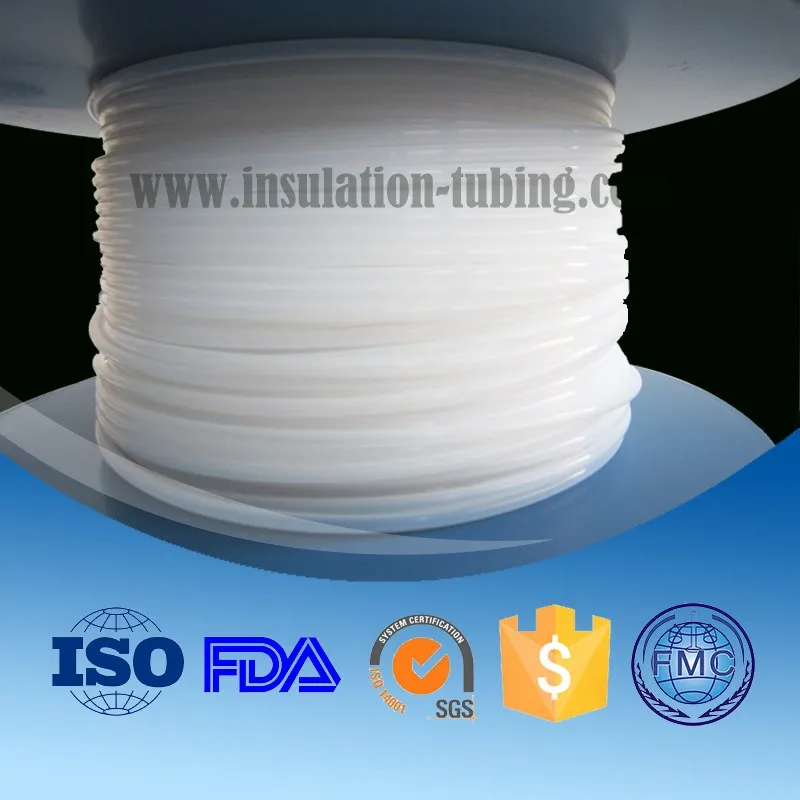

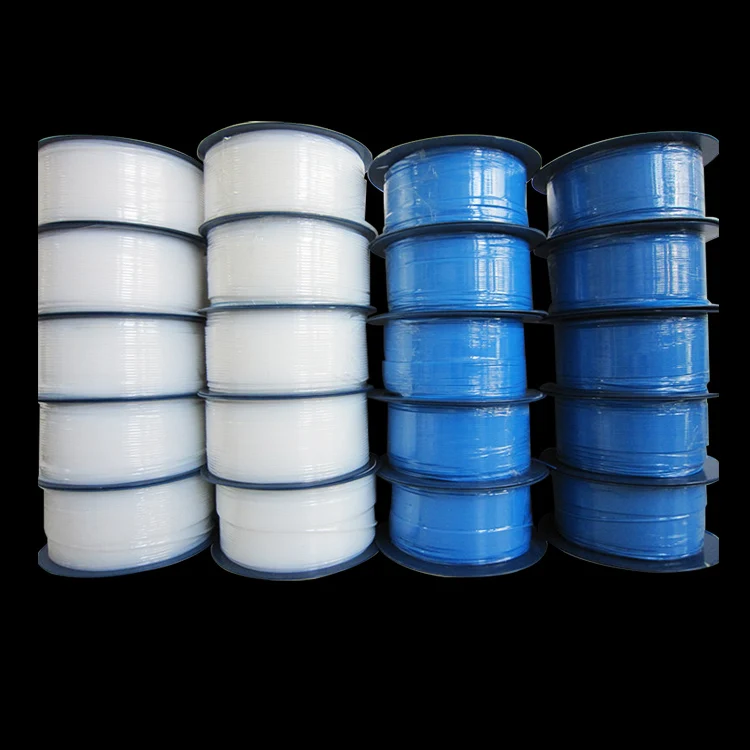

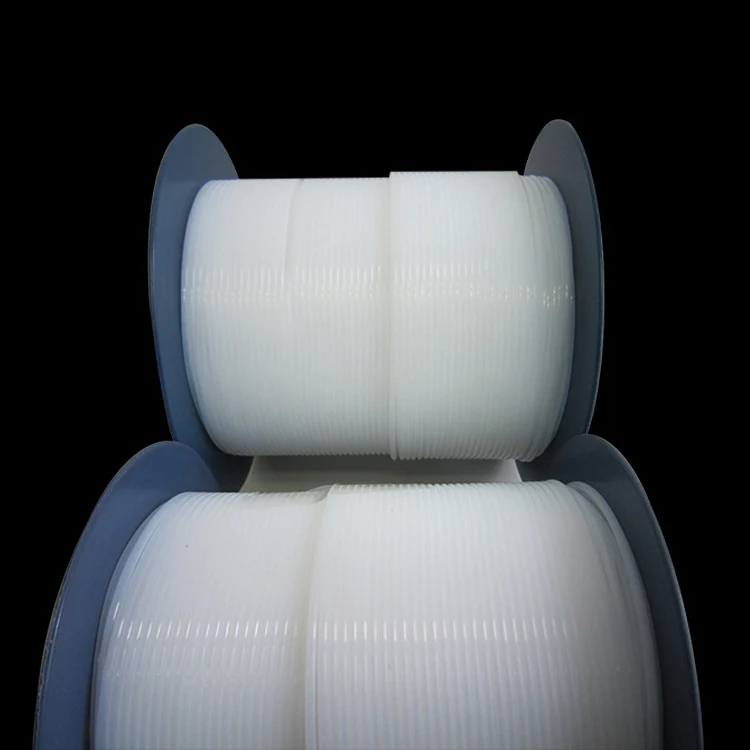

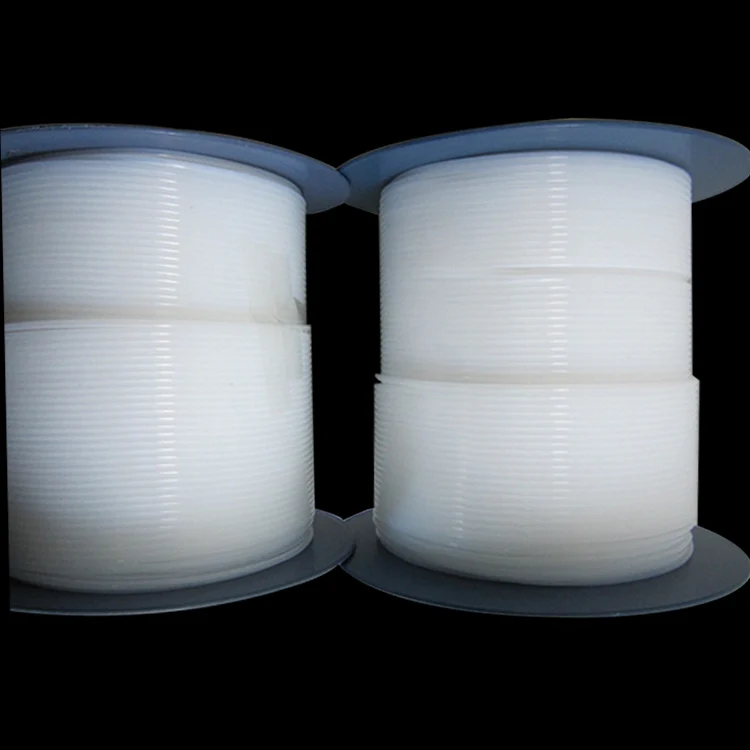

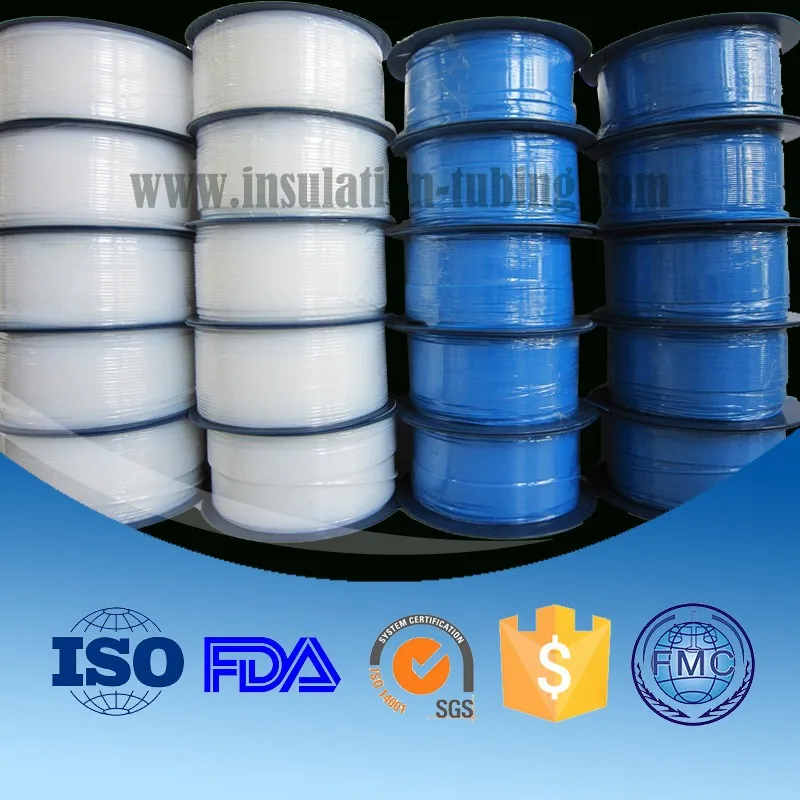

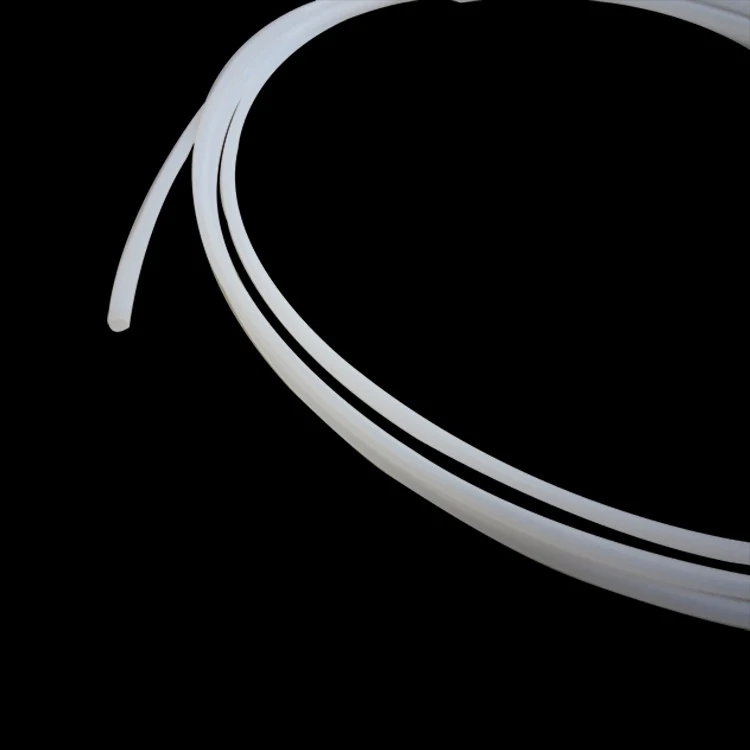

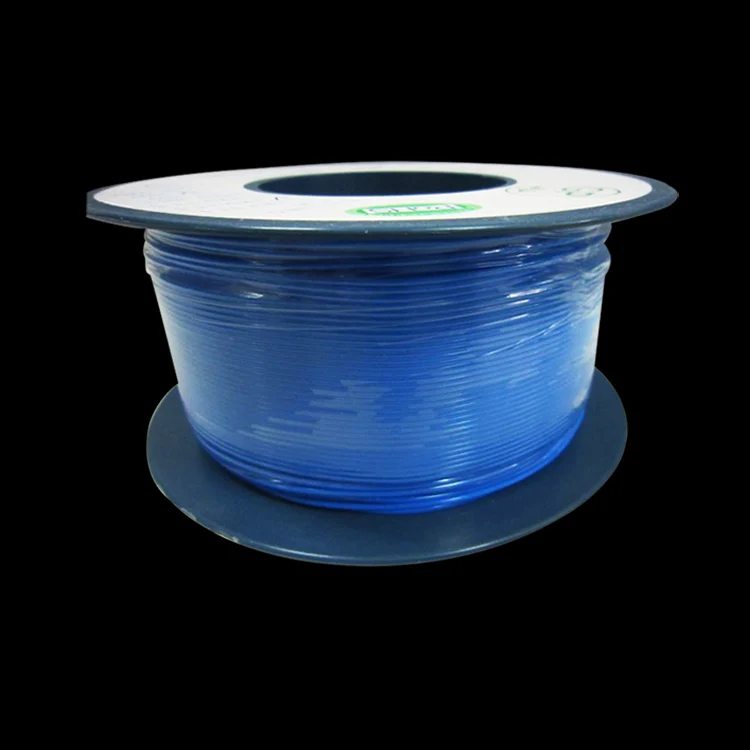

Professional Manufacturer Supplier PTFE CAPILLARY TUBE

SIZE

Inside diameter(mm)

Tolerance(mm)

Outside diameter(mm )

Package (M/ROLL)

S

T

L

21AWG

0.81

±0.06

1.41

1.31

1.11

305

20AWG

0.86

±0.06

1.66

1.46

1.16

305

19AWG

0.96

±0.07

1.76

1.56

1.26

200

18AWG

1.07

±0.08

1.87

1.67

1.37

200

17AWG

1.19

±0.08

1.99

1.79

1.49

2500

16AWG

1.34

±0.09

2.14

1.94

1.64

153

15AWG

1.50

±0.10

2.30

2.10

1.80

153

14AWG

1.68

±0.10

2.48

2.28

2.08

100

13AWG

1.93

±0.10

2.73

2.53

2.33

100

12AWG

2.16

±0.10

2.96

2.77

2.56

100

11AWG

2.41

±0.13

3.21

3.01

2.81

100

10AWG

2.69

±0.13

3.49

3.29

3.09

100

9AWG

3.00

±0.13

4.00

3.76

3.40

100

8AWG

3.38

±0.13

4.38

4.41

3.78

100

7AWG

3.76

±0.14

4.76

4.52

4.16

100

6AWG

4.22

±0.15

5.22

4.98

4.72

100

5AWG

4.72

±0.16

5.72

5.48

5.22

50

4AWG

5.28

±0.17

6.28

6.04

5.78

1m/stick

3AWG

5.94

±0.19

6.94

6.70

6.44

1m/stick

2AWG

6.68

±0.19

7.68

7.44

7.18

1m/stick

1AWG

7.46

±0.20

8.46

8.22

7.96

1m/stick

0AWG

8.38

±0.21

9.38

9.14

8.88

1m/stick
