Product Overview
Description
Linear Guide Description

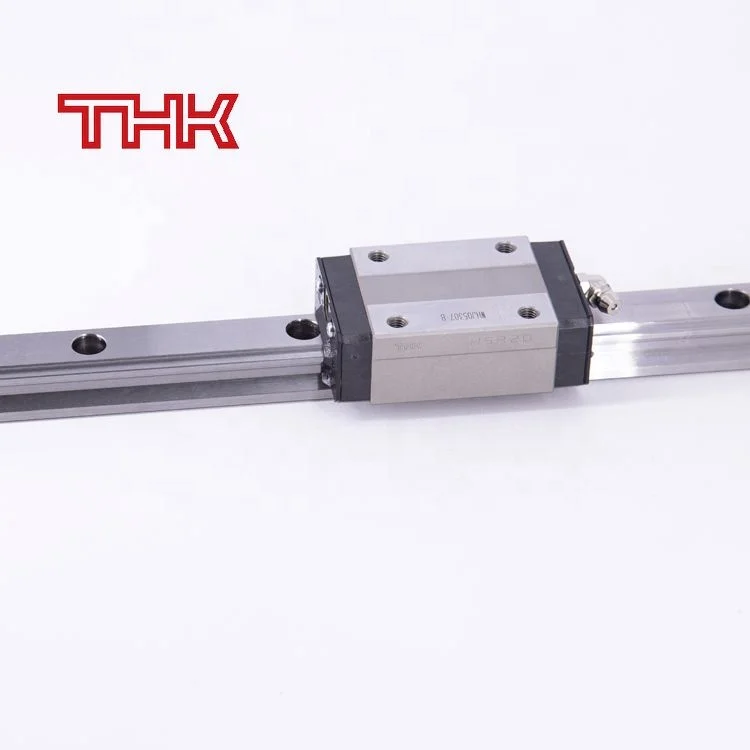

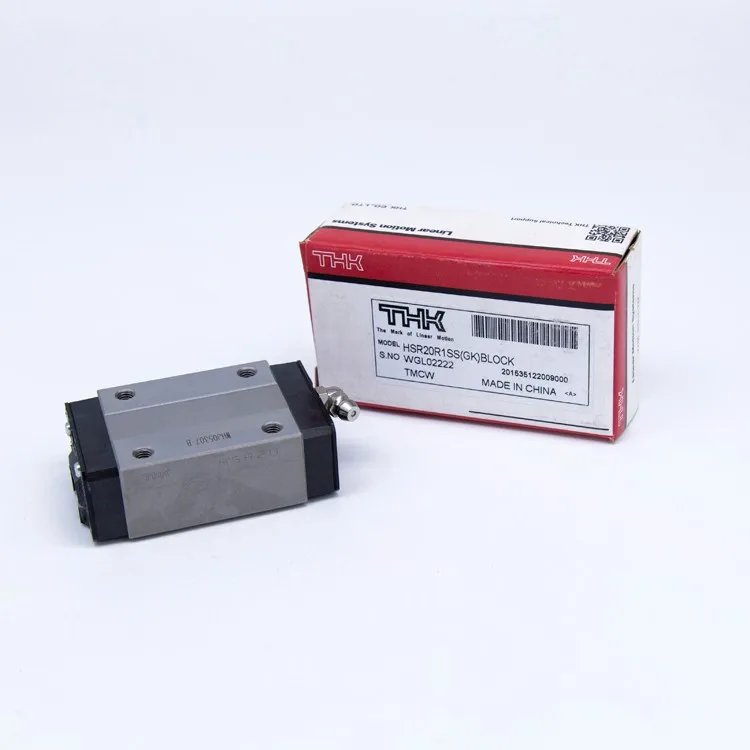

HSR-R Series Japan High Precision THK Industrial CNC XYZ LM Rail Block Linear Guide HSR30R/15R/20R/25R/35R/45R
The LM Linear Guide (Linear Motion Guide) is our main product, incorporating a part with a linear rolling motion into practical usage. It realizes the development of high-precision, high-rigidity, energy-saving, high-speed machines with long service lives.
Linear Guide Features:
1.Ideal Four Raceway, Cir cular-Arc Groove, Two Point Contact Structure
2.Superb error-absorbing capability with the DF design
3.Accuracy Averaging Effect by Absorbing Mounting Surface Error
4.Large Permissible Load and High Rigidity
5.Low Friction Coeffificient
6.Wide array of options (QZ lubricator, Laminated contact scraper LaCS, etc.)
Linear Guide Major Applications:
1.Surface grinder
2.Electric discharge machine
3.High-speed transfer equipment
4.NC lathe
5.Injection molding machine
6. Woodworking machine
7.Semiconductor manufac turing equipment
8. Inspection equipment
9.Food-related machine
10.Medical equipment
11.CNC machine
1.Ideal Four Raceway, Cir cular-Arc Groove, Two Point Contact Structure
2.Superb error-absorbing capability with the DF design
3.Accuracy Averaging Effect by Absorbing Mounting Surface Error
4.Large Permissible Load and High Rigidity
5.Low Friction Coeffificient
6.Wide array of options (QZ lubricator, Laminated contact scraper LaCS, etc.)
Linear Guide Major Applications:
1.Surface grinder
2.Electric discharge machine
3.High-speed transfer equipment
4.NC lathe
5.Injection molding machine
6. Woodworking machine
7.Semiconductor manufac turing equipment
8. Inspection equipment
9.Food-related machine
10.Medical equipment
11.CNC machine
Linear Guide Data
HSR-R /HSR-LR
The flange of its LM block has tapper holes.
A global standard size LM Guide in which each row of balls is placed at a contact angle of 45° so that the rated loads applied to the LM block are uniform in the four directions, enabling the LM Guide to be used in all orientations.
HSR-R has a smaller LM block width (W) and tapped holes. HSR-LR has the same cross-sectional shape, but has a longer overall LM block length (L) and a greater rated load.

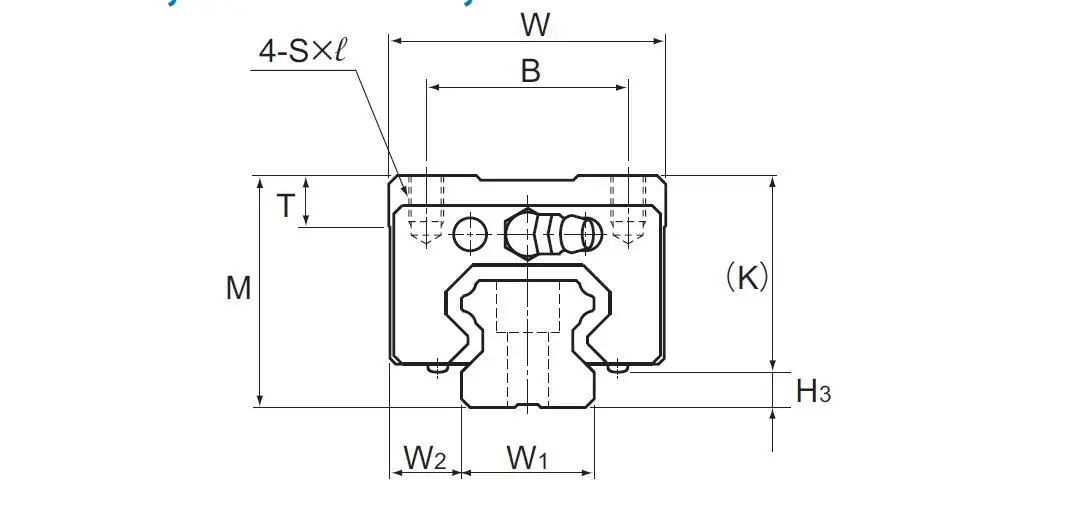

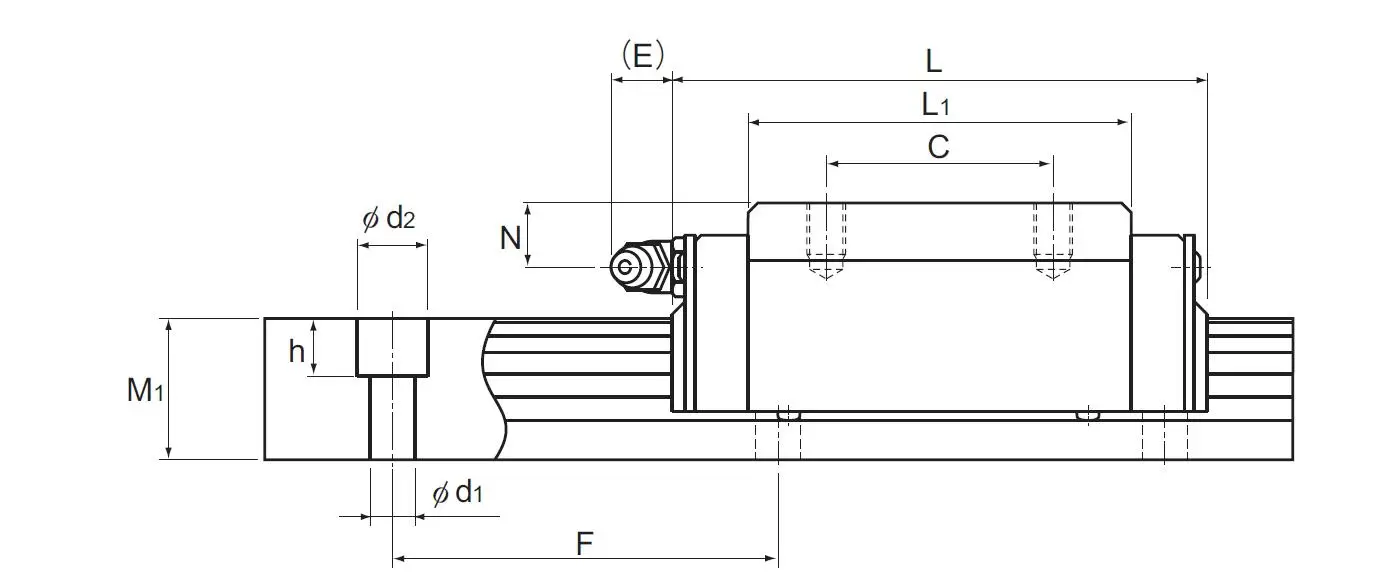

Model code | Height | Width | Length | Pitch | LM block Mass | ||
M | W | L | B | C | F | kg | |
HSR15R | 28 | 34 | 56.6 | 26 | 26 | 60 | 0.18 |
HSR20R | 30 | 44 | 74 | 32 | 36 | 60 | 0.25 |
HSR20LR | 30 | 44 | 90 | 32 | 50 | 60 | 0.35 |
HSR25R | 40 | 48 | 83.1 | 35 | 35 | 60 | 0.54 |
HSR25LR | 40 | 48 | 102.2 | 35 | 50 | 60 | 0.67 |
HSR30R | 45 | 60 | 98 | 40 | 40 | 80 | 0.9 |
HSR30LR | 45 | 60 | 120.6 | 40 | 60 | 80 | 1.1 |
HSR35R | 55 | 70 | 109.4 | 50 | 50 | 80 | 1.5 |
HSR35LR | 55 | 70 | 134.8 | 50 | 72 | 80 | 2 |
HSR45R | 70 | 86 | 139 | 60 | 60 | 105 | 2.6 |
HSR45LR | 70 | 86 | 170.8 | 60 | 80 | 105 | 3.1 |
HSR55R | 80 | 100 | 163 | 75 | 75 | 120 | 4.3 |
HSR55LR | 80 | 100 | 201.1 | 75 | 95 | 120 | 5.4 |
Linear Guide Type
HSR-A series is that the flange of its LM block has tapped holes.
HSR-LA series is that the LM block has the same cross-sectional shape as model HSR-A, but has a longer overall LM block length (L) and a greater rated
load.
HSR-LA series is that the LM block has the same cross-sectional shape as model HSR-A, but has a longer overall LM block length (L) and a greater rated
load.
HSR-B series is that the flange of the LM block has through holes.
HSR-LB series has a longer overall LM block length (L) and a greater rated load.
HSR-C/HSR-LC are the flange of the LM block has tapped holes. Can be mounted from the top or the bottom.
HSR-R series that having a smaller LM block width (W) and tapped holes, this model is optimal for compact design.
HSR-LR series is that the LM block has the same cross-sectional shape as model HSR-R, but has a longer overall LM block length (L) and a greater rated
load.
load.
SHS-C series is that the flange of the LM block has tapped holes.
Can be mounted from the top or the bottom.
SHS-LC is that the LM block has the same cross-sectional shape as model SHS-C, but has a longer overall LM block length (L) and a greater rated
load.
Can be mounted from the top or the bottom.
SHS-LC is that the LM block has the same cross-sectional shape as model SHS-C, but has a longer overall LM block length (L) and a greater rated
load.
With this type SHS-V series, the LM block has a smaller width (W) and tapped holes.Used in places where the space for table width is limited.
SHS-LV series , The LM block has the same cross-sectional shape as model SHS-V, but has a longer overall LM block length (L) and a greater rated
load.
load.

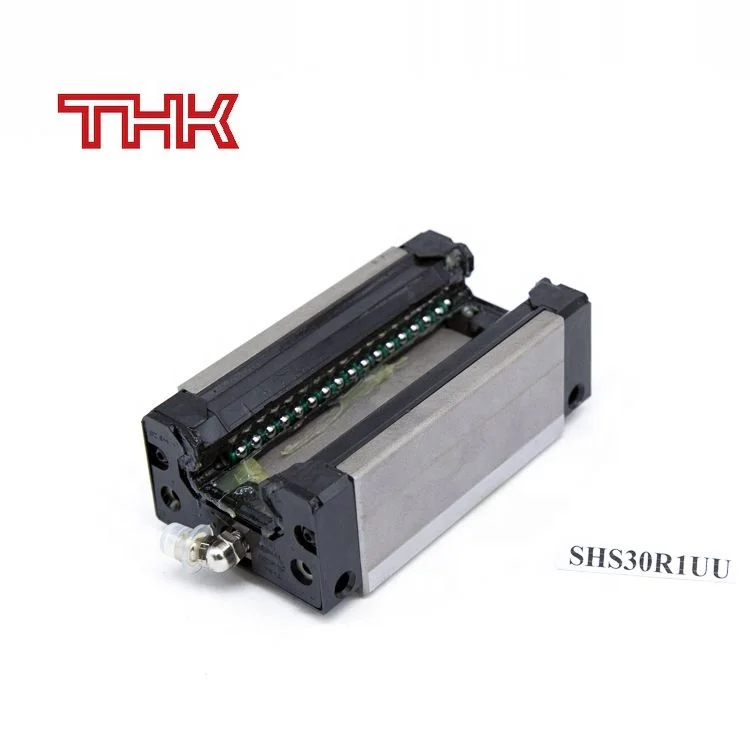

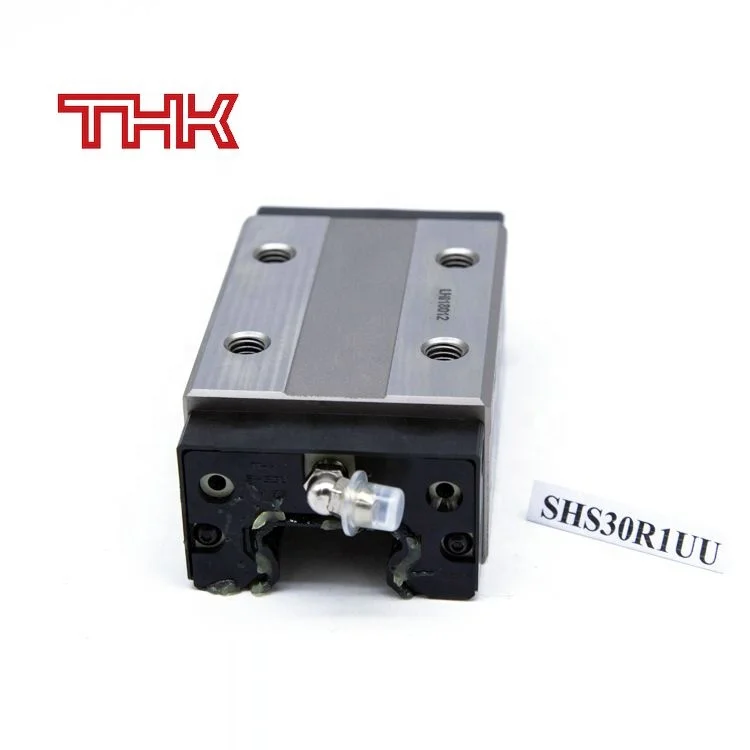

The LM block SHS-R has a smaller width (W) and the mounting holes are tapped.It succeeds the height dimension of full-ball type LM Guide HSR-R.
The LM block SHS-LR has the same cross-sectional shape as model SHS-R, but has a longer overall LM block length (L) and a greater rated
load.
load.
This type SSR-XV series has the same cross-sectional shape as SSR-XW but has a shorter overall LM block length (L).
SRS-M series is a standard type of SRS.
SRS-N series ,compared with model SRS-M , it has a longer total LM block length (L) and a higher load rating and permissible moment.
SRS-WM has a longer overall LM block length (L), a greater width and a larger rated load and permissible moment than SRS-M.
SRS-WN compared with model SRS-WM , it has a longer total LM block length (L) and a higher load rating and permissible moment.
Since its LM rail has a wide structure with a low center of gravity, this 4/way equal load LM Guide achieves a high Mc moment.
SHW-CA series, has tapped holes.Can be mounted from the top or the bottom.
SHW-CR series, The LM block has tapped holes.
this LM Guide model can be used in places where space saving is required or high rigidity against a moment is required even with a single rail.
HRW-CA is has tapped holes.mounted from the top or the bottom.
HRW-CR has tapped holes.
Linear Guide Model Number
HSR series | HSR-A | HSR15A HSR20A HSR25A HSR30A HSR35A HSR45A HSR15A1SS HSR20A1SS HSR25A1SS HSR30A1SS HSR35A1SS HSR45A1SS |
HSR-LA | HSR20LA HSR25LA HSR30LA HSR35LA HSR45LA HSR20LA1SS HSR25LA1SS HSR30LA1SS HSR35LA1SS HSR45LA1SS | |
HSR-B | HSR15B HSR20B HSR25B HSR30B HSR35B HSR45B HSR15B1SS HSR20B1SS HSR25B1SS HSR30B1SS HSR35B1SS HSR45B1SS | |
HSR-LB | HSR20LB HSR25LB HSR30LB HSR35LB HSR45LB HSR20LB1SS HSR25LB1SS HSR30LB1SS HSR35LB1SS HSR45LB1SS | |
HSR-R | HSR15R HSR20R HSR25R HSR30R HSR35R HSR45R HSR15R1SS HSR20R1SS HSR25R1SS HSR30R1SS HSR35R1SS HSR45R1SS | |

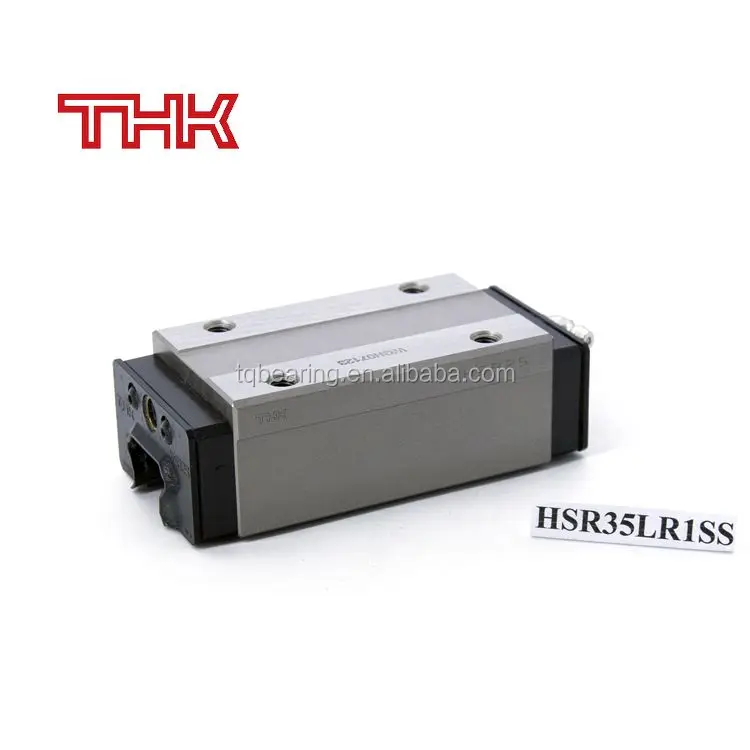

HSR-LR | HSR20LR HSR25LR HSR30LR HSR35LR HSR45LR HSR20LR1SS HSR25LR1SS HSR30LR1SS HSR35LR1SS HSR45LR1SS | |
SHS series | SHS-C | SHS15C SHS20C SHS25C SHS30C SHS35C SHS45C SHS55C SHS65C SHS15C1SS SHS20C1SS SHS25C1SS SHS30C1SS SHS35C1SS SHS45C1SS SHS55C1SS SHS65C1SS |
SHS-LC | SHS15LC SHS20LC SHS25LC SHS30LC SHS35LC SHS45LC SHS55LC SHS65LC SHS15LC1SS SHS20LC1SS SHS25LC1SS SHS30LC1SS SHS35LC1SS SHS45LC1SS SHS55LC1SS SHS65LC1SS | |
SHS-R | SHS15R SHS25R SHS30R SHS35R SHS45R SHS55R SHS15R1SS SHS25R1SS SHS30R1SS SHS35R1SS SHS45R1SS SHS55R1SS | |
SHS-LR | SHS15LR SHS25LR SHS30LR SHS35LR SHS45LR SHS55LR SHS15LR1SS SHS25LR1SS HS30LR1SS SHS35LR1SS SHS45LR1SS SHS55LR1SS | |
SHS-V | SHS15V SHS20V SHS25V SHS30V SHS35V SHS45V SHS55V SHS65V SHS15V1SS SHS20V1SS SHS25V1SS SHS30V1SS SHS35V1SS SHS45V1SS SHS55V1SS SHS65V1SS | |
SHS-LV | SHS15LV SHS20LV SHS25LV SHS30LV SHS35LV SHS45LV SHS55LV SHS65LV SHS15LV1SS SHS20LV1SS SHS25LV1SS SHS30LV1SS SHS35LV1SS SHS45LV1SS SHS55LV1SS SHS65LV1SS | |
SSR series | SSR-XV | SSR15XV SSR20XV SSR25XV SSR15XV1SS SSR20XV1SS SSR25XV1SS SSR15XV1UU SSR20XV1UU SSR25XV1UU |
SSR-XW | SSR15XW SSR20XW SSR25XW SSR30XW SSR35XW SSR15XW1SS SSR20XW1SS SSR25XW1SS SSR30XW1SS SSR35XW1SS SSR15XW1UU SSR20XW1UU SSR25XW1UU SSR30XW1UU SSR35XW1UU | |
SSR-XTB | SSR15XTB SSR20XTB SSR25XTB SSR15XTB1SS SSR20XTB1SS SSR25XTB1SS SSR15XTB1UU SSR20XTB1UU SSR25XTB1UU | |
SRS series | SRS-S | SRS7S SRS12S SRS15S SRS20M SRS25M SRS7GS SRS12GS SRS15GS SRS20GM SRS25GM SRS9XS SRS9XGS |
SRS-M | SRS5M SRS7M SRS9M SRS12M SRS15M SRS20M SRS25M SRS5GM SRS7GM SRS12GM SRS15GM SRS20GM SRS25GM SRS9XM SRS9XGM | |
SRS-N | SRS5N SRS7N SRS9N SRS12N SRS15N SRS5GN SRS7GN SRS12GN SRSGN SRS9XN SRS9XGN | |
SRS-WS | SRS7WS SRS9WS SRS12WS SRS15WS SRS7WGS SRS9WGS SRS12WGS SRS15WGS | |
SRS-WM | SRS5WM SRS7WM SRS9WM SRS12WM SRS15WM SRS5WGM SRSWGM SRS9WGM SRS12WGM SRS15WGM | |
SRS-WN | SRS5WN SRS7WN SRS9WN SRS12WN SRS15WN SRS5WGN SRSWGN SRS9WGN SRS12WGN SRS15WGN |
