Rubber cutting tools waste tyre scraping machine to chips
- Category: Rubber Bale Cutters >>>
- Supplier: Xinxiang Xinyutian Rubber&plastic Machinery Co. ltd.
Share on (60460638765):
Product Overview
Description
Rubber cutting tools waste tyre scraping machine to chips
Product Description
Rubber cutting tools waste tyre scraping machine to chips
Features:
1.Simple and easy to use.
2.Low energy consumption
3.High efficiency and safety
4.Sturdy construction is durable and practical
If you want cut waste tyres,four tyre cutting machines are available for you.
They are sidewalls cutter,strips cutter,blocks cutter and bead wire separator.
---Brief introduction for each machine

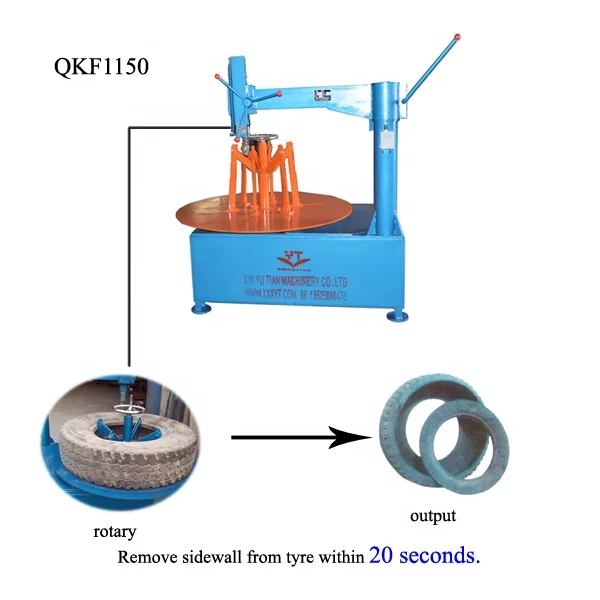

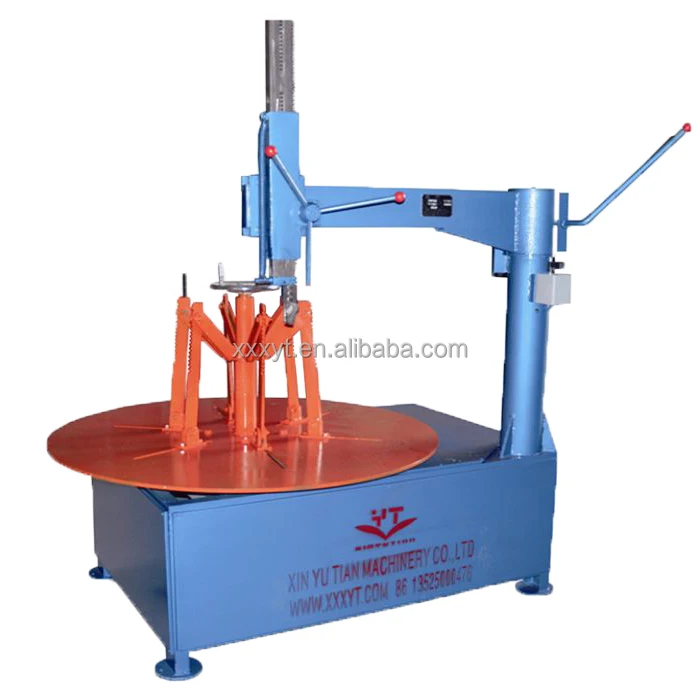

1.Sidewalls cutter
Sidewalls cutter is used for cutting the used tire into three parts,two sidewalls and one tread.
spare blades can be sent together with machines free of charge.
| Model | QKF850 | QKF1150 | QKF1500 |
| Motor power | 2.2kw | 2.2kw | 4kw |
| Processing range | 750-1200mm | 750-1200mm | 750-1200mm |
| Capacity | 2ton/hour | 2ton/hour | 2ton/hour |
| Weight | 500kg | 550kg | 750kg |
| size(mm) | 1300*900*1480 | 1520*1150*1480 | 2020*1500*1920 |

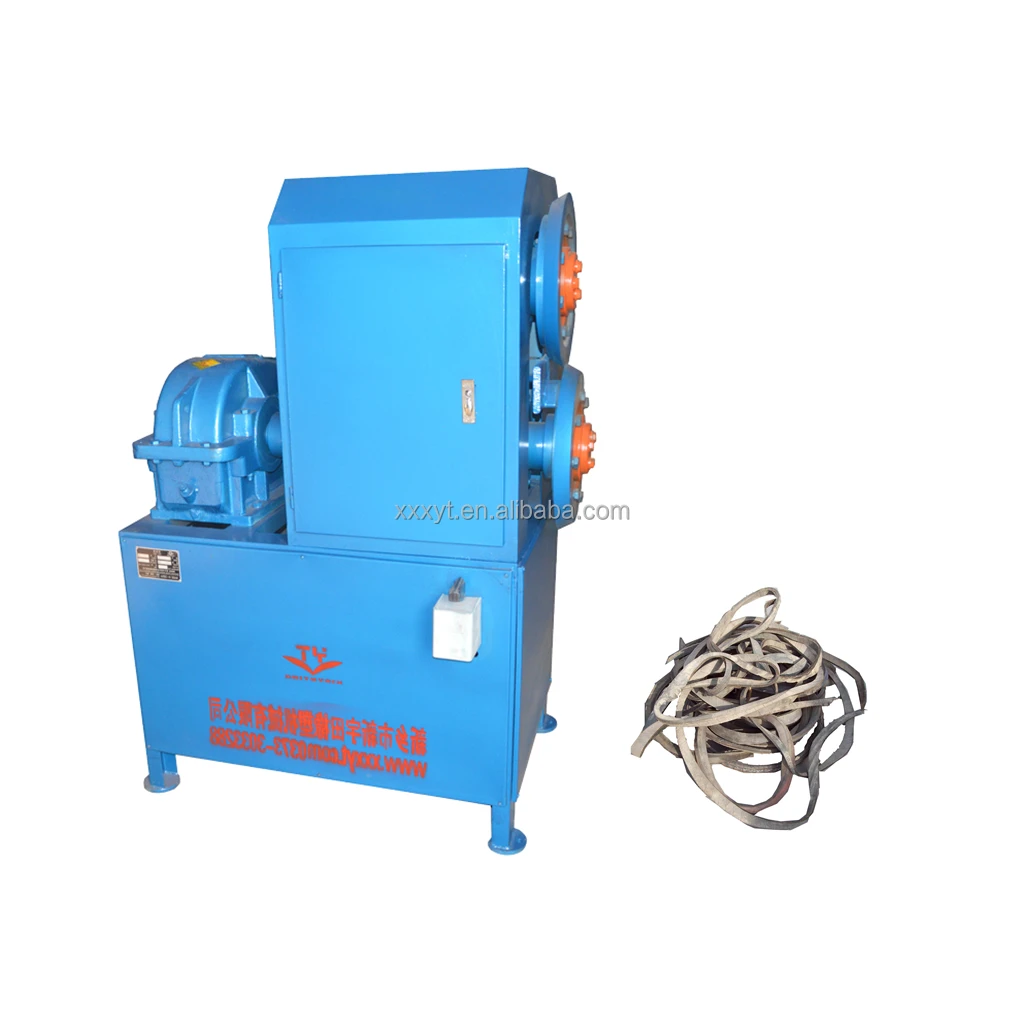

2.Strips cutter
Strips cutter is used for cutting the sidewalls and tread into rubber strips.
circle blades can run for at least 1 year,grind and sharp are necessary for maintain.
| Model | QT380 |
| Motor power | 4kw |
| Processing range | 750-1200mm |
| Capacity | 1ton/hour |
| Weight | 900kg |
| Size(mm) | 1320*750*1580 |

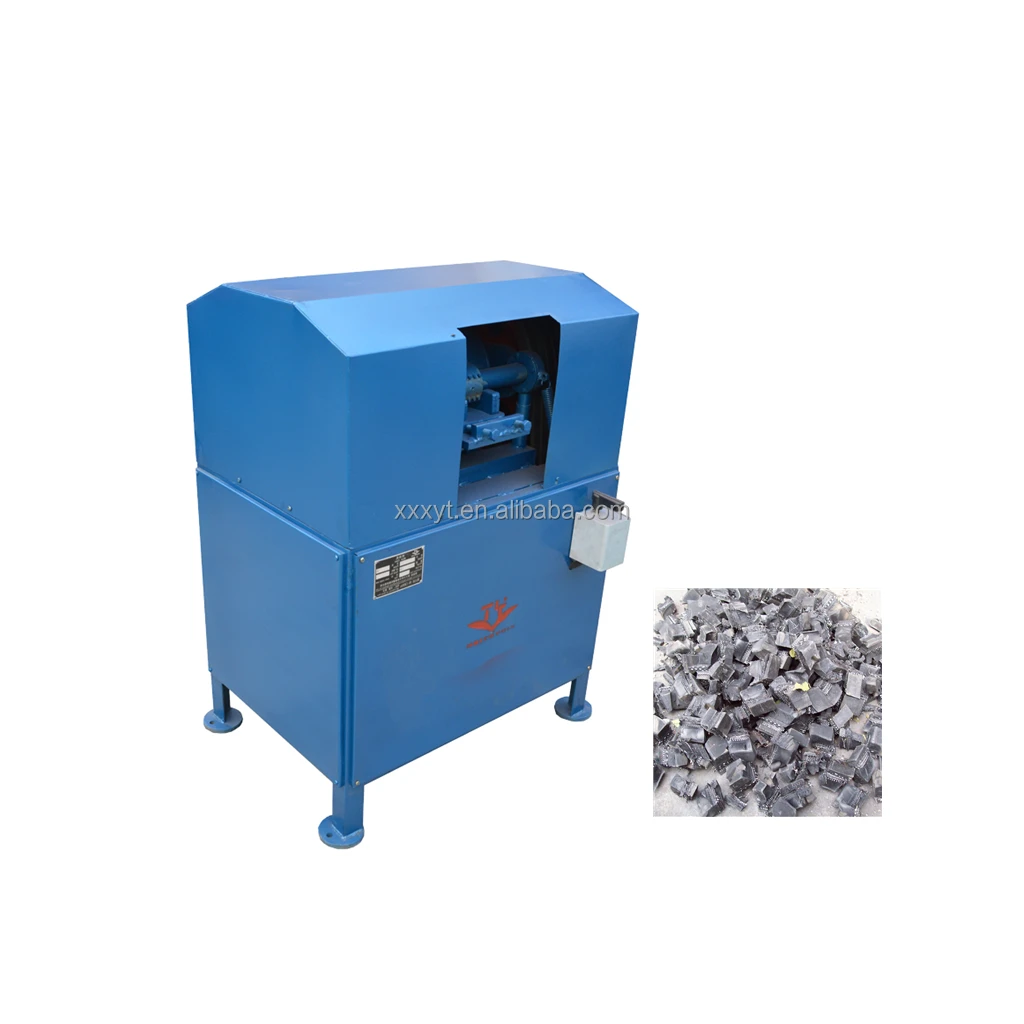

3.Blocks cutter
Blocks cutter is used for cutting rubber strips into rubber blocks.
3 pieces blades can run for at least half year,grind and sharp are necessary for maintain.
| Model | QK200 | QK200A | QK200B |
| Motor power | 7.5kw | 11kw | 15kw |
| Processing range | 750-1200mm | 750-1200mm | 750-1200mm |
| Capacity | 1ton/hour | 1ton/hour | 1ton/hour |
| Weight | 600kg | 650kg | 750kg |
| Size(mm) | 800*810*1230 | 800*810*1330 | 800*810*1380 |

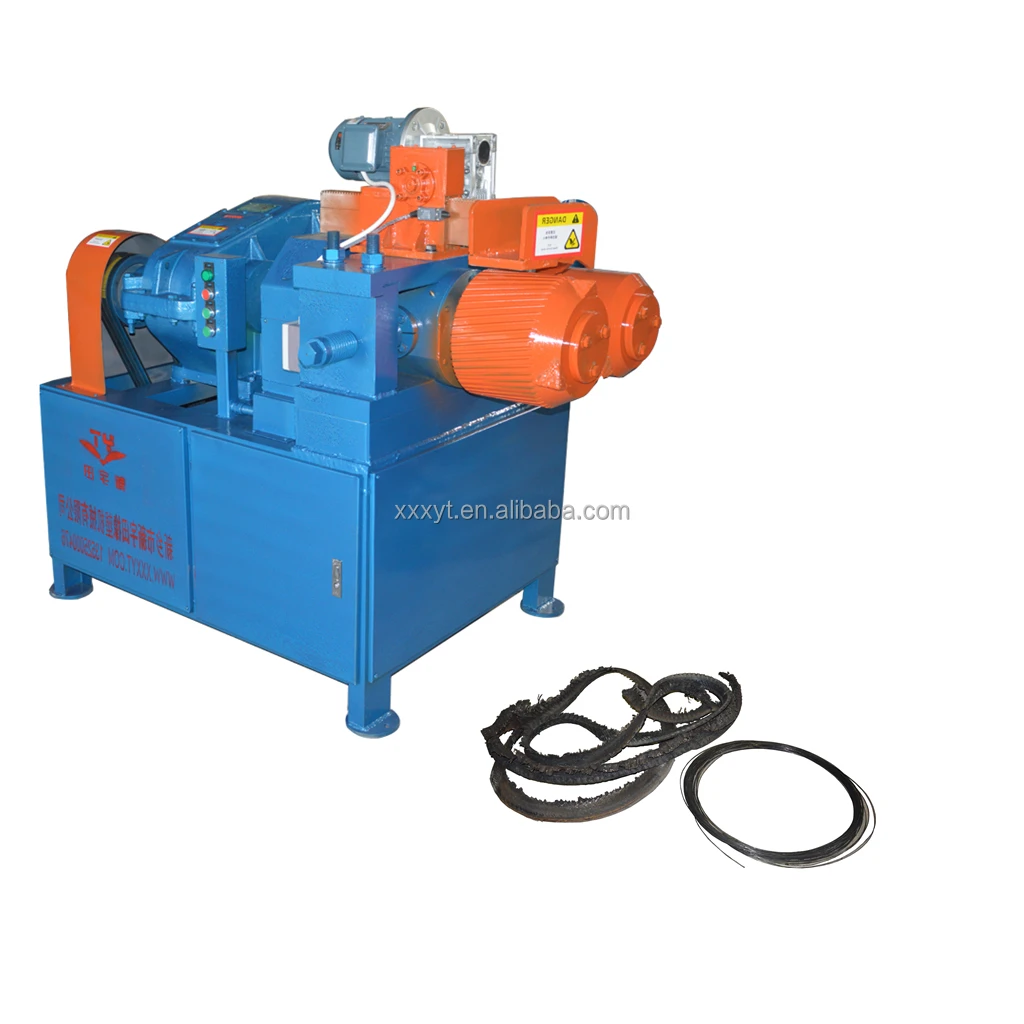

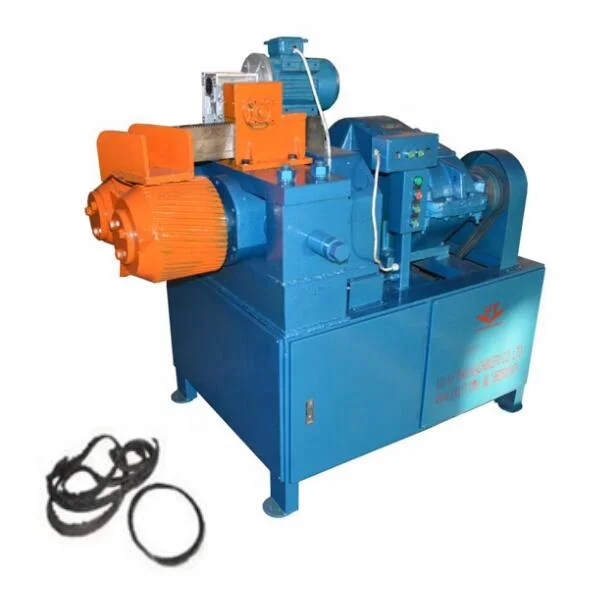

4.Bead wire separator
Bead wire separator is to separate the whole steel circle from bead.
cast steel rollers can run for at least 2 years,grind and welding are necessary for maintain.
| Model | GF240 |
| Motor power | 15kw |
| Processing range | 750-1200mm |
| Capacity | 1ton/hour |
| Weight | 1800kg |
| Size(mm) | 1520*1180*1220 |
---Final output
Company Information
Xinxiang Xinyutian Rubber&Plastic Machinery Co.,ltd is a famous domestic high-tech enterprise engaged into professional research&development,production&sales for complete waste tyre making rubber powder production lines,tyre rubber granules making line,waste tyre recycling processing equipment.All equipment adopt the normal treatment process,and fully meet the requirements of environmental protection.we were founded in 2005,located in xinpu road,Hongqi industrial zone,Xinxiang city,Henan province.We have a number of engineering and technical personnels engaged in researching and developing rubber machinery,who can provide fully service from designing and building factory to actual running the project. So far,the annual output of ten thousand tons of rubber powder production line and tyre rubber particles making line have been sold all over the country.Our international trading department established in 2010,which has sold Xinyutian equipment nearly more than 40 countries and regions in the world.
---Service
Pre sales
1.customizes to suit customers’exact needs
2.recommend suitable machines configuration accordance to actual situation from customers.
After deal
1.provide details building factory plan
2.provide technical service like foundation making drawing,layout drawing(CAD drawing)
After sale
1.warranty for one year
2. provide technical tracking and service
3.come up with best solution within 24hours whenever customers have any questions.(specifi video,photos will be provided for explain)
---Customers cooperated
