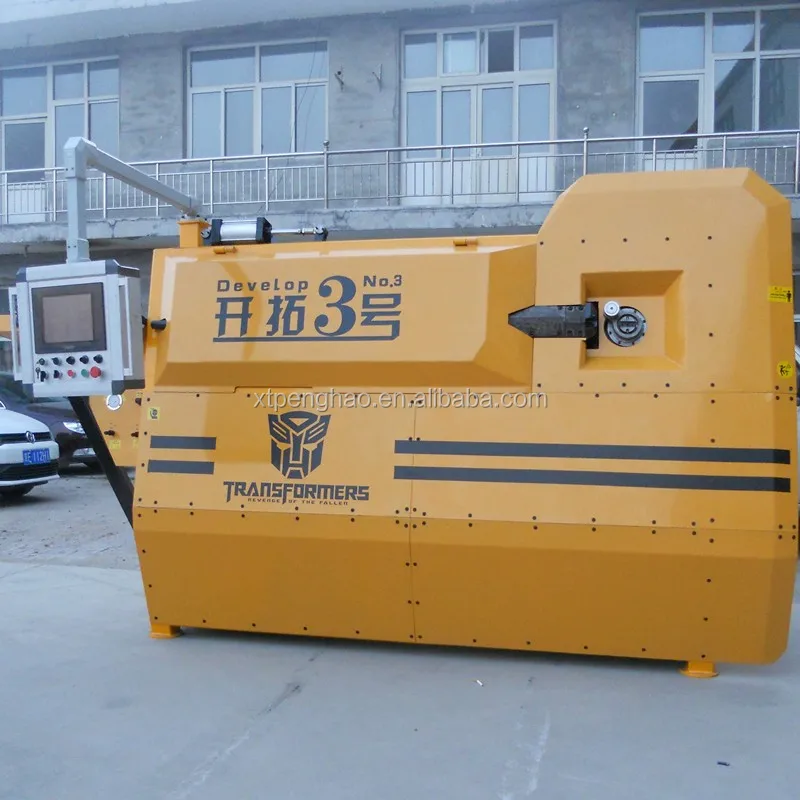

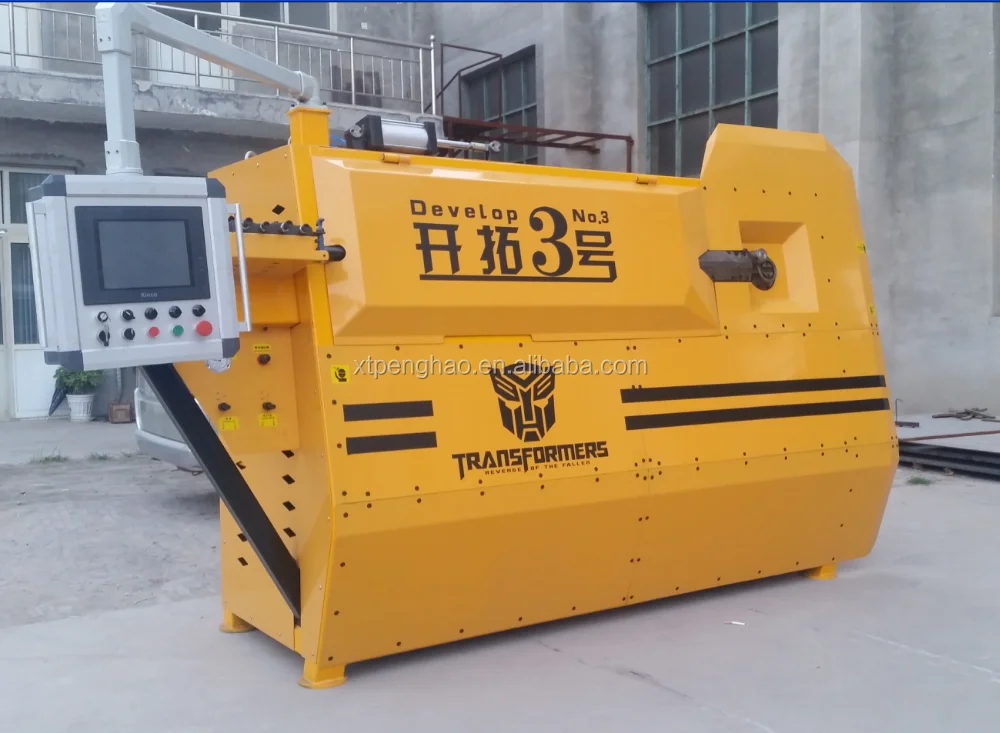

CNC steel bar bending machine , automatic rebar stirrup bender

 The construction steel bar bending machine adopts CNC servo control system can automatically complete the straightening, sizing, bending, cutting, and other processes.The machine can bend maximum diameter is13mm and can continuously produce any plane shape products.The device is widely used in the construction industry, large steel processing plants and other fields.In addition, the production equipment  is  more perfect after  several improved ，it can meet the actual needs of the steel processing and production.

SPECIFICATIONS FOR Develop NO.3
Power	Power Equipment	kw	28.5kw
	Average power	Kw/h	5kw/h
	Working temperature	℃	-5℃-40℃
Main performance parameters	Single wire	mm	5-13
	Double wire	mm	5-10
	Length Accuracy	mm	±1
Speed	maximum towing speed	m/min	75
	maximum bend speed	°/sec	1000
	Bengding angle	°	±180

AMain Features

1.This equipment adopt servo controlling system;
2.Automatically accomplish the functions of rebar's feeding, straighten, bending and cutting etc.;
3.Max bending diameter of rebar is 5~14mm;
4.Continuously bend various stirrup of plane figure;
5.Widely used in construction industry and rebar manufacturing enterprise;
6.High efficiency and accurate processing precision.

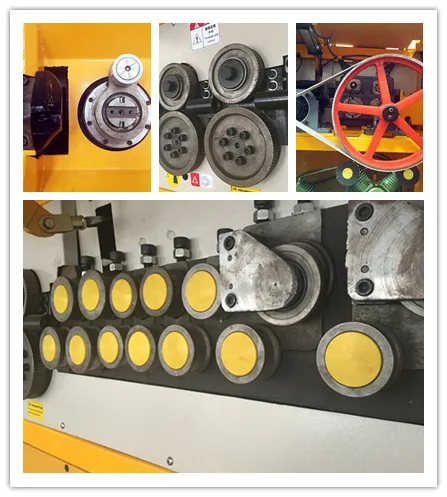

Detailed Images

Machine Parts 1

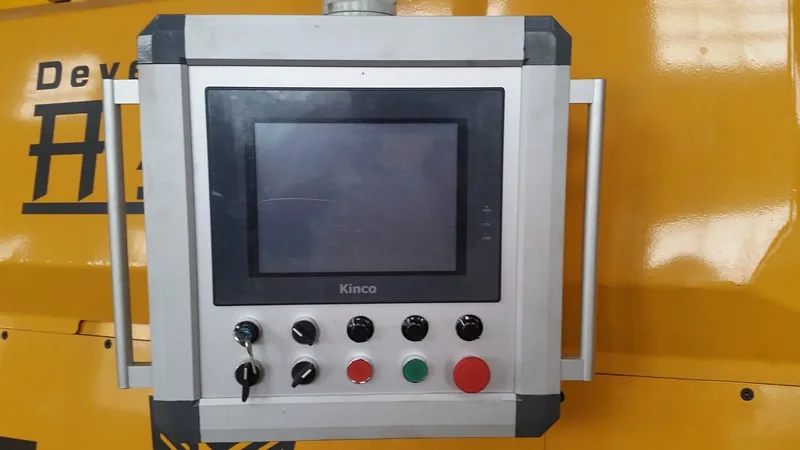

Name:CNC aotomatic computer system

This machine adopts numerical control system, it can process many kinds of shapes of stirrups.

Main Parts 2

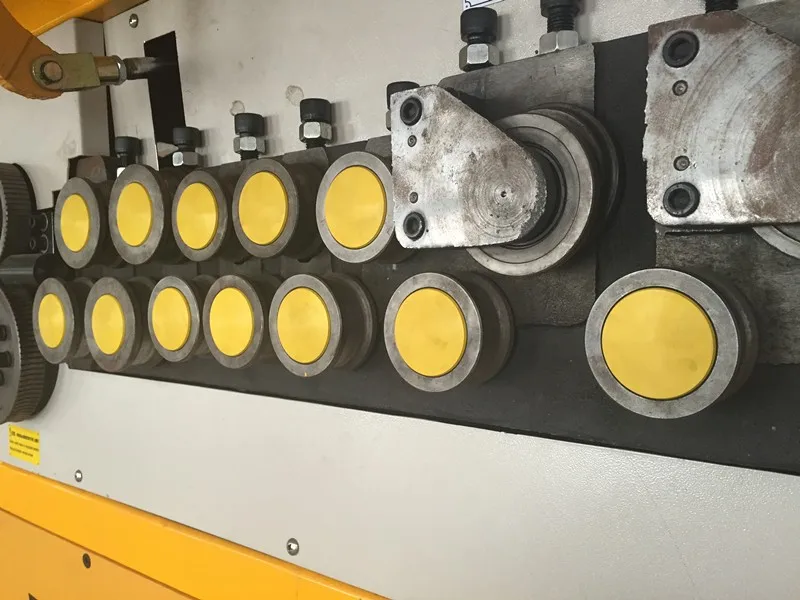

Name: Multi roller straightening device

Multi roller straightening device has good straightening effect, in the process of the roller is not floss.The roller is made of special alloy steel  which wear resistance.


Mine Parts 3

Name: Double roller traction device

The roller is made of Cr12MoV material.This material is lengthened the service life of the roller, and strengthen the effect of feeding roller.

Main Parts 4

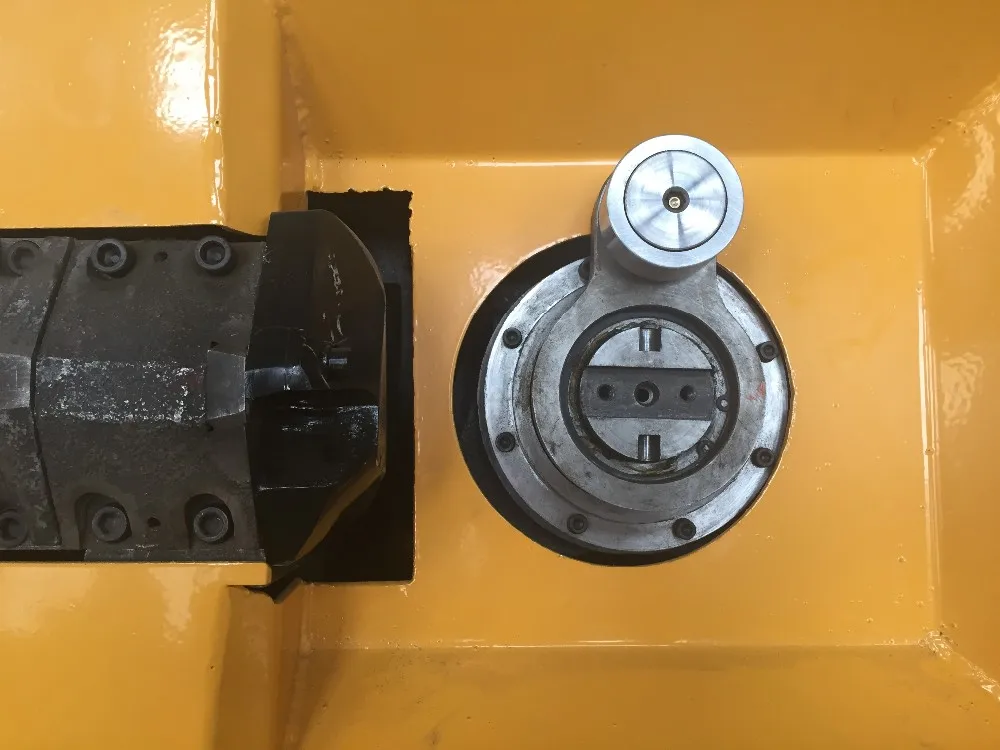

Name: Automatic  bidirectional bending device

This device can produce reverse bending stirrups and more complex shapes.

Straightening roller barometer

Packing & Delivery

Packaging
Size	3660(L) * 1180 (W) * 2230 (H)
Weight	2.2T

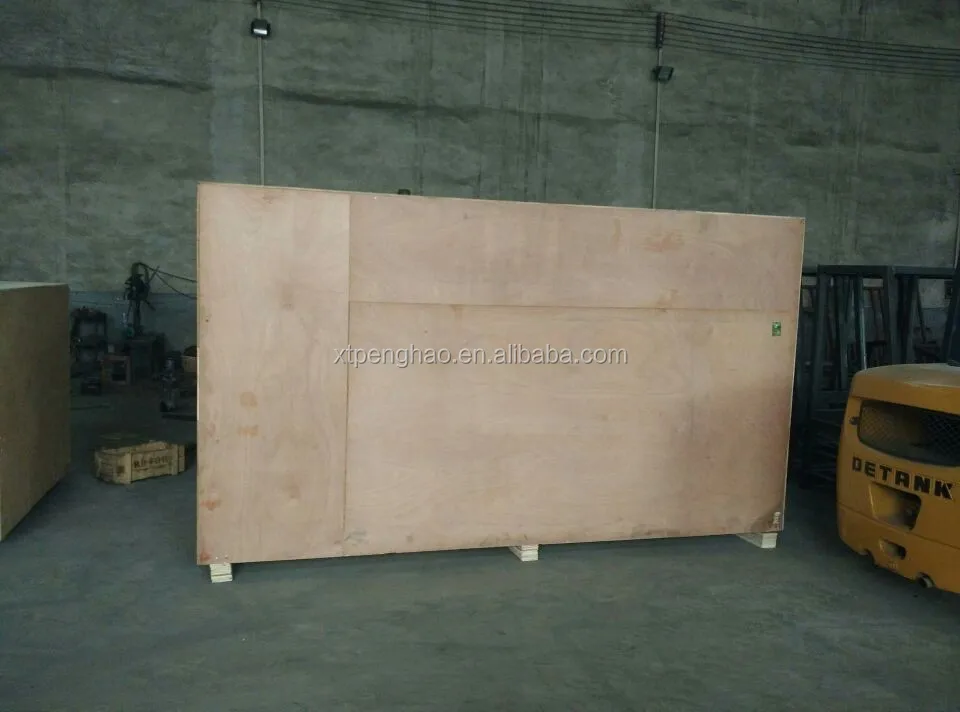

Packaging Details	The normal  package is the wooden case(Size: 3560L*1080W*2030H), if the customer needs, according to customer's demand.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
