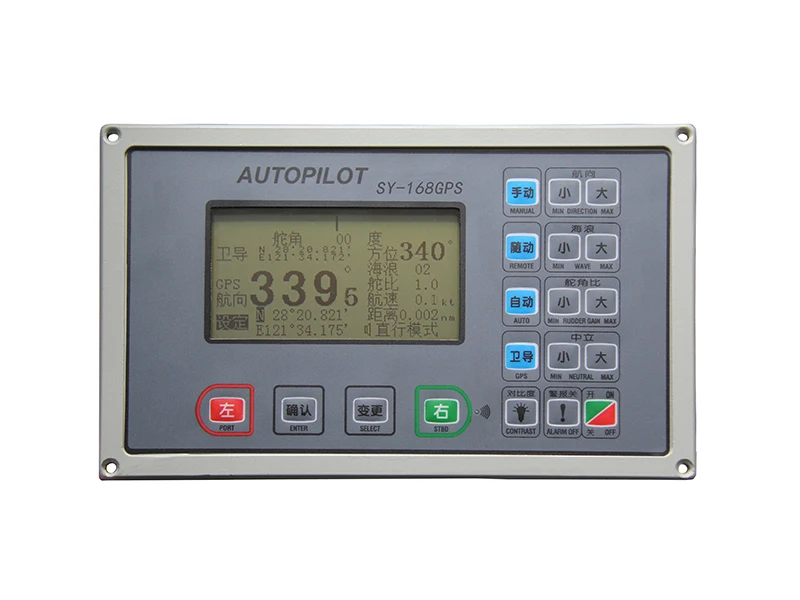

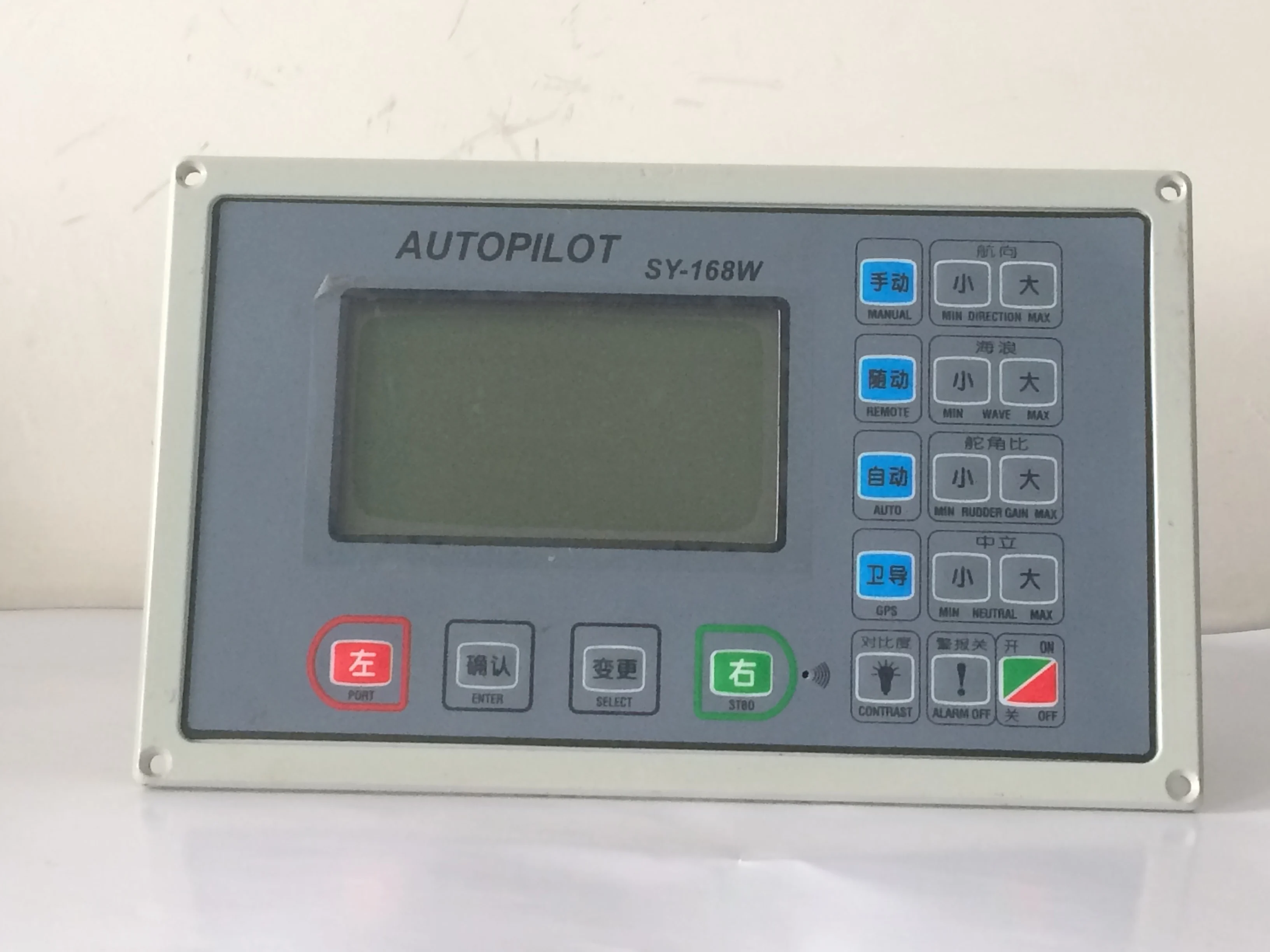

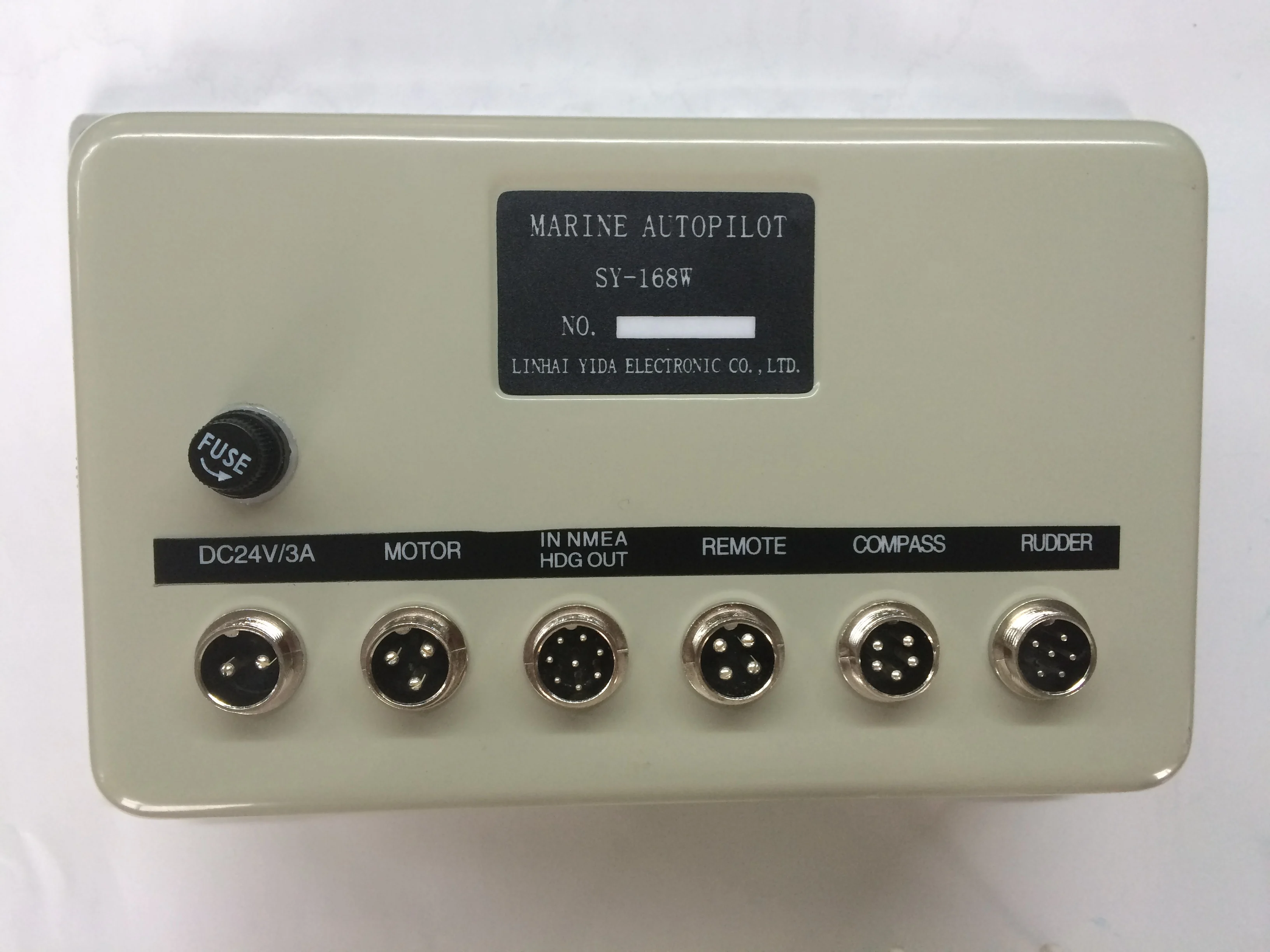

GPS marine autopilot system for ship and vessel SY-168
1.High precision,Good Quality
2.Big LCD screen, Metal material
3.use precise integrated circuit control
Marine Autopilot System
1.Manual mode: Manual steering is like driving a car with steering wheel. In manual mode, lightly press Port or STbd key to
control the actions of rudder to meet the required rudder angle value.
control the actions of rudder to meet the required rudder angle value.
2. Follow-up mode: Rudder is controlled by remote connectedto the device in follow-up mode and it can control the rudder to show angle value of remote.Although this method is not AUTO mode,it can be operated at any place in ship, and it can be used conveniently.
3. AUTO mode: In this mode, it can control the course to the current direction. Rotate couse setting knob and set direction valuewill be increased or decreased 5 degrees a grid. Press PORT or STBD button and the set azimuth value will be increased 1 degree.In this mode, if rotating the rudder angle of follow-up remote more than 5 degrees, the system will swith to follow-up mode automatically. If setting the remote in neutral position, the system will return to AUTO mode automatically a few seconds later.
4.GPS mode: In AUTO mode, because of the influence of wind or tide flow and after a long time sailing, althouth it can keep in the set direction, it may also deviate from the preset course. If connected to GPS device and after setting destination, it can correct the deviation caused by wind or tide flow.
3. AUTO mode: In this mode, it can control the course to the current direction. Rotate couse setting knob and set direction valuewill be increased or decreased 5 degrees a grid. Press PORT or STBD button and the set azimuth value will be increased 1 degree.In this mode, if rotating the rudder angle of follow-up remote more than 5 degrees, the system will swith to follow-up mode automatically. If setting the remote in neutral position, the system will return to AUTO mode automatically a few seconds later.
4.GPS mode: In AUTO mode, because of the influence of wind or tide flow and after a long time sailing, althouth it can keep in the set direction, it may also deviate from the preset course. If connected to GPS device and after setting destination, it can correct the deviation caused by wind or tide flow.
Product Description
Size: 256*154mm
Display screen: LCD
Power supply:DC24V,
Steering rate:2.5deg~5deg/second;
Rudder angle Sensitivity: <1.0deg, ,(adjustable)
GPS Input: RS232, NMEA0183
Operating mode: manual, follow-up, AUTO, GPS;
Application: 200 to 100,000 tons ships
(1)This product adopts precise military potentiometers as components for transmission and feedback,
(2)The output control is contactless SSR solid-state relay, and use precise integrated circuit control, have the advantage of high control accuracy, low noise, long service life, applicable to all kinds of ships for accurate control of hydraulic steering gear.

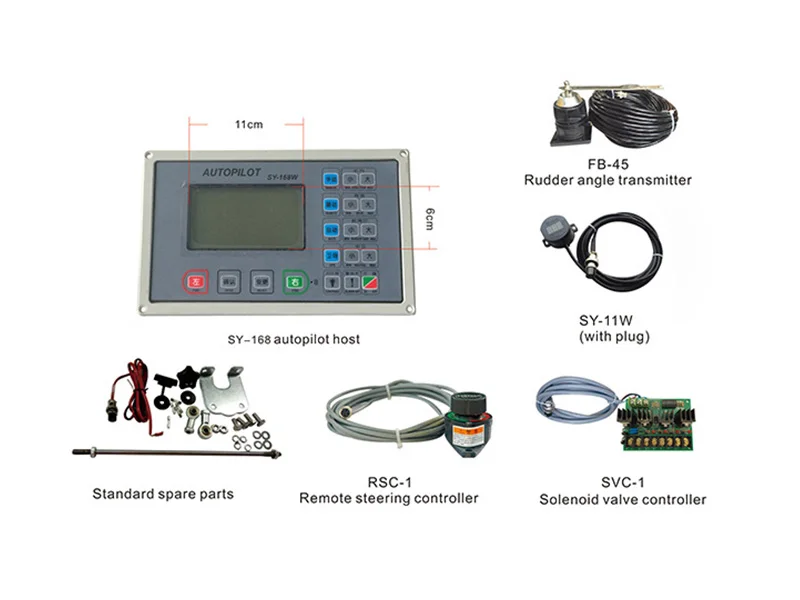

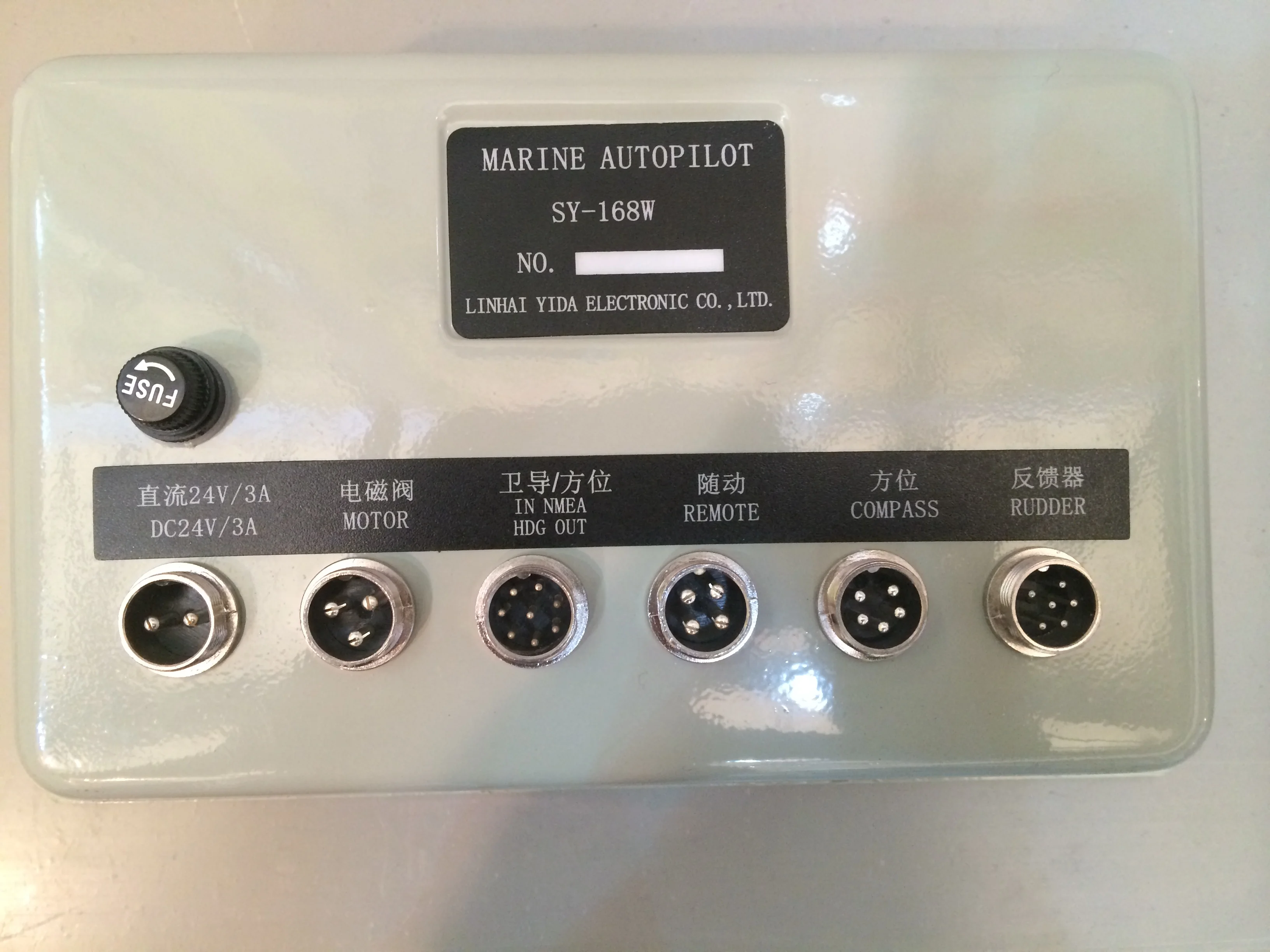

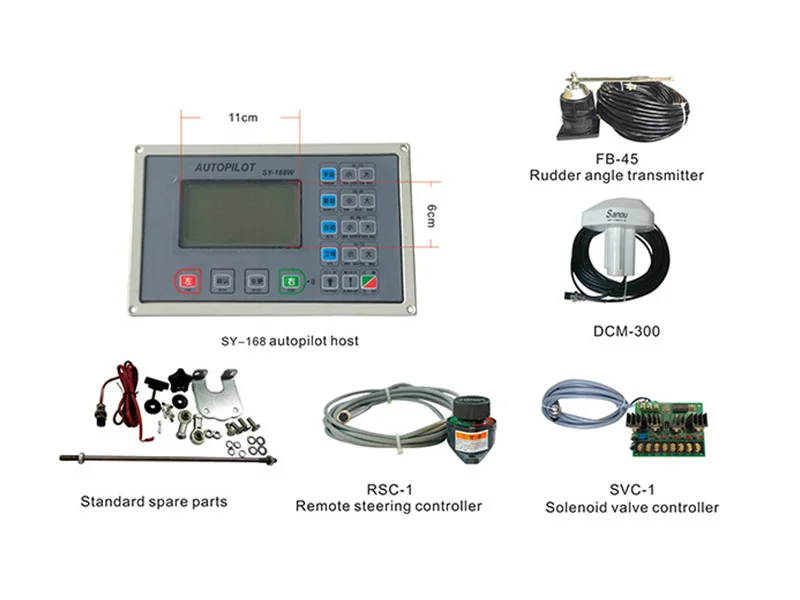

Detailed Images
Related Products

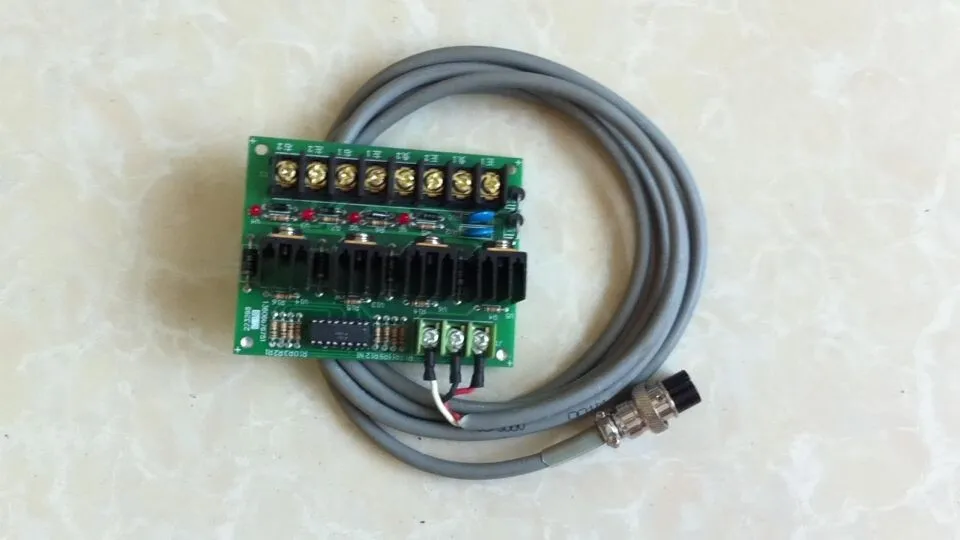

Solenoid valve controller
Input volt: DC24V
Current: 5A;

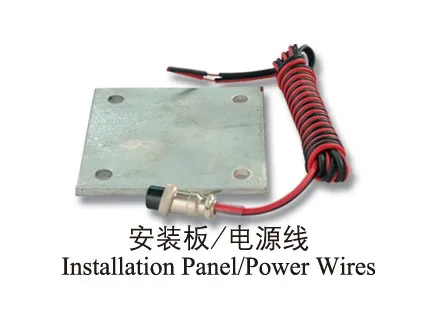

Mounting plate, connecting linkage, power wire

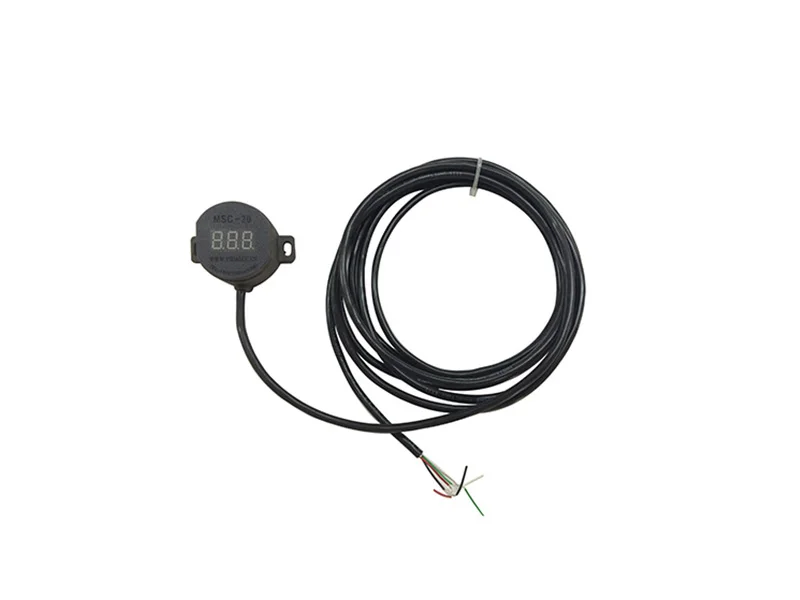

2-Axis digital compass MCS-20
Input Volt: DC24V/12V; Accuracy: <1 ° ;
Operating temp: - 10-55°C
Protection grade: IP54
Measuring Range: 0-360°;
Output data: NMEA0183 HDT HDM
Output interface:RS485/422/RS232
Optional Products
Following items which are optional (Not included in one complete set of autopilot)
3-Axis Digital Compass

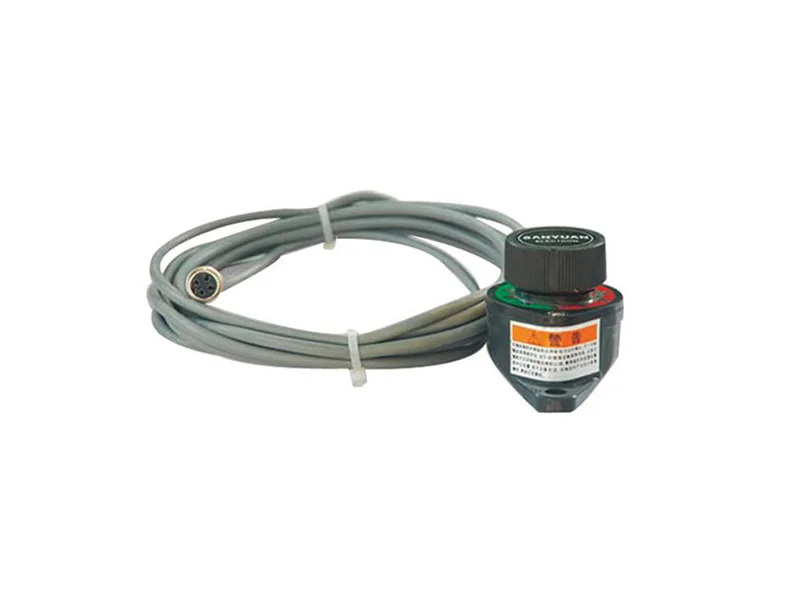

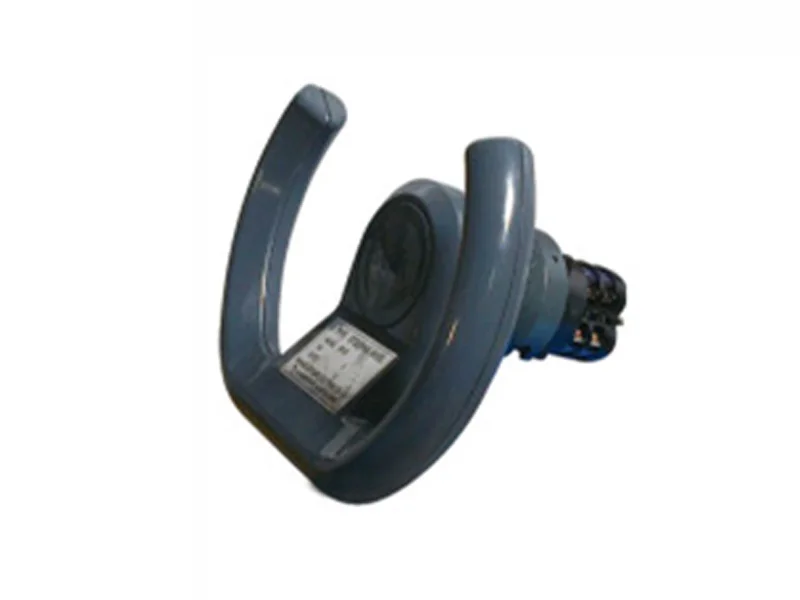

Remote control (Follow-up steering)
Fixed Follow-up steering wheel
