Agricultural Greenhouses Hydroponics System Container Vertical Farms Agriculture NFT Hydroponic System for Lettuce/Greens
- Category: >>>
- Supplier: Xiamen Heseng Agricultural Technology Co. Ltd
Share on (60460981525):
Product Overview
Description
Details Images

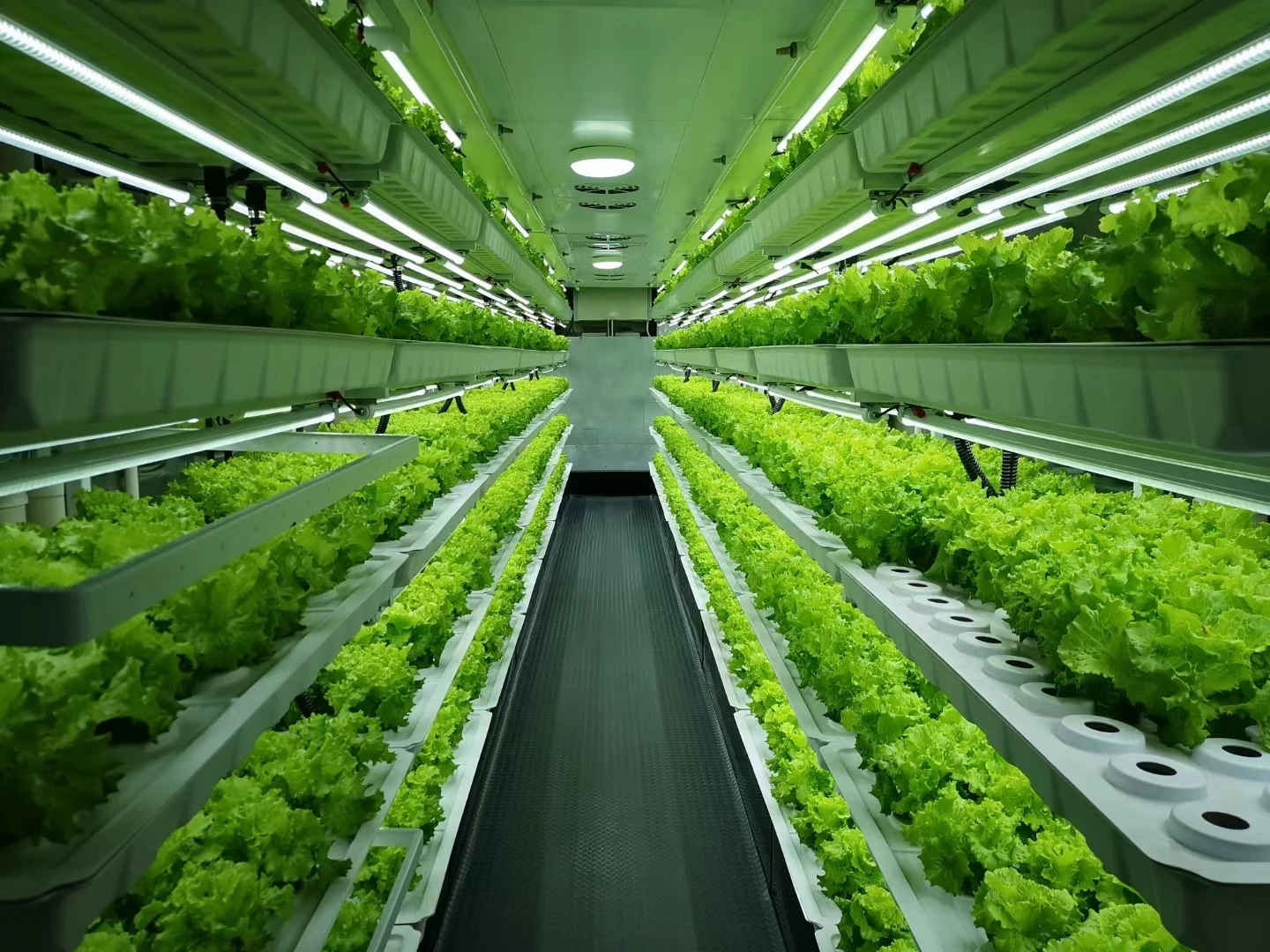

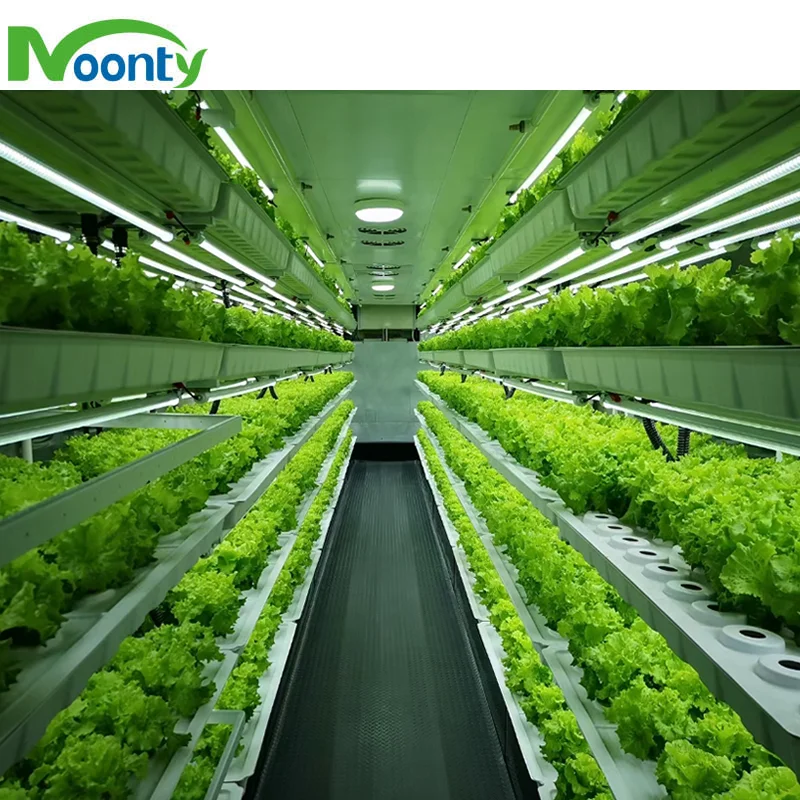

Shipping-container vertical farms
Recycled shipping containers are an increasingly popular option for housing vertical farming systems. The shipping containers serve as standardized, modular chambers for growing a variety of plants, and are often equipped with LED lighting, vertically stacked hydroponics, smart climate controls, and monitoring sensors. Moreover, by stacking the shipping containers, farms can save space even further and achieve higher yield per unit area.
Features:
1. Save land space and easy operation.
2. Stable and high yield.
3. Easy to control the growing condition.
4. Fewer pests and diseases, Eco- friendly.
Plants:
Leafy Vegetables, Strawberries, Micro-green, Herb, Medical Plant, etc.
2. Stable and high yield.
3. Easy to control the growing condition.
4. Fewer pests and diseases, Eco- friendly.
Plants:
Leafy Vegetables, Strawberries, Micro-green, Herb, Medical Plant, etc.
Size | 40ft, 12x2.4x2.6m |
Equipment | Auto Environment Control System Air Circulation System Led Growing Lights Breeding System Growing System (NFT System, DWC System, Dutch Bucket System, Ebb and Flow System, etc.) Irrigation and Fertilization System |
Increase production
The intelligent container farm can get rid of the restrictions of natural conditions such as season and geography, and realize annual cultivation through precise control, which is more than 20 times of the traditional edible crops output value.
Labor saving
The intelligent operation of crops growing shipping container can reduce the labor intensity of personnel and greatly reduce the
dependence on labor in the process of crop growth and planting.
dependence on labor in the process of crop growth and planting.
Different hydroponics grow system could be customized.

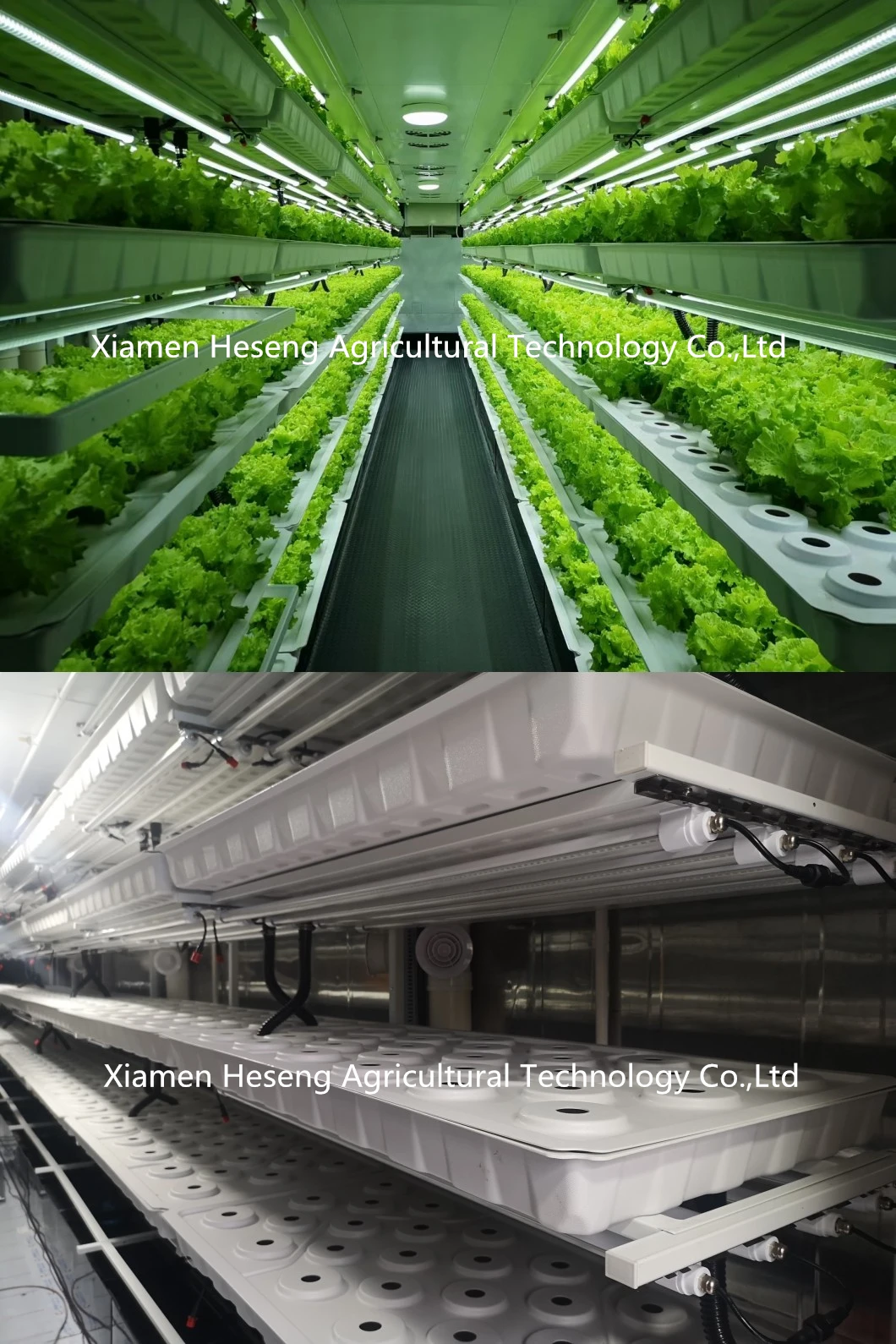

DWC(DFT) Tray Grow System

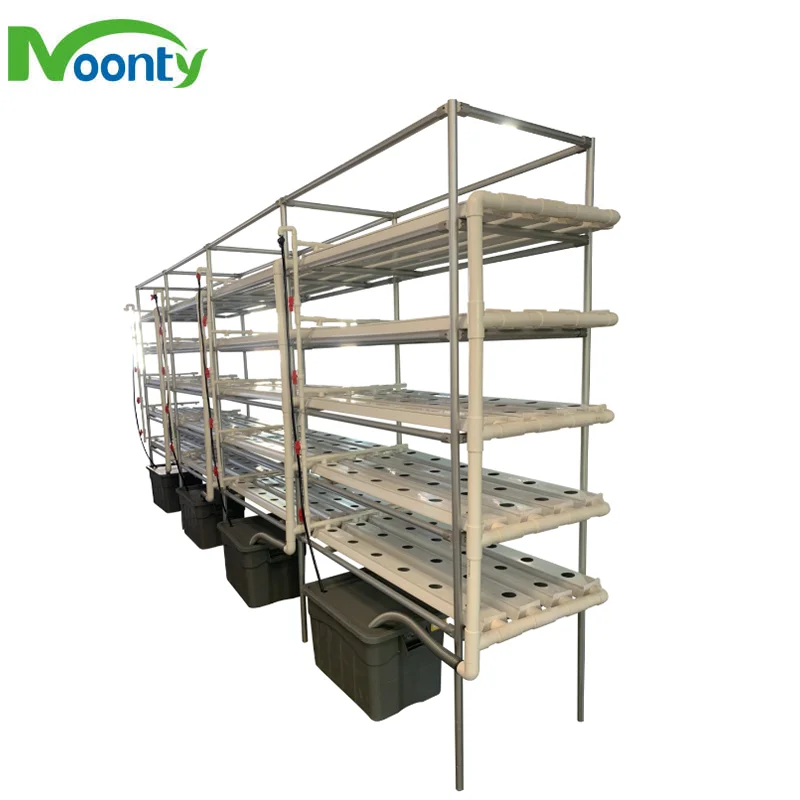

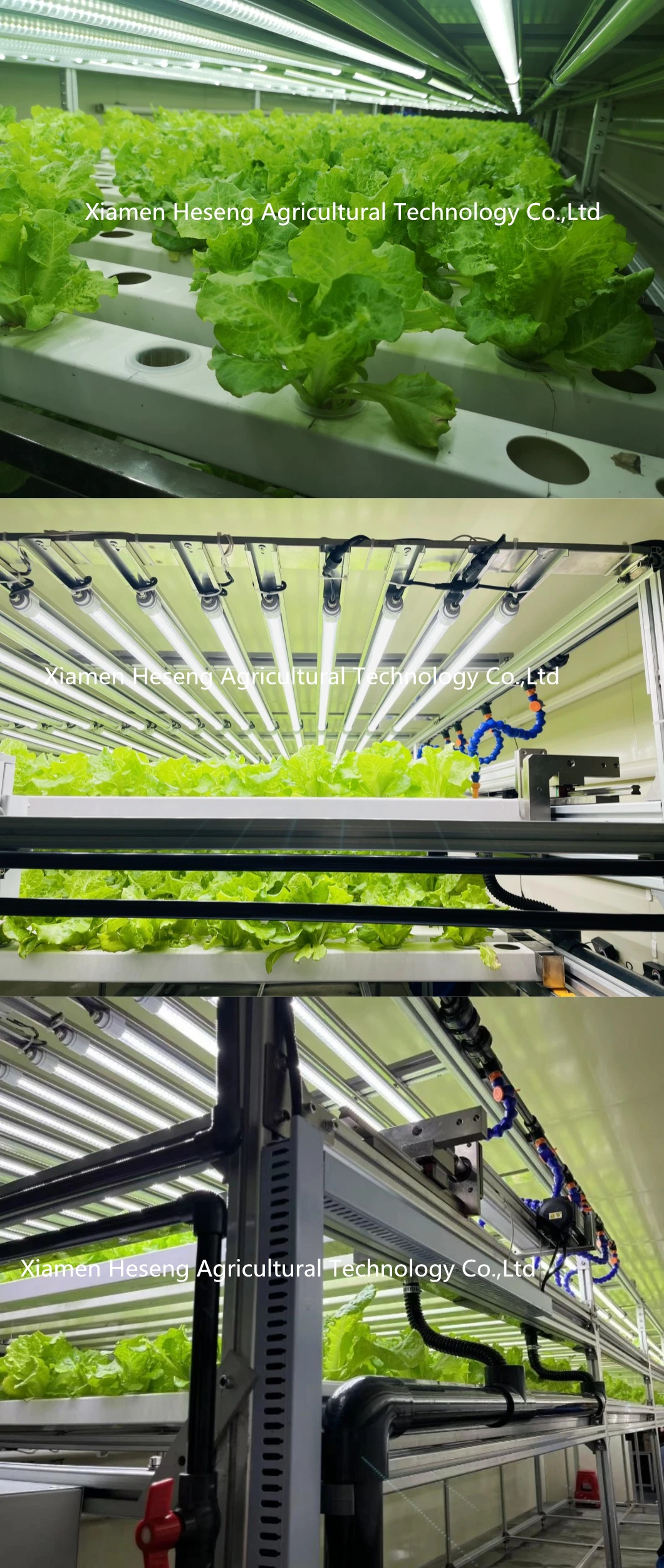

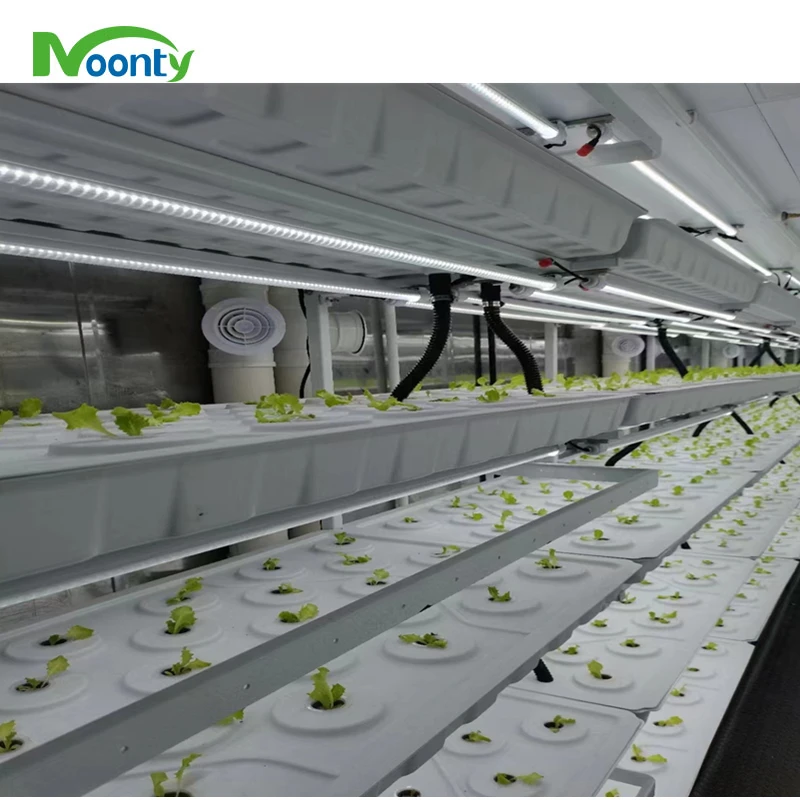

NFT Grow System

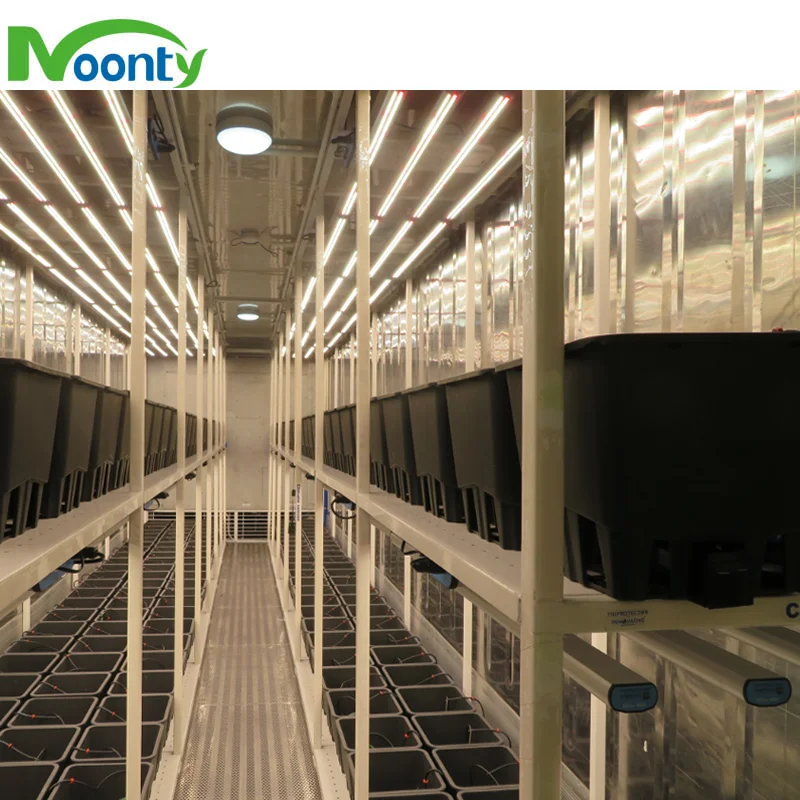

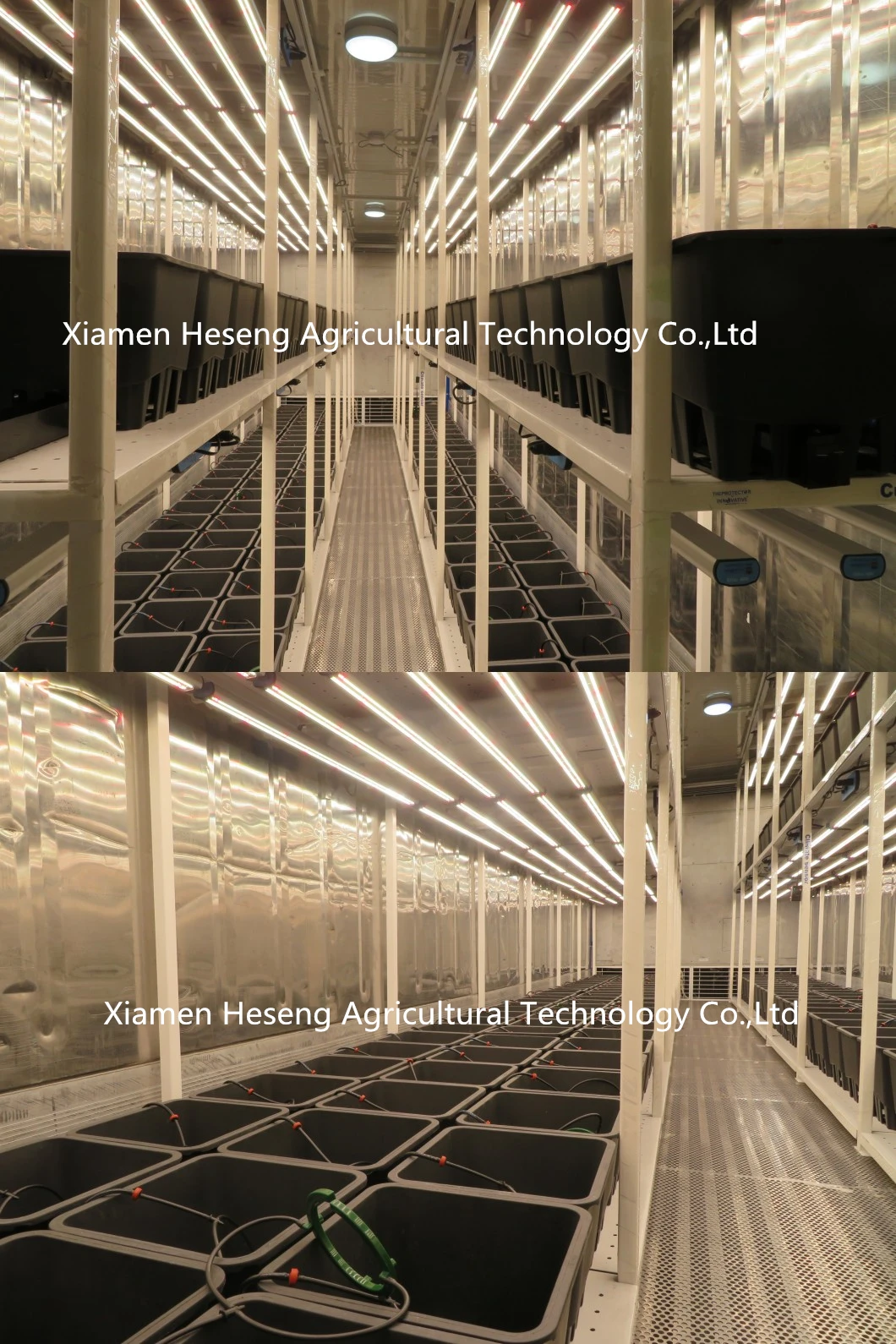

Dutch Bucket System

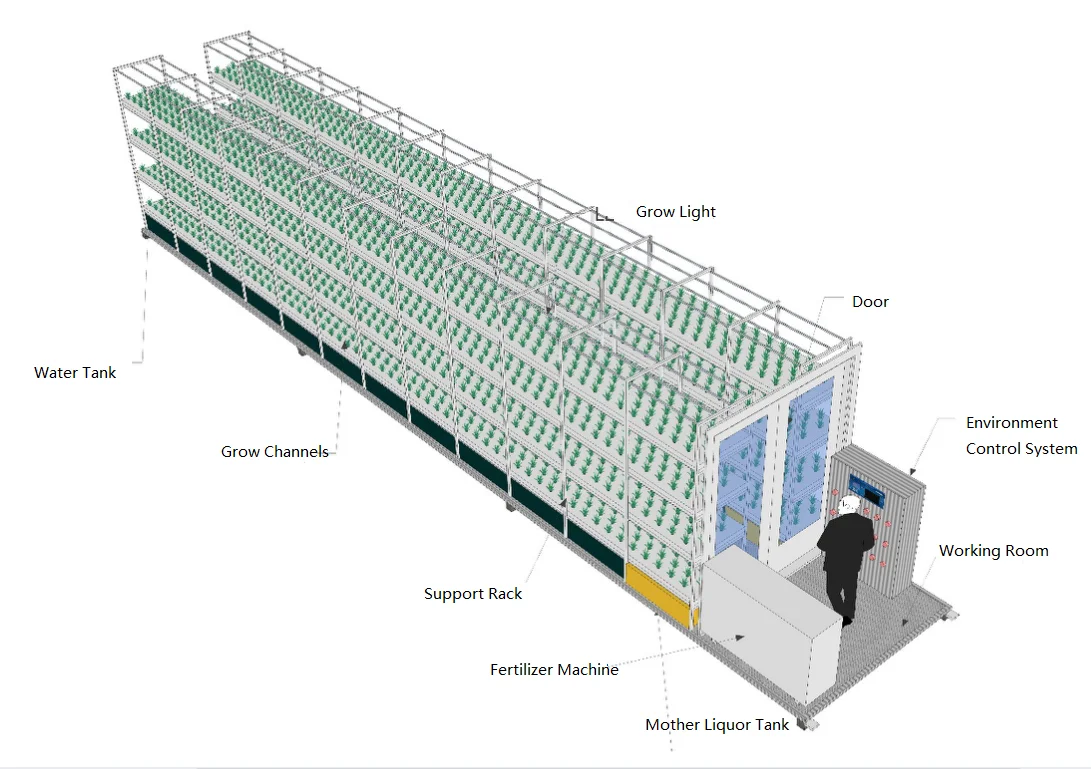

Container Mobile Plant Factory-Technical Paramters | ||
Growing System | ||

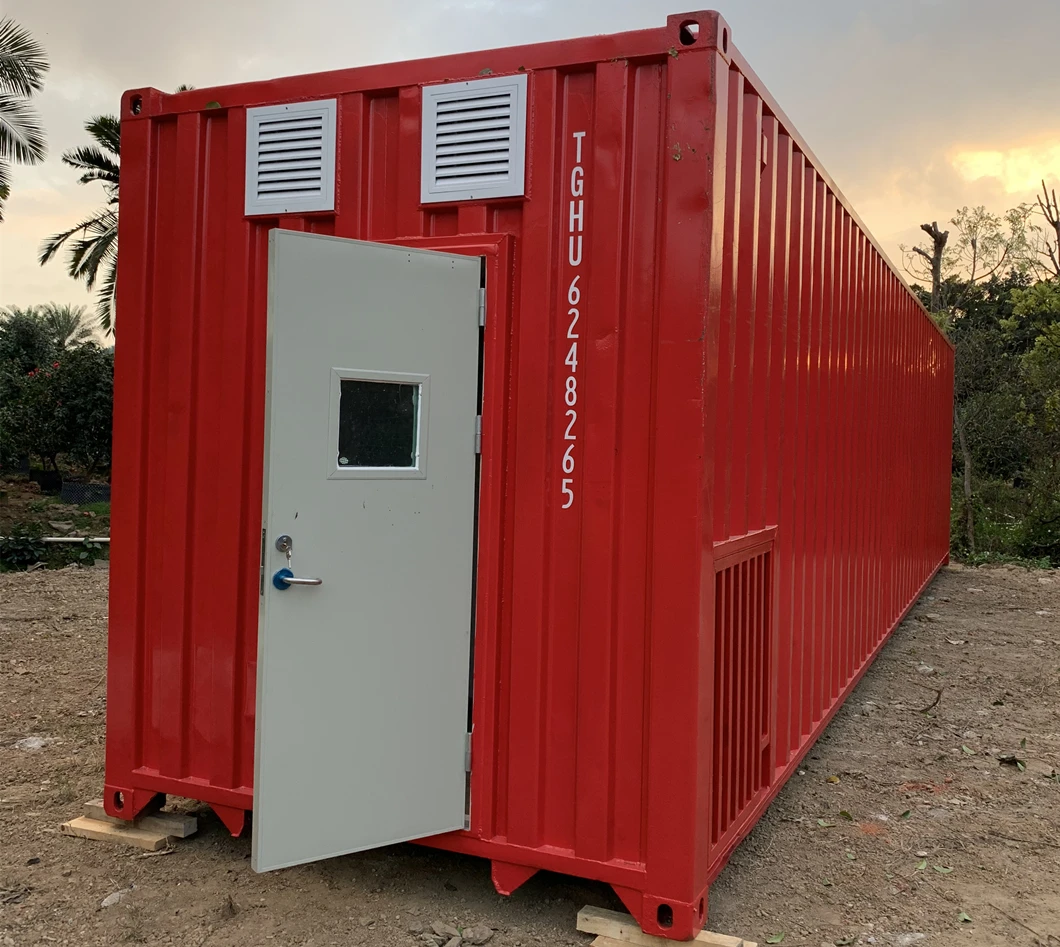

Growing Space | 40HQ Container | |

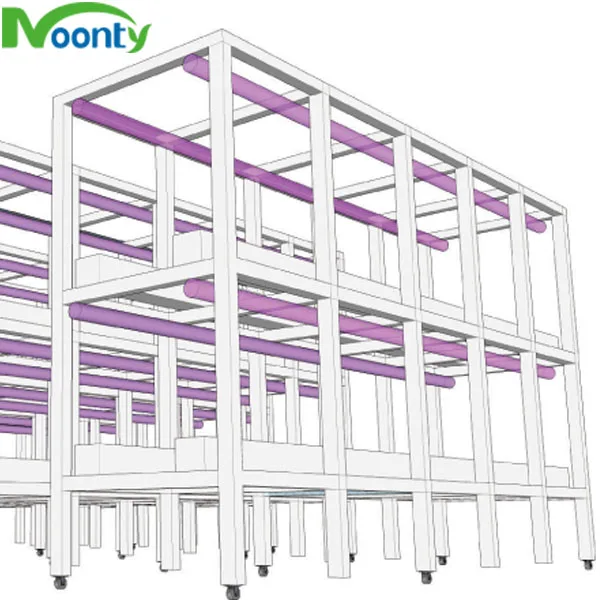

Growing Equipment | 2 groups,5 layers;Customization is available. | |
Growing Capacity | More than: 6000kg/year(Take the lettuce as an example, 21days growing time,14 season*2480crops*200g/crop =6944KG). | |
Layer of Growing | 5 layers, each layer 320mm;Customization is available. | |
Growing Quantity | 40pcs growing channels,62holes/pc, plant 2480crops.Hole Dia. 5cm; Customization is available. | |
Irrigation Method | Water recycling. | |
Max Load | 10KW | |
Size of One Group | 9300*6000*2300mm(40'HQ); Customization is available. | |
Power | 220V AC 50HZ 1Phase. | |
LED Grow Light | LED light, 1m/pc, 320pcs. | |
Environment | ||
Temperature Range | 16°C~30°C | |
Temperature Tolerance | ±2°C | |
Humidity Range | 40-80% RH | |
Humidity Tolerance | ±5% | |
CO2 Replenishment Concentration Range | 300-3000ppm | |
Watering&Fertilizer | ||
PH:3-10 Temperature:0~50° EC:10μs/cm~30ms/cm Water Level:10~400mm | ||
PH Adjustment | Auto control the adjustment of pH+ and pH-, PH adjustment range:3-10. | |
Nutrient Solution Adjustment | Auto control the add of 4 bottles of nutrient solution. | |
Pump | 220V AC, auto compensation, power 25W,automatic alarm in case of abnormal water pressure | |
RO Water Replenishment | Auto Controlled. | |

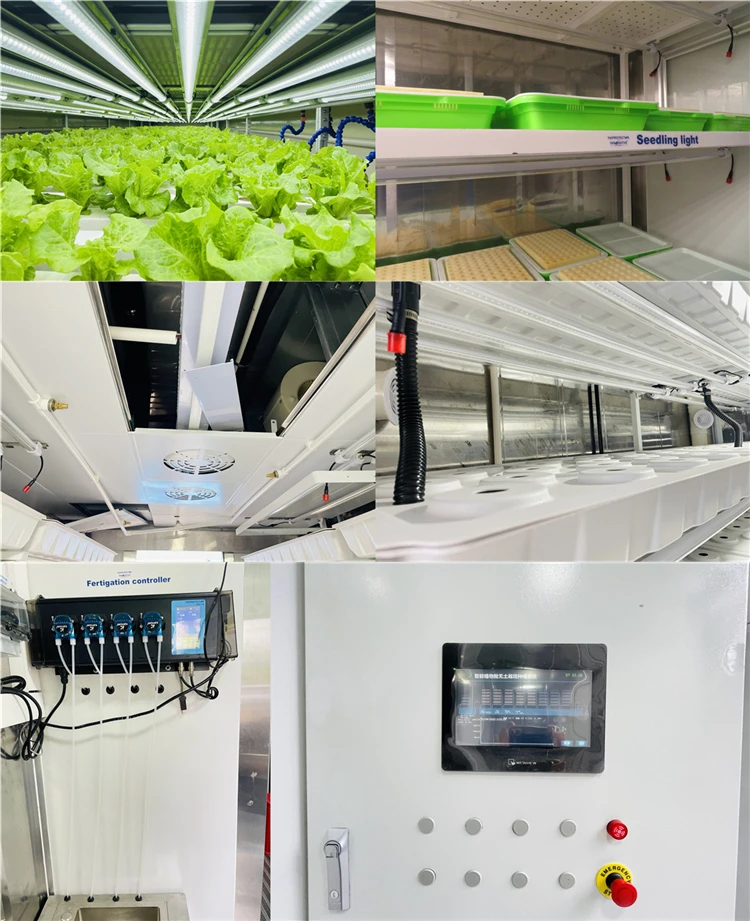

Light System & Breeding System

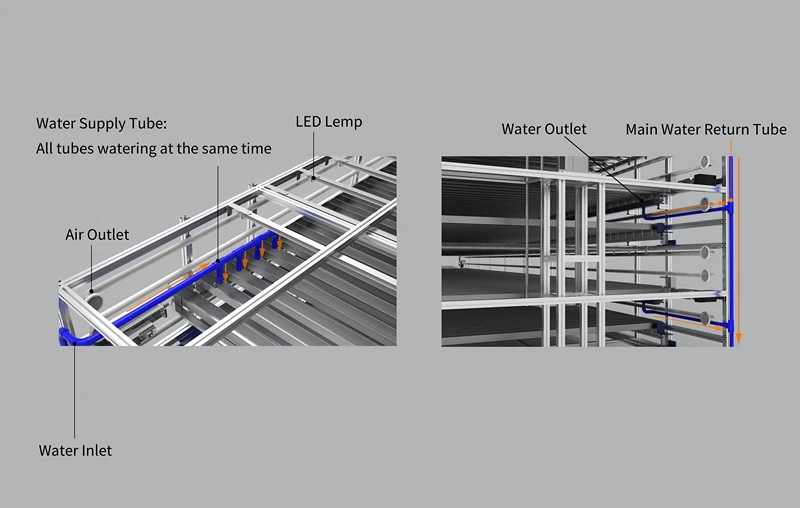

Ventilation System & Water Recycle System
Fertilization System & Automatic Control System
Company Profile
Is the Mother Company of Noonty Greenhouse Company Limited, which is specialized in greenhouse and hydroponics industry.
Greenhouse types we offer include Single Tunnels, Gothic Multi-span Plastic Film Greenhouses, Double-layer Warm-keeping Greenhouses, Saw-tooth greenhouse, Venlo Polycarbonate,Venlo Glass Greenhouse, Light Deprivation Greenhouse, etc.
Our Advantages
Team Appearance
Customer Photos
Product packaging
FAQ
Q: How could we get the quotation?
A: Agriculture Greenhouse is customized based on detailed climate condition, land area prepared for the greenhouse,etc.
Q: How could we assemble the greenhouse?
A: Greenhouse is prefabricated and no welding is required. Detailed drawing and assembly manual will be offered for each order.
Q: Is engineer supervision available for greenhouse assembly?
A: Yes,engineer supervision is available to send to the project within customers requirement.Two-way tickets,local accommodation and salary is arranged by customer.
Q: What is the delivery time?
A:Usually about 25days to 60days based on greenhouse design and size.
