10L 15L 20L min oxygen water generator system oxygen concentrator for ozone generator fish tank
- Category: >>>
- Supplier: Shenzhen Ozonegreenplant Technology Co. Ltd.
Share on (60461082060):
Product Overview
Description
Products Description

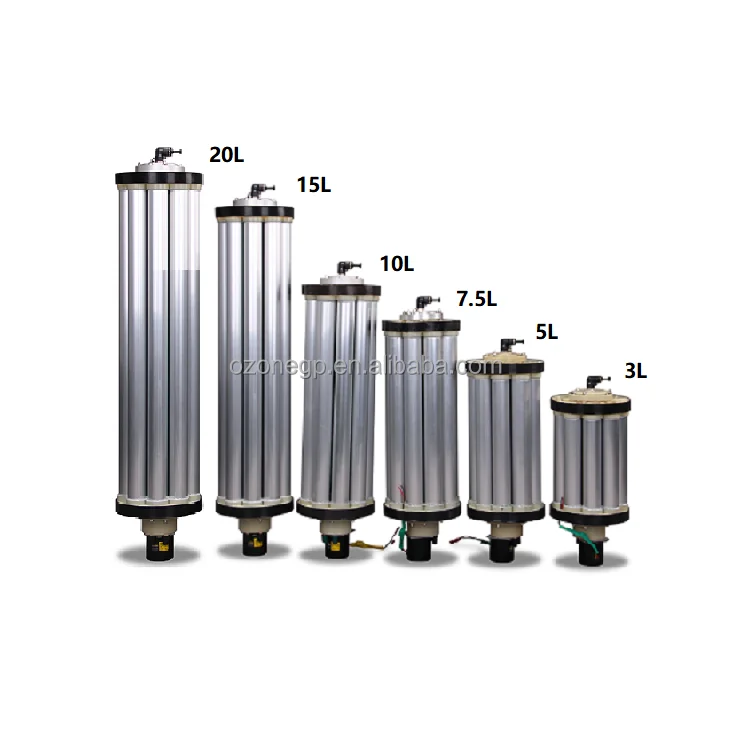

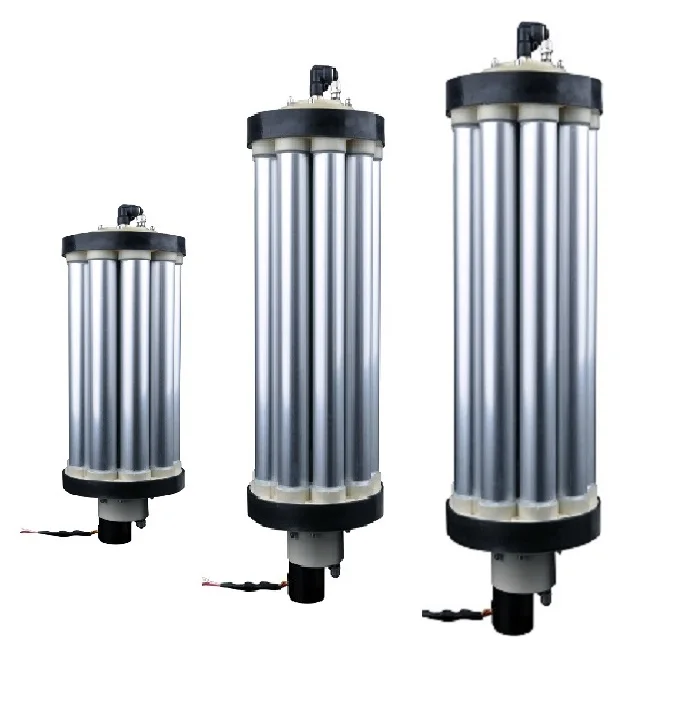

OGP-OX3~20L Oxygen generator parts
1- Patented products
OGP-OX series molecular sieve is a air separation plant which has already obtained domestic patent.
2-Rational construction
Modular construction is the main points of our molecular sieve. Through the different combination of oxygen units, the oxygen output can be from 3LPM to 20LPM, even higher.
3- The oxygen output is stable and continuously
4- Low-pressure oxygen production working pressure 1.4-3.5 Bar.
OGP-OX series molecular sieve is a air separation plant which has already obtained domestic patent.
2-Rational construction
Modular construction is the main points of our molecular sieve. Through the different combination of oxygen units, the oxygen output can be from 3LPM to 20LPM, even higher.
3- The oxygen output is stable and continuously
4- Low-pressure oxygen production working pressure 1.4-3.5 Bar.
PRODUCT SPECIFICATIONS
Model | Unit | OGP-OX | ||||||||||||
Item | 3L | 5L | 8L | 10L | 15L | 20L | ||||||||
Oxygen output | LPM | 3 | 5 | 8 | 10 | 16 | 20 | |||||||
Air flow rate | LPM | 36~45 | 60~75 | 90~115 | 150~200 | 180~200 | 230 | |||||||
Oxygen concentration | % | 93+-3% | ||||||||||||
Pressure (inlet) | Bar | 1.4~1.8 | 1.4~1.8 | 1.5~2 | 1.8~2.5 | 3~3.5 | 3~3.5 | |||||||
Sound level | dB | Less than 60 | ||||||||||||
Power | w | ≤280 | ≤400 | ≤400 | ≤550 | ≤800 | ≤1100 | |||||||
Pressure (outlet) | Mpa | 0.06~0.08 | ||||||||||||
Temperature | °c | Indoor temperature | ||||||||||||
Relative humidity | % | ≤ 70+_10% | ||||||||||||

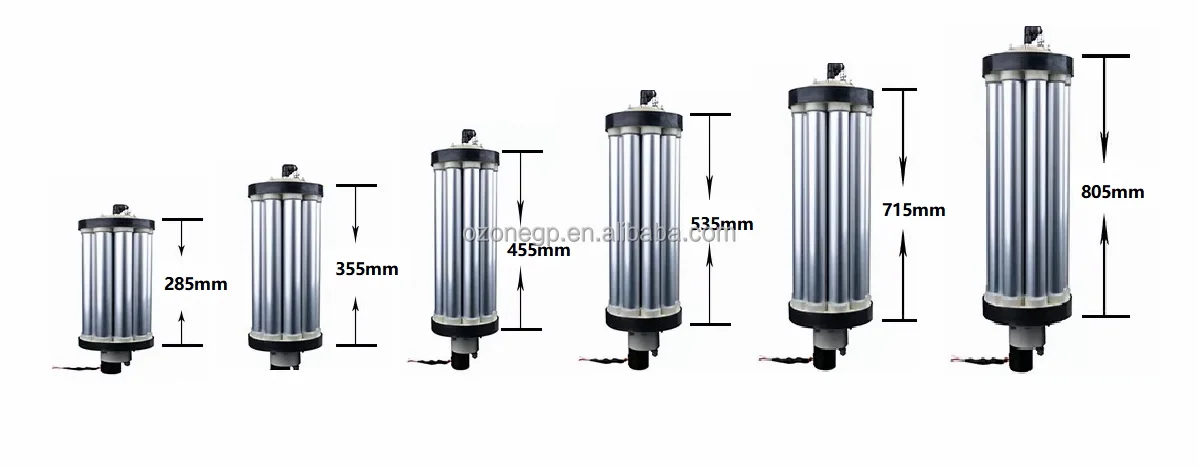

Dimension | cm | 20*29 | 20*41 | 20*47 | 20*50 | 20*88 | 20*95 | |||||||
Weight | kg | 14 | 17.85 | 19.1 | 21.3 | 32.5 | 35 | |||||||

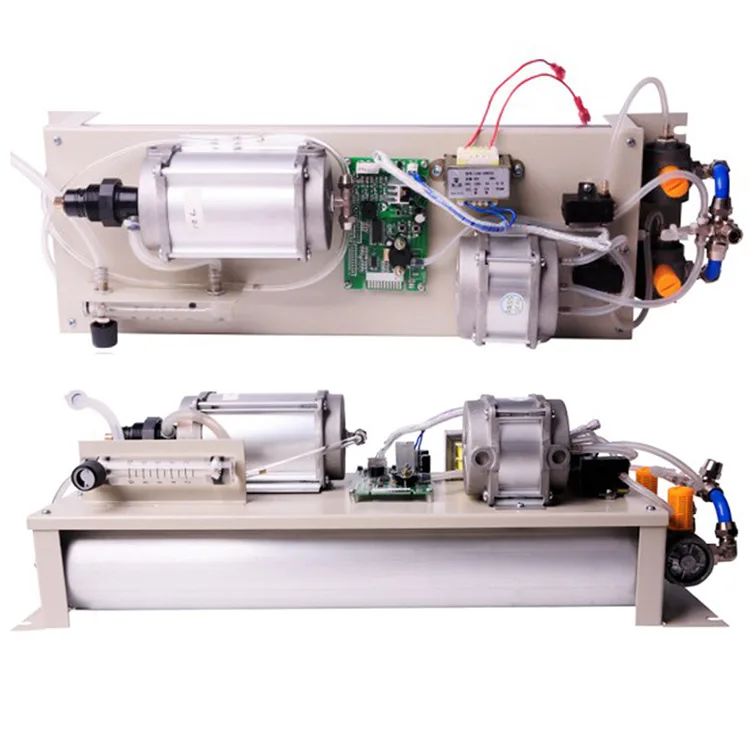

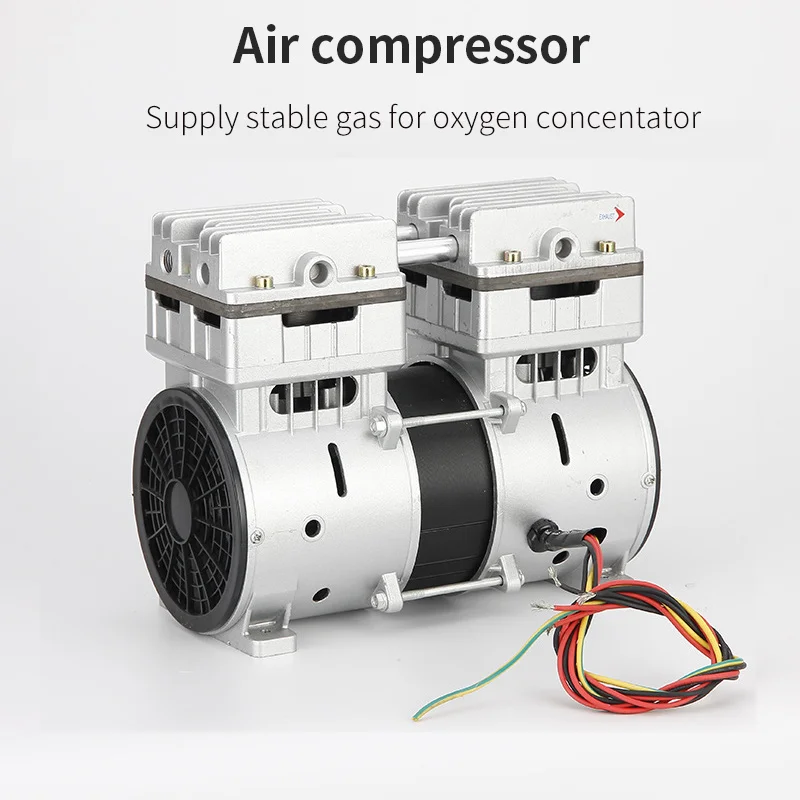

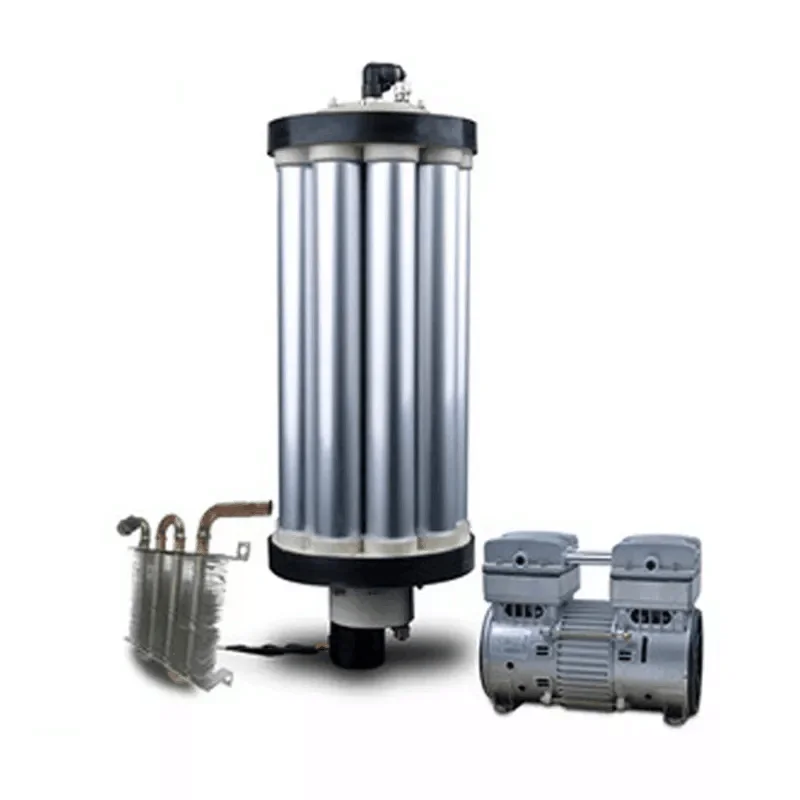

Oxygen kit include oxygen tower, air compressor, chiller, air flow meter and mounted base | ||||||||||||||

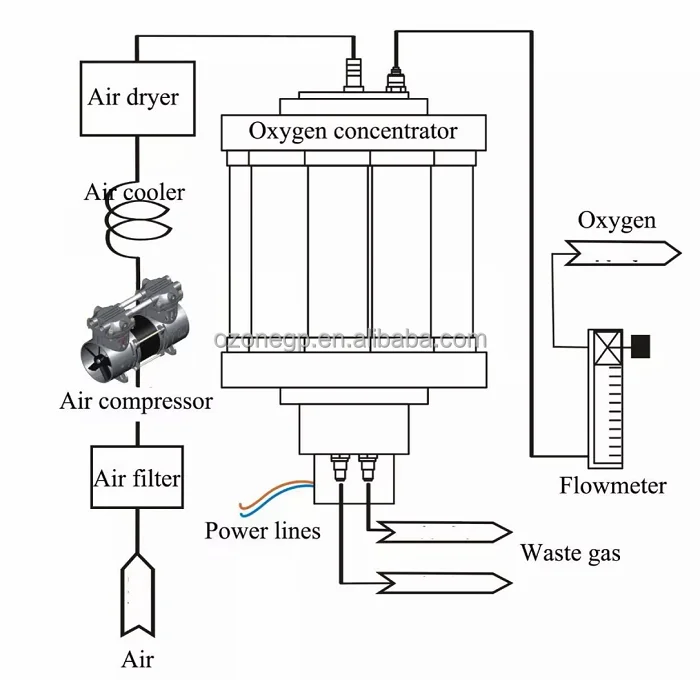

Installation Instructions
Related Industrial oxygen generator product
Company Profile

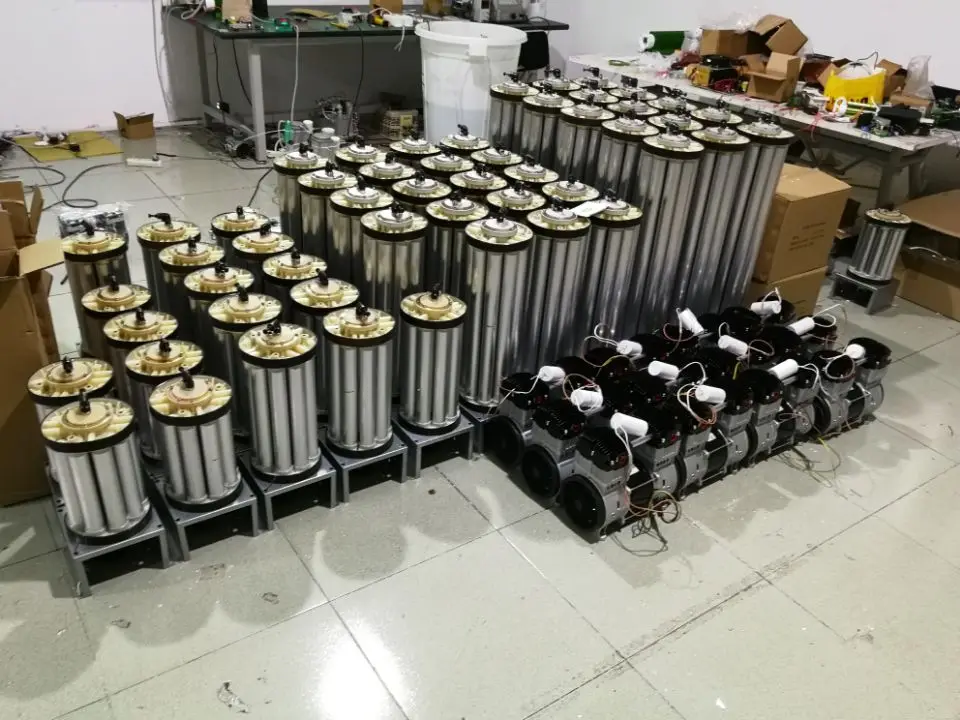

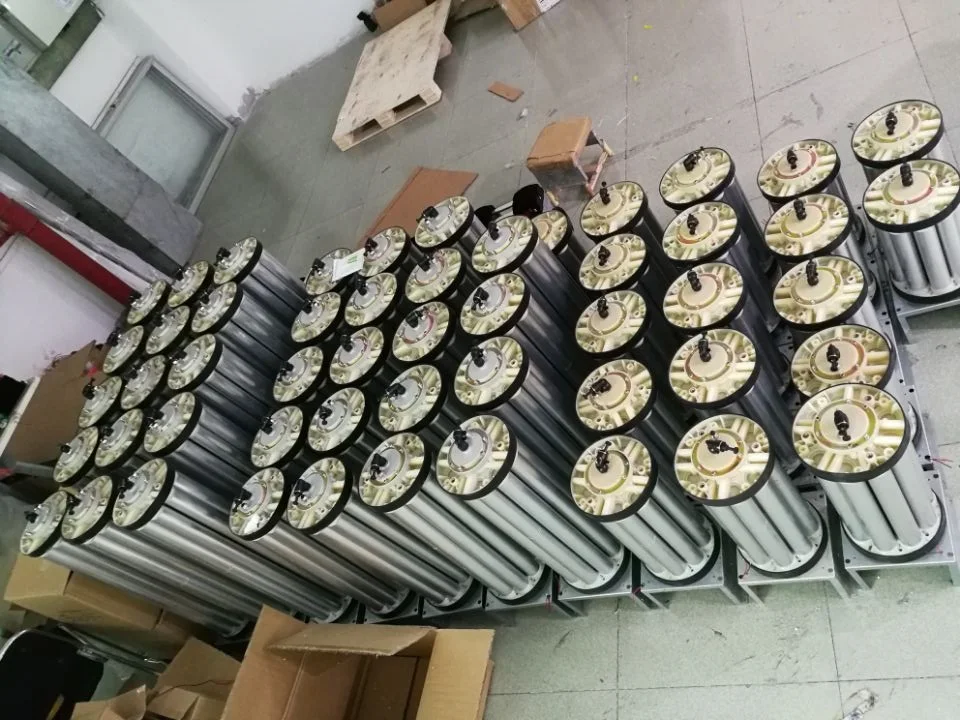

Our Factory
Ozone Green Plant is specialized in the research of ozone production mechanism, design and manufacture of ozone equipment, design of ozone application engineering scheme, and the installation, debugging, running and maintenance of ozone system equipment. As the representative enterprise of domestic ozone industry, the company is gradually becoming a global ozone system supplier. We always make our best efforts to meet the requirements of customers with our many years' experience, continuing research and technical innovation in Ozone industry. We ensure the product with good quality, sufficient quantity and diversification.all the customer appeals can be deal with quickly and effectively provide the most perfect service to all customers. We are confident that our products can get your one hundred percent of trust and help you to achieve your success with our great efforts.
OUR SERVICE
1.Your inquiry related to our products or prices will be replied in 24 hours
2.Well-trained and experienced staffs to answer all your inquiries in fluent English
3.We can follow your design to produce
4.Protect your sales area,ideas of design and all your private information
5.We have Technical staff with 10 years of ozone experience.
6.Products passed CE certification.
OUR SERVICE
1.Your inquiry related to our products or prices will be replied in 24 hours
2.Well-trained and experienced staffs to answer all your inquiries in fluent English
3.We can follow your design to produce
4.Protect your sales area,ideas of design and all your private information
5.We have Technical staff with 10 years of ozone experience.
6.Products passed CE certification.

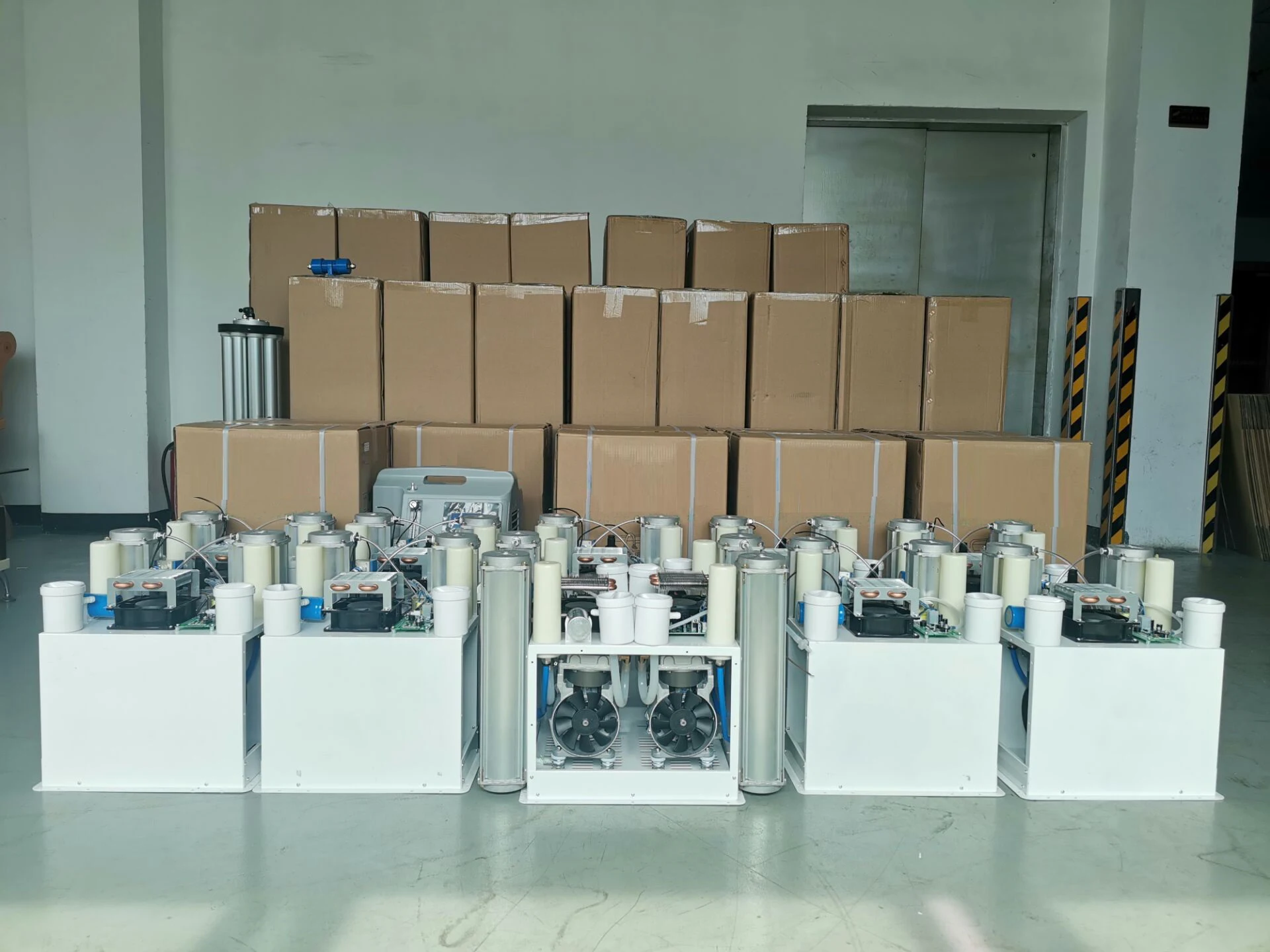

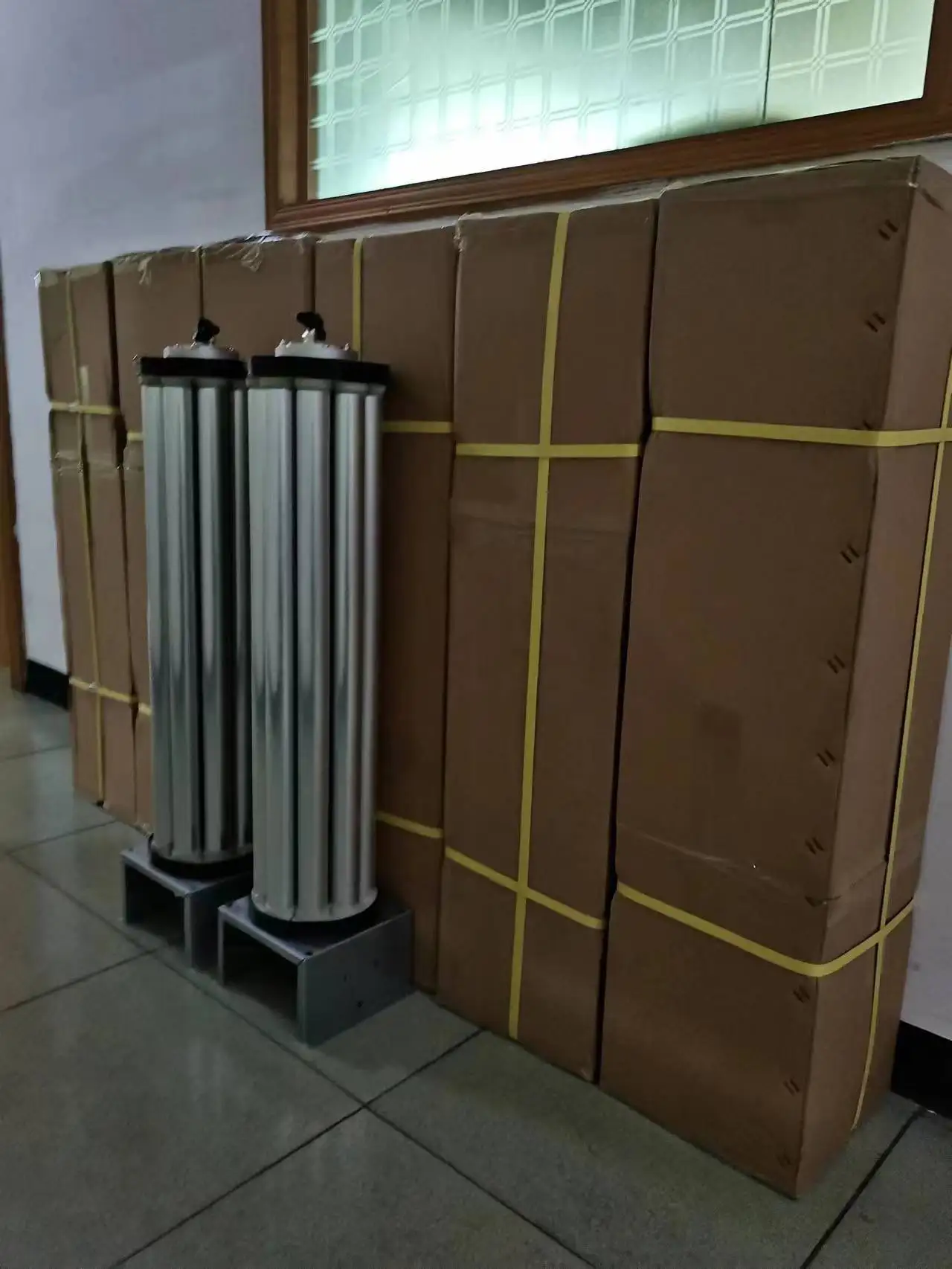

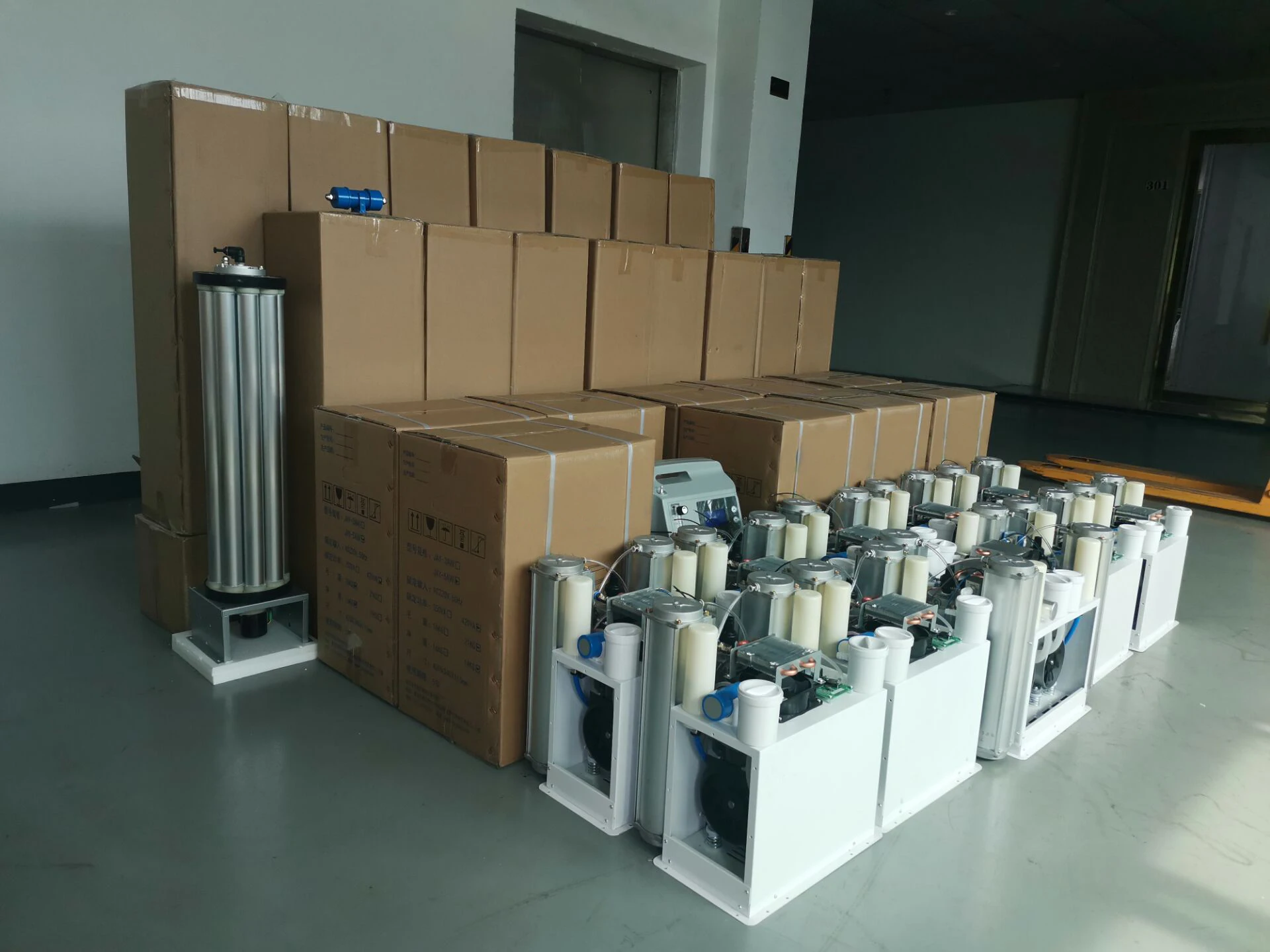

Product packaging
