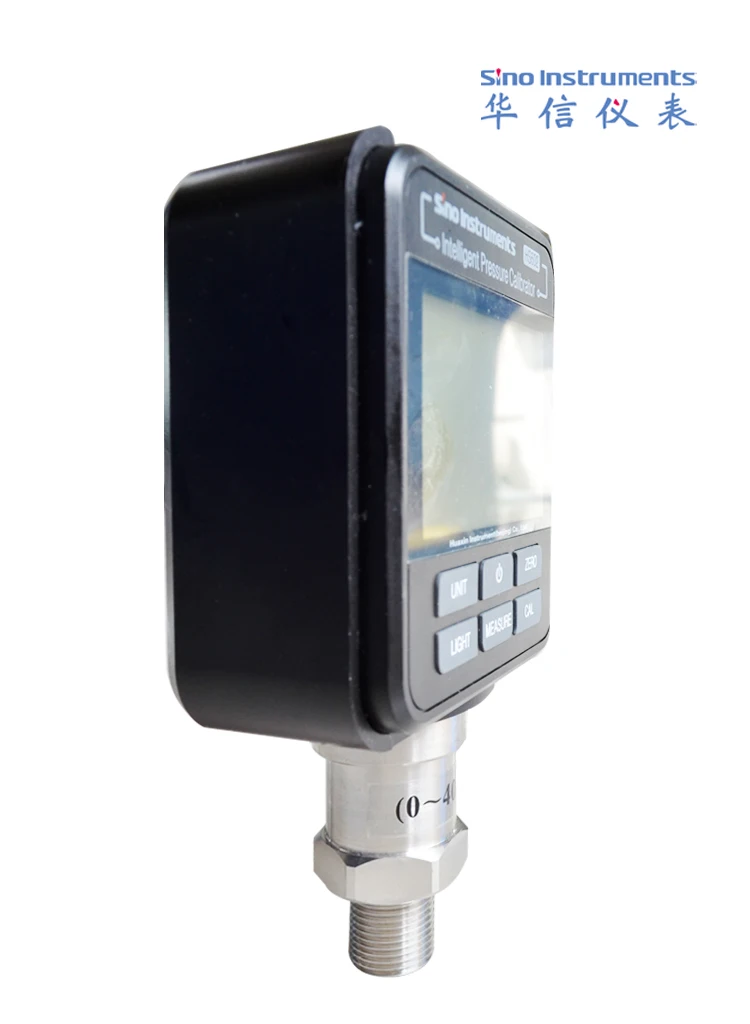

HS602 Intelligent Wireless Digital Pressure Calibrator Gauge With ABS Plastic Cover and Stainless Steel Bottomessure

Product Description
HS602 Intelligent Pressure Calibrator has the double-line large screen with backlight function. It can meet customers' requirement in the 6-digit display and 9 pressure units. It provides pressure measurement for calibrating pressure (differential pressure) transmitters, precision (general) pressure gauges and other pressure instruments. It has been used in the industries of power, chemical, petrol, metallurgy, metering, etc.

Technical specification

 Range(-1-0)bar,(0-2500)bar(any range within this two range)
 Accuracy:±0.025%F.S,±0.05%F.S,±0.1%F.S,±0.2%F.S,±0.5%F.S
 Current measurement: (0-25)mA
 Accuracy:±(0.02%R.D+0.005%F.S)
 Voltage measurement: (0-25)V
 Accuracy:±(0.02%R.D+0.005%F.S)
 Temperature compensating range:(0-50)℃
 DC output:DC24V(≤30mA) Accuracy: ±1%F.S
 Power supply:7.4Vdc Lithium battery power supply and special charger
 Connection:M20×1.5 or 1/4"NPT male thread(or customized)
 Dimensions:Φ95mmx49mm. Total Height:166mm
Weight:0.75kg

Features
 Equipped with rugged ABS plastic
 Pressure-transmitting medium including air, oil, and water
 6-digit LCD screen with backlight
 Nine Pressure Units Selectable: kPa, Pa, psi, kgf/cm2, bar, mbar,mmH2O, mmHg, MPa
 Zero point, full scale calibration function
 7.4Vdc Lithium battery and special charger
 Overload and short circuit protection
 Light weight, small size, easy operation
 Rapid in operation, compatible with computer software
Support Hart Version 5
 With max/min Values functions
 CE&EX approved
