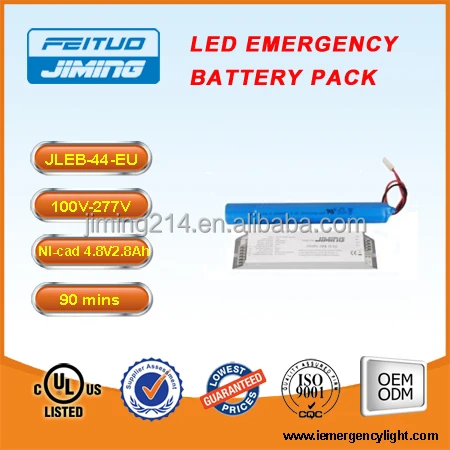

JIMIING, Панельное освещение, аварийное устройство, комплект питания, светодиодный аварийный аккумулятор

Product Overview

Description









Product Name:	JIMIING -  panel emergency power kit  LED emergency battery pack (44W, External battery pack)	Packing Information
Model No.:	JLEB-44-EU	Packing:	White box
Main Specification:	3-40V DC output, <240mA, 4.8V2800mAh Ni-Cad battery, 90mins, 44W, 15% Lumens output	Carton:	L(cm)		W(cm)	H(cm)
		Carton Size:	40		25	16.5
Product Size:	168X37X28mm	Carton CBM:	0.017M3
MOQ:	1000PCS	Q'TY/INNER BOX:	PCS
Lead Time:	35 days	Q'TY/CTN:	6PCS
Sample Delivery Time:	3~10 days	Gross Weight:	8.5KGS
Remarks:		Net Weight:	7.5KGS
		Container Loading Q'TY(PCS):	1*20'		1*40'	1*40' HQ
			9706		20294	23647
Model JLEB-44-EU Features: LED Emergency Battery Pack for LED Model-JLEB series(44W, External battery pack) JIMING LED emergency battery pack will operate LED lighting fixtures between 3-40VDC including LED panel, LED down light, LED ceiling light and the other LED fixtures with external AC drivers not exceeding 44W(JLEB-44 series) or 72W(JLEB-72 series). The LED lighting will be illuminated, at reduced output, for a minimum of 90 minutes. JIMING also provide a high lumen solution (JLEB-20-H) which can operate LED tube light, LED bulb and the other lighting fixtures need a high lumen output, not exceeding 20W. The LED lighting will be illuminated, at 100%  output, for a minimum of 90 minutes. TECHNICAL DATA: Mode of Operation: Maintained Input Voltage: 100~277VAC 50/60HZ Input power: 3.5W Battery: 4.8V 2800mAh Nickel Cadmium Battery(External) Output voltage: 3-40VDC Output current: <240mA Lumen output: 15% Lamp used: 44W LED tubes or Down lights(Please Refer to Supplier) Operating Temperation: 0℃~40℃ Charger: Solid-state Electronics Provide High Reliability with Trickle Charge-Facility. Indication: Red LED Backup time: ≥90minutes Recharge time required: 24hous Protection: Low-Voltage Cut-Off to prevent Over-Discharge of Battery The JLEB series Emergency Ballasts for LED Model allow the same lighting fixture to be used for both normal and emergency operation. In the event of a power failure, the JLEB switches to the emergency mode and operates the LED tubes or Down lights for a minimum of 90 minutes. The unit with an external battery, charger and inverters IN A SINGLE PACKAGE. The JLEB can be mounted in the wireway or on the top of fixture. And UL, cUL certificate is pending.
