T 250 Competitive Price Semi Automatic Edge Binding Machine With Buffing and Fine Trimming Functionsfor MDF Manufacturing

Product Application

Competitive Price Semi-Automatic Edge Binding Machine With Buffing and Fine Trimming Functions T-250 for MDF Manufacturing has basic functions such as  fine trim, scraping etc., It's good for wood, MDF, plywood, melamine panel etc. work piece PVC/ABS edge binding work. The edge binding material can be PVC, Acrylic and ABS.

It's idea selection with useful functions edge binding machine.

Main Features

1. Germany Rexroth frequency controller, insured the duration and precision of our wood edge banding machine.
2. PLC use LG brand, air cylinder use Parker from America, INNA liner track, Honeywell limitation switch, all key parts we choose market tested best brands to try to guarantee our machine performance and let our customers enjoy to use our machines.
3. Independent lifting up and down system, simple and convenient.
4. Precise encoder control, high speed.
5. Special polishing structure, motor angle can be universal adjusted, make the PVC/Acrylic/ABS band polishing and buffing to the best.
6. Glue spray clean system is optional, it’s good to remove the glue and dirty on MDF/Wood during edge banding process.

7. PUR edge band function is optional to give you more durable, no gap banding experience!

8. Veneer/wood edge band is optional to be installed!

9. Grooving Function is optional!

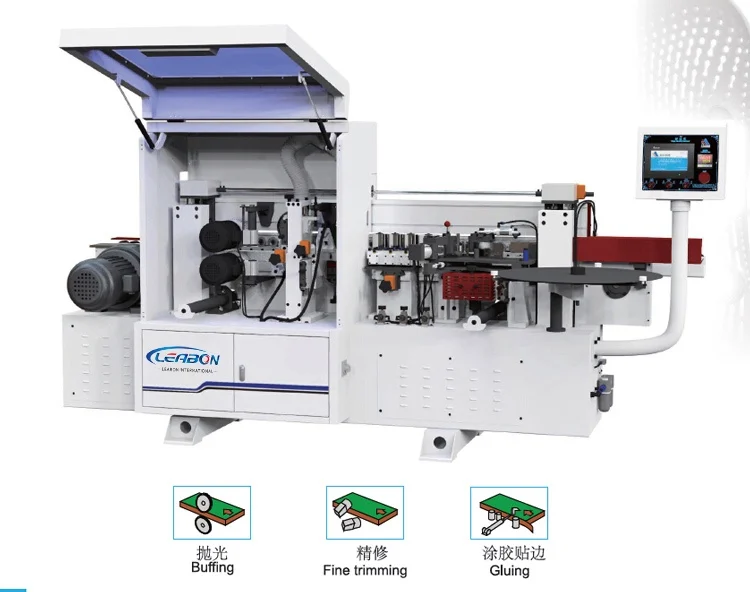

Functions:  Gluing  / Fine Trim / Buffing

Pre-milling and End Trim

Buffing and Gluing

The buffing device adopts cotton material polishing wheel to sand the finished edge band more smoothly.

Gluing facilities use special structure to evenly spread the glue on both banding panel and band, ensure a more solid adhesion force.

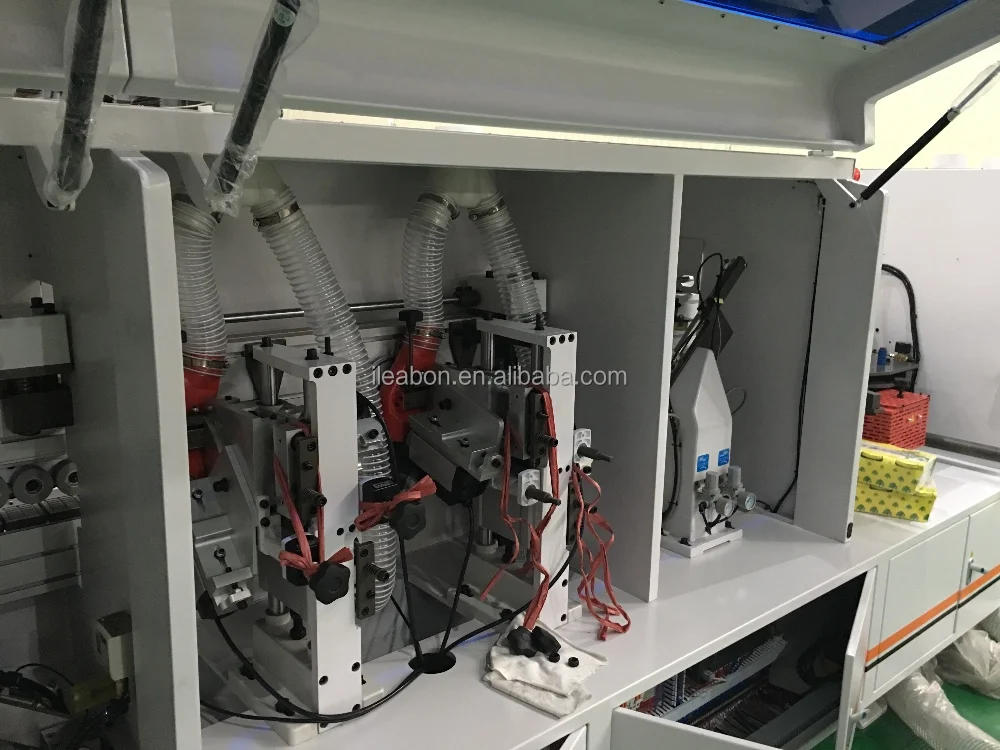

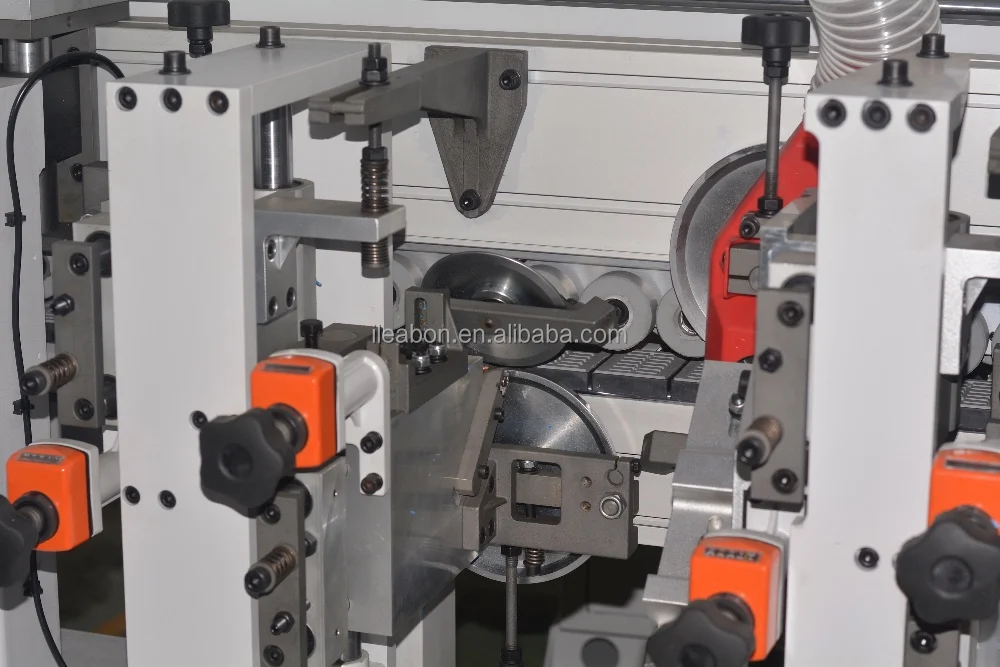

Fine Trim / Rough Trim and Scrapping

Fine and rough trim facilities are used to remove the extra material on band, it adopts mould automatically track and high frequency high speed motor, ensure the plain and smooth of work piece top and bottom parts.

Scraping units used to remove the texture which might happened during trim processing, guarantee the band to be smooth and plain.

Grooving

Grooving is a optional function for edge banding machine. It's used to slot out one groove on panel to install glass, back panel etc.
