agricultural green waste industrial shredder

Share on (60461421332):


Price:$10,800.00 - $12,800.00

Quantity:


Product Overview

Description


Product Description

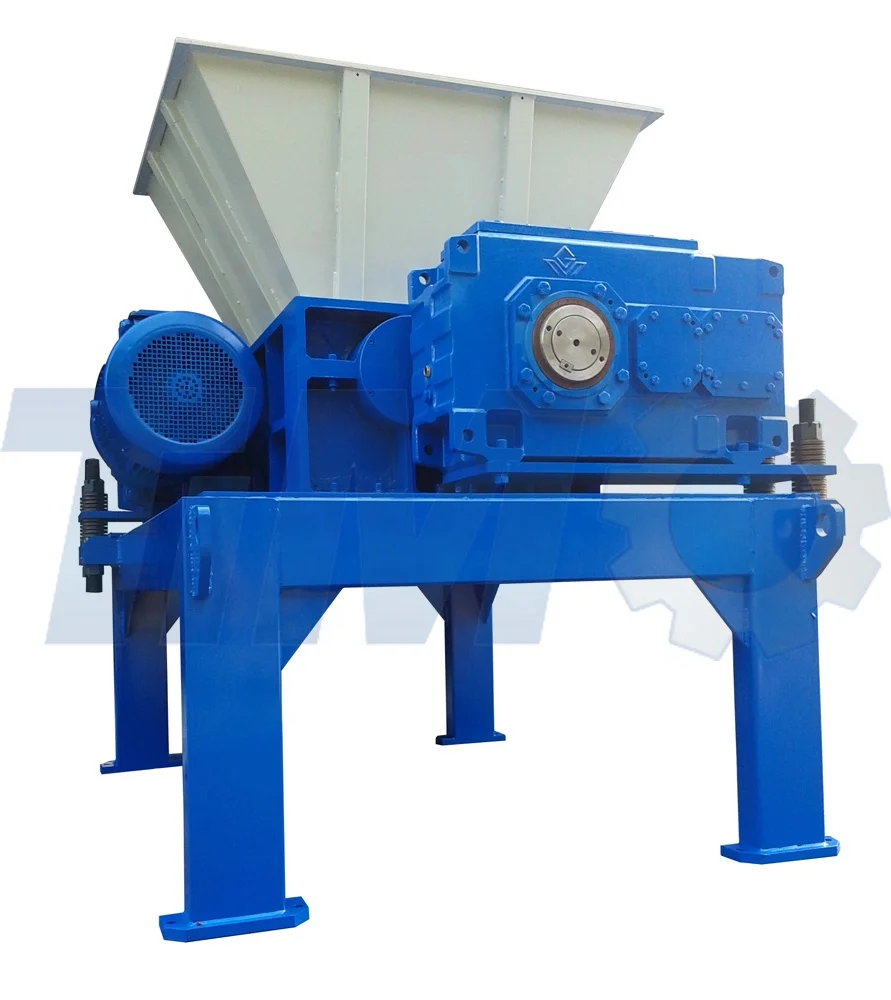

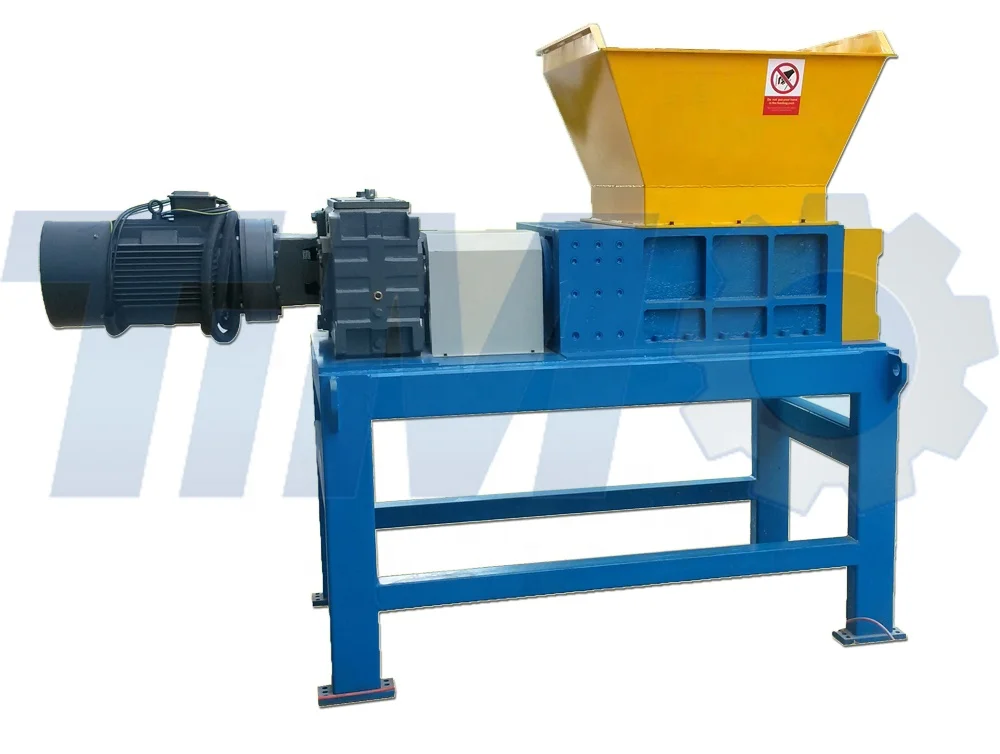

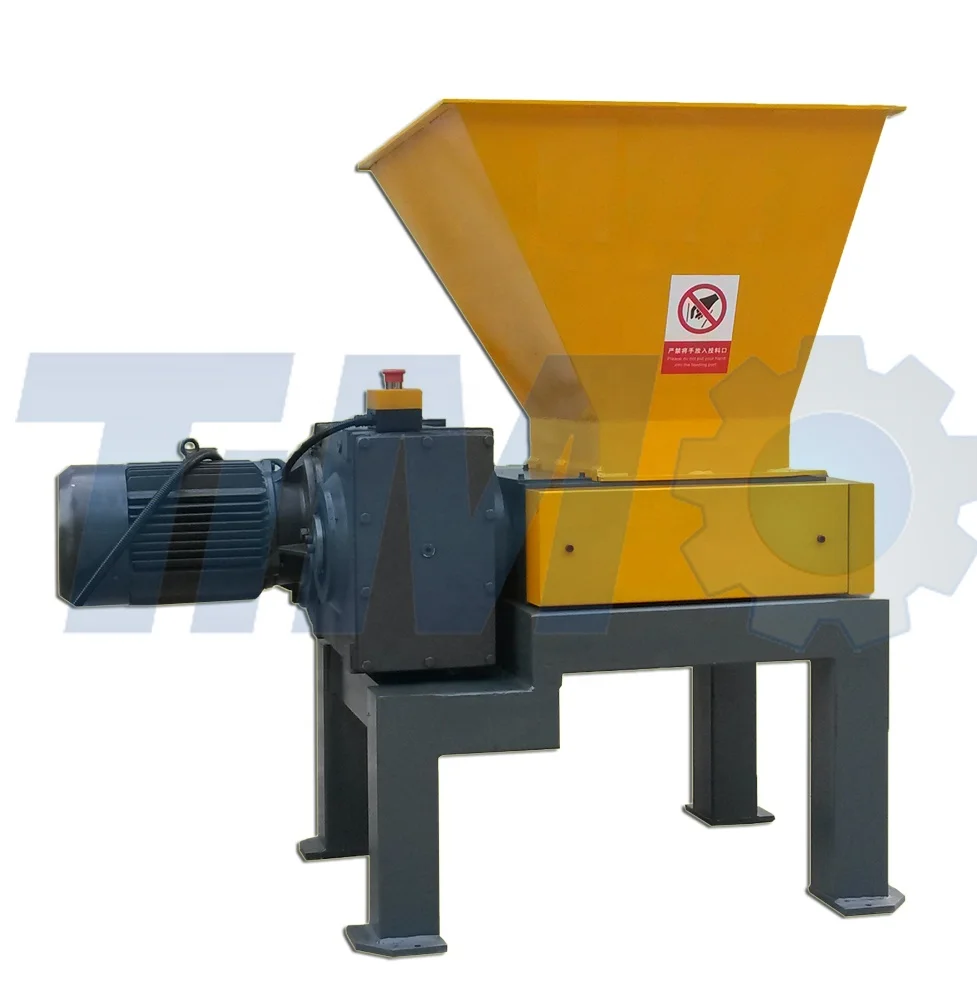

Agricultural Green Waste Industrial Shredder

With our broad range of agricultural green waste industrial shredder we provide the capability to efficiently shred agricultural green waste materials.We build double shaft agricultural waste shredder with single motor or double motors to meet your application requirements. Agricultural waste shredder is feature of low speed and high torque. These powerful green waste shredder can handle waste material products including agricultural waste, green waste, food waste, garden waste, vegetable waste, , and much more. They are specially designed to provide effective operation with low noise, sparking, dust or heat rise.

Combination Shredding Systems

We provide a unique shredding system base on the amount and characteristics of materials. The shredding system is composed of a green waste shredders, which operates at low speed and high torque, firstly, the agricultural waste shredder will reduce the agricultural waste into uniform strips. Then, the conveyor carries the waste to the dewater screw press, then squeezing liquid out of food waste, operating in a continuous (not batch) mode.Everything is operated fully automatically.
Product Feature
\t
Model
\t
HW300
\t
HW500
\t
HW600
\t
HW800
\t
HW1000
\t
Machine Power KW
\t
7.5
\t
11
\t
11
\t
22
\t
22+22
\t
Cutting Chamer  mm
\t
300x320
\t
500x320
\t
600x400
\t
800x500
\t
1000x550
\t
Cutter Diameter mm
\t
Φ180
\t
Φ180
\t
Φ220
\t
Φ280
\t
Φ280
\t
Cutter Thickness mm
\t
20
\t
20
\t
20
\t
20
\t
20
\t
Shaft Speed rpm
\t
18
\t
20
\t
18
\t
16
\t
16
\t
Cutter Quantity pcs
\t
16
\t
25
\t
30
\t
26
\t
32
\t
Inlet size mm
\t
650x750
\t
950x820
\t
1050x850
\t
1200x1000
\t
1400x1100
\t
Capacity Kg
\t
300~800
\t
800~1200
\t
1000~2000
\t
2000~3000
\t
4000~6000

Agricultural Green Waste Shredder Feature:

♦ Overload protection with automatic reversal-shredders include an electronic protection system to automatically stop and reverse the shredding action in the event of system overload. The system allows the shredder to clear itself and then continues the shredding process automatically.
♦ Advanced bearing protection system-Multiple barriers of mechanical labyrinth and conventional seals, protecting costly bearings and ensuring maximum on-line reliability.
♦ Efficiency shredding-Counter rotating shafts turn at slightly different speeds increasing the efficiency of the shear and tear action.
♦ Economical & practical-From the low speed, high torque electromechanical driving system to our robust cutting chamber design, shredder are design for energy efficiency and low maintenance cost.
♦ Low noise & Non-ballistic operating-Low speed and high torque industrial shredders operate at low noise levels without creating dust and flying particles.
♦ Severe Shock Protection-Cushion drive system absorbs minor shock loads and automatically stops the shredding action in the event a non-shreddable item is introduced into the cutting chamber.
♦ High alloy heat treated cutter for extra long life,anti-corrosive and wear-resistant.
♦ NSK tapered roller bearings, hexagonal cutter shafts designed for extra durability.

Application Picture

Green Waste

Green waste shredding and dewatering to make compost.

Domestic Waste

Domestic waste shredding and dewatering to make RDF

Medical Waste

Expired medicines shredding and recycling.
