Product Overview

Description

FP 432 Z FP432Z Sprag Freewheel Bearing Clutch One Way FP432Z

FP 11

Description of FP Sprag Type Freewheel Clutches

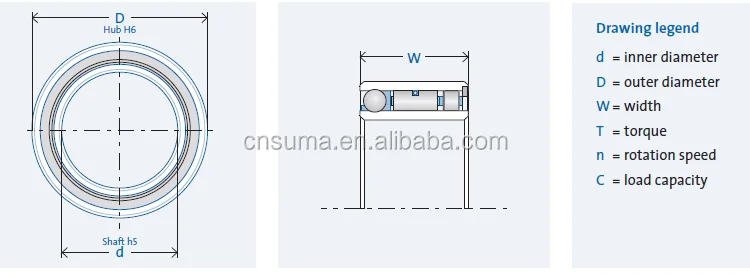

FP DATA.png


SPECIFICATIONS

Model d D W T N Cdyn Cstat Weight
FP 422 M 10 26 27 60 10100 6013 4380 0.07
FP 422 Z 10 26 27 53 10100 6013 4380 0.07
FP 427 M 15 31 27 94 7400 7679 6397 0.08
FP 427 Z 15 31 27 84 7400 7679 6397 0.08
FP 432 M 20 36 27 133 5900 8104 7241 0.1
FP 432 Z 20 36 27 121 5900 8104 7241 0.1
FP 437 M 25 41 27 176 4800 9201 8142 0.12
FP 437 Z 25 41 27 160 4800 9201 8142 0.12
FP 442 M 30 46 27 223 4200 10247 10708 0.14
FP 442 Z 30 46 27 208 4200 10247 10708 0.14
FP 448 M 35 53 27 286 4300 11642 13440 0.19
FP 448 Z 35 53 27 262 4300 11642 13440 0.19
FP 453 M 40 58 27 343 3400 11417 13577 0.21
FP 453 Z 40 58 27 314 3400 11417 13577 0.21
FP 463 M 50 68 27 461 2900 13070 17063 0.25
FP 463 Z 50 68 27 428 2900 13070 17063 0.25
FP 473 M 60 78 27 588 2500 14128 19896 0.3
FP 473 Z 60 78 27 543 2500 14128 19896 0.3

Operating temperature

max. 140°C



Lubrication

Oil or Grease lubrication



Installation

Shaft h5; hub H6



Mating parts
Hardening and grinding of the mating parts is not necessary.
Thoroughly clean (grease free) the mating parts in the vicinity of the freewheel clutch as well as the freewheel clutch's rings before making the press fit.
