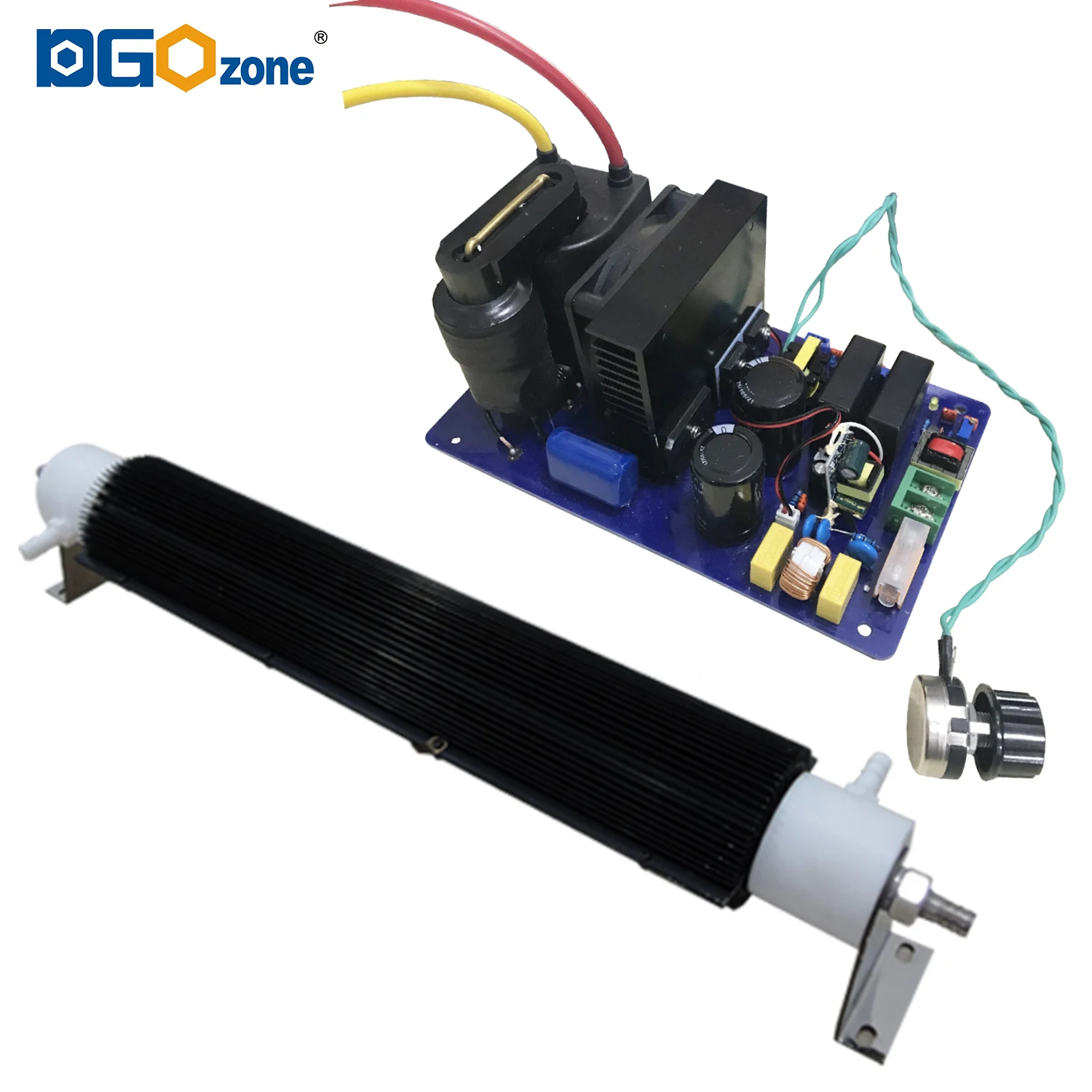

DGOzone (CE, Manufacturer) 40g ozonator tube ozone generator parts ceramic ozone kits
- Category: >>>
- Supplier: DGOzone Ltd.
Share on (60461620708):
Product Overview
Description
Product Description

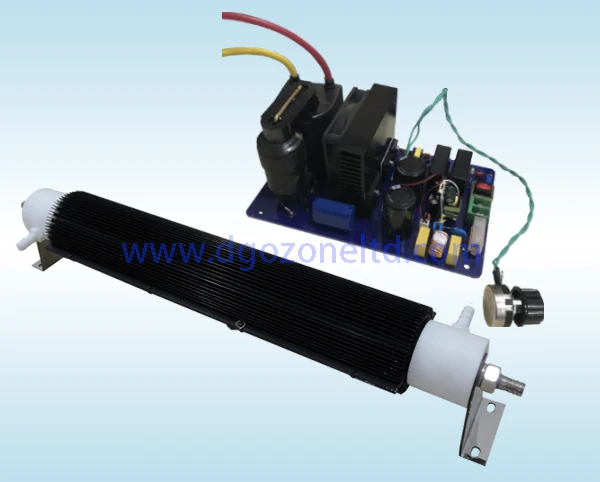

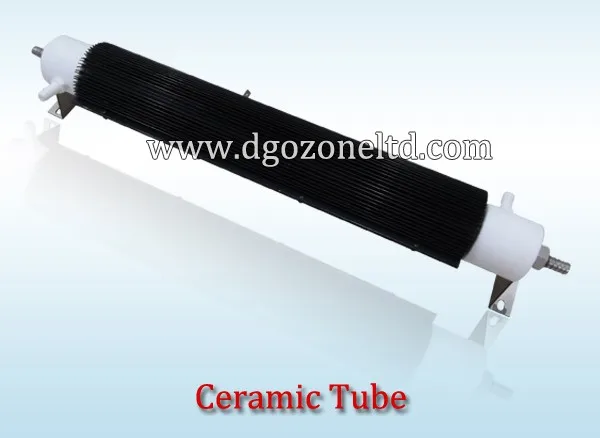

40g ozone generator parts ceramic ozone tube(CE, Manufacturer)
The ceramic tubes are with low working voltage but high dielectric constant, not easy to be breakdown.
The end caps of ozone tube and ozone outlets are made of polytetrafluoroethylene, high-purity corrosion resistant fluorine rubber seal rings, with aluminum alloy external radiator, an very effective way to heat radiation.

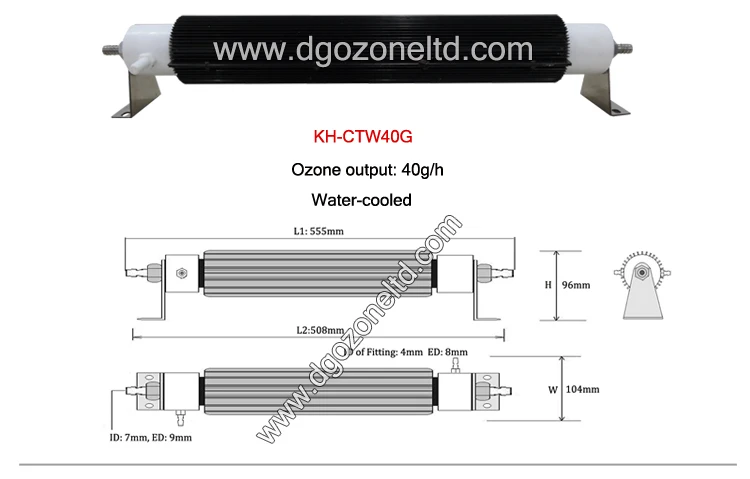

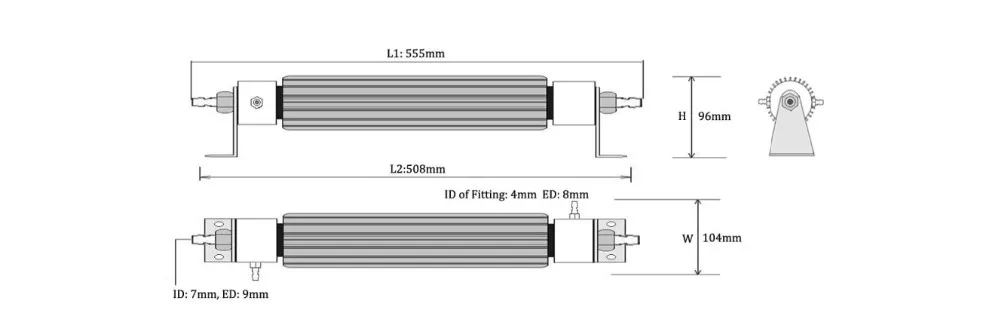

The structure drawings of ceramic ozone tubes
Ozone Generator
40G/H ceramic tube ozone generator units (water cooled)
Item/Model | KHT-40GWOA1 KHT-40GWOA2 | ||||||||
Voltage | A1: AC110V~130V 50/60Hz A2: AC220V~240V 50/60Hz | ||||||||
Oxygen flow | 1L/Min | 3L/Min | 5L/Min | 8L/Min | 10L/Min | ||||
Ozone concentration based on oxygen feeding | 122Mg/L | 102Mg/L | 90.2Mg/L | 80.1Mg/L | 66.8Mg/L | ||||
Ozone output based on oxygen feeding | 7.3G/H | 18.4G/H | 27.6G/H | 38.4G/H | 40.1G/H | ||||
Power | 440W | ||||||||
Output high voltage | 3.8-4.2KV 6KHz | ||||||||
Cooling method | Air cooling for external electrode and water cooling for internal electrod | ||||||||
Cooling water | 10L/Min | ||||||||
Ozone output adjustable range | 20%~100% | ||||||||
Transformer | Current surge proof soft start performance, Acousto optic warning, Short circuit protection, Open ciruit protection, Overcurrent protection, Overvoltage protection, Overheat protection, Anti-interference circuit, Dampproof, corrosion proof | ||||||||
Test conditions | 1. Using the ultraviolet absorption method to test the ozone output and concentration. 2. Oxygen purity: >95%, Dew point: >-45℃. 3. Ambient temperature: ≤10℃, Humidity: <10% (Different temperature and humidity in the environment will affect the ozone output and concentration.) | ||||||||
\t\t\t\t\t\t\t\t\tAll Ceramic Tubes \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tContact Us \t\t\t\t\t\t\t
If you have any questions or concerns about our products, please feel free to contact:
Shelley
QQ: 852800888
Shelley
QQ: 852800888
Skype: malinglz94
WeChat: MLH110817
WeChat: MLH110817
Our Company
Located in the east of China, Shanghai. DGOzone Ltd. is one technical listed company, who professionally designs, develops, distributes ozone generators for civilian and industrial air and water treatments.
DGOzone majors in ozone generator units, ozone generator machines and accessories. Ozone generator units include ceramic plate ozone generator units and ceramic tube ozone generator units. The accessories cover venturi, check valve, air dryer and so on. Our ozone generator units are certificated through CE and RoHS, honored by nice clients from home and abroad, which are widely used in houses, hotels, schools, offices, mansions, swimming pools, food factories, bottled water fill lines and fields of medical treatment and public health.
Much respect is paid to the talent and much to science and research of ozone high-tech and environmental protection materials by DGOzone. Most effort is made on meeting requirements of different customers with positive service, quality products and favorable prices. OEM service offered, Design service offered, Buyer label offered.
Ozone is 100% eco-friendly and chemical-free, leaving no chemical residue or harmful byproducts. For the benefit of worldwide people and the environment, now DGOzone is doing best to be well positioned as an Efficient, Excellent and Entire supplier in this wonderful sector.
Now DGOzone has been one of the biggest exporter for ozone generators and accessories in China. Besides, DGOzone is also one of the biggest donator in national ozone fields to China Pavilion in Expo 2010 Shanghai.
Packing & Delivery
DGOzone Ltd. has a direct and strategic cooperation with DHL, 60% OFF via DHL Express Shipping. This will make all buyers benefit from low shipping cost.
Meanwhile, other shipping ways are available such as FedEx, UPS, TNT, EMS, China Post or Sea. Just let us know which one is best for you, we do all the left work.
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
Q: Are you a trading company or a manufacturer ?
A: We are a manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if goods are on stock. if not, according to quantities, it takes 15-20 days .
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer samples free of charge but the buyer needs to pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=10,000USD, 100% in advance. Payment>=10,000USD, 30% T/T in advance, 70% before shipment.
