AD-1 small land bore well drilling machine for soil test
Welcome to Shanghai Aidu Energy Technology Co., Ltd.
Glad to be at your service!
--------------------------------------------------------------drilling machine for soil test-------------------------------------------------------------------
Product Description
Main Characteristics:

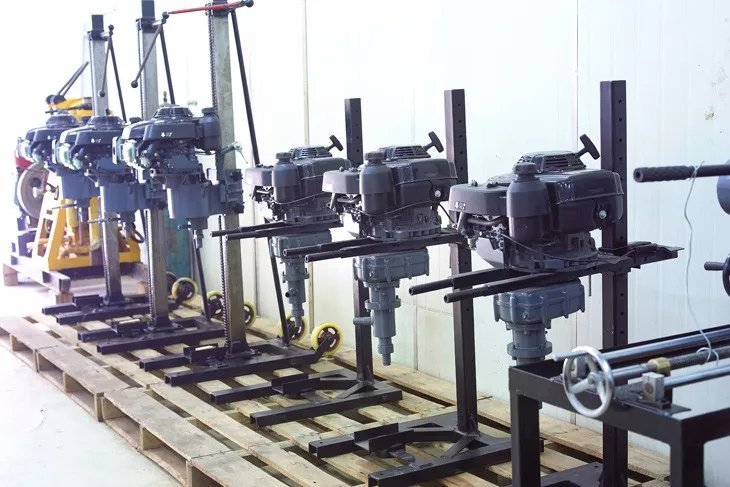

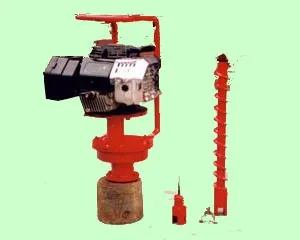

AD-1 portable drilling rig is used for field geological sampling, it applies gasoline engine driven and spiral drilling to meet the need of surface overburden hole boring, it has high integration level, small valume, light weight, easy to move, fit long distance travel, it is the best choice for field geological survey and sampling.
Main Application:
Geochemical prospecting and mapping
Regional geological mapping
Mineral vein survey in shallow surface and gallery
Seis hole construction
Geotechnical engineering
Technical parameters:
| Drilling type | diamond and alloy high speed rotary and twist spiral drilling |
| Circulation medium | water, slurry |
| Hole diameter | 33-60mm |
| Core diameter | 20-40mm |
| Drilling depth | ≤3m |
| Power(HP) | 1.5 |
| Spindle rotating speed(r/min) | 100-400 |
| Total weight | 8Kg |
