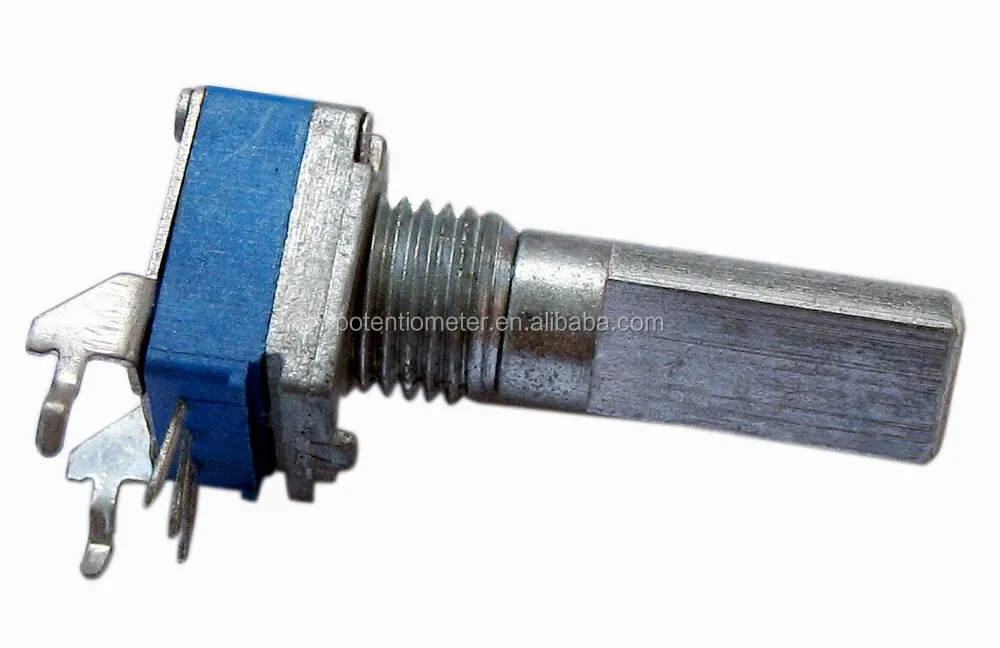

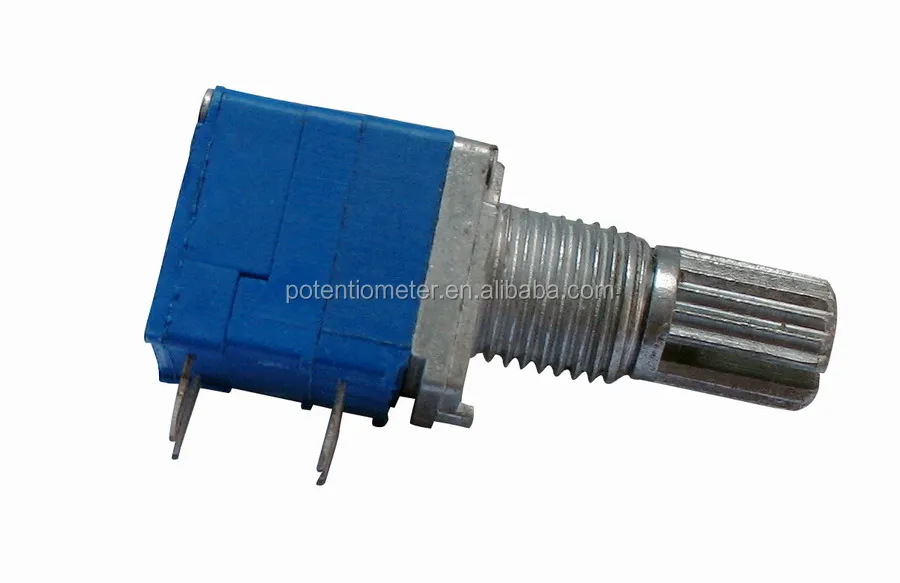

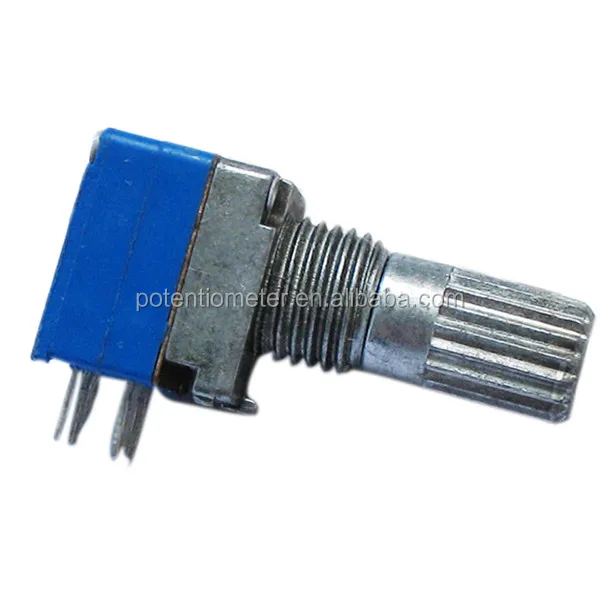

9mm rotary b10k alpha potentiometer

Highest working Voltage:B taper 50V AC other taper 25V AC
traveling noise: 100mv

Rotational torque:10~200gf.cm

Total Rotational angle:300°±10°
Rotation stop strength:3Kgf.cm
shaft strength:8Kgf max.
shaft shaking:0.6×L/20mm p-p max.
Resistance tolerance:±20%
resistance residue:R≤10KΩ 10Ω;10K<R<250KΩ 20Ω;R≥250K 0.1% max. of total resistance
Power:B taper 0.05W other taper 0.025W
Insulation resistance:100MΩ min. at 250V DC
Voltage resistance:1 minute at 300V AC

 Some Certification

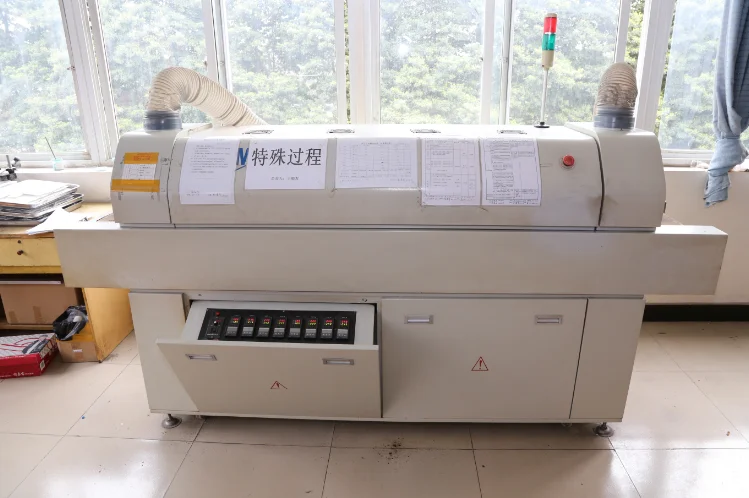

 Our Machine

Our Wokers

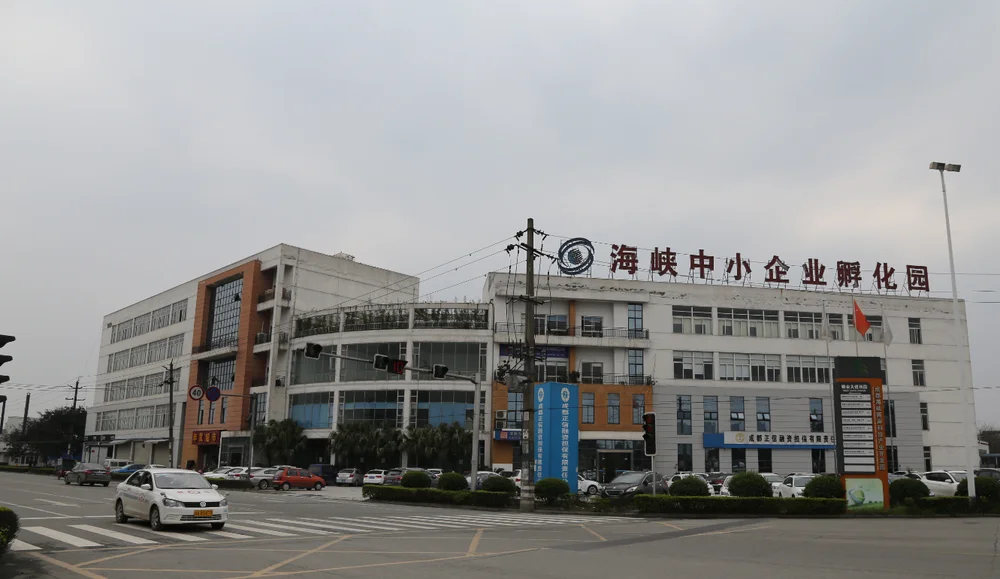

Our Building

 More information ,please kindly contact me :

Email :tyx_rong at 126.com

QQ: 1153409713

Tel:86-15680731820
