FY 0610 Medical Surgical Electric Multifunctional Bone Drill and Saw Tool
- Category: >>>
- Supplier: Guangzhou Zetop Medical Co. Ltd.
Share on (60462117355):
Product Overview
Description
Product Description

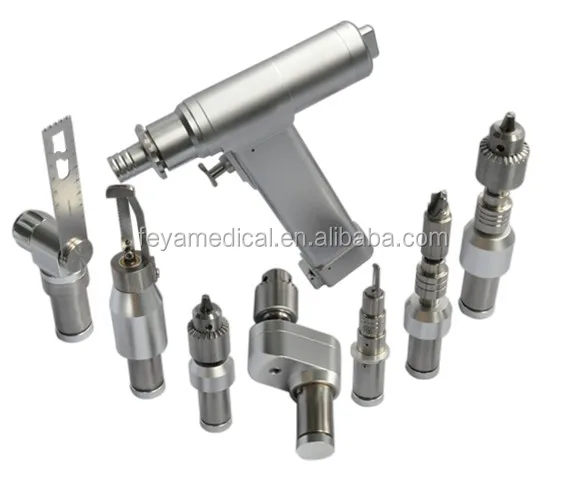

FY-0610 Medical Surgical Electric Multifunctional Bone Drill and Saw Tool
Technical data:
| Attached spare parts (7 pcs) | frequency | noise | torque | sterilize |
| Quick chuck(bone drill speed) attachment | 0-1300 r/m | ≤60db | ≥1.6NM | ≤135 °C |
| Reamer(acetabulum burnishing slow drill) attachment | 0-300 r/m | ≤65db | ≥6.5NM | ≤135 °C |
| Sternum saw attachment | 0-15000 ocs/m | ≤75db | ≤135 °C | |
| Craniotomy mill attachment | 0-40000 r/m | ≤45db | ≤135 °C | |
| Oscillating saw attachment | 0-20000 osc/m | ≤70db | ≤135 °C | |
| Wire and pin chuck(cannulate drill speed)attachment | 0-600 r/m | ≤65db | ≤135 °C | |
| Craniotomy drill attachment | 0-900 r/m | ≤65db | ≤135 °C |
| Hand piece | working voltage | 14.4V |
| Output power | ≥90W | |
| unit rise in temp | ≤20°C | |
| Charger | Input voltage | AC 110V-240V 50HZ-60HZ |
| Output power | 14.4v 900ma | |
| Input power | 30W | |
| Battery | voltage | 14.4V |
| charging time | 2 hours or more |

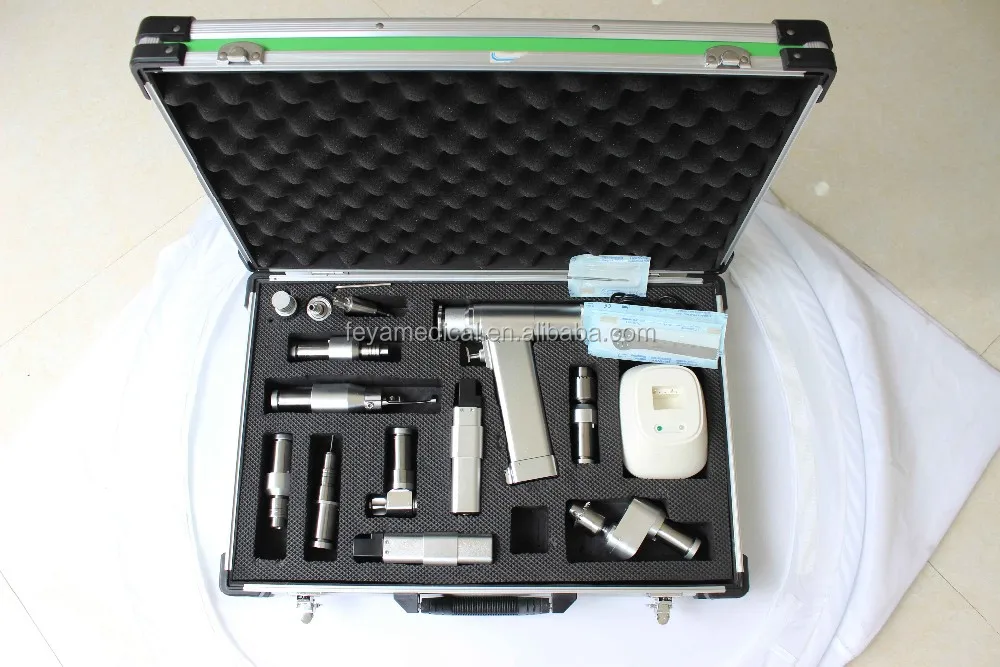

Standard configuration
| Multifunctional function system standard configuration | Quantity |
| Hand piece (main frame) | 1 pc |
| Charger | 1 pc |
| Battery 14.4V | 2 pcs |
| Drill chuck | 1 pc |
| Sterilized channel | 2 pcs |
| Key | 2 pcs |
| Aluminum box | 1 pc |
| Quick chuck(bone drill speed) attachment | 1 pc |
| Reamer(acetabulum burnishing slow drill) attachment | 1 pc |
| Sternum saw attachment with 2 pcs blades | 1 pc |
| Craniotomy mill attachment with 1 pc mill blade | 1 pc |
| Oscillating saw attachment with 2 pcs blades | 1 pc |
| Wire and pin chuck(canullate drill speed)attachment | 1 pc |
| Craniotomy drill attachment with 1 pc drill bit | 1 pc |
| High temperature cover | 1 pc |

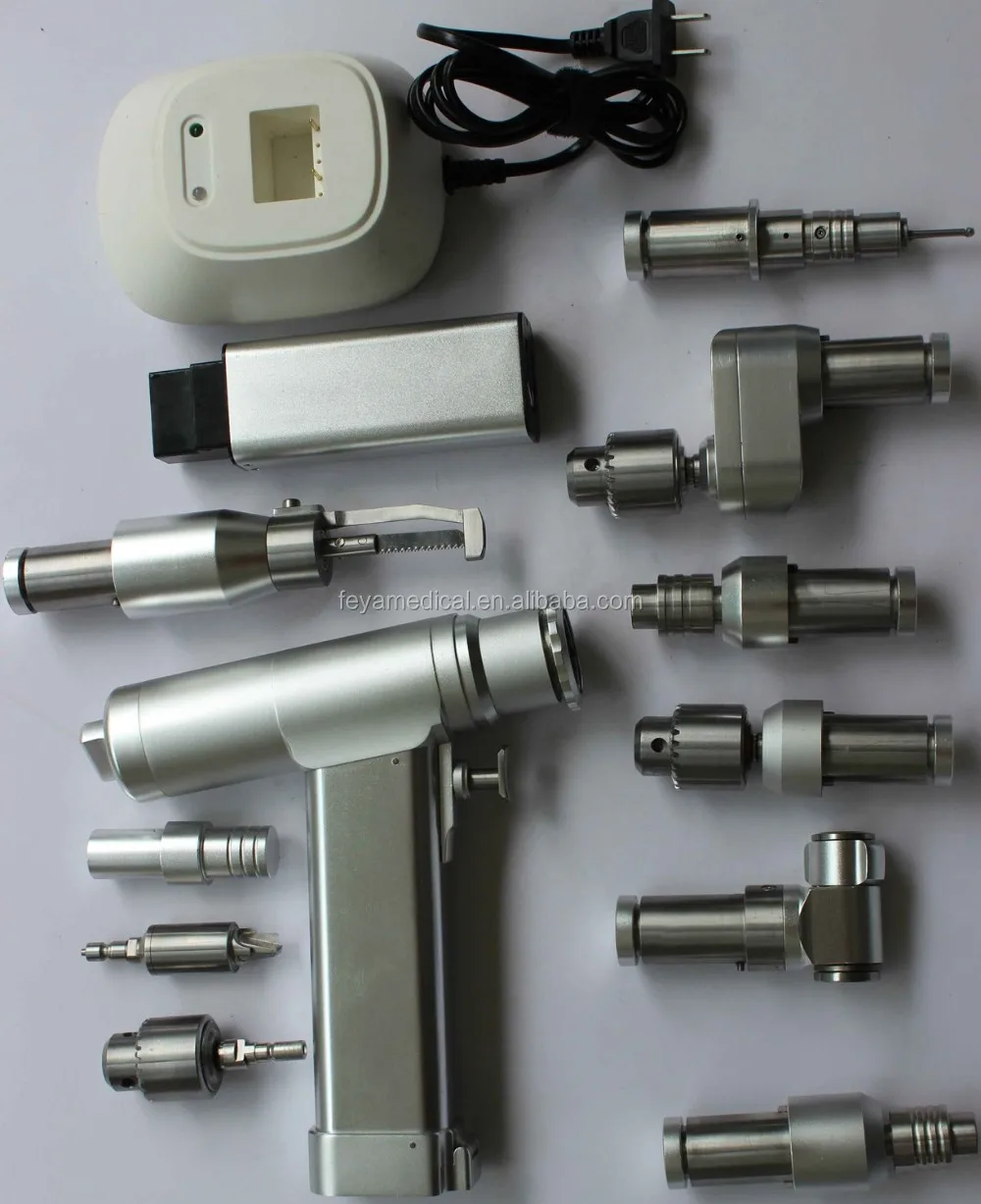

Detailed Images

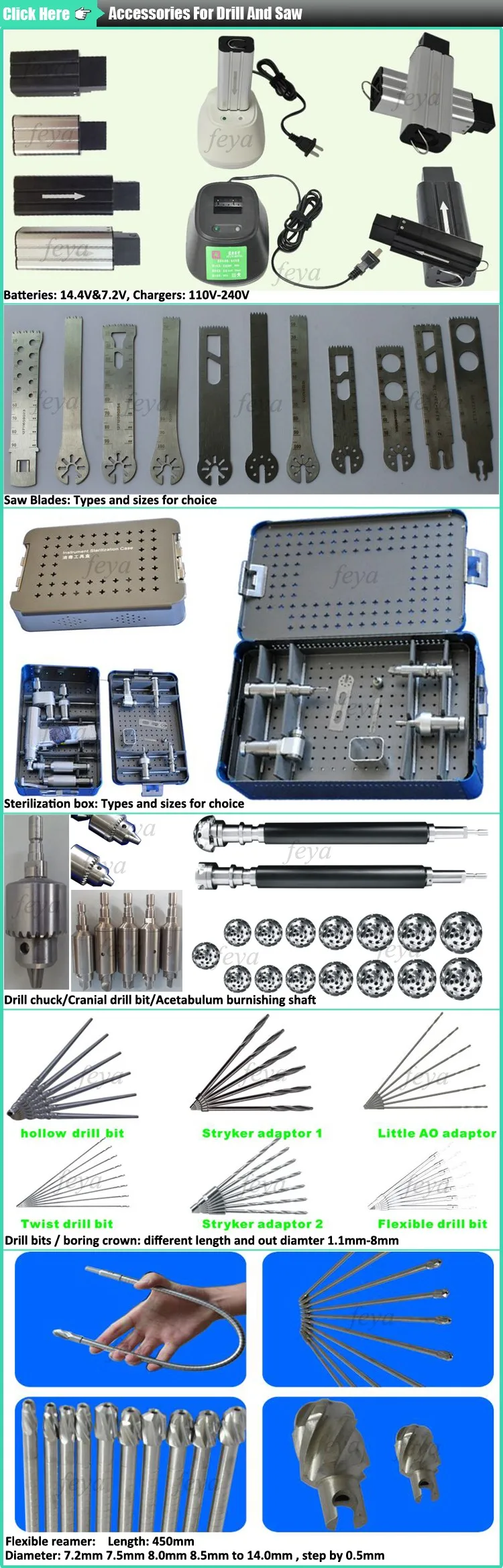

Accessories

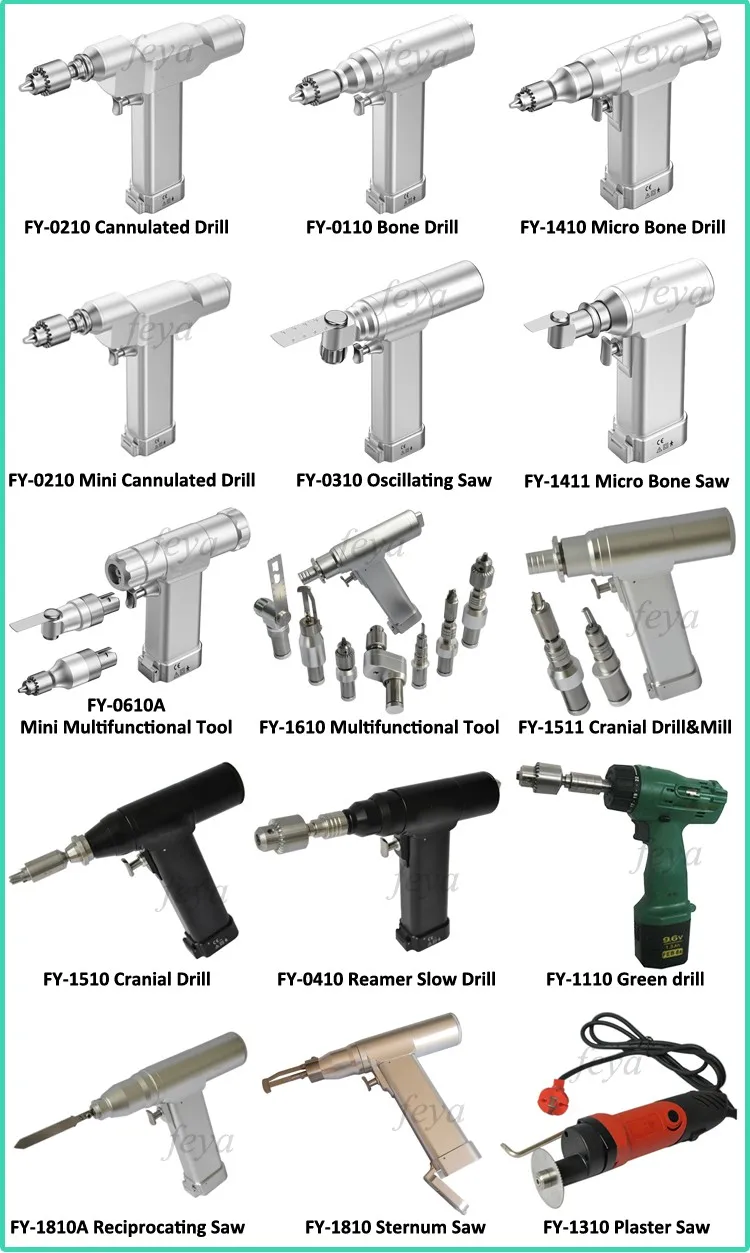

Related Products
