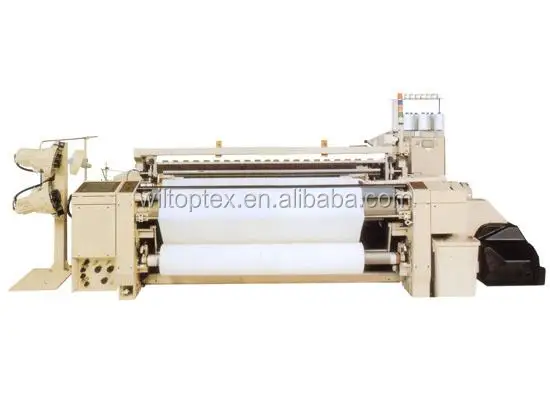

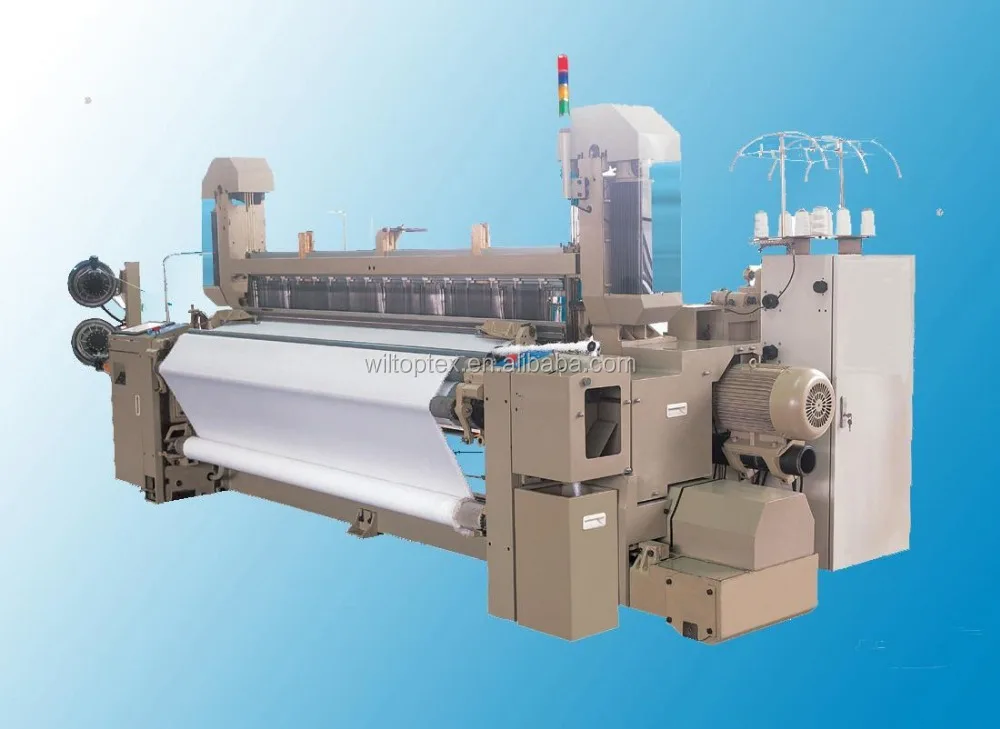

Technology Textile Machines Tsudakoma Air Jet Loom

Reed width(cm)

190,210,230,280,340,360,390

Useful reeding width

Same as nominal width maximum reduction 60 cm

Speed(r/min)

500-900

Yarn range(d)

Short yarn: Ne100-Ne2.5

Filament: 56dtex-1350dtex

Drive

PSS programmable to start, push-button operation with both hands

Motor Power

2.7KW, 3.0KW, 3.7KW

Weft selection

2-color mixing, 2 color at-will or 4 colour

Shedding

Negative(Positive) cam shedding; Shaft number upto 10

Let-off

Electronic let off with reverse function

Flange dia

800mm,1000mm

Beating

Crank type beating, multiple sley sword beating

4 links(reed space up to 230cm)

6 links(Reed 280cm and more)

intermediate rocking supporter

Filling supply stand

Floor-mounted for 4 packages(2 colors),Floor-mounted for 8 packages(4 colors)

Selvedge

Planetary gear motion

Take up

Mechanical take up
