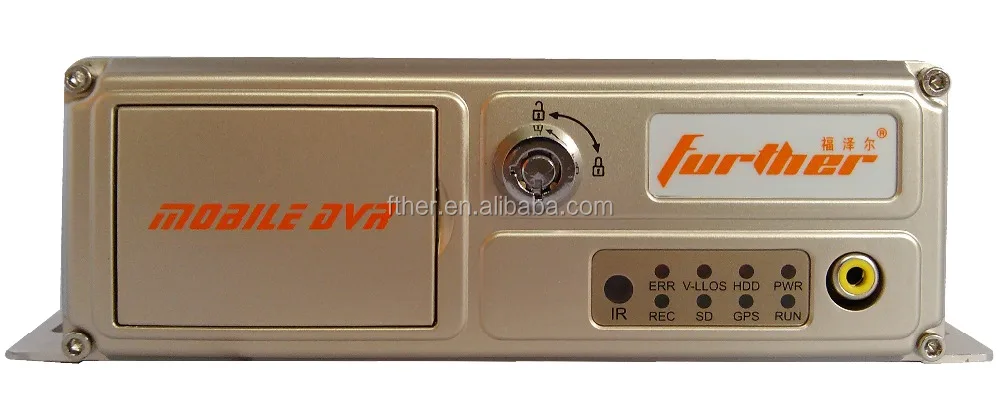

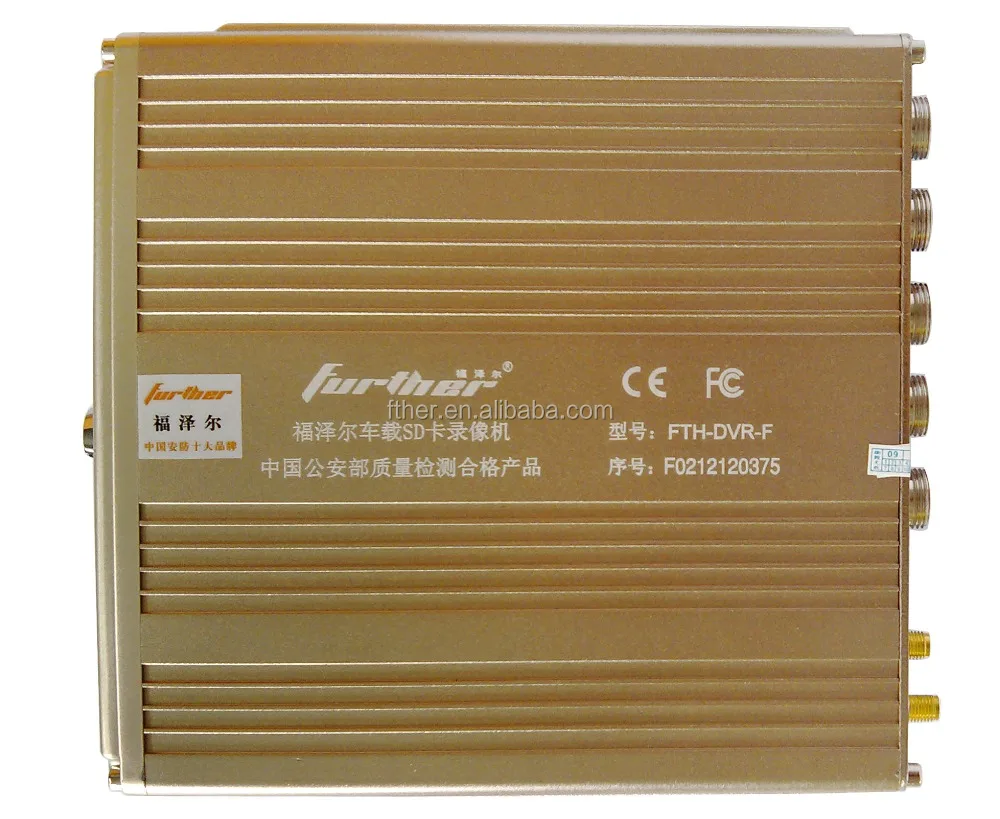

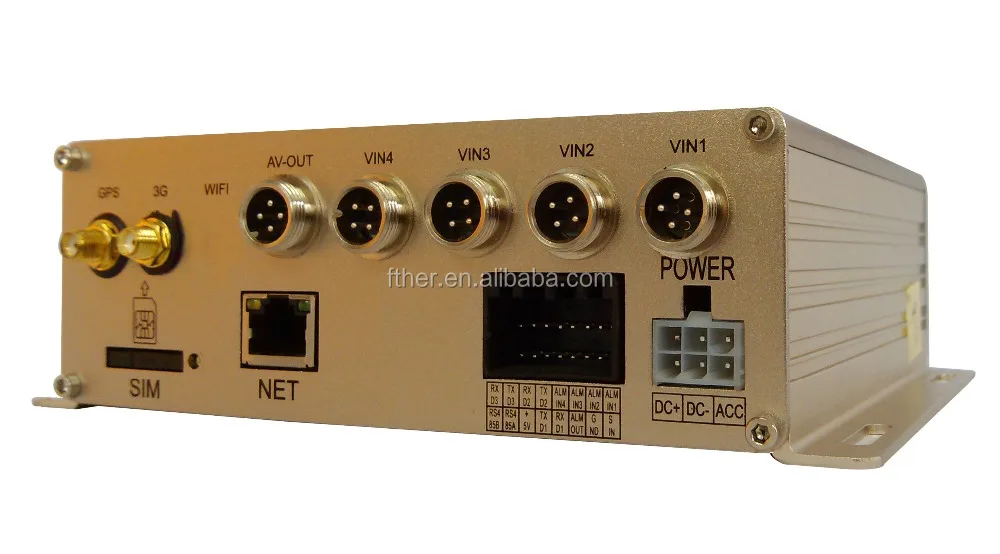

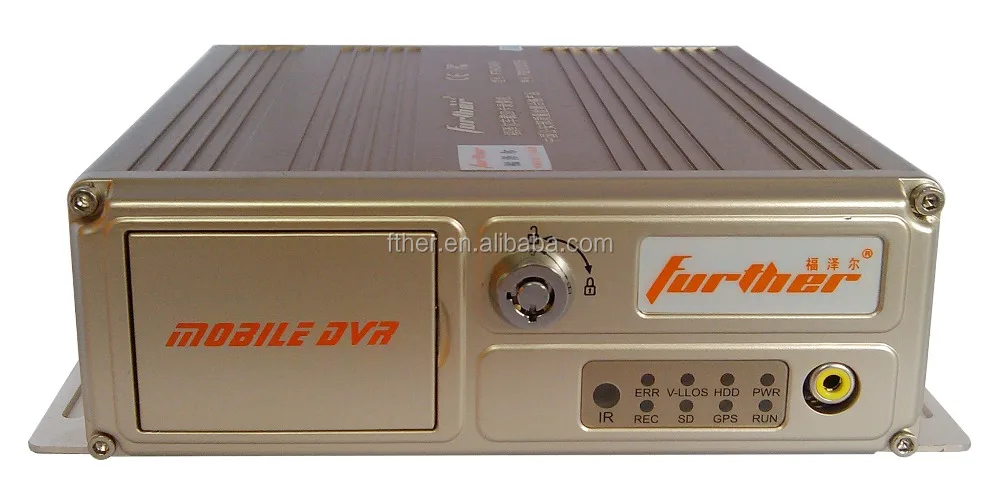

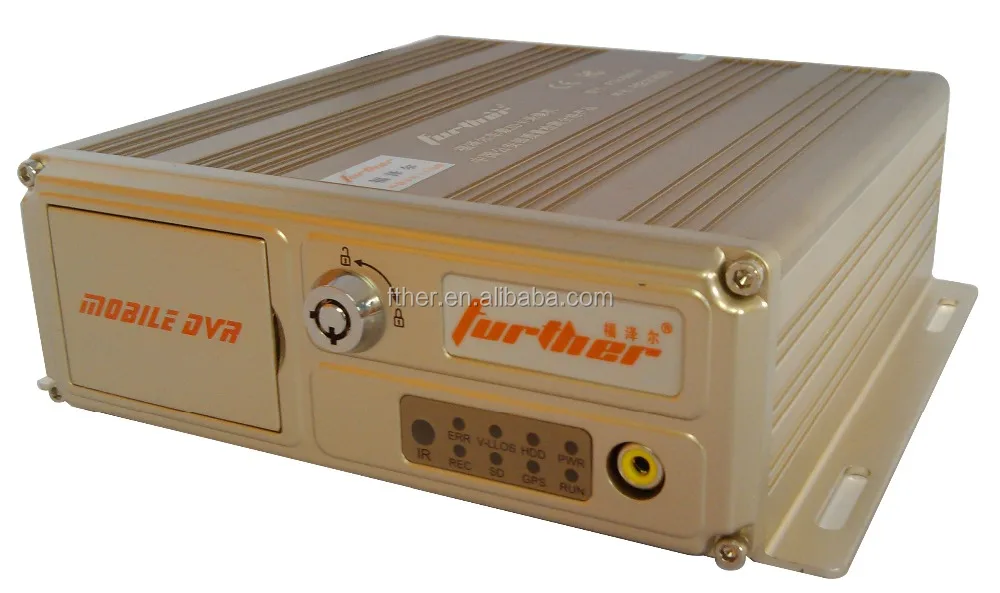

Full HD 4 Channel 256GB SD Card mini Portable DVR Digital Video Recorder with WIFI 3G G Sensr GPS
- Category: >>>
- Supplier: Dongguan Fuzeer Electronic Technology Co. Ltd. [Guangdong China]Dongguan
Share on (60462494094):
Product Overview
Description

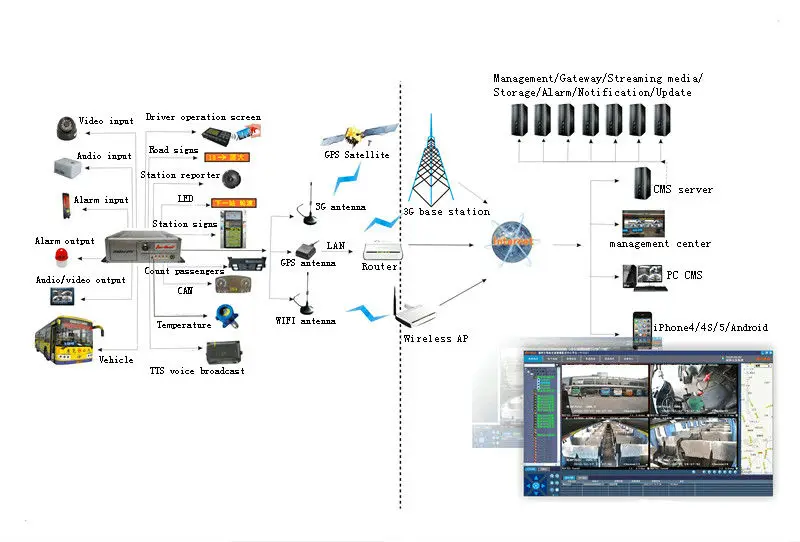

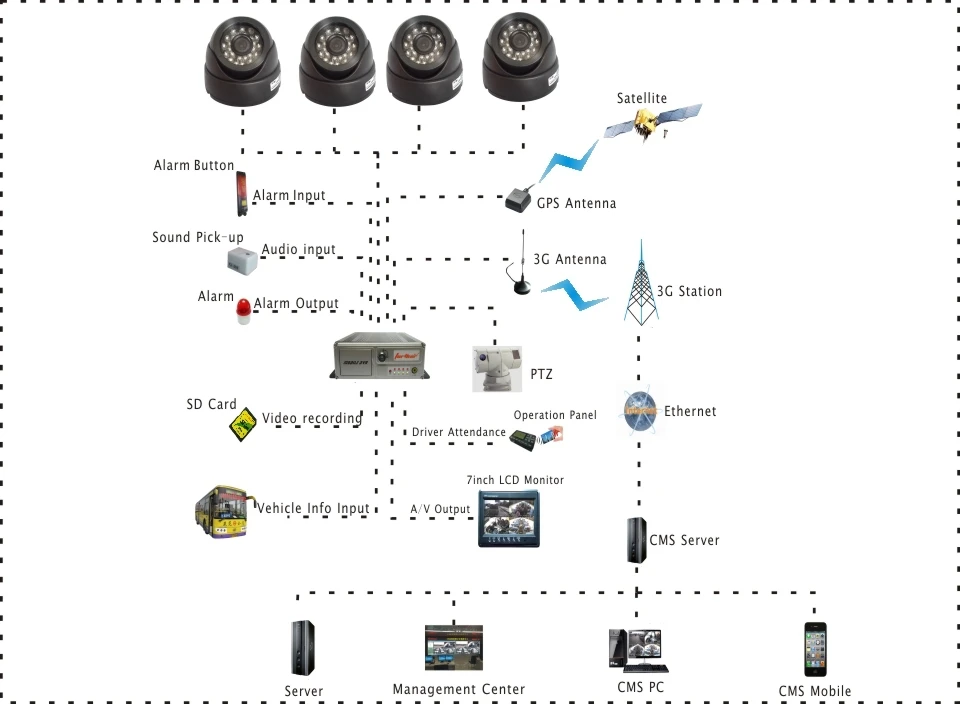

4CH 1-2 SD Cards Mobile DVR with GPS, 3G/4G/WIFI Optional
Features:
-Supports 4 channels AHD 720P
-Supports 2 SD cards maximum for main recording
-Supports GPS for location tracking(Optional)
-Supports WIFI for video files download (Optional)
-Built-in 3G/4G for live view and remote management (Optional)
-Supports 360 degree anti-vibration
-Supports USB2.0 high speed backup

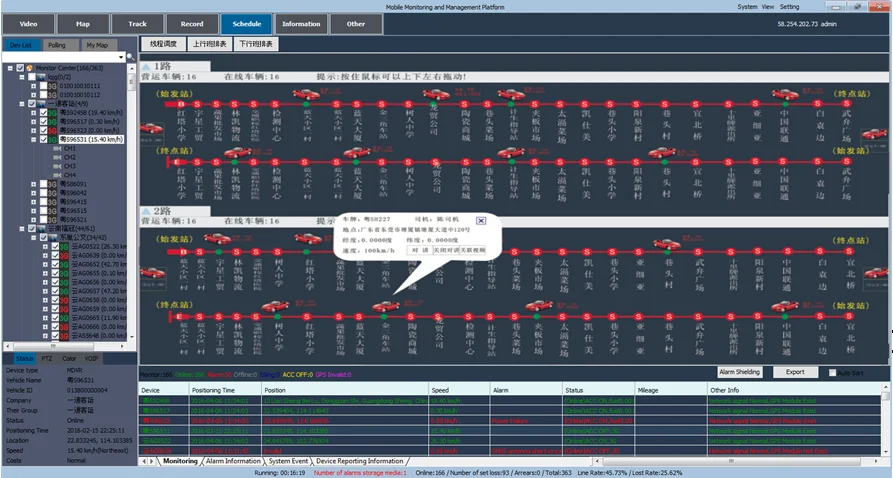

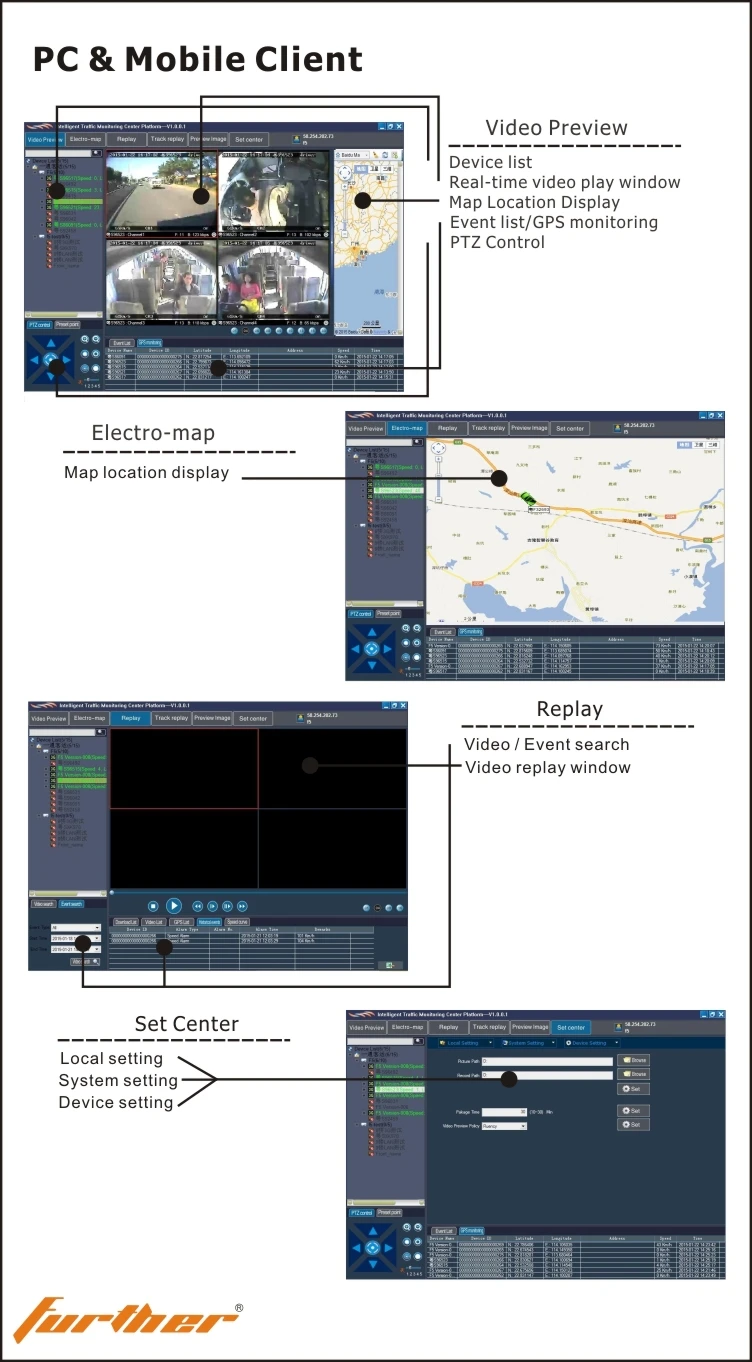

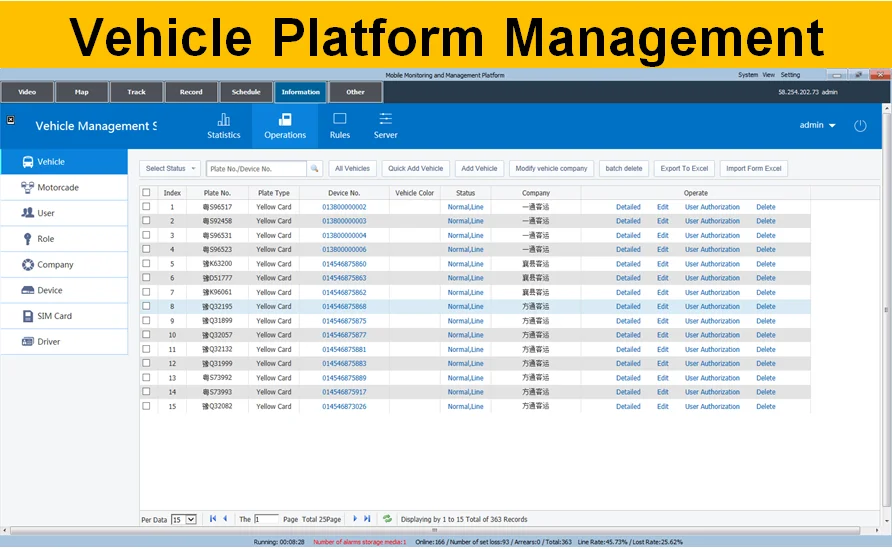

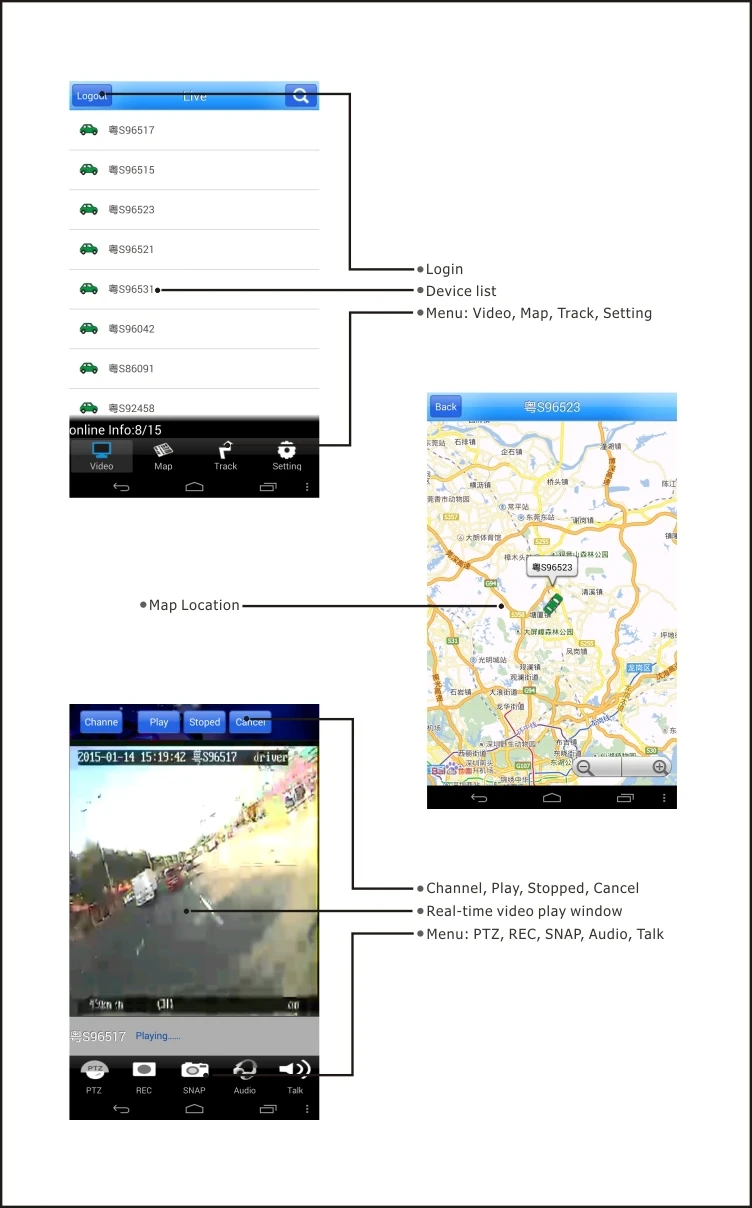

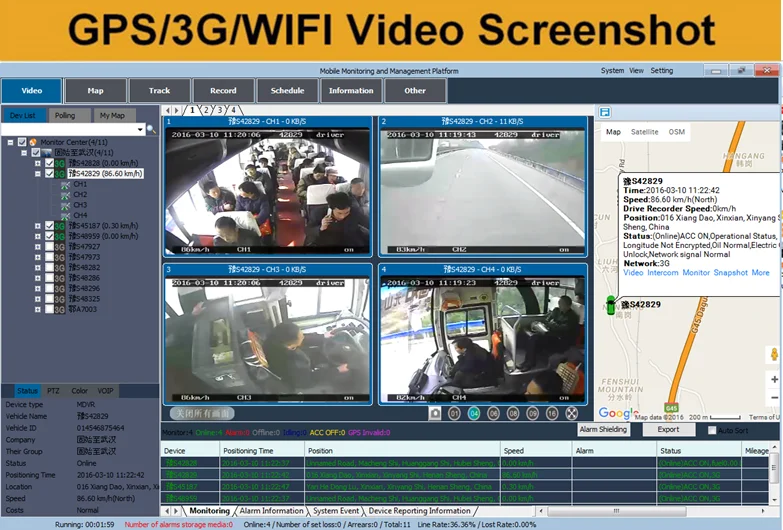

-Support PC and mobile(Android and iPhone) client remote monitoring
Specifications:
Video | Video Input | Input | 4CH Video Input(PAL/ NTSC 1.0Vp-p) |
Compression | H.264(available convert to AVI video file) | ||
Resolution | CIF(Up to 4CH/100FPS),HD1,D1(Up to 4CH/48FPS) | ||
Video quality | Quality 1~8, 1 is best. | ||
Frame | PAL 1~25fps,NTSC 1~30fps | ||
Video Output | Output | 2CH video output: CVBS signal(PAL/ NTSC 1.0Vp-p) | |
Video playback | Display | 1 screen/2-screen/4-screen preview video | |
Recording | Power-on recording, Manual recording, cycle recording, timer recording, pre-recording | ||
Support OSD(Such as license plate number,time etc.) | |||
Playback | 2×,4×,8×,16X times fast forward / rewind playback ,1/2×,1/4×,1/8×,1/16×times slow, pause, 4CH playback | ||
Audio | Audio input | 4CH input(RCA) | |
Audio output | 1CH audio output | ||
SD card | Up to 64GB | ||
Backup | One USB1.1 interface storage GPS | ||
Double storage | One USB2.0 interface export, output storage file, video file frame rate can be set | ||
Auto power save | Support auto-save feature when suddenly lose power (delay 10 seconds) to make sure video files not damaged | ||
Alarm | Alarm conditions | SD card abnormal alarm | |
Video signal loss alarm | |||
System software failure alarm | |||
Low-speed alarm(Can be set,less than 10KM) | |||
| High-speed alarm(Can be set,more than 150KM) | ||
Alarm input | 4CH input switching signal,support 24V voltage input | ||
Alarm output | 1CH switching signal output | ||
Buaaer beeps | |||

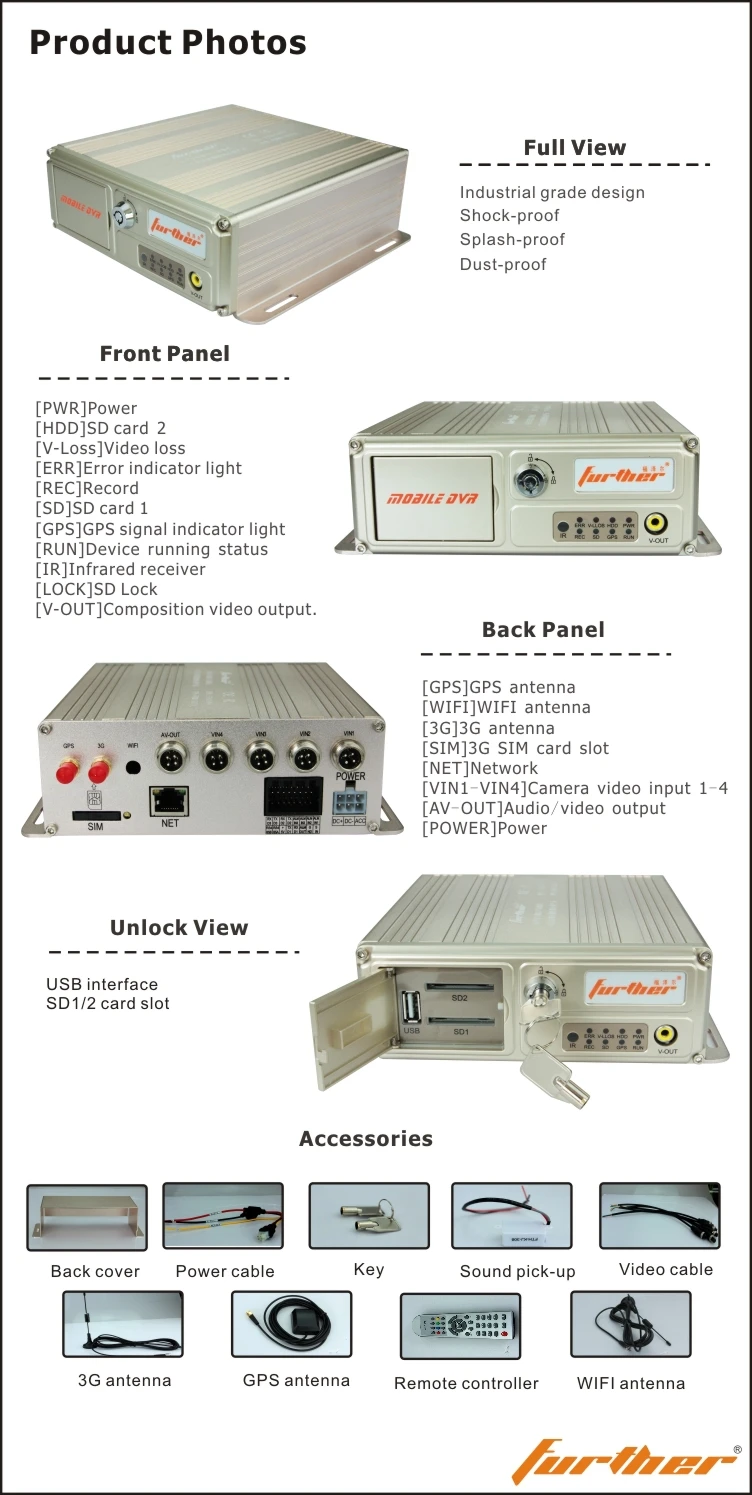

Status Indication | LED output | 8 LEDs: power, fault indication, recording status, video loss, SD card status, 3G/GPS status, device running status, hard drive status |
Port Supplement | RS232 port | One RS232 port can connect GPS,GPRS devices etc. |
USB1.1 port | Data backup,intelligent software upgrade etc. | |
Infrared | For remote control | |
RS485 port | One RS485 port to control PTZ | |
System | Language | Simplified and traditional Chinese and English |
Interface | Infrared remote control to control it | |
Full menu (OSD) graphical user interface | ||
Safety | Two user rights management | |
Password encryption | ||
Time/Log | Built-in clock | |
Detailed log can record On/Off power, alarm, network, plug SD card, take out hard drive, operating and other information. | ||
Voltage input | 6V~36V | |
Voltage output | 5V@2A,12V@2A | |
Power | <=15W,hard drive is not included |
