TISMART most popular full HD 1080P advertising media player android digital signage box
- Category: Other Advertising Equipment >>>
- Supplier: Shenzhen Smart Device Technology Co. Ltd.
Share on (60462597964):
Product Overview
Description
TISMART most popular full HD 1080P advertising mediaplayer android digital signage box
Product Description

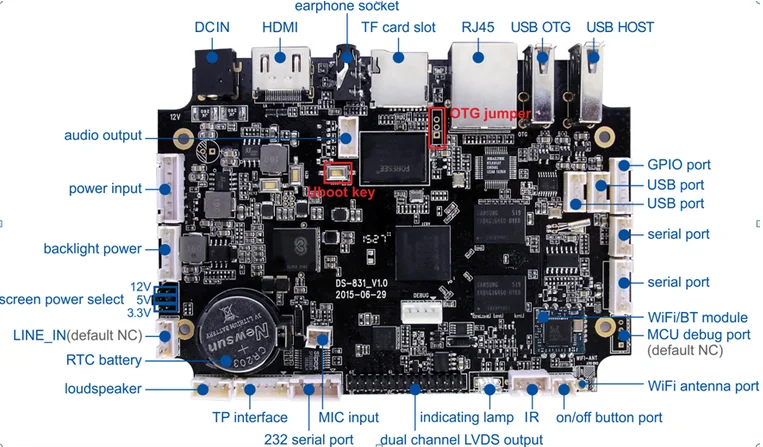

PCBA Board of P831 Media Player Box General Description
P831 control board integrates multimedia decode,LCD driver,Ethernet,HDMI,WIFI,tooth in one,supporting most current fashionable video and image format decode,supporting HDMI video output,dual eight bits LVDS driver,able to drive various TFT LCD screen,greatly simplifying whole player system design,very suitable for HD network player box,video advertising player and frame advertising player.
Product overview
Feature
P831 Media Player Box Premium Feature
1.High Integration. Integrate USB/LVDS/Ethernet/HDMI/WIFI/tooth in one,simplifying whole player design.TF card can be inserted.
2.Ample Extensible Interfaces. Four USB ports(two pin ports,two standard USB ports),three extensible serial ports(2 channels of 232 serial ports,1 channel TTL serial port or 1 channel 232 serial ports,2 channels of TTL serial ports),GPIO/ADC port,able to satisfy various peripherals in the market.
3.High Definition. Support Max. 1080P decode and various LVDS signal LCD screen.
4.Full Function. Support landscape and portrait screen play,multi-screen,scroll caption,timing switch,USB data input function etc.
5.Easy Management.Humanized play list maker software,easy for advertising management and control.Play log,easy to know playing situation.

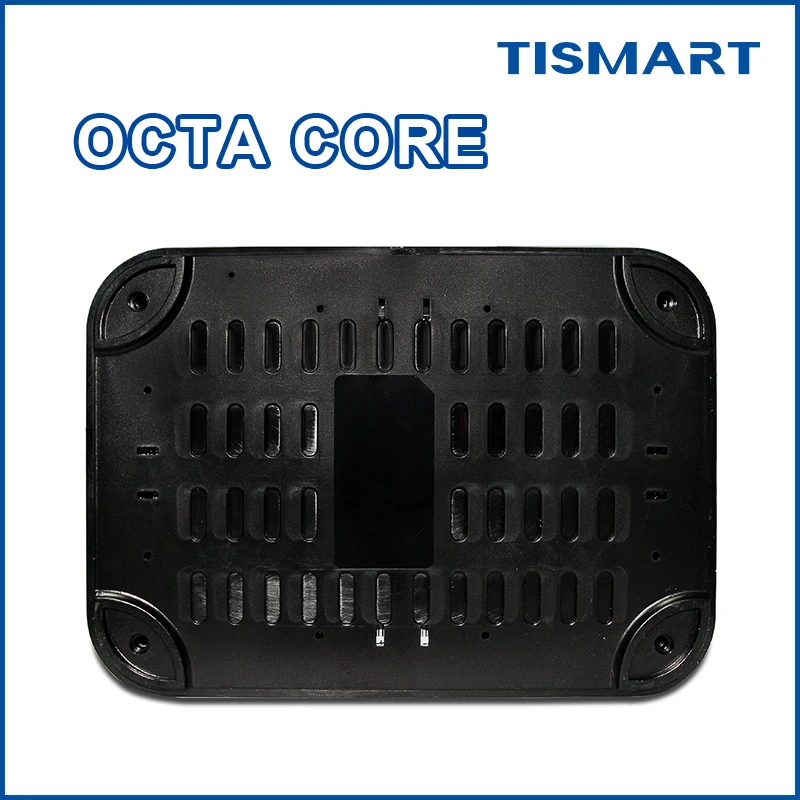

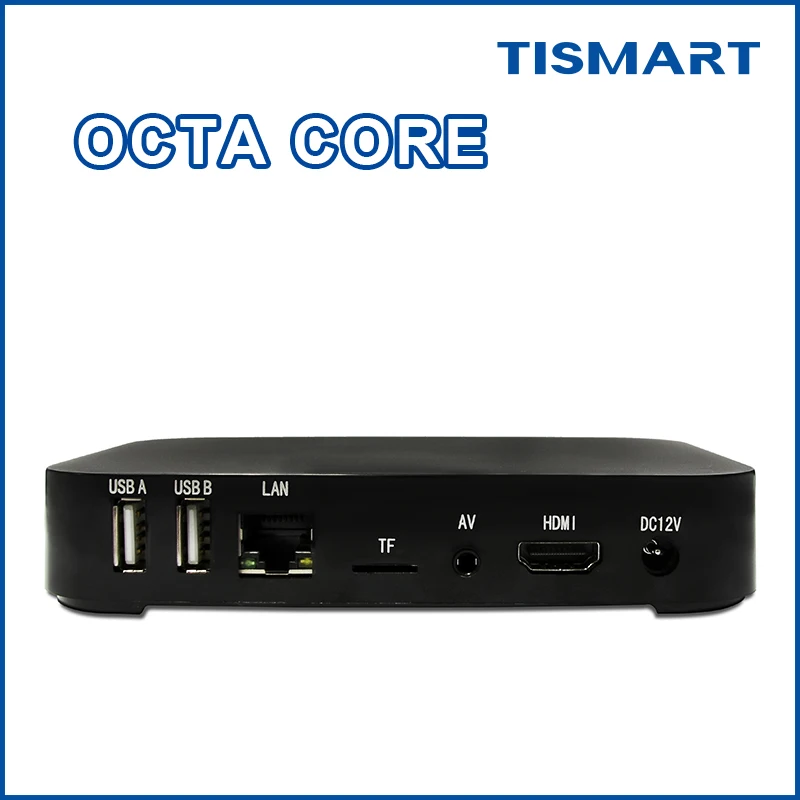

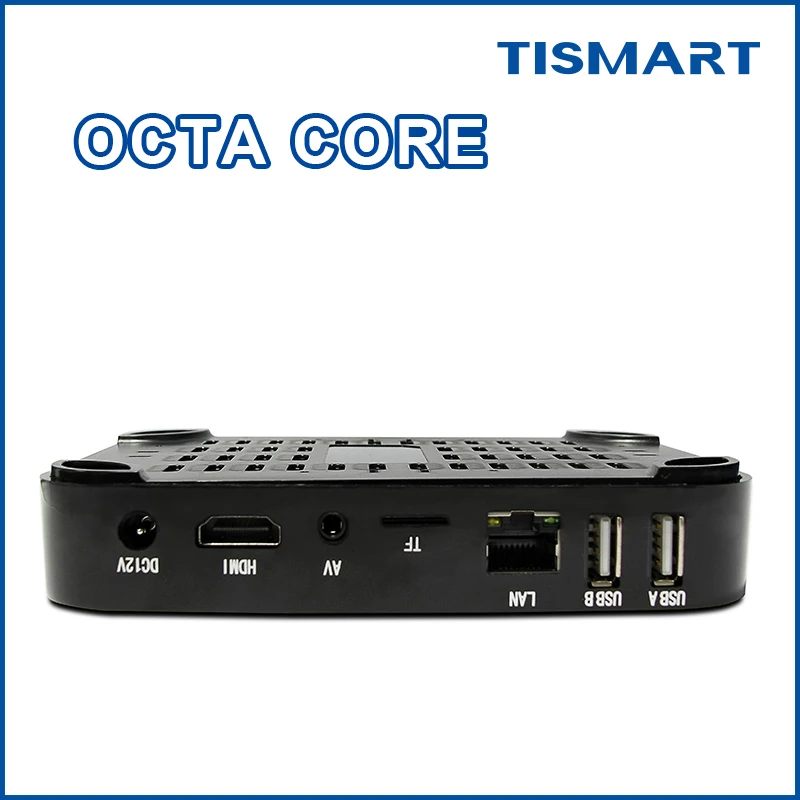

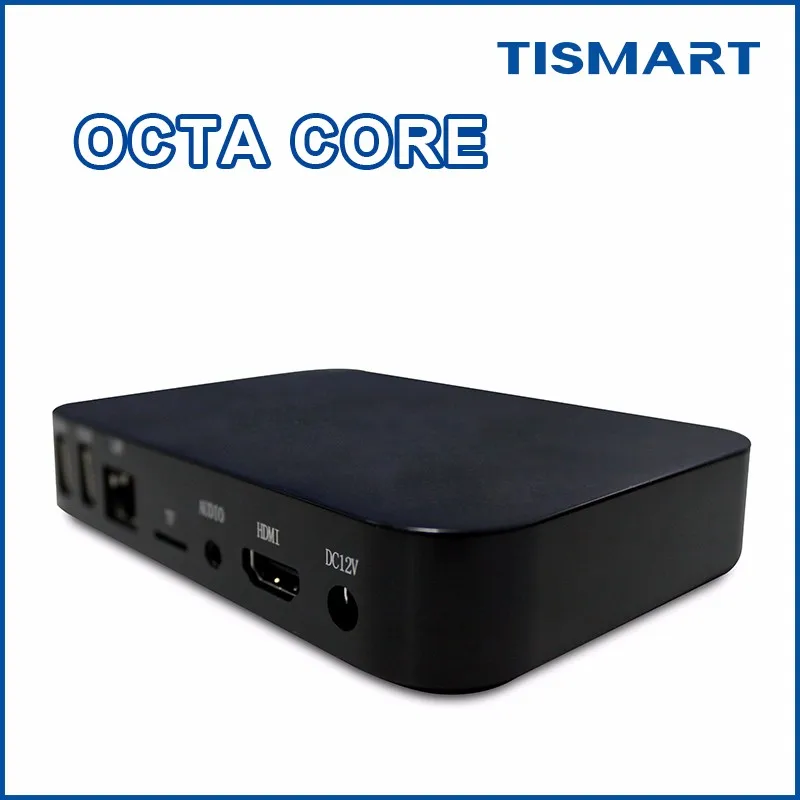

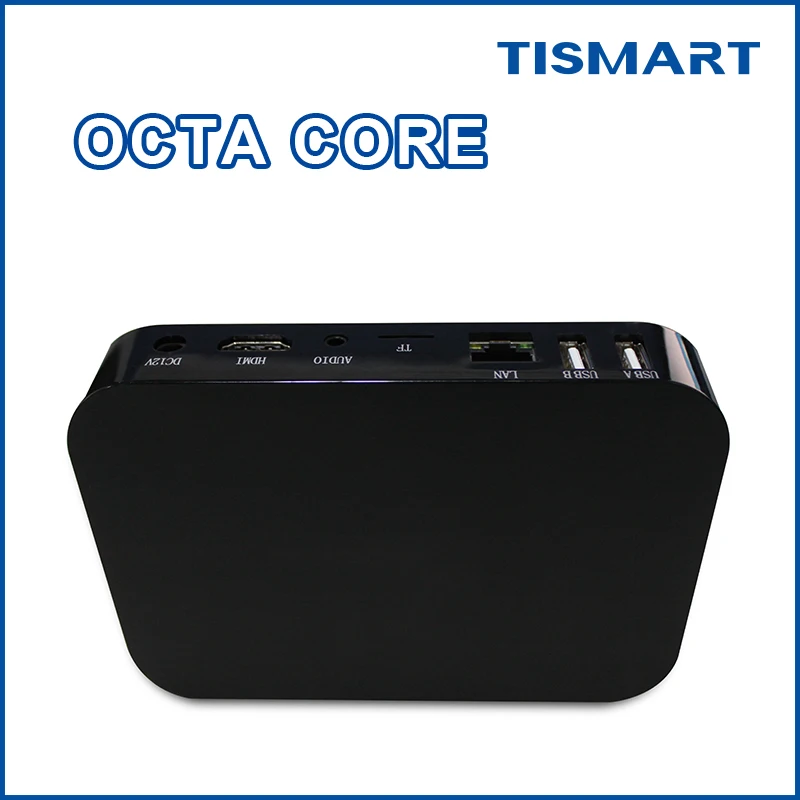

Appearance and Interface Sketch
Basic Function List
| Main Hardware Index | |
| CPU | Allwinner A83T,Octa-Core,main frequency 2GHz |
| Internal Memory | 1G/2G(optional) |
| Built-in Memory | EMMC 4/8/16/32G(optional) |
| Built-in ROM | 2KB EEPROM |
| Decoding Definition | Maximum support 1080P |
| Operating System | Above Android 4.X |
| Play Mode | Support loop, timing, inter-cut and variable play modes |
| Network Support | Ethernet,support WiFi/tooth 4.0,wireless peripheral extension |
| Video Playing | Support wmv,avi,flv,rm,rmvb,mpeg ,ts,mp4 etc. |
| Image Format | Support BMP,JPEG,PNG,GIF |
| USB2.0 Ports | 2 USB HOST,2 USB Sockets |
| Serial Ports | 3 serial ports sockets(defaulting include one 232 serial port) |
| TVIn | CVBS input 2 channel,support N,P System |
| GPS | External GPS(optional) |
| WIFI,BT | Built-in WIFI,BT4.0(optional) |
| 3G | Support 3G dongle,WCDMA,EVDO,4G NetMosa,support voice call |
| Ethernet | 1,10M/100M self-adapting Ethernet |
| SD Card | TF(Micro SD)card |
| LVDS output | 1 single/dual channel,can drive 50/60Hz LCD panel directly |
| HDMI output | 1,support 1080P output |
| Audio And Video Output | Support left and right channels output, built-in dual 4R/20W,8R/10W amplifier |
| RTC Real Time Clock | Support |
| Timing Switch | Support |
| System Upgrade | Support local SD,USB upgrade |
Application
1.Advertising terminal solution
2.Check terminal solution
3.POS terminal solution
4.Vehicle-mounted terminal solution
5.Vending machine terminal solution
6.Store advertising display
7.Shopping mall advertising kiosk
