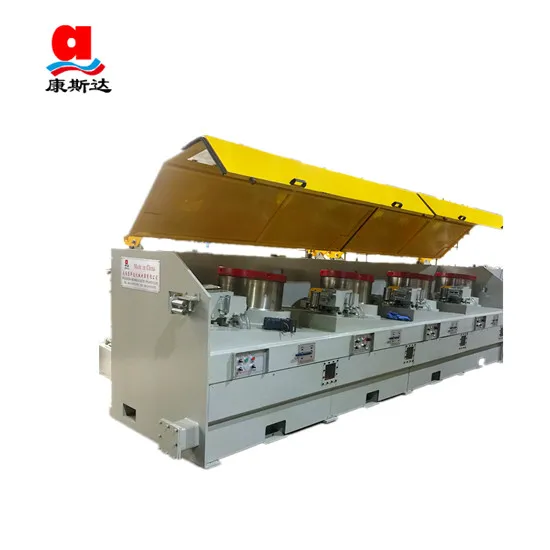

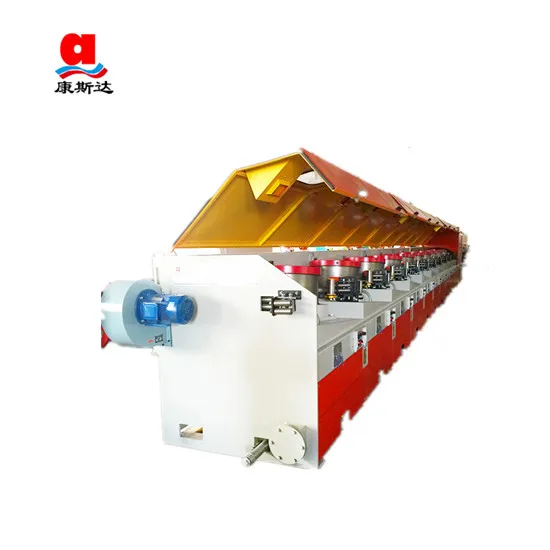

Continous line wire drawing plant made in china wire processing machine

Straight line wire drawing machines improved via our company are mainly suitable for Bead

wires,rope making wires,stainless steel wires,gas shield wires,etc.The series of drawing machines’ capstan diameter is Φ350-Φ1200mm. Max inlet wire diameter is Φ14mm.Min outlet wire diameter is Φ0.5mm. The equipment has the functions of man-machine dialogue,motor overtemperature protection,abnormal water pressure,counting the meter,full scale alarm,fault display,etc.

Advantages:

-Work efficiency is very high, the running speed is higher than other kinds of wire drawing

machines

-It is very easy to operate

-with an intelligible man-computer interface

-The quality of finished steel wire is the best if use the straight line wire drawing machine

- Environmental protection because of installing protective cover on machines

- With high performance cooling system for cooling,water cooling and high pressure wind cooling

-Working life of capstan is more than 22000 hours

-Raw material is ZG45 steel, surface is overlay welding, HRC is from55-60

-Capstan cooling: Slit type water-cooling+ ektexine air cooling

-First block will be done with non stop design

-Except first block each block could be skipped in case of need

-Machine’s each block has protection covers and don’t start

with out close the covers

-Adopts SIEMENS7-300 PLC logic control system and AC frequency control control technology

-Main speed regulation system uses ABB converter,The precision of speed regulation is high,PROFIBUS bus control - SIEMENS 10’ cun operation display screen

-Sensors use the German TURCK brand.

-Low-voltage apparatus uses China famous brand CHINT brand.

-Motors use China famous brand HANTEC

-All bearing will be famous China brands

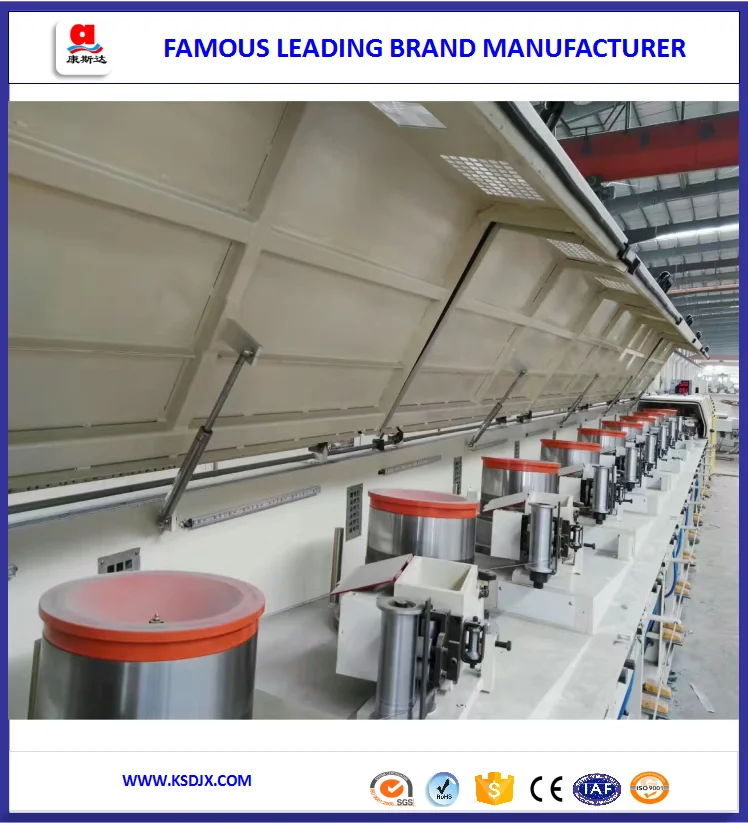

Whole Line Flow





Finished Products



Production Flow





Certifications





Advantages

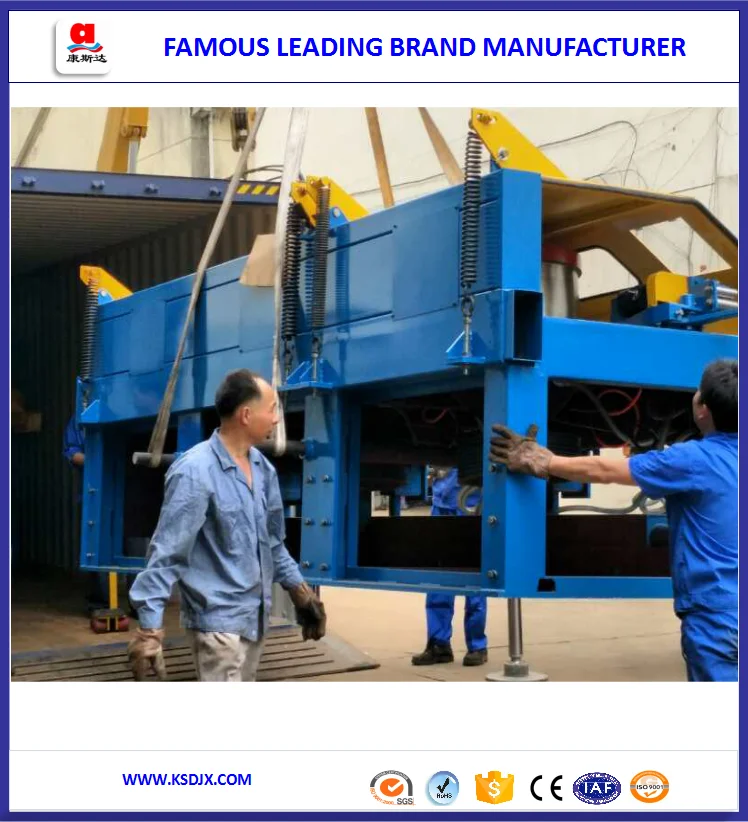

Packaging & Shipping
