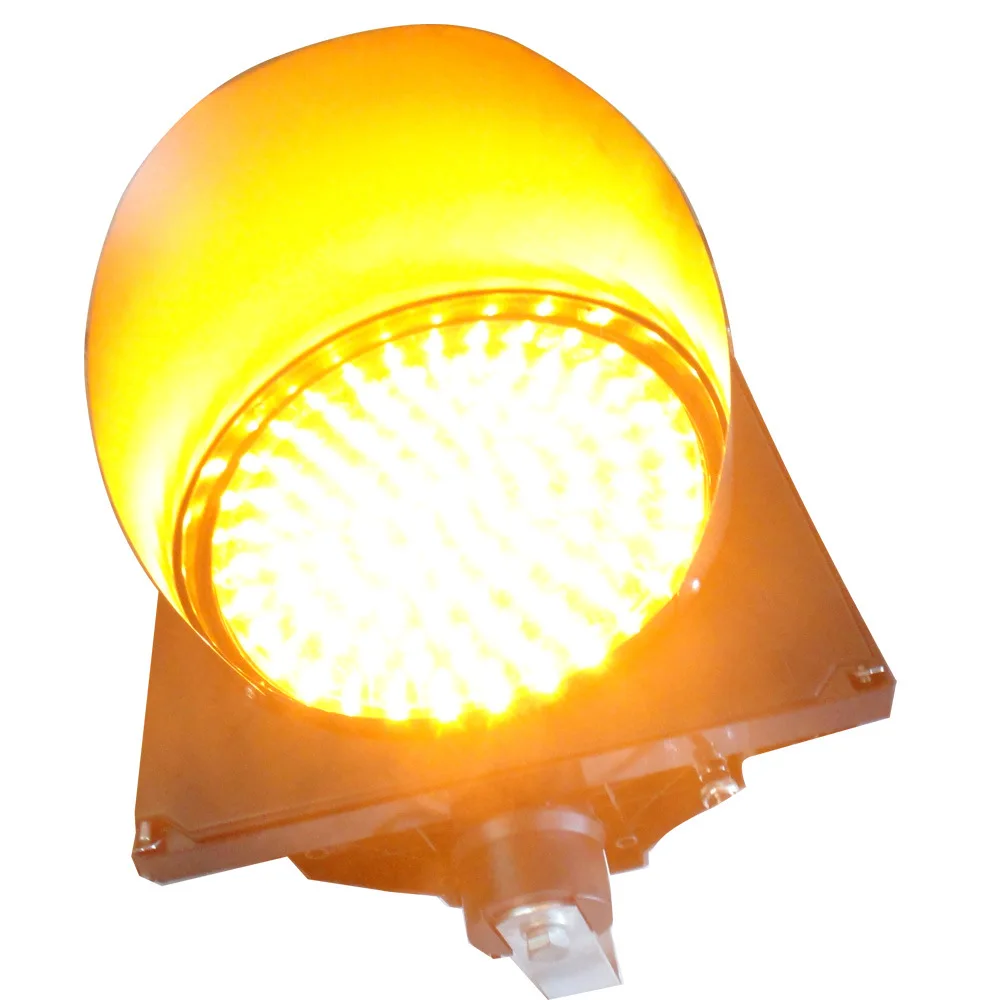

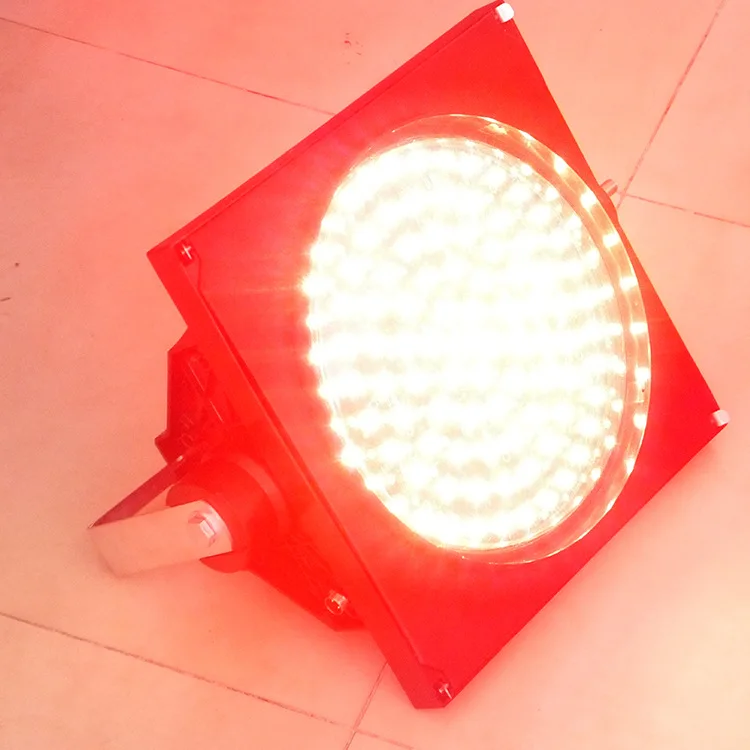

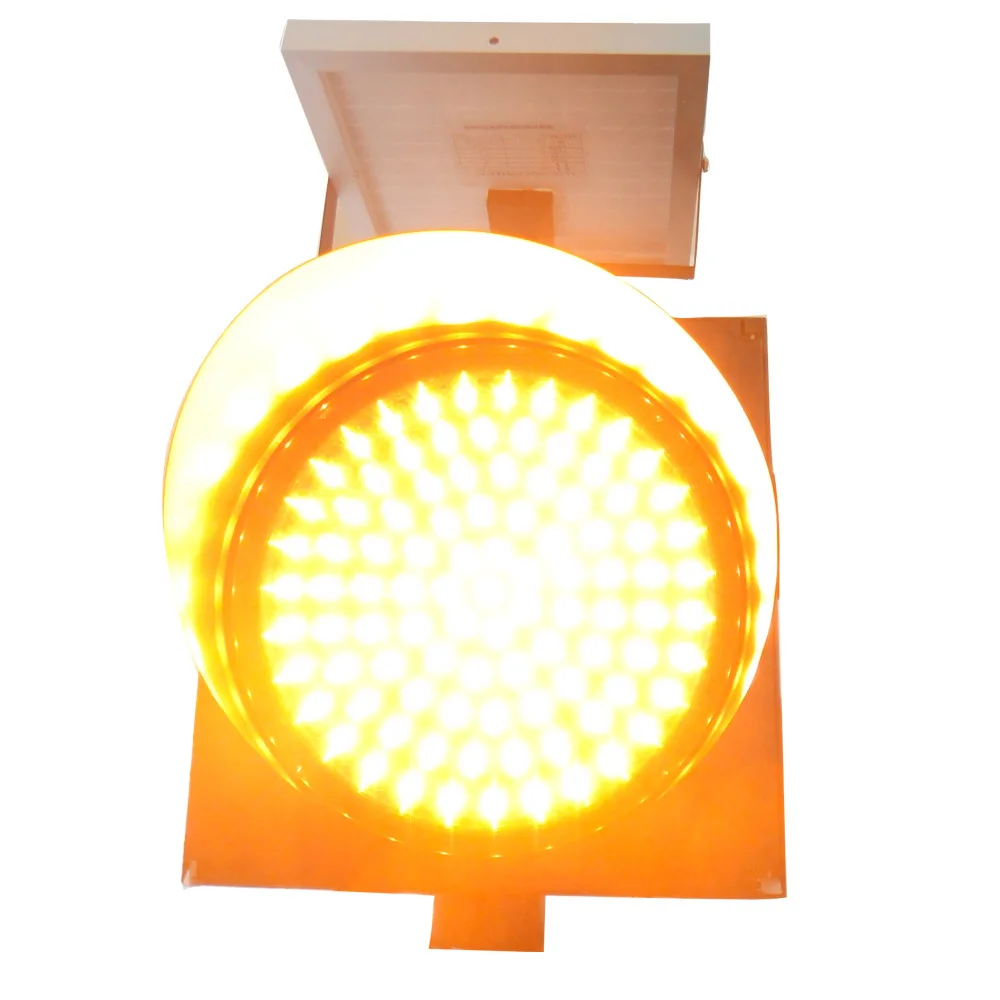

2 pcs/carton Dia 300mm Roadway Safety Powerful LED Solar Traffic Lights beacon lights for the road warning light

Product Overview

Description

2 pcs/carton  Dia 300mm Roadway Safety Powerful LED Solar Traffic Lights beacon lights for the road warning light

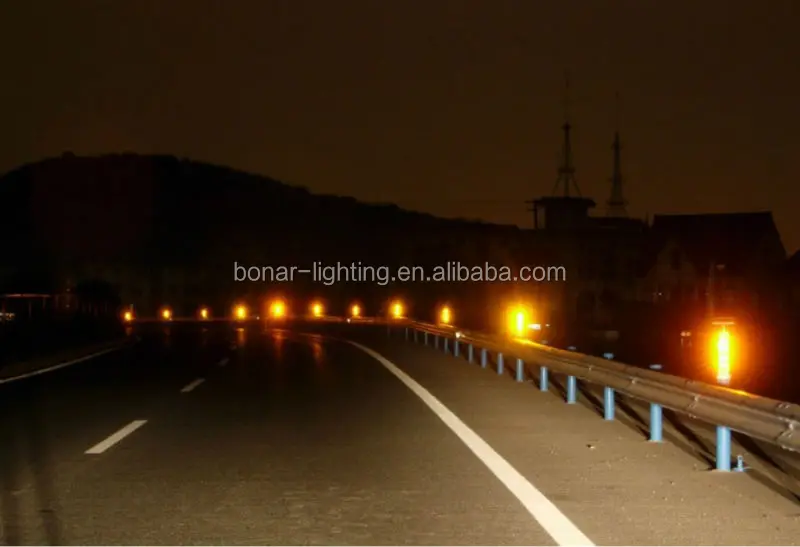

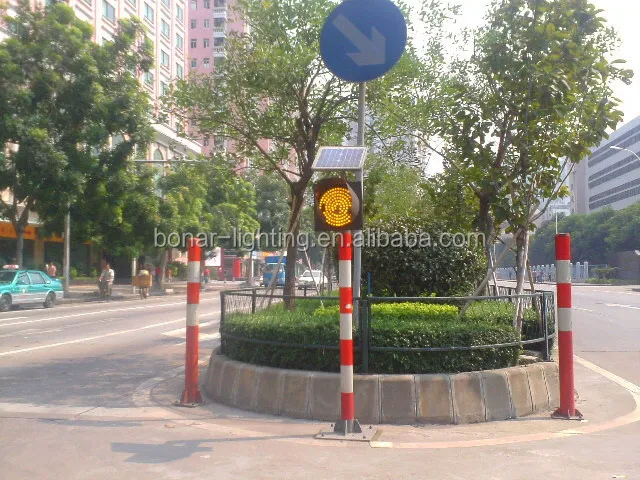

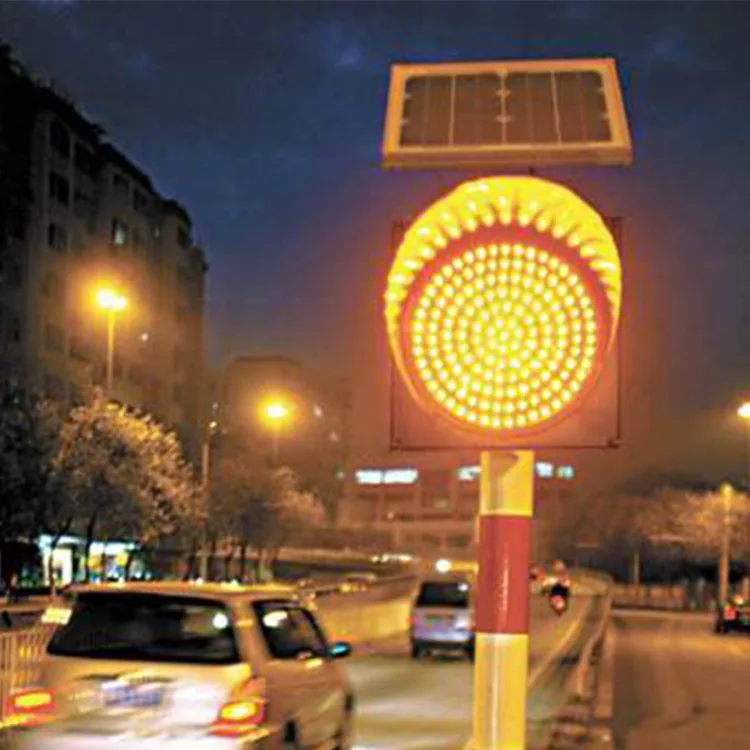

1. Can be installed at the traffic crossing and supplied electricity by solar panel without external power supply.
2. Can last over 10 days in wet or rainy days after full-charging
3. Battery can work 3-5 years and can be replaced.
4. The LED QTY can be customized.
5. Waterproof with IP65.

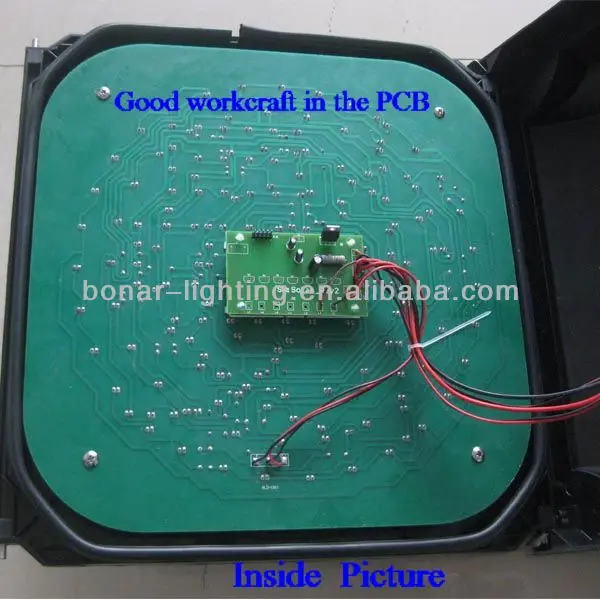

6. Unique design with good workcraft

7. Dia 200mm (60pcs leds) or dia 400mm (175pcs leds) are also available.



2. Specification:

Material	PC Plastic & anti-UV material shell
Size	250(L)*260(W)*150(T)mm
N.W./G.W.	6.8kg/7.8kg
Solar panel	18V/8W
Battery	Plumbic acid battery 12V/7AH

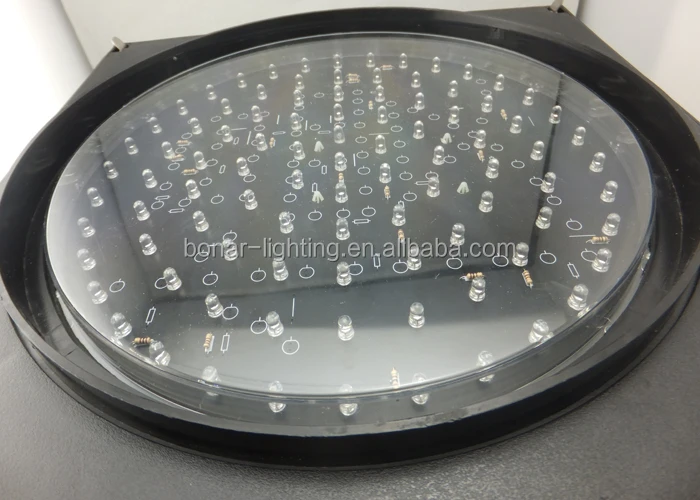

LED	Φ5mm, 95pcs, high-luminance
LED color	Yellow (can be customized)
Work time	24hrs working per day
	Can last over 10 days in wet or rainy days after fully charged.
Work mode	Steady or flash
Flash times	1HZ ± 20% frequency (can be customized)
Visibility	Over 800M
Waterproof	IP65

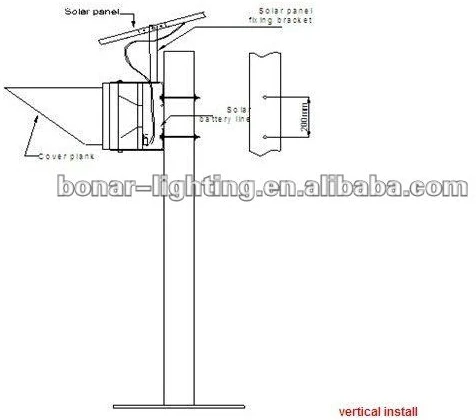

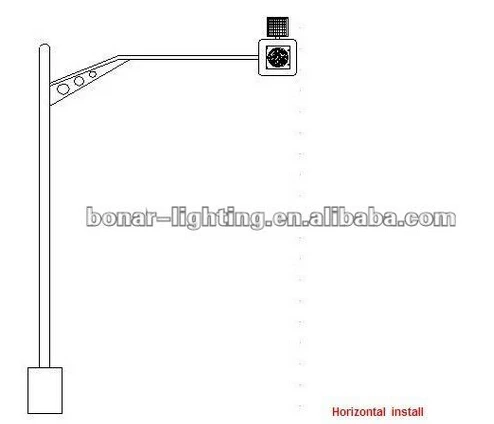

3. How to install (pls kindly check following picture)?

1. Installation method of the hat:
Hold the hat to be a shape of ring ,insert it in the groove around the transparent cover,
and take out the mounting screws and make it fixed (four holes)

2. Installation method of the solar panels:
a. With the wrench to open the screw cap ,remove the screw cap ,spring pads ,gaskets .
b. Support the solar panels ,install the gaskets ,spring pads ,screw cap.
c. Tighten the screw cap.
d. Insert the solar panel cable in the  below two connectors ,then it is able to charge for the storage battery

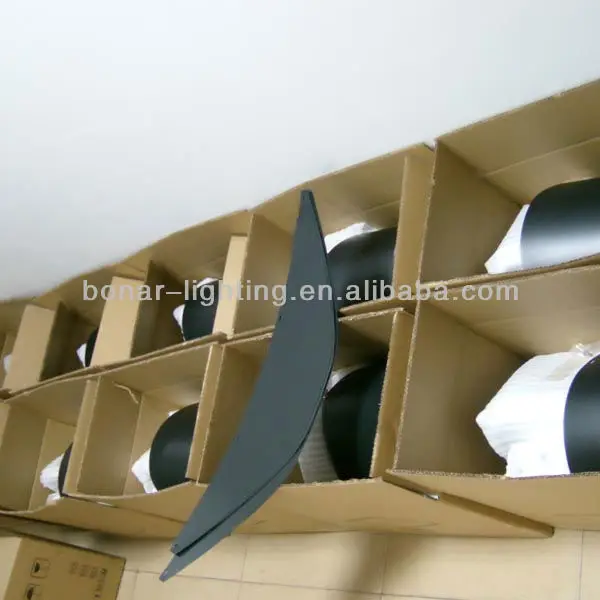

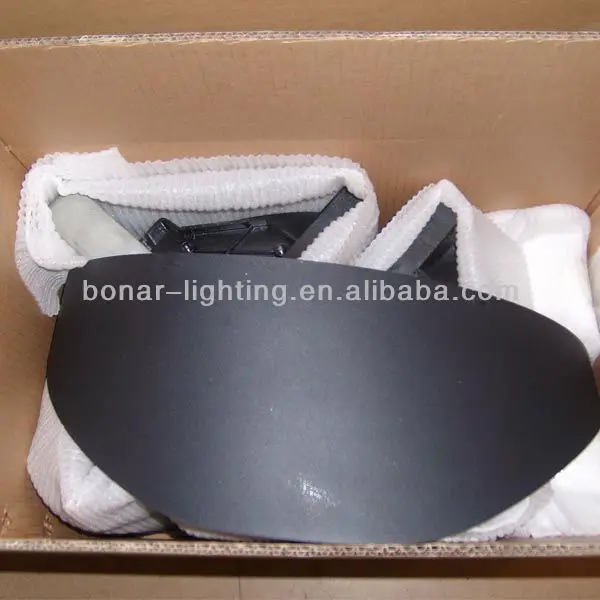

b. Carton size: 32*42*52cm
c. GW: 8.3KG

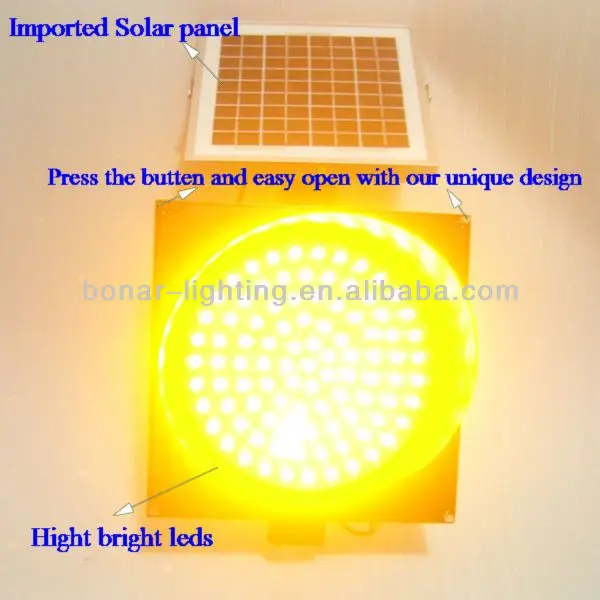

7. Why choose Bonar?
1) Imported LEDs with High Brightness
2) Good Compressive resistance with strengthening rib used on the PC shell
3) Double QC systems, competitive quality
4) Good craft and easy to open and install
5) Fast production leading time

6) Best after-sale service

7) Competitive price with competitive delivery time, competitive delivery cost by air,

by sea or by courier (DHL/UPS/Fedex/TNT)



8. Delivery time:

1-50pcs: 2-3 working days
50-200pcs: 4-5 working days
>200: add 3 days for each 15pcs
