Product Overview
Description
Shandong Hengwang Heavy Industry co.,ltd is the professional manufacturer of Pile driver,Drilling rig,Road construction machine. With more than 300 workers and 25 Senior engineers,high quality produts and best after sales service can both be guaranteed. Main clients are around Southeast Asia,Mid East and
South America. Welcome to visit our factory and sent inquiry to us.
DTH hydraulic drilling rig is specially developed to meet the customer’s requirements for favorable price. It is widely used in the open-pit blasthole drilling and underwater blasthole drilling projects for metallurgy, mining, building materials, railroad construction, hydropower projects, national defense, earthmoving work, etc.
It is equipped with globally purchased parts and the power system that matches with the power and load, which realizes the match of power, pump, and load, and effectively reduces the energy consumption and ensures optimal performance and high reliability.

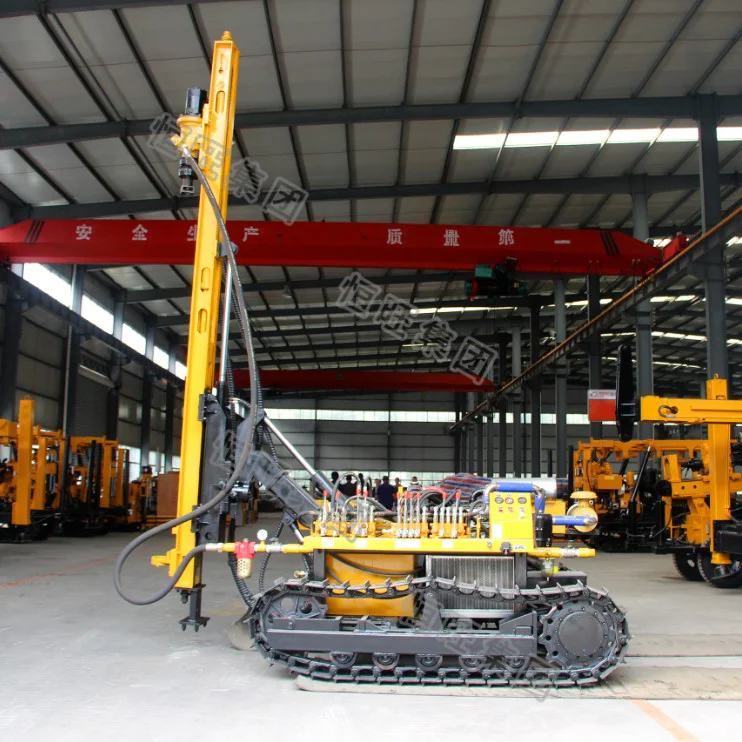

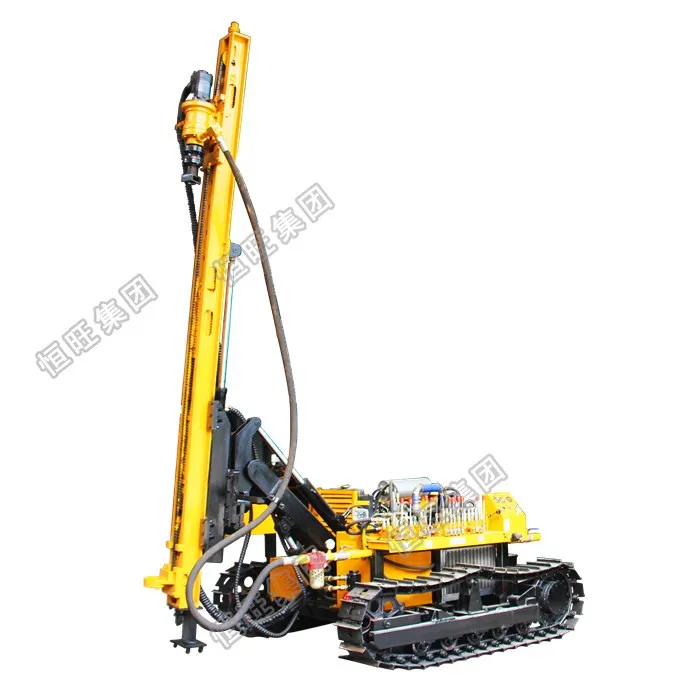

Crawler Down-the-hole Drill
1.Turn-around machine. The structure of newly designed planetary reduction box is more compact than that of straight tooth type reducer with greater reduction ratio, more efficient torque moment transmission, and more smooth operation.
2. Maintenance-free propulsion mechanism. Belongs to a new generation of products,it applied more advanced technology, the propulsion mechanism doesn't need routine oil maintenance.
3. Maintenance-free chassis. Enhanced engineering machinery crawler & box structure crawler frame are sturdy and durable; Maintenance-free thrust wheels, no need for oil injection.
4. Control console. Centralized control console provides convenient operational control of drilling rig; Fast propulsive and lifting operation reduce the auxiliary time and enhance the working efficiency.
5. Drive device.Yuchai 70KW turbocharged engine (Cummins optional) is featured by the strong power and easy maintenance.
6. Drilling arm .Multi-angle elongate functional drilling arm drills larger scope,its sectorial area of drilling work extends 20%.
Types of crawler DTH mining drilling rig
1,All pneumatic crawler DTH mining drilling rig
2,Hydraulic crawler DTH mining drilling rig
3,Integrated crawler DTH mining drilling rig
4,Truck mounted water well drilling rig
5,Crawler water well crawler DTH mining drilling rig
6,Diesel movable screw air compressor for crawler DTH mining drilling rig
7,Electric movable screw air compressor for crawler DTH mining drilling rig
Rock hardness | F=6-20 |
Hole diameter (mm) | 105-140 |
Drill depth (m) | 25 |
Pressure (Mpa) | 1.0-2.4 |
Air consumption (M3/min) | ≥15 |
Rotating speed (Km/h) | 0-100 |
Lifting capacity (KN) | 22 |
Drill rod specification (mm) | 76×3000/89×3000 |
Gradeability | 30° |
Ground clearance (mm) | 320 |
Walking speed (km/h) | 0-2.0 |
Drill arm rising angles (°) | -25~+45 |
Drill arm swing angle (°) | ±45 |
Carriage swing angle(°) | ±50 |
Carriage pitch angle (°) | 180 |
Carriage Compensation (mm) | 1200 |
Overall Dimension (L*W*H)(mm) | 5400×2330×2020 |
Total Weight (Kg) | 7200 |
Note: | Pneumatic-hydraulic + Dust collector |
Recommend air compressor | LGCY-19.5/19 |
