Производственная линия плоского закаленного стекла CE

Product Overview

Description

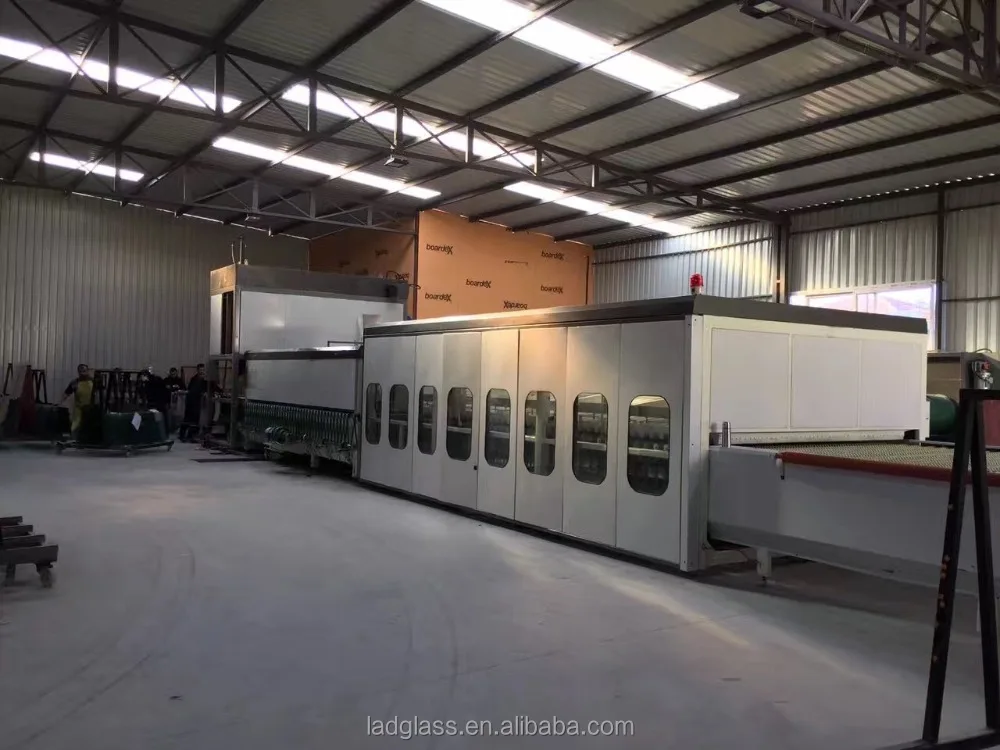

 CE flat tempered glass production line





This type of machine is to process flat /bent glass (heat enforced safety glass), the finished products are mainly used for furniture, home use application and building.





Technical date YD-F-2450
Parameters (for flat glass)	Max.Glass size	2440x5000mm (4-19mm)
	Min.Glass size	100x280mm
	Glass thickness	4-19mm
	Output (6mm glass)	179 square meter/hour
Other parameter	Machine dimension	21x3.3x2.4m (not including fan, air collection room)
	finished products rate	95%
	energy consumption	≤4KW/hour/square meter
	Quality standard	GB 15763.2—2005



Glass type

Transparent float glass or flat glass

Mass color float glass or flat glass

Single side printed glass

On line low-e glass

Off line low-e glass (convection type furnace)





Quality Standard
The product meets to Chinese national quality standard<GB 15763.2-2005>

Glass stress equilibrium, particle even

Quality of all finished glass are the same

Heat resistance: confront to international standard



1. Easy and human friend control system.

• The machine use Beckhoff control system with very intelligent and easy operation page. All parameter can be set on screen page;



• For each type of glass, the operator can save the relating parameter as a formular, save it into the computer. Can select and use it for next production.


2. Energy saving.

• The machine use advance arrangement of heating wires, reasonable distance from heating wire to glass, DIN heating control system to enable energy saving. Less than 4kw/m2 for 5mm thickness glass.



• It also can design passing section for 4mm or 5mm thickness glass to save energy when the machine process glass over 6mm.



• With converter for blowers.



• Use of high quality heating protect brakes to prevent heating escape.

3. High quality glass

• The tempered glass meet with Chinese high standard of tempered glass GB15763-2005 for tempering glass used for building.



• Breaking particles: in a position of 50*50mm, the breaking pieces shoud over 50pcs for 4-12mm glass and over 40pcs for glass over 15mm. (The actual breaking rate may higher than this)



• Surface stress of glass will not less than 90MPa.



• Can understand 200 degree teperature difference






4  High quality parts used on the whole machine

• The whole machine ues high quality steel, heating wires, ceramic rollers, electric parts, heating provent parts.




5. Full experience in new glass processing factory supply.



Warranty: Warranty period of the whole machine: one year

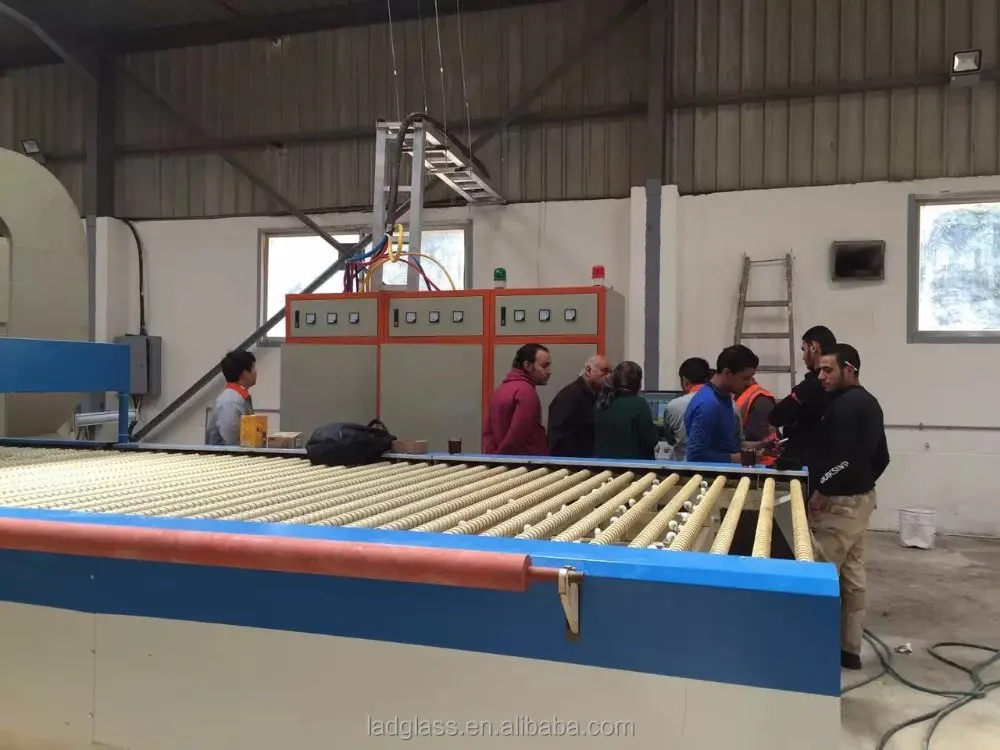

Machine commissioning and training: Send engineers to set up and commissioning at buyer’s factory.



Aftersales service:

Life time techical and parts support.

On port techcial training or problem solving when necessary











We are a factory specialized in manufacturing of glass cold & hot processing machines.

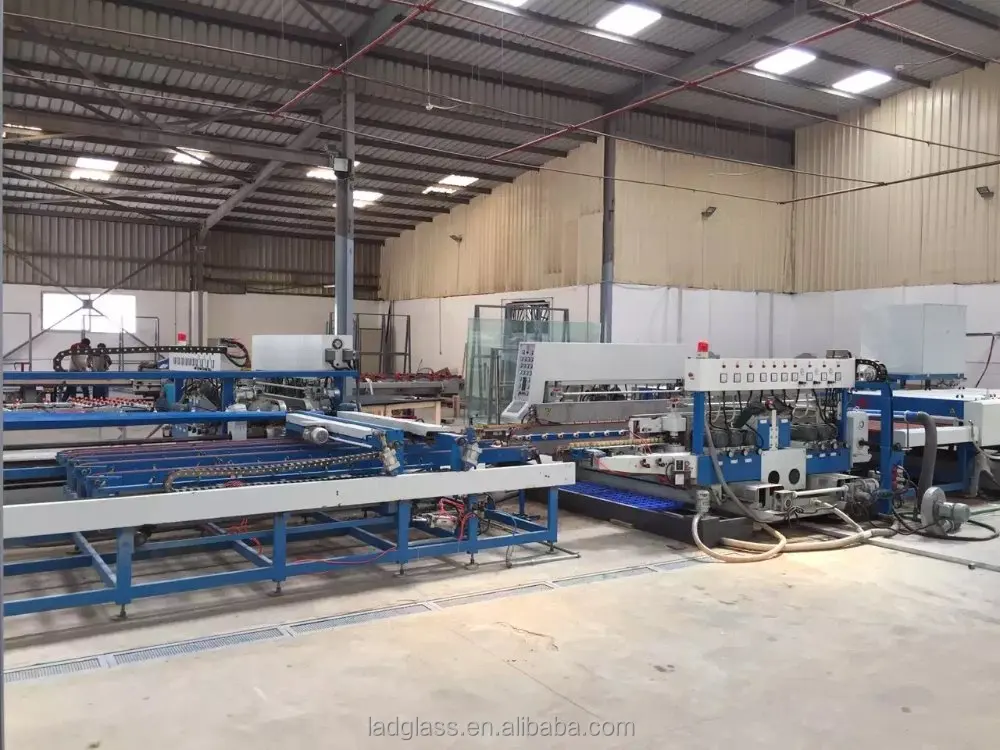

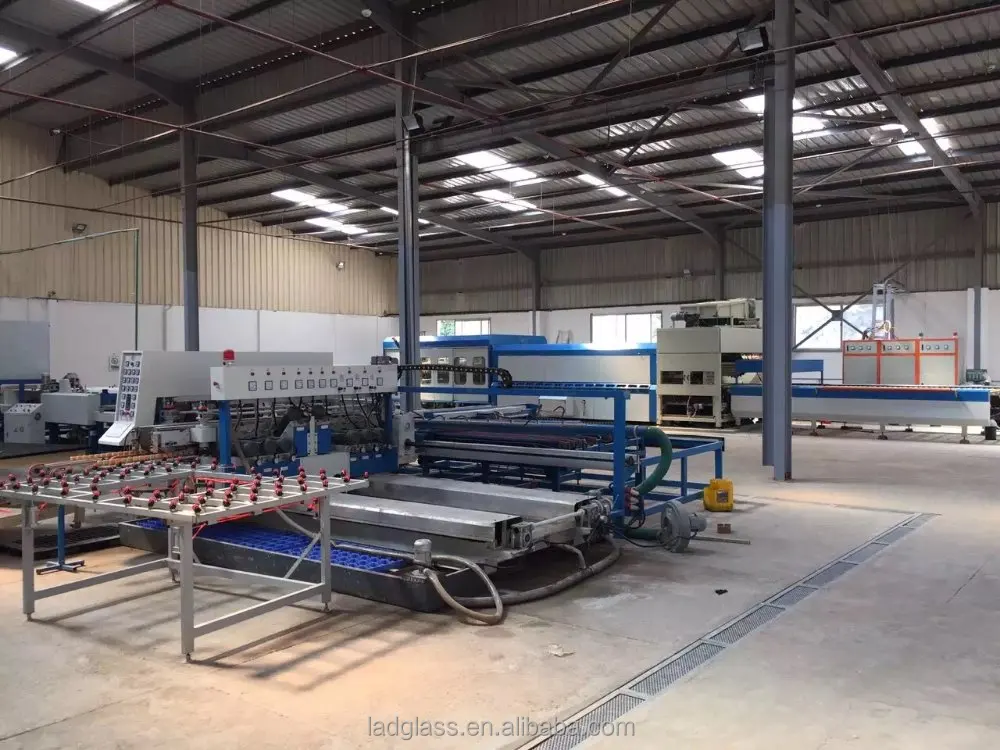

The main products include glass cutting machine, glass double edging machine, glass vertical edging machine, vertical beveling machine, glass drilling machine, glass shape edging machine, glass sandblasting machine and glass flat/bent tempering furnace.

The factory started production of glass processing machines since year 2000.

All of our machines have CE certifications and thousands of our machines are working well all in customer’s factories over the world .

We have our own export team and service team. We are glad to support our high quality glass processing machines and give our instant, sufficient service to you!
