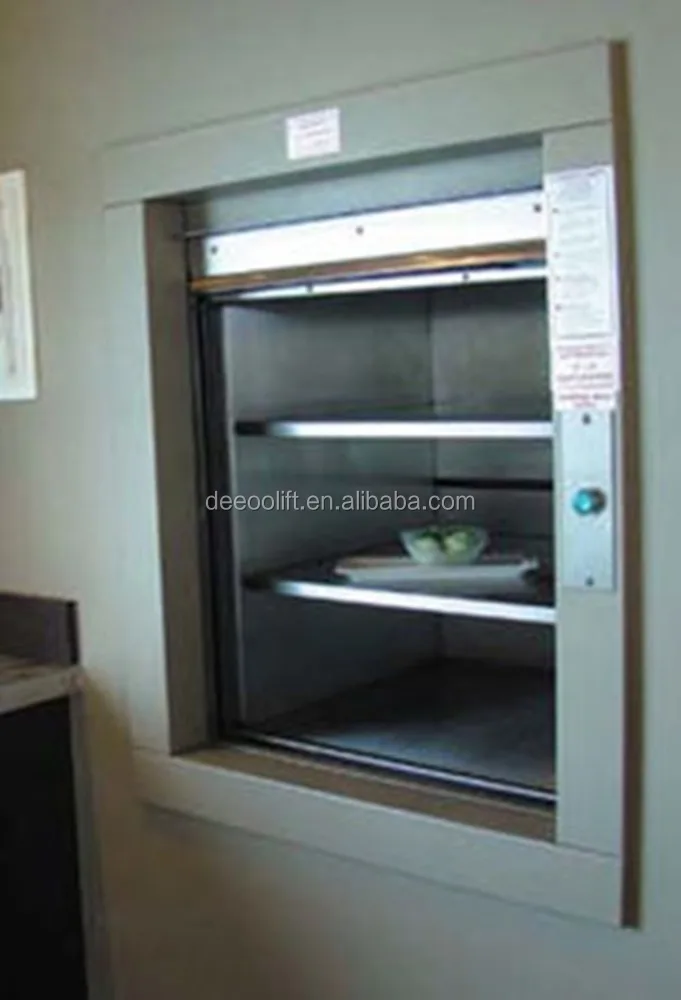

1. Guangdong DEAO Dumbwaiter Lift is firm and solid in framework, distinctive in structure.
2. It has small, exquisite and strong advantages. It specially applies the industrial-level PLC computer control system.
3. Furthermore, it strengthens the technical gurantee of safe running to Guangdong DEEOO Dumbwaiter Elevator, 100-300kg loading range is widely applicable for up/down transport of various materials.
4. Dual choice of window type and floor is convenient for goods entry / exit in different occasions.
Constructure(T) shaft ( without machine room) structure parameter: ( apply to 300kg-500kg):
Model
Load (kg)
Motor of traction machine (kw)
Area of car (sq.m.)
Car dimension
Side counter weight shaft dimension
Back counter weight shaft dimension
Reserved door hoie size
Window type C
Floor type D
Width A
Depth B
Height C
Width A2
Depth B2
Width A2
Depth B2
Width A3
Height H3
Top height H/load height P
Top height H/ Pit depth Q
TWJ100/0.4-F
100
1.1
<=0.75
600
600
800
1100
800(800)
900
950(1000)
900
1000
3200(3400)/700(700)
2500(2700)/700(700)
700
700
800
1200
900(900)
1000
1050(1100)
1000
1000
3200(3400)/700(700)
2500(2700)/700(700)
800
800
800
1300
1000(1000)
1100
1150(1200)
1100
1000
3200(3400)/700(700)
2500(2700)/700(700)
TWJ200/0.4-F
200
1.5
<=1
800
800
800
1300
1000(1000)
1100
1150(1200)
1100
1000
3600(3800)/700(700)
2900(2900)/700(700)
900
900
900
1400
1100(1100)
1200
1250(1300)
1200
1100
3300(3400)/700(700)
2600(2800)/700(700)
1000
1000
1000
1500
1200(1200)
1300
1350(1400)
1300
1200
3400(3500)/700(700)
2700(2800)/700(700)
TWJ250/0.4-F
TWJ300/0.4-F
250
300
2.2
3
<=1
900
900
1000
1400
1100(1100)
1200
1250(1300)
1200
1200
3900(4100)/700(700)
3200(3400)/700(700)
1000
1000
1000
1500
1200(1200)
1300
1350(1400)
1300
1200
3300(3500)/700(700)
2600(2800)/700(700)
1000
1000
1150
1500
1200(1200)
1300
1350(1400)
1300
1350
3400(3900)/700(800)
2700(3200)/700(800)
Note:
1. If with machine room, the height S>=1800mm and top floor height can reduce 600mm
2. The dimension in bracket is dimension of opposite, bi-parting with car door.

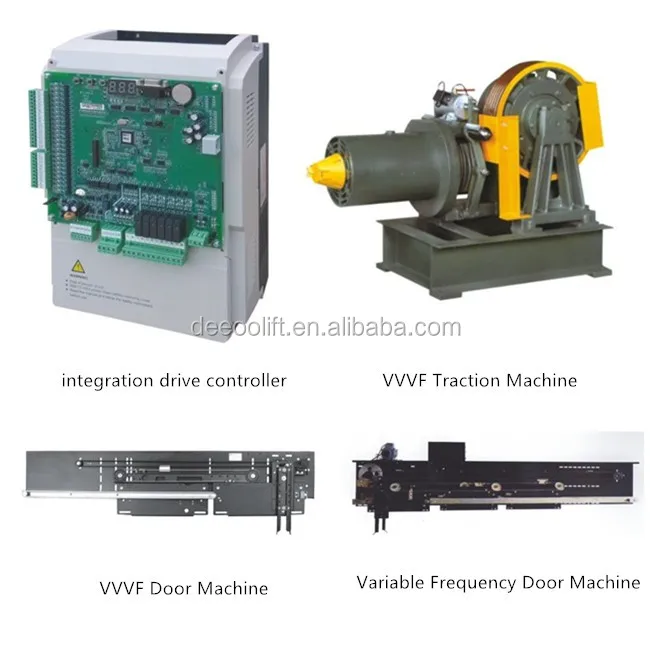

DEAO DUMBWAITER ELEVATOR applies GERMANY high tech :
1. integration drive controller
2. VVVF traction machine
3. VVVF door machine

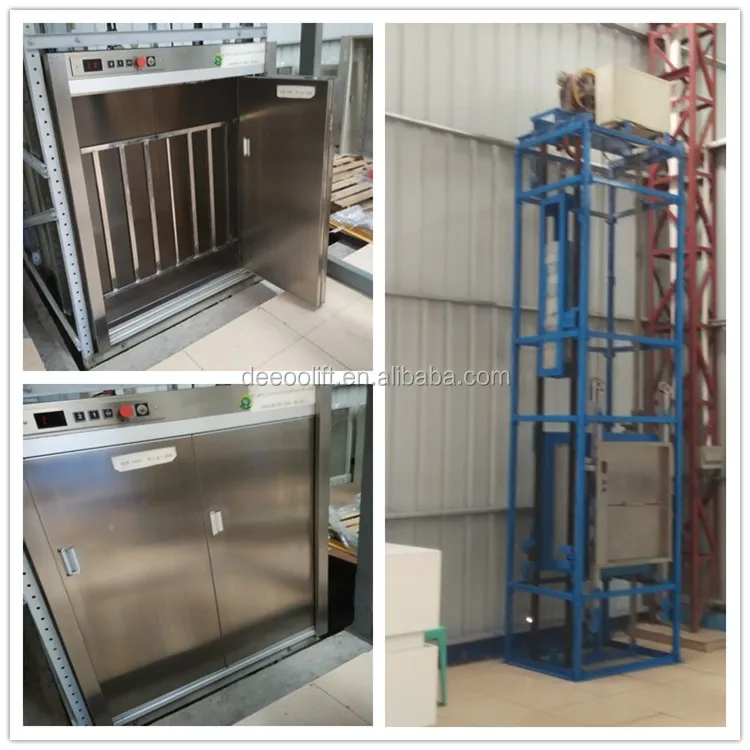

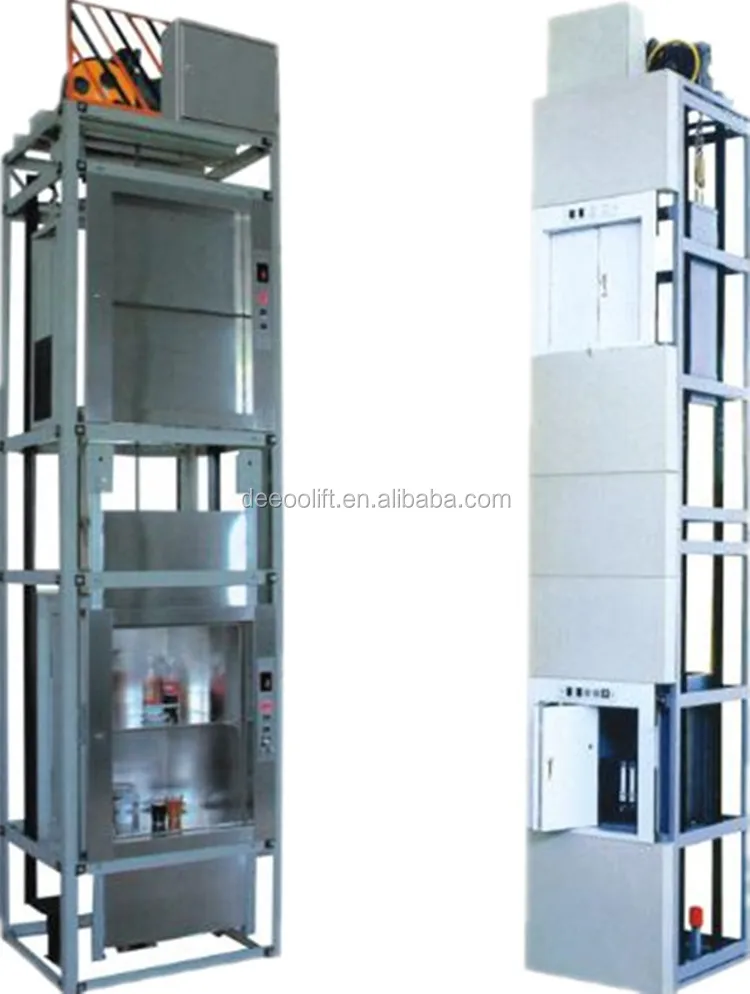

The frame of dumbwaiter lift:
Basic function of DUMBWAITER ELEVATOR:
1. Full selective automatic running
2. Drivers to run function
3. Inspection operation
4. Opening door automatically
5. Call door opening for this floor
6. Return to the base station automatically
7. Lighting emergency
8. Emergency alarm
9. Multi-function call intercom
10. Delay closing function
11. Anti-nuisance
12. External call buttons embedded self-diagnostic function
13. Repeat closing door function
14. Floor selection for machine room
15. Non-stop floor setting
16. Waiting floor setting
17. Arbitrary setting for the floor digital indicator
18. No closing for overloading
19. Breakdown diagnose
20. Driver controlling direct moving
21. Running state display
22. Lighting on/off automatically
23. Breakdown on re-leveling
24. Parking
25. Emergency power to run
26. Power safety device (air switch and switch box, lock)
27. Double well lighting control
28. Driver run function
29. Special run function
30. Well self-study

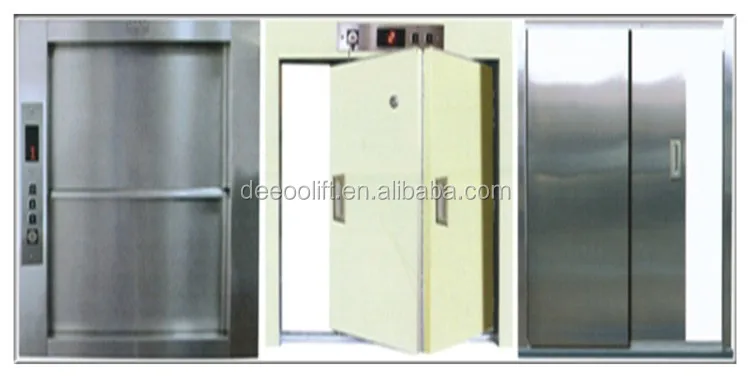

The optional halldoors of dumbwaiter elevator:

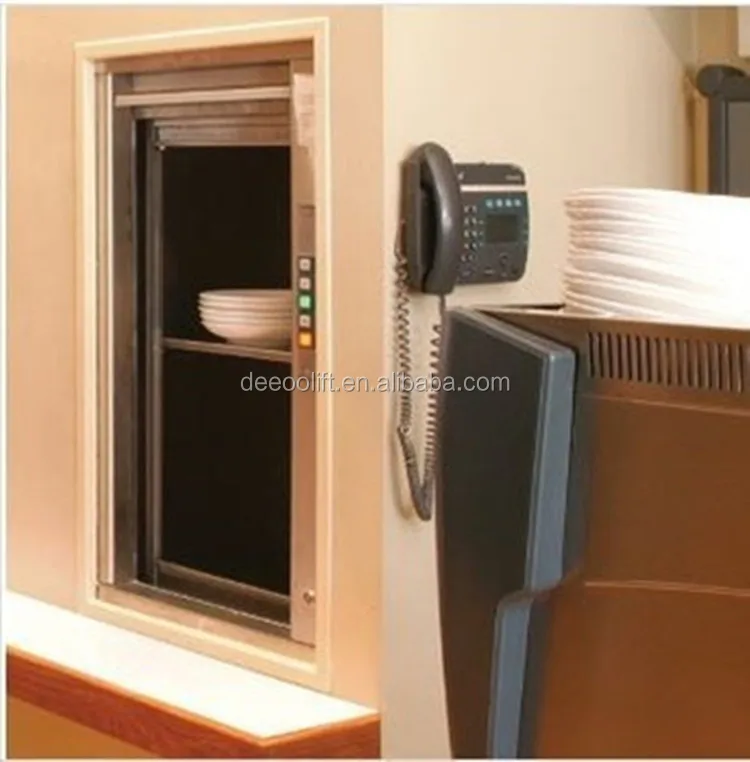

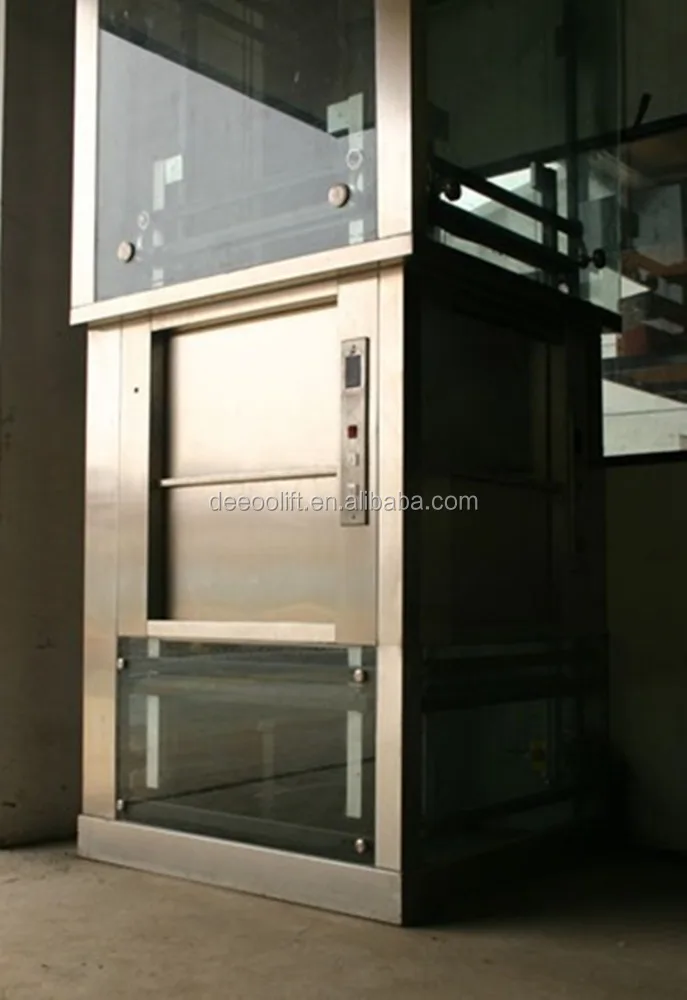

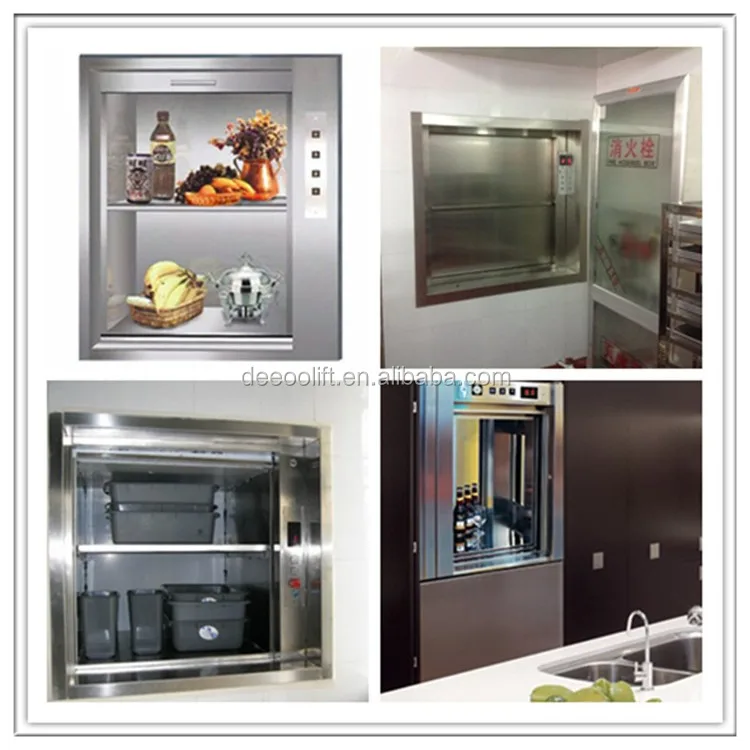

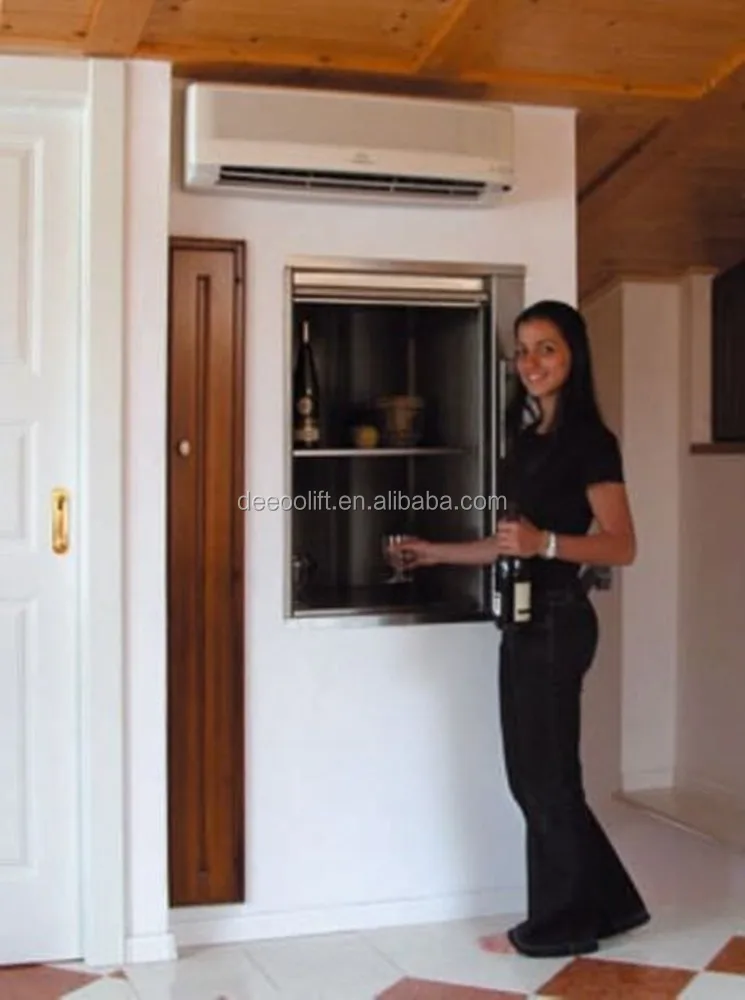

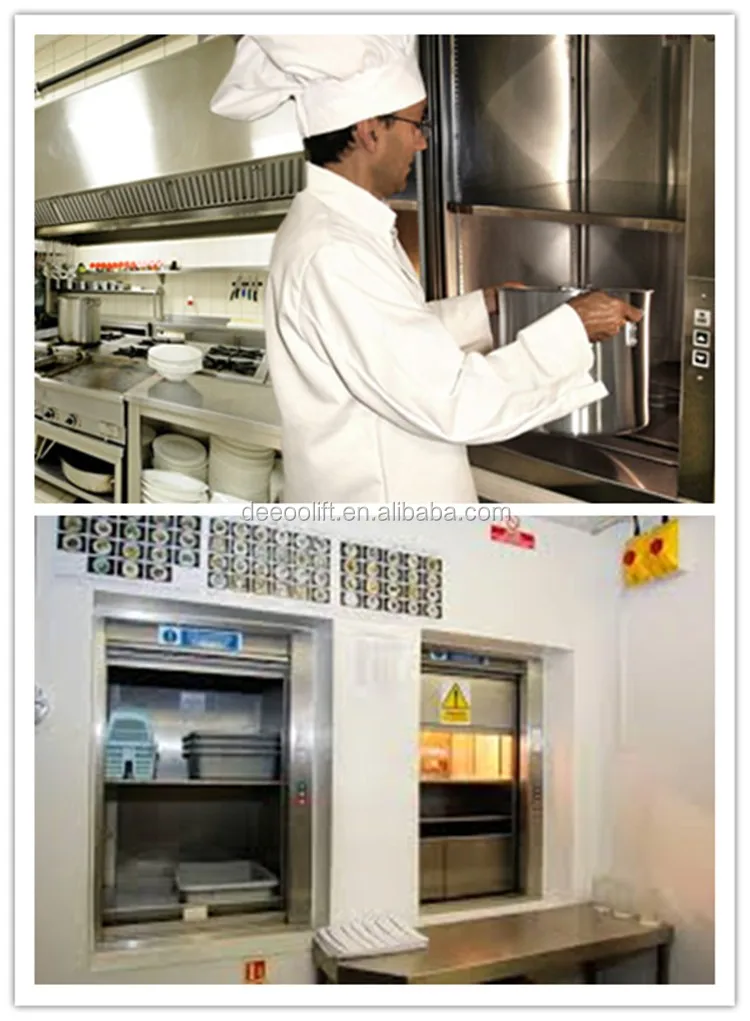

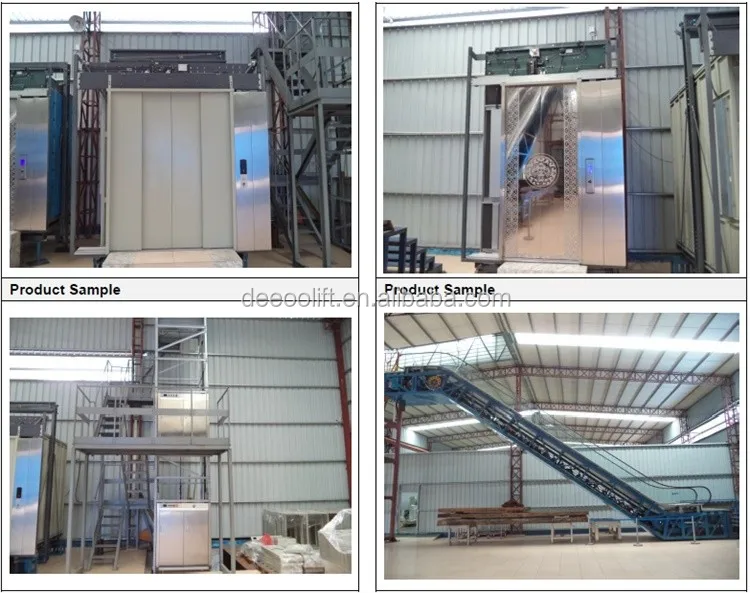

Samples show of dumbwaiter elevator :
Certificates of dumbwaiter elevator :
Packaging & Shipping
package in plywood box
suitable for export and long ocean transportation
Delivery date:
After : (1) Both parties confirmed the detailed specifications.
(2) Both parties confirmed the builder's work drawing.
(3) Signed the commodity contract.
(4) 60 days after receiving the deposit.
Our Services
All DEEOO Elevators with 1 year warranty.
Multi models elevators are your choice, with different styles of halldoors, COP, Ceiling, handrail, floor and spraying steel plate color.
Welcome to visit our factory!

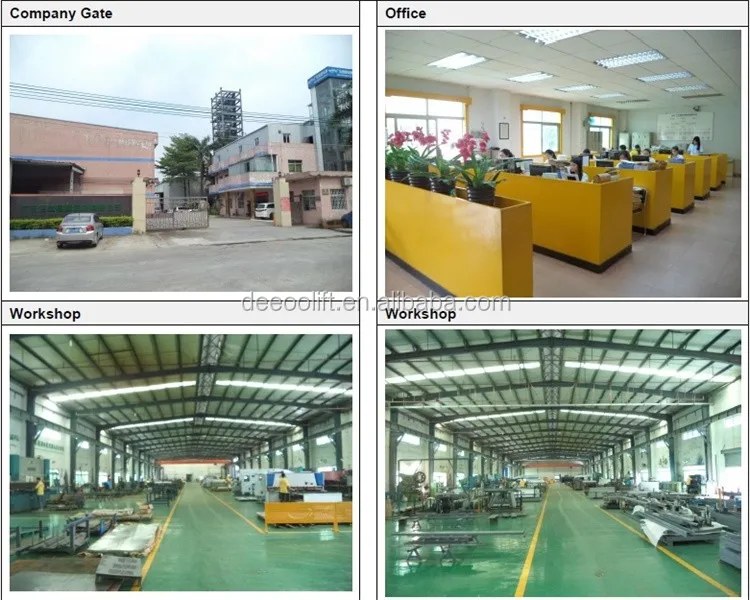

Company Information
Dongguan DEAO Elevator Co. Ltd with 10 years experience in manufacturing Passenger Elevators, Sightseeing elevatos, Villa lifts, Cargo Elevator, Car lifts, Food Elevator(Dumbwaiter Lift), Escalator and Moving Sidewalk.
DEEOO Elevator is ISO9001:2008 and SGS Certified, ISO Certificate Number: Q18120558.
we sell our products at home and abroad,main market are Aisa,Mid-east and Africa.
DEEOO adopts advanced German Technology and bulids global high-end brand. All DEEOO Elevators with 1 year warranty.
Certificates:"Manufacture license of Special Equipment"
"Installation, Alteration, Repair & Maintenance license of Special Equipment".
All of our products comply with GB7588-2003 standard (Chinese standard which is equivalent to EN81).
