Product Description

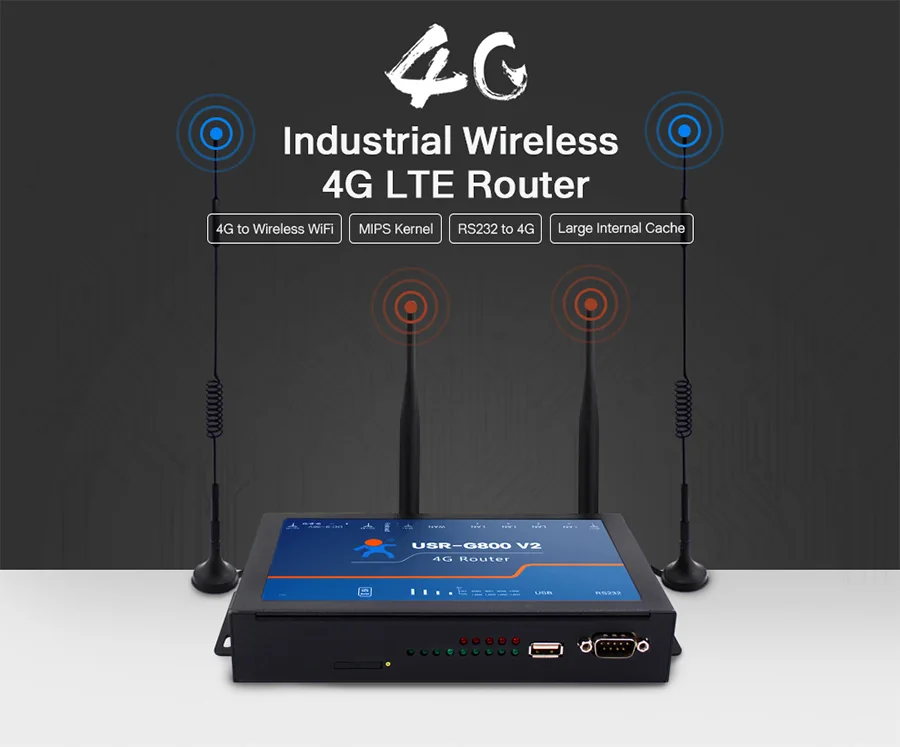

USR-G800 V2 is a 4G wireless router, which provides a solution for user's device to access 4G network. USR-G800 V2 is based on industrial high-performance embedded structure. It plays an important role in data transmission fields such as smart home, smart grid, personal healthcare and industrial control. USR-G800 has one WAN port and four LAN ports, and it supports data transparent transmission between RS232 and 4G network.

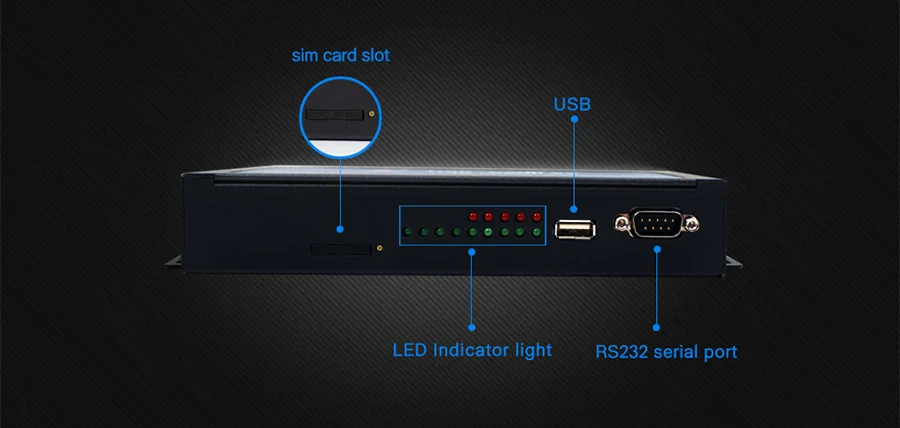

4G SIM card slot: Self-locking card slot. Support USIM card, APN card and IoT card. Support APN configuration. User can configure priority of WAN interface and 4G interface when user uses them simultaneously.
RS232: Support serial port to Ethernet function. Support TCP Server, TCP Client, UDP Server and UDP Client work mode to realize transparent transmission. Support various AT commands to configure.
LED: Support 8 LED to indicate status of LAN interface, WAN interface, 4G interface, WiFi connection, etc.
RS232: Support serial port to Ethernet function. Support TCP Server, TCP Client, UDP Server and UDP Client work mode to realize transparent transmission. Support various AT commands to configure.
LED: Support 8 LED to indicate status of LAN interface, WAN interface, 4G interface, WiFi connection, etc.
WAN interface: Support one WAN interface. Support DHCP mode, static IP, ADSL(PPPoE), VPN, etc.
LAN interface: Support four LAN interfaces. Support DHCP mode and static IP.
Power supply: DC 9~16V. Support terminal power supply interface.
Reload button: Support resetting to default settings by hardware way.
LAN interface: Support four LAN interfaces. Support DHCP mode and static IP.
Power supply: DC 9~16V. Support terminal power supply interface.
Reload button: Support resetting to default settings by hardware way.
Character
4G card slot | self-locking type card slot; usim card, APN card and IOT card are available; support APN private network setting, can set priority network, when there are both wired network and 4G |
RS232 | for transmission protocols of TCP Server, TCP Client, UDP Server and UDP Client; realize transparent data transmission, AT command control |
LED light | All eight LED lights indicate the running state of LAN port, WAN port, 4G network and wifi network |
1 WAN port | support DHCP, static IP, ADSL(PPPoE) dialing and VPN virtual private network |
4 LAN ports | support DHCP and static IP |
Power | DC9 to 16V power supply and terminal power supply |
Feature

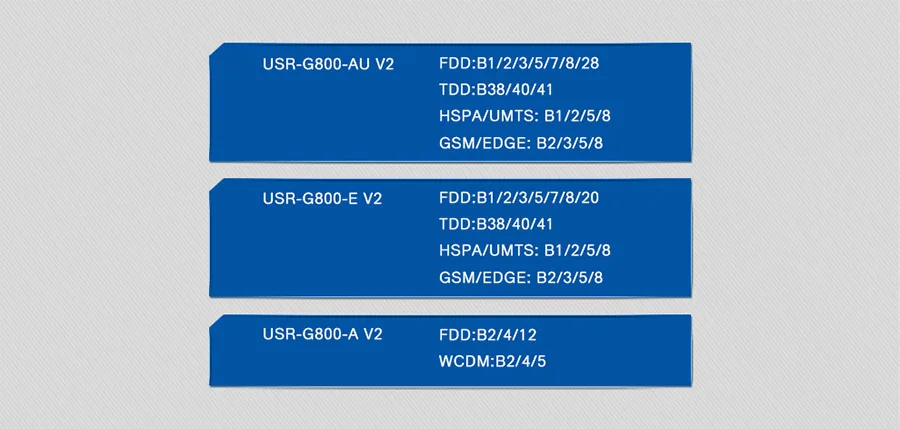

Band | TD-LTE: Band 38, 40,41, FDD-LTE: Band 1, 2,3,5,7,8,28 GSM/GPRS/EDGE: Band 2,3,5, 8 |
Working Voltage | DC 9-16V |
Working Current | Average: 170mA; Max: 289mA (DC12V) |
Working Temp | -20~70℃ |
WIFI Network | Support 802.11b/g/n |
Interface | Mini PCI-E 52PIN |
Reload | A key to restore factory settings |
Status light | Power,WIFI,4G,WAN*1,LAN*4 |
DB9 pin maleRS232 | Customzied web page is acceptable |
Point
4G (LTE) integrated
1 RS232 Serial port supporting auto 10/100M Ethernet
1 WAN port and 4 LAN port
Wireless N speeds of up to 300Mbps
insert a SIM card and turn it on to enjoy high speed
internet access
\t\t\t\t\t\t\t\t\tApplication \t\t\t\t\t\t\t
Certificates
CE FCC RoHS WEEE
USR Company
Jinan USR IoT Technology Limited
Jinan USR IOT Technology Limited has been focusing on network communication for IoT since 2012. Our mission is to be the communication expert of industrial IoT that make the network communication easier and more reliable.USR IOT provides quality products - serial to Ethernet converters, serial to WiFi converters, cellular modem, 4G cellular routers, IoT gateway, LoRa module, LoRa Gateway and NBIoT modules with I S O 9 0 0 1, CE, FCC,CCC, RoHs for industrial networking , which allows companies connect to the Internet - simple, quickly and reliably in more industries. USR IOT also provide USR Cloud service. We have a software team to help customers develop customized Cloud platform. By this way, USR IOT can provide a whole IoT solution for our customer. OEM & ODM service is acceptable.
USR IOT Attended Exhibitions Around The World
Our Service
Service: 2 years guarantee, and professional technical staff help.
Supply ability: We usually have 3000-5000 units in stock for urgent orders.
Capacity: 50K/week, can meet the demand of most enterprises application.
Lifetime: At least 5 years for each device, can still produce just if you need.
Cooperation: Welcome the cooperation with distributors all over the world.
Shipping ways
Southeast Asia, Mid East and Australia: Egypt, Israel, Pakistan, Turkey, India, Singapore, Thailand, New Zealand ect. We choose DPEX or ARAMEX. It may take 7-15 days.
Russian Federation: we only send orders by EMS or CPAM. It will take 20-45 days.
South America: Brazil, Chile, Peru, Argentina, Columbia ect. We choose EMS or CPAM for shipping.It will take 20-45 days. If you really need DHL, please contact us.
North America and Most of Europe: We choose DHL, except cities that DHL can not reach. It will take 7-10 days.
Return/refund policy
If you get a defective item and you do not like the item we send to you, Please contact us within 5 days after you receive your order. item must be returned with its original packaging and accessories.Customer is responsible for shipping charges of returned item.We will refund the money to you when we get the returned item. Or we can send you a new one according to your demand.
if item is lost in the transportation, we will fully refund to you.
