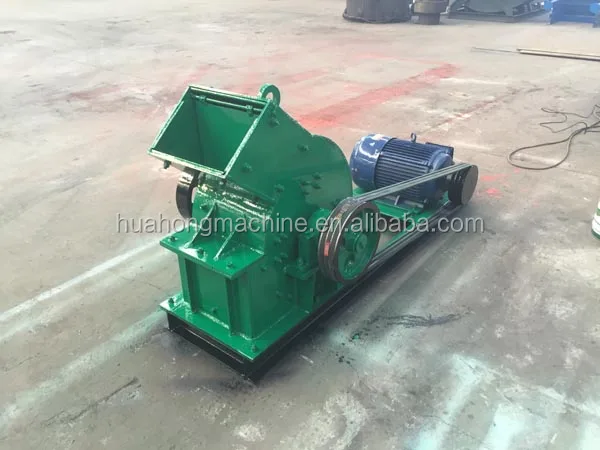

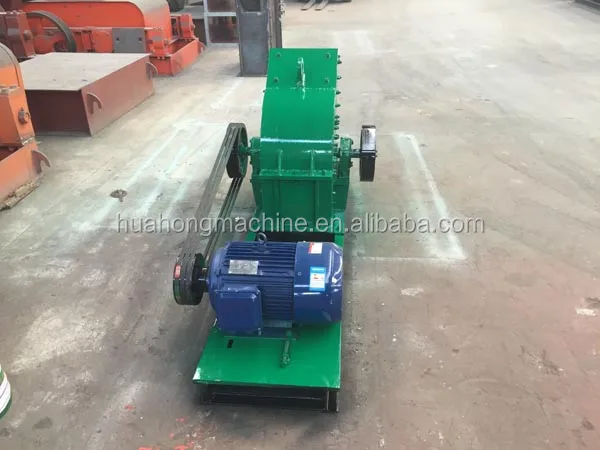

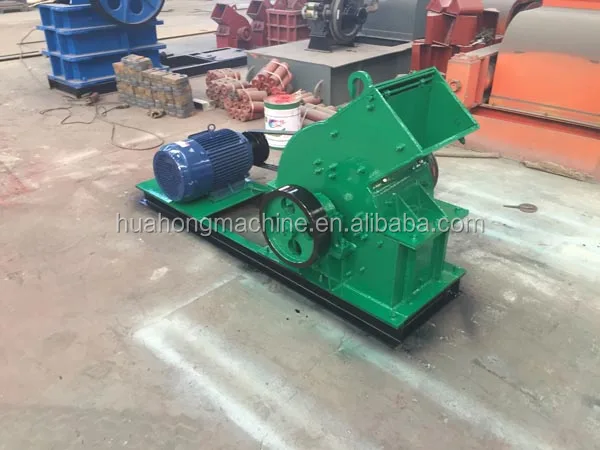

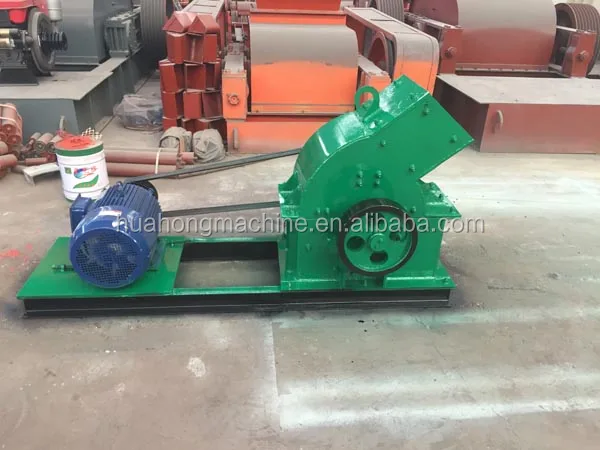

Mining Heavy Hammer Triturator Machine / Building Materials Hammer Crusher / Stone Triturator Machine

Share on (60463822898):


Price:$1,400.00 - $1,500.00

Quantity:


Product Overview

Description



Product Description


   Hammer crusher for crushing all kinds of hard and weak abrasive materials,the material does not exceed the compressive strength of 150MPa,the moisture content of less than 15%.Material to be broken coal ,salt ,gypsum,brick,limestone and so on.Also use broken fiber structure ,strong flexibility and thoughness of broken wood ,paper,broken asbestos cement waste to recover asbestos fibers and so on.

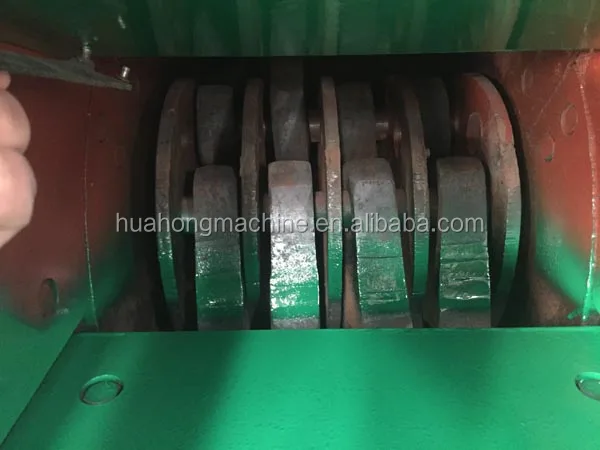

  Hammer crusher for the main working parts with a hammer of the rotor ,roter from the spindle ,disk ,composed of pin and speed movement of the hammer blow ,impact ,shear ,grinding and crushing effect . the low part of the rotor with a plate and crushed sieve size material is less than the grain size through the exhaust plate ,sieve size larger than the coarse -level resistance to continue to remain in the plate by a hammer blow and grinding, and finally through the sieve plate from the plane












Technical parameter


















































































Type Model

Material-in size


(mm)



Material-out size


(mm)



Production capacity


(t/h)



Motor Power


(kw)



Total weight


(t)



Overal dimension


(mm)


Hammer crusherPC300X200≤80≤81-55.50.6630X380X630
PC400X300≤100≤105-10110.8900X670X860
PC600X400≤120≤1510-2218.5-221.501200X1050X1200
PC800X600≤150≤1518-40553.11310X1180X1310
PC1000X800≤200≤1525-50757.91600X1390X1575
PC1000X1000≤200≤2030-551328.61800X1590X1775

PC1300X1200





≤250≤2535-65180142060X1600X1890







Packaging & Shipping





packaging : standard containers ,standard wood cases


Deliver  detaills :     within 10 days after 50% advanced payment


2 065





2 090











Company Information





   Zhengzhou Huahong mechanical equipment Co.,Ltd is a limited liability company mainly engaging in producing large and medium -sized serious broken -based milling machine and intergrating with research ,production and sales.


     The main products of our company include more than 10 series and dozens of broken -based milling equipment such as vibratory feeder series ,jaw crusher series ,impact crusher series ,,through impact crusher(sand  mill)series ,linear vibrating screen series ,circular virbrating screen series ,sand washer series ,ball mill and band conveyor etc,which are widely applied in mining ,chemical,metallurgy,building materials ,coal and refractory materials etc.industries. the quality of the product plays an important role for the existence of the industry . The product of our company has approved by ISO9001:2000 international quality system and the reliable ,stable quality of the product of our comany is famous at home and abroad , which has been sold in Hongkong,Indonesia,Russia ,Australia ,Mali,and Ghana et country and region








Certifications





 ISO





.png

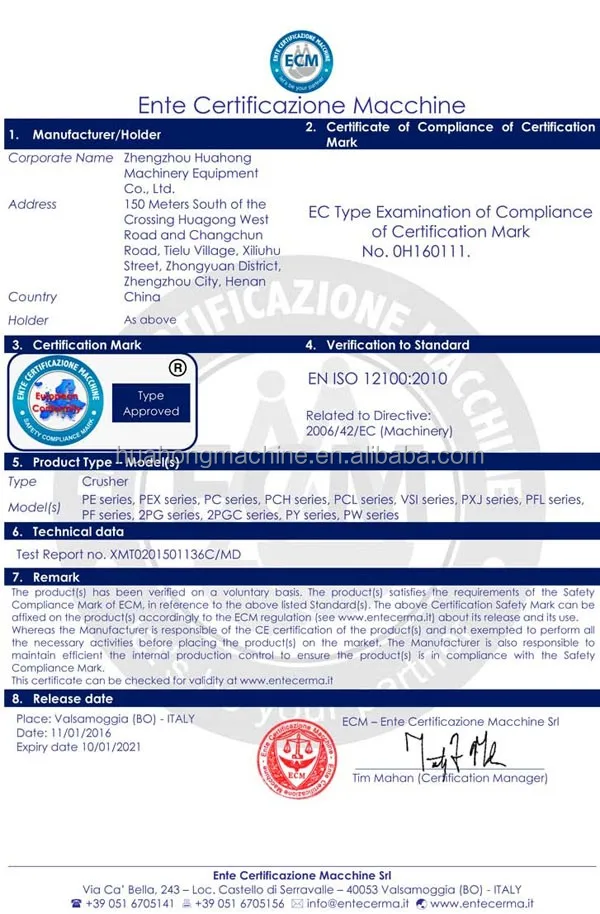

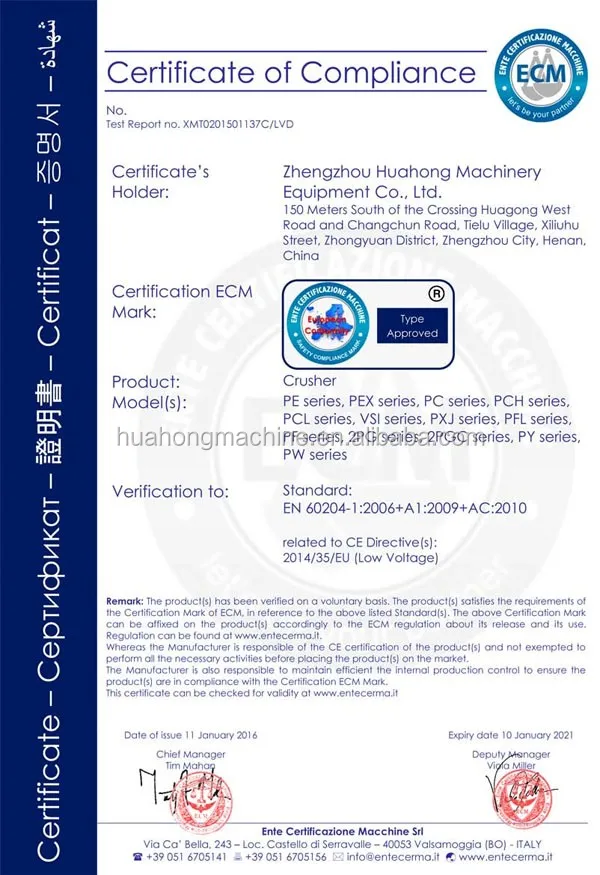

CE

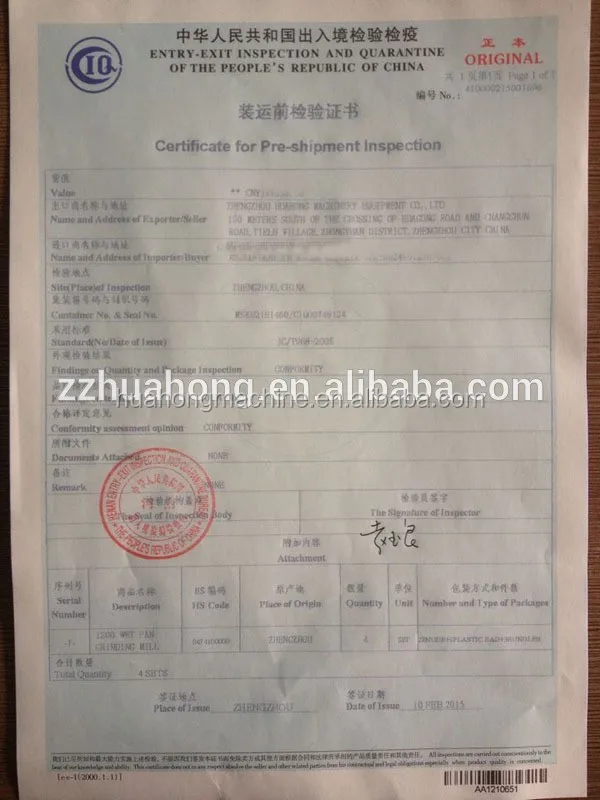

CIQ
