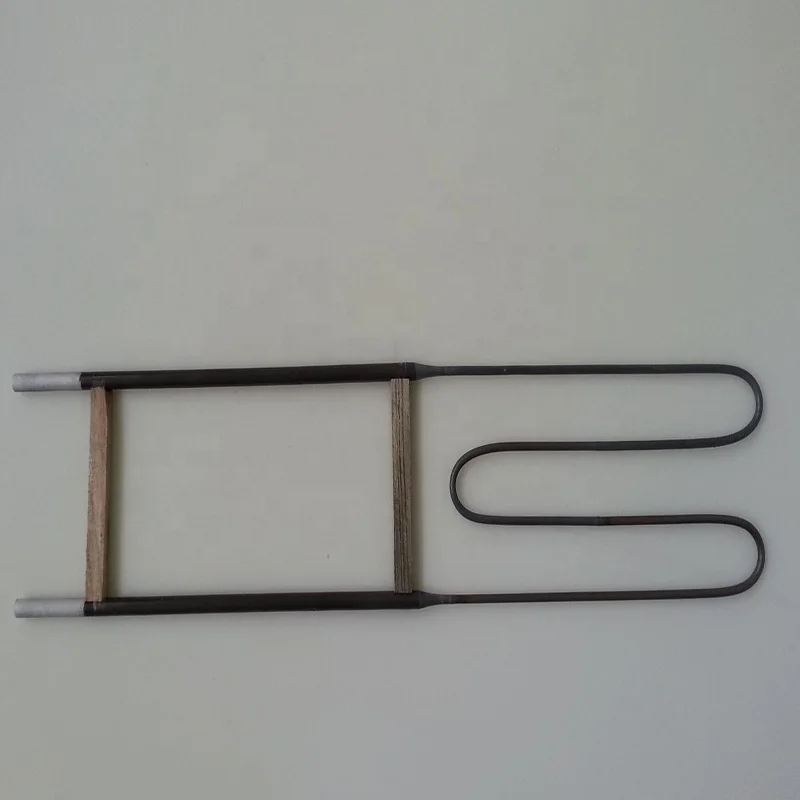

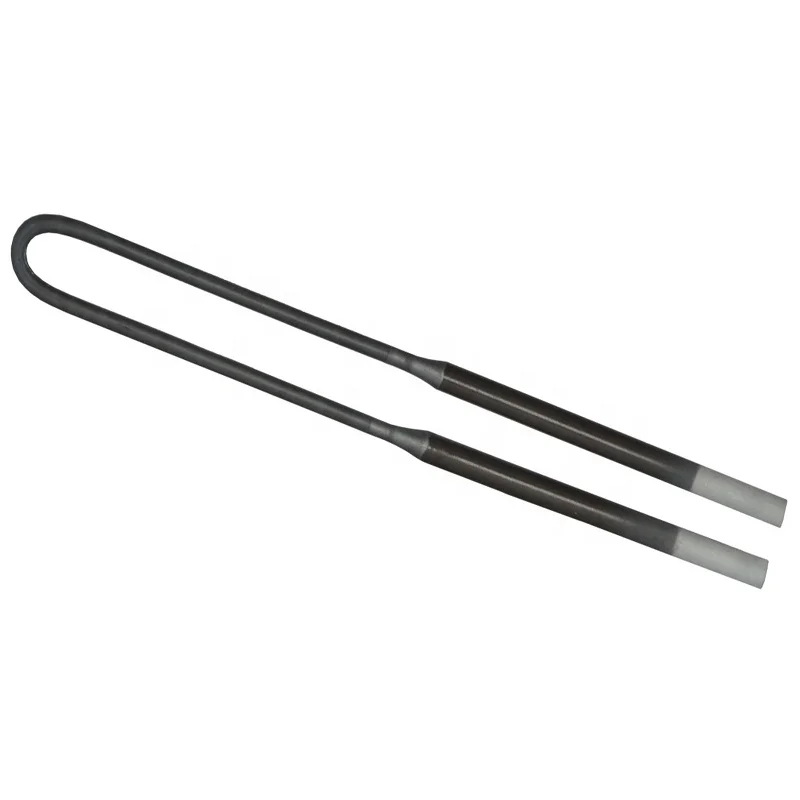

STA 10 54mm complete size U W silicon carbide rods for stove furnace

Product Overview

Description



Introduction

Silicon carbide heater is a non-metallic high temperature electric heating elements,

using high quality silicon carbide as raw material, with special processes.

Its main feature is high temperature, chemical stability and long

service life, and small deformation at high temperatures, easy installation

and maintenance.

Features

1, High temperature resistance, resistance to oxidation and corrosion

2, Fast heating, long life, small deformation at high temperature, easy to install and

maintain

3, With automatic electronic control systems, precision constant temperature can be

obtained, curve temperature control can be obtained too according to the needs

of production

Notices

1. Before installation of SiC heater, we should check the resistance marked on the

cold ends. resistance difference of each group is ± 0.1

2. When SiC heaters are through the holes on furnace wall on either side (or up and down),

we should rotate them 360 degrees. Do not mandatory installation with the beat.

3. Silicon Carbide heating elements must be equipped with regulating transformers

or thyristor voltage regulator and voltage, ampere meter, and automatic temperature

control instrument. Due to oxidation, resistance increases gradually, in order to maintain

normal temperature we should increase voltages. When voltages reach the maximum

of transformer,we can change the connection mode of SiC heaters and then continue to use.

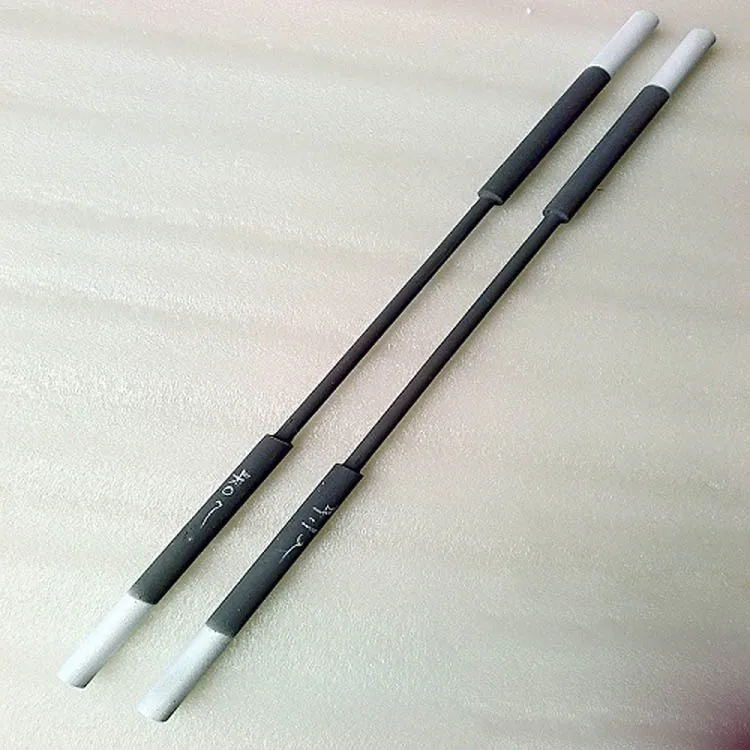

Silicon Carbide Rod Model: GC-Type
made from high-density, high-purity silicon carbide, which is the most popular type of economical heating element capable of operating under hot and rigorous environments.
Main Specifications:
Maximum Working Temperature	1450oC
Order sample:	d=8mm,D=14mm, HZ=150mm, CZ=100mm, OL=350mm, Resistance=1.5ohms. Please specify as: dia8/14x150x350mmx1.5ohms
When you place order, please tell us following data:	a.Outer diameter (OD) b.Length of Hot zone (HZ) c.Length of Overall (OL) d.Resistance (at 1050oC+/-50oCoCoC)

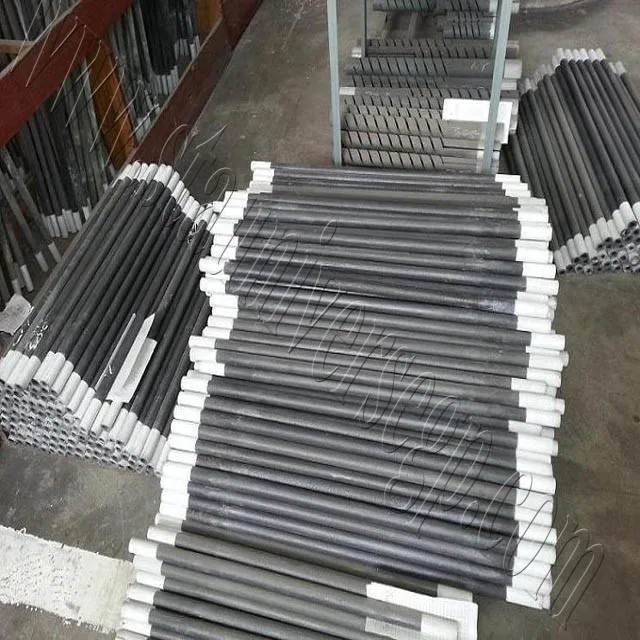

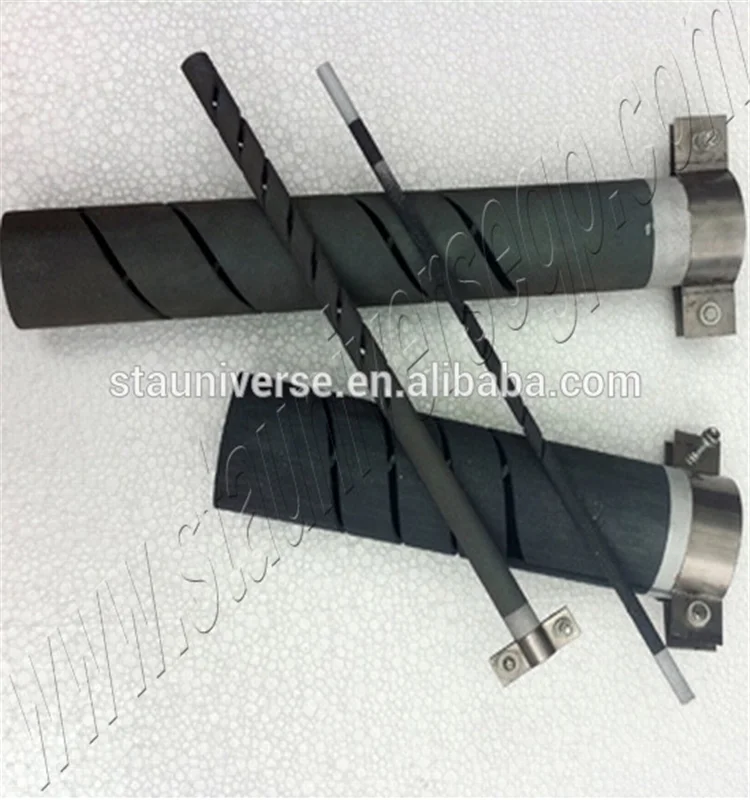

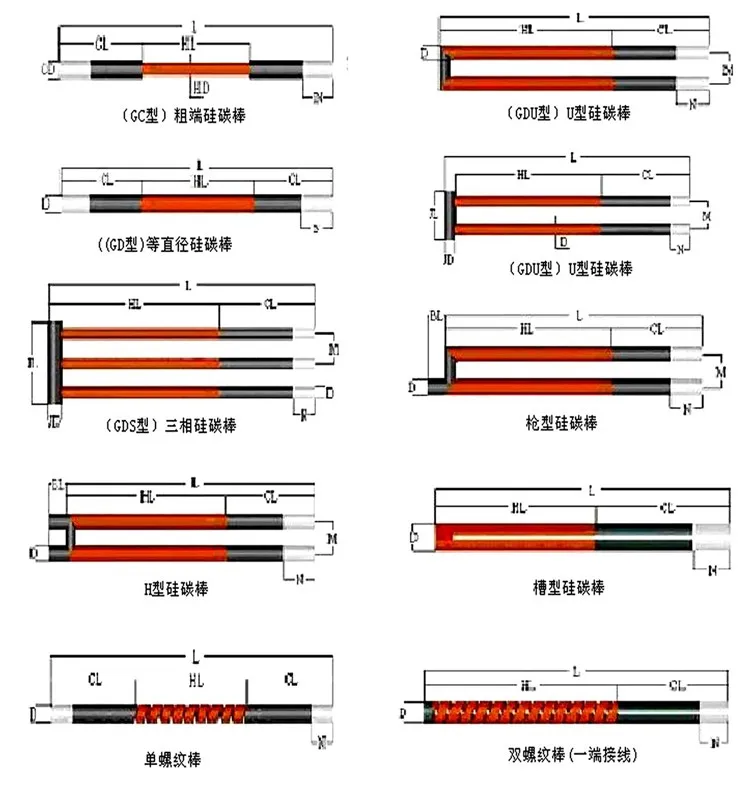

More types of SiC electric heating elements



I







If you are interested in the product, pleause contact with me.
