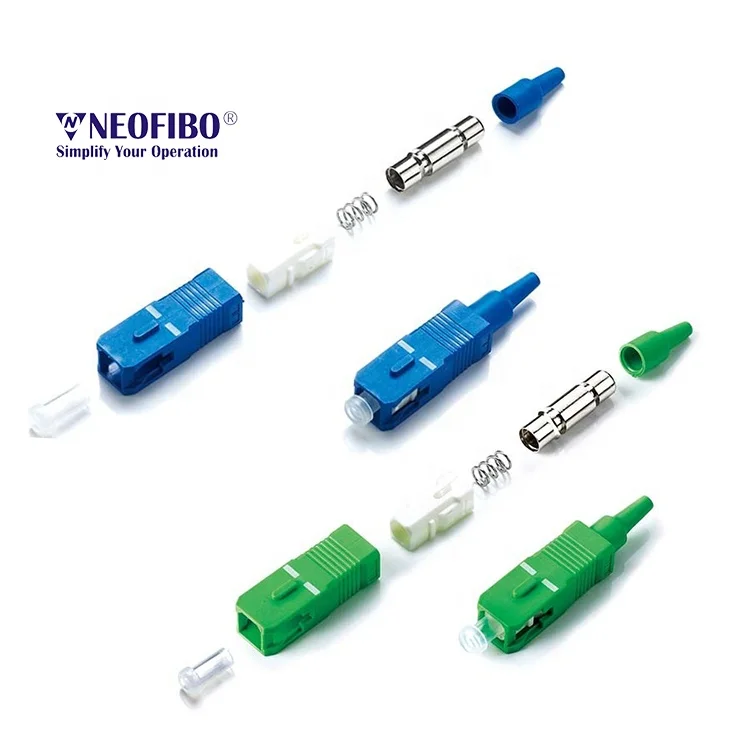

Neofibo SC SX Connector optical fiber apc upc optic fiber connector fibra sc upc sc apc fiber optics connector
- Category: >>>
- Supplier: Shenzhen Neofibo Technology Limited
Share on (60464008417):
Product Overview
Description

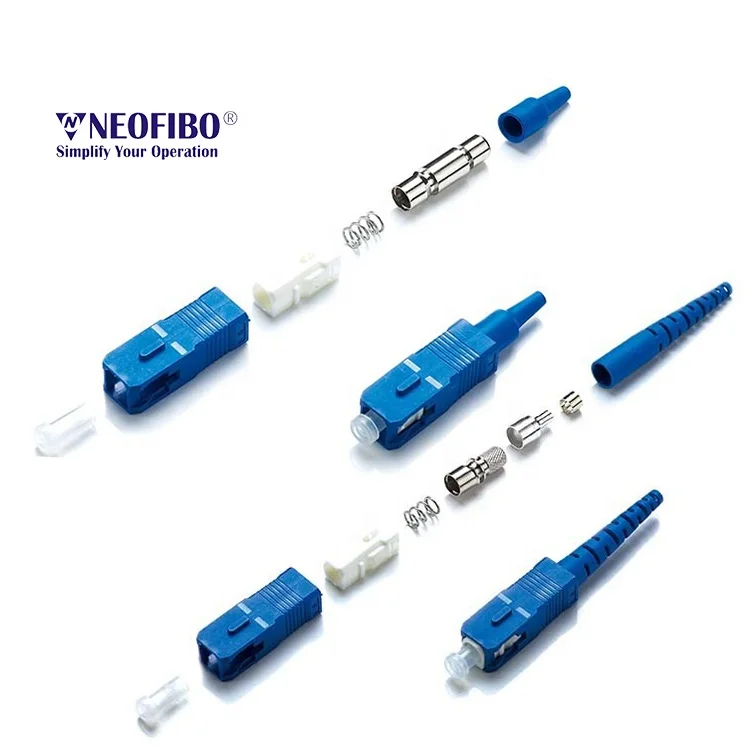

Neofibo SC Connector optical fiber apc upc optic fiber connector fibra sc upc sc apc fiber optics connector
Products Description
Key Features:
Low insertion loss and back reflection loss;
Ferrule end surface predomed;
Precision anti-rotation key and corrosion resistant body;
UL-rated plastic housing;
Boots in a variety of colors;
Telcordia style boots;
Free-floating ceramic ferrule
Precision anti-rotation key and corrosion resistant body;
UL-rated plastic housing;
Boots in a variety of colors;
Telcordia style boots;
Free-floating ceramic ferrule
Applications:
*CATV
*Active device termination
*Telecommunication networks
*Metro
*Local Area Networks (LANs)
*Data processing networks
*Test equipment
*Premise installations
*Wide Area Networks (WANs
*Active device termination
*Telecommunication networks
*Metro
*Local Area Networks (LANs)
*Data processing networks
*Test equipment
*Premise installations
*Wide Area Networks (WANs
Availability:
The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
Clips are available for duplex connectors.

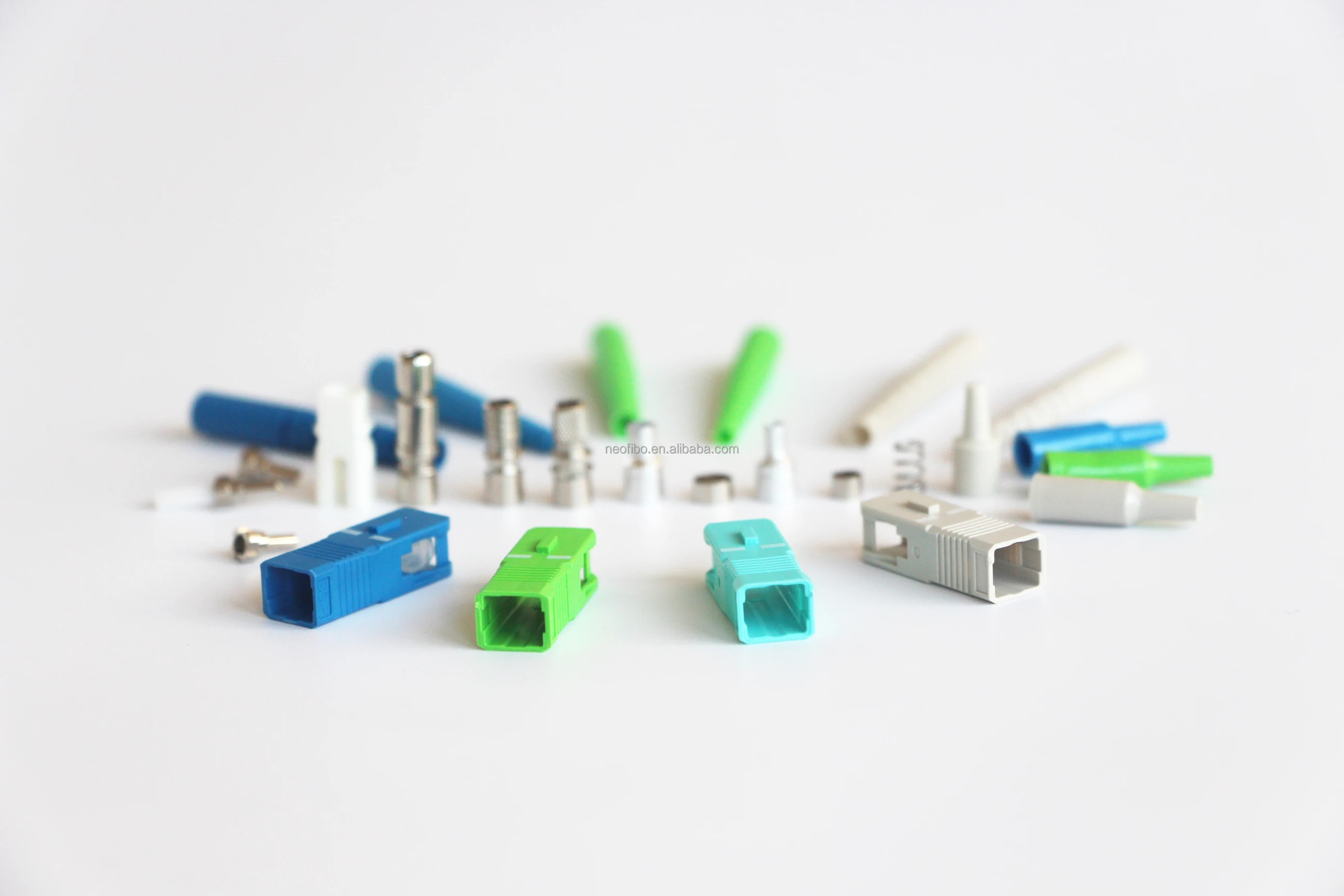

Housing kits without ferrule are available.
Clips are available for duplex connectors.
Housing kits without ferrule are available.
Specification
Specification: | ||||||
Paramter | Singlemode(PC) | Singlemode(APC) | Multimode (PC) | |||
Insertion loss | ≤0.2 dB | ≤0.2dB | ≤0.2dB | |||
Return Loss | ≥50 dB | ≥65 dB | ≥35 dB | |||
Operating Temperature | -40℃ to +80℃ | -40℃ to +80℃ | -40℃ to +80℃ | |||
Order Information: | ||||||||
Part Number | Description | Color | Boot Dia (mm) | Type | ||||

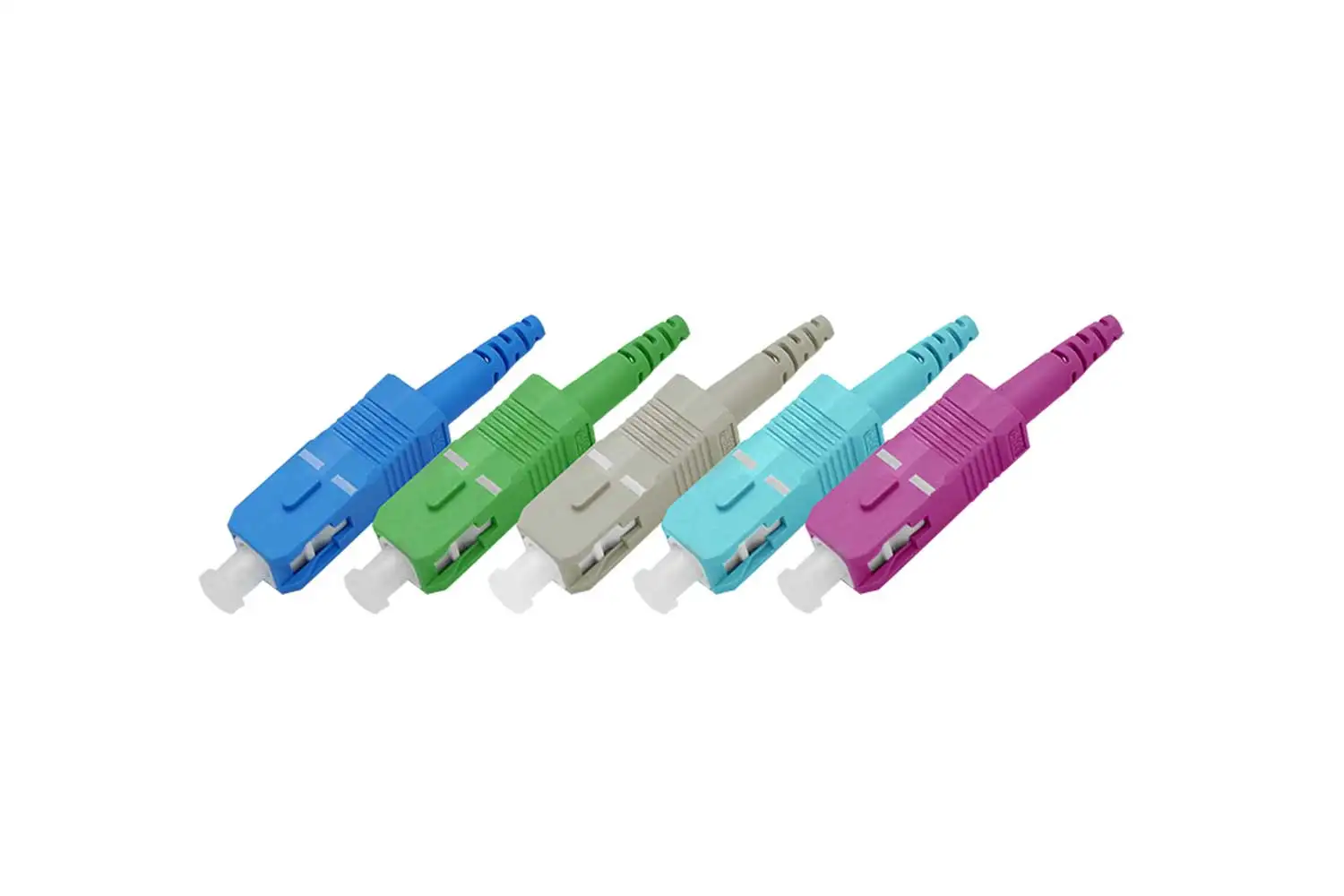

SC-UPC-BL-SX | SC UPC Simplex Single Mode Connector | Blue | 0.9/2.0/3.0 | SM | ||||
SC-APC-GR-SX | SC APC Simplex Single Mode Connector | Green | 0.9/2.0/3.0 | SM | ||||
SC-UPC-BG-SX | SC UPC Simplex Multi Mode Connector | Beige | 0.9/2.0/3.0 | OM1/OM2 | ||||
SC-UPC-AQ-SX | SC UPC Simplex Multi Mode Connector | Aqua | 0.9/2.0/3.0 | OM3 | ||||
SC-UPC-MG-SX | SC UPC Simplex Multi Mode Connector | Magenta | 0.9/2.0/3.0 | OM4 | ||||
