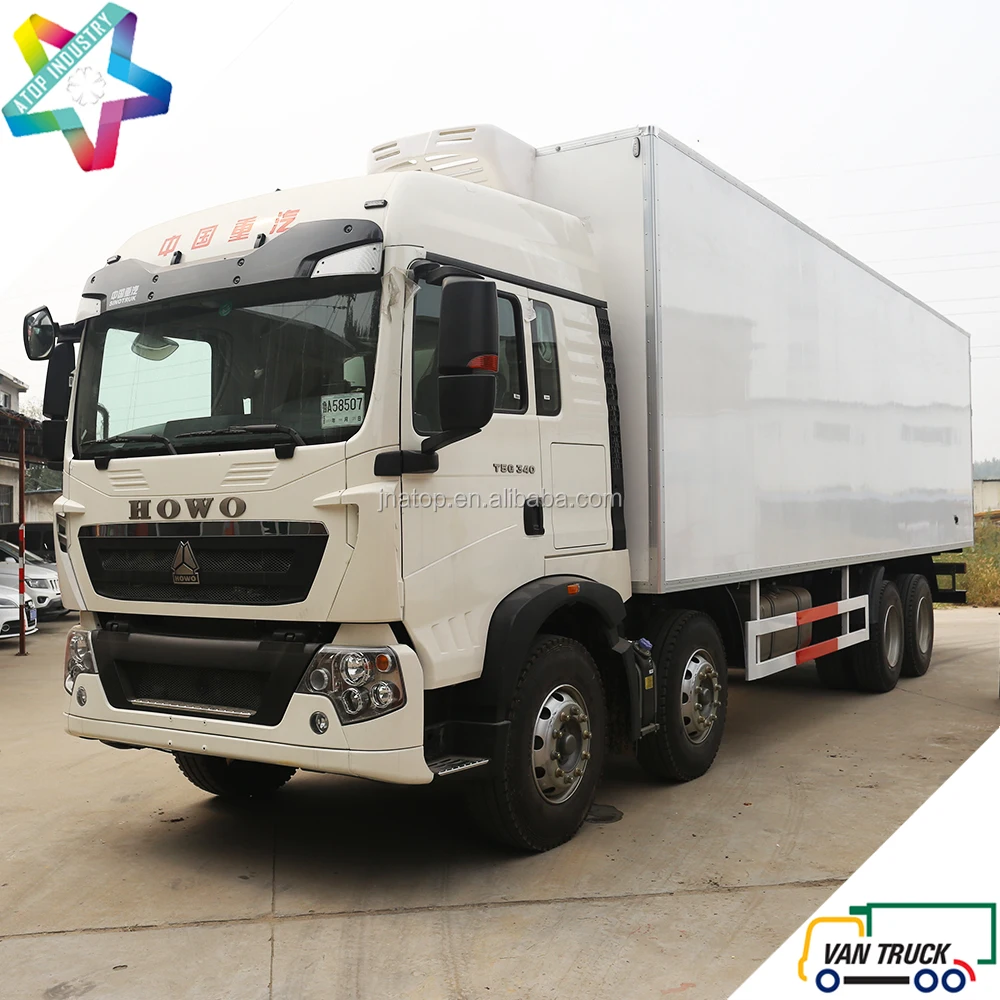

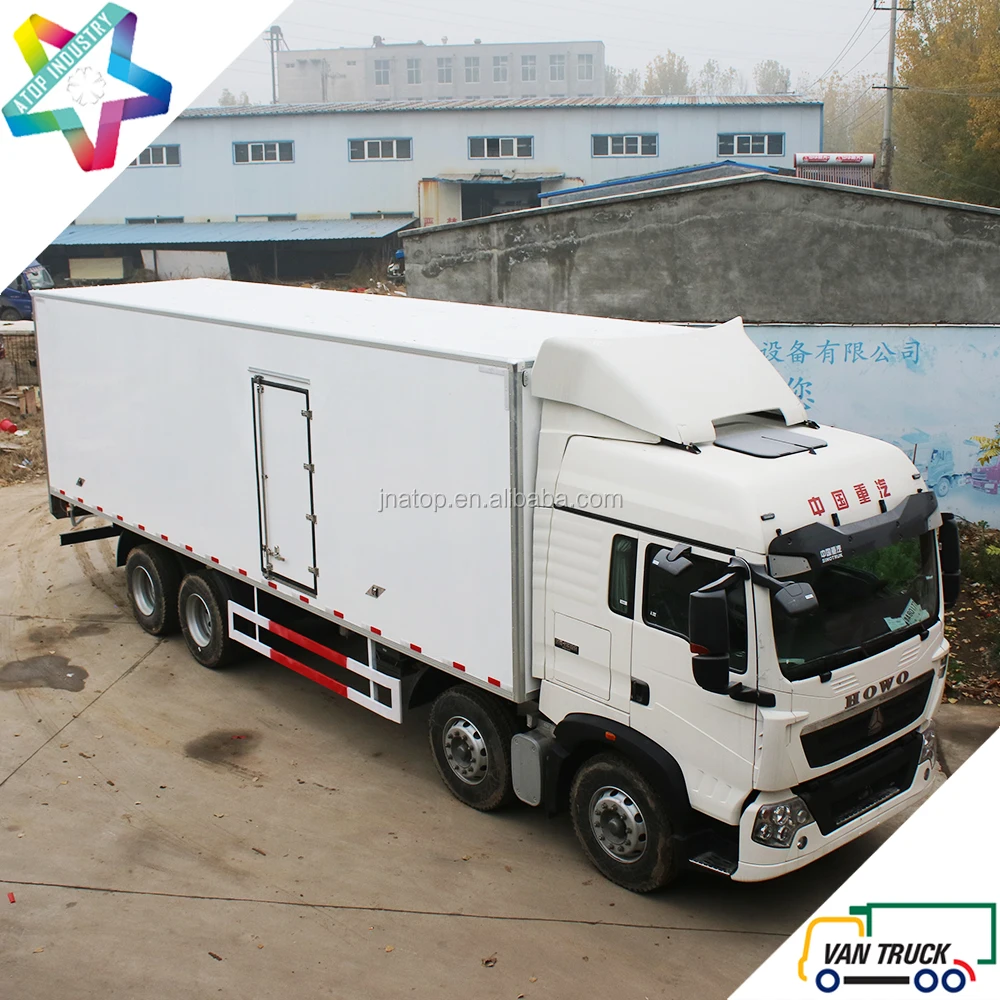

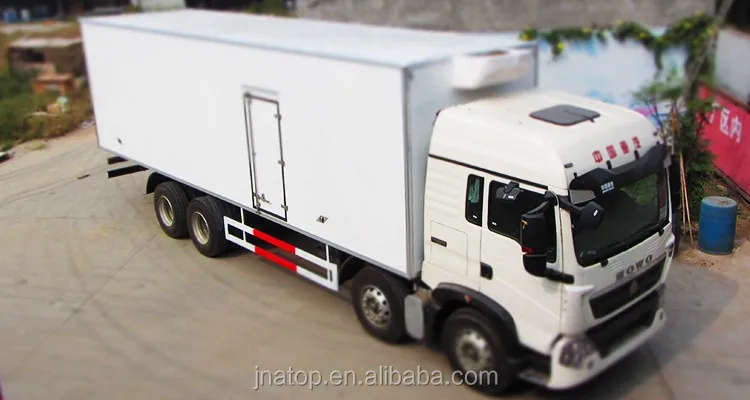

Heavy Duty 9.6m refrigerator truck body 31T Sino Truck T5G 340Hp chassis reefer truck
Heavy Duty 9.6m refrigerator truck body 31T Sino-Truck T5G 340Hp chassis reefer truck
Heavy Duty 9.6m refrigerator truck body 31T Sino-Truck T5G 340Hp chassis reefer truck
Heavy Duty 9.6m refrigerator truck body 31T Sino-Truck T5G 340Hp chassis reefer truck
Heavy Duty 9.6m refrigerator truck body 31T Sino-Truck T5G 340Hp chassis reefer truck
Heavy Duty 9.6m refrigerator truck body 31T Sino-Truck T5G 340Hp chassis reefer truck
Heavy Duty 9.6m refrigerator truck body 31T Sino-Truck T5G 340Hp chassis reefer truck

Heavy Duty 9.6m refrigerator truck body 31T Sino Truck T5G 340Hp chassis reefer truck

Share on (60464249619):


Price:

Quantity:


Product Overview

Description

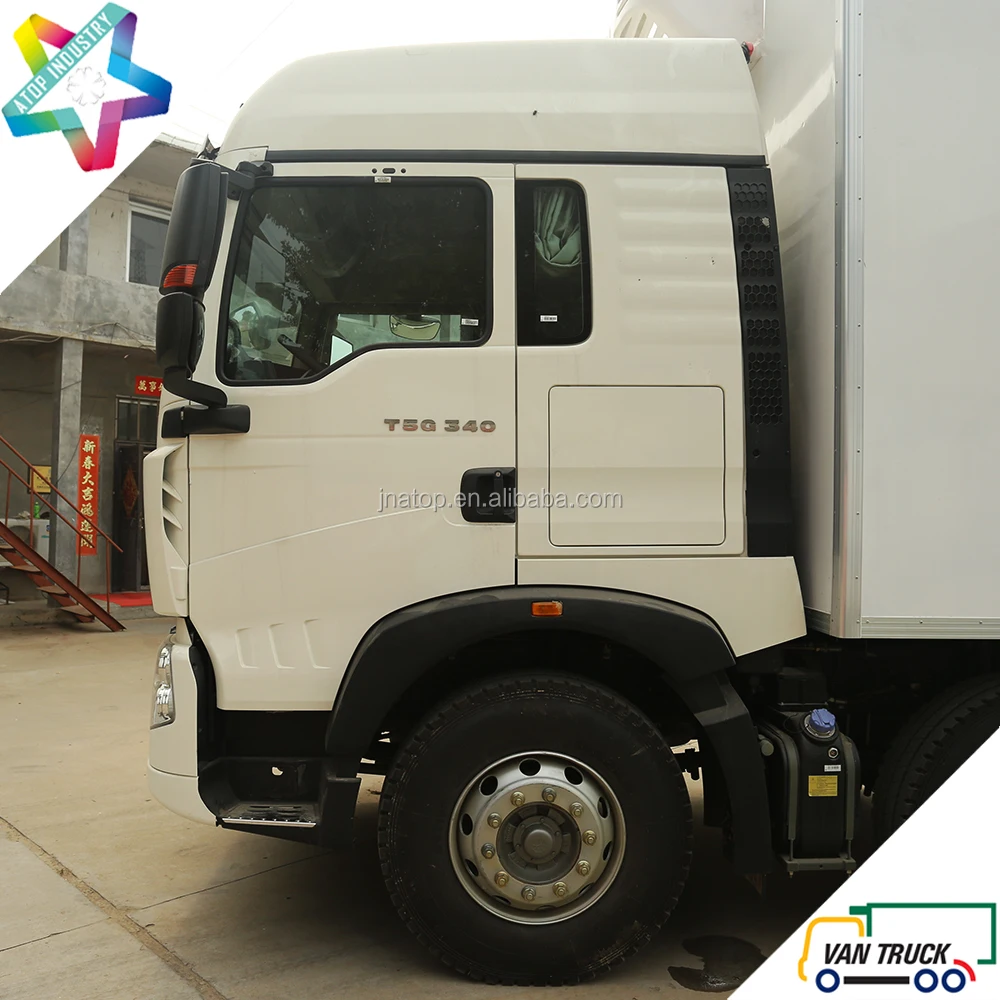

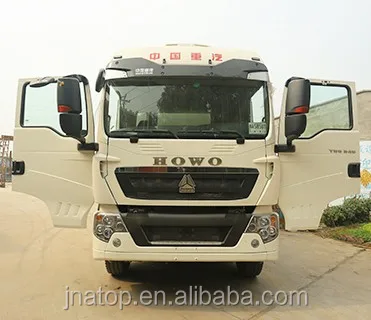

Truck Chassis
\t
Reefer Truck Chassis Brand
\t
Sino-Truck
\t
Reefer Truck Chassis Model
\t
T5G 340
\t
Steering Wheel
\t
Left Hand Drive
\t
Drive Train
\t
8 x 4
\t
Cab Style
\t
Single Cab With Sleeper
\t
Seating Capacity
\t
2/3
\t
G.V.W
\t
31,000 Kgs
\t
Kerb Weight
\t
12,950 Kgs
\t
Rated Payload
\t
18,050 Kgs
\t
Overall Dimension
\t
12.0m(L)x2.55m(W)x4.0m(H)
\t
Wheelbase
\t
1,800 + 4,600 + 1,350mm
\t
Max. Speed
\t
110Km/h
\t
Rim/Tires
\t
295/80R22.5
\t
Front Track
\t
2,035/2,035mm
\t
Rear Track
\t
1,850/1,850mm

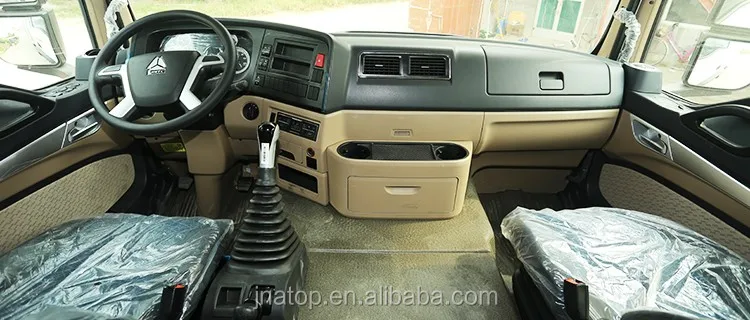

Multi-Function Steering Wheel Rim; Manual Tiltable & Collapsible Steering Column; With Three Points Pre-Tensioner Seat Safety Belt; With Power Windows, With AM/FM + AUX + USB Audio Device; With Fabric Seat Covers; With Power Door Locks;  With 2 Audio Speaker

\t

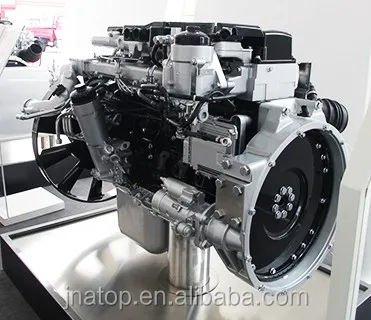

Engine Brand
\t
Sino-Truck
\t
Engine Model
\t
MC07.34-50
\t
Engine Emission
\t
EURO 5
\t
Displacement
\t
6,870cc
\t
Max. Power
\t
248Kw (340Hp)
\t
Max. Torque
\t
1,250N.m
\t
No. of Cylinder
\t
6
\t
Key Features
\t
Intercooled; High Pressure Common Rail Direct Fuel Injection; Waste Gated Turbocharger

8 x 4 heavy duty chassis with rugged & weight-saving leaf suspension with parabolic springs and specially attuned shock absorber and stabilizer scores high through good roll stabilization and track-keeping

MAN  Style cab for personal items there is a large, illuminated stowage compartment, accessible from outside and inside

Modern cab with two comfort beds and versatile shelving for maximum comfort &  optimal freedom of movement in long-haul transport

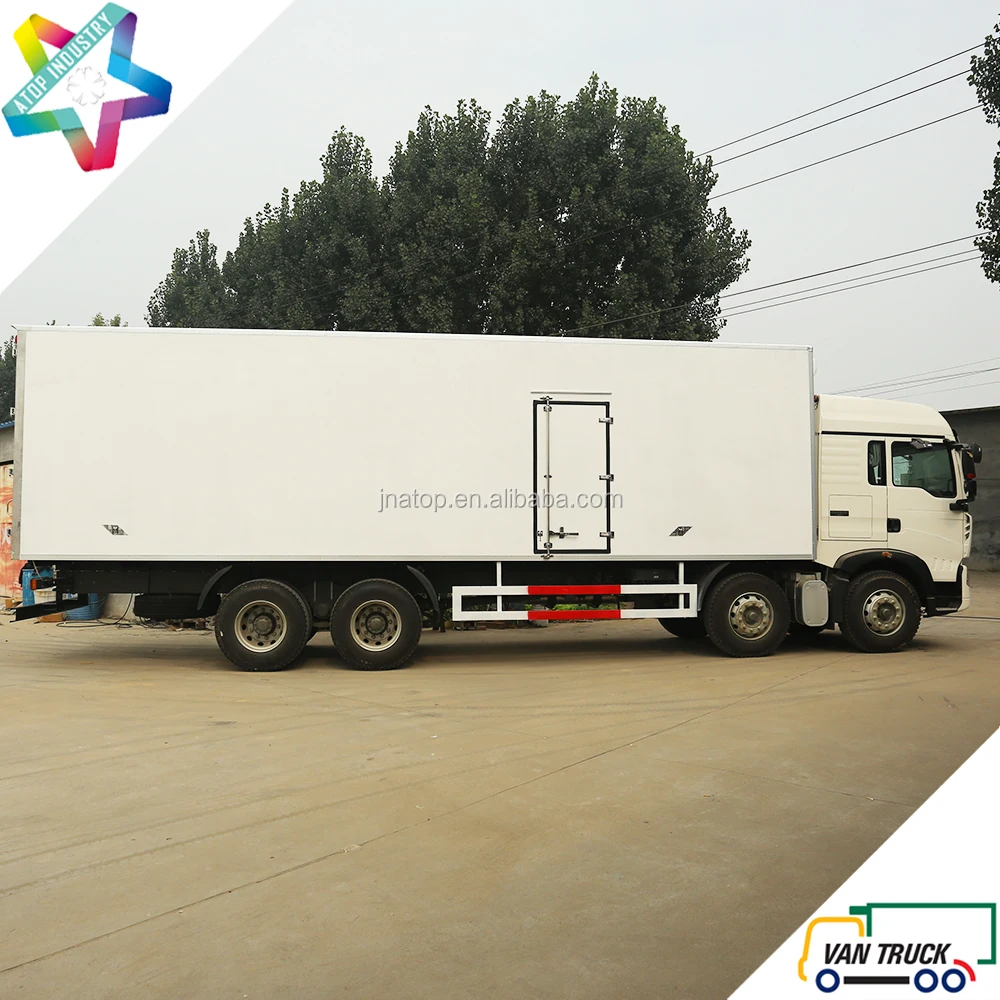

Truck Body Details
\t
Reefer Truck Body
Key Features

\t
ColdKing refrigerated body is made of all-closed sandwich structure panels, which is made by special technology to vacuum form complete panels. We use free-Freon molding polyurethane foam as inner insulation materials. The internal and external coverings are integral FRP sheets (fiberglass reinforced polyester), therefore, homogeneous construction (without any metallic reinforcements).
\t

Truck Body Outer Size

\t
9.6m(L)x2.55m(W)x2.7m (H)
\t

Truck Body Inner Size

\t
9.39m(L)x2.35m(W)x2.49m (H)
\t
Roof/Floor Panel
\t
105mm Thickness
\t
Side Wall Panel
\t
85mm Thickness
\t
Front Wall Panel
\t
105mm Thickness
\t
Rear Door Panel
\t
85mm Thickness
\t
Panel Structure
\t
All Closed Sandwich
\t
Panel Insulation
\t
FRP + PU Foam + FRP
\t

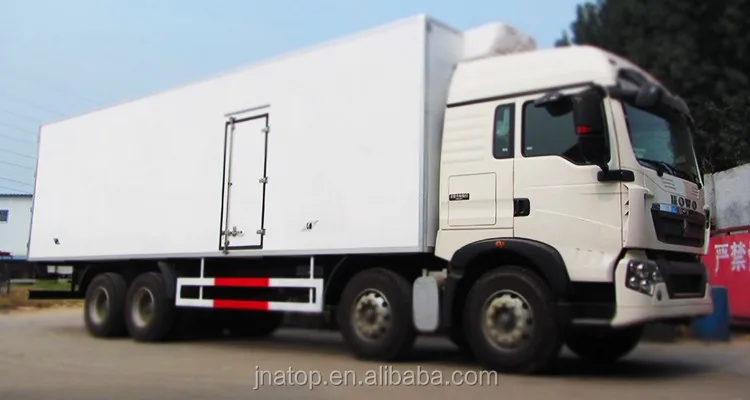

Side Door Quantity
\t
1 Set
\t
Side Door Location
\t
1 Set On Right Side Wall
\t
Side Door Type
\t
Single Opening
\t
Side Door Size
\t
900mm(W) x 1,800mm(H)
\t

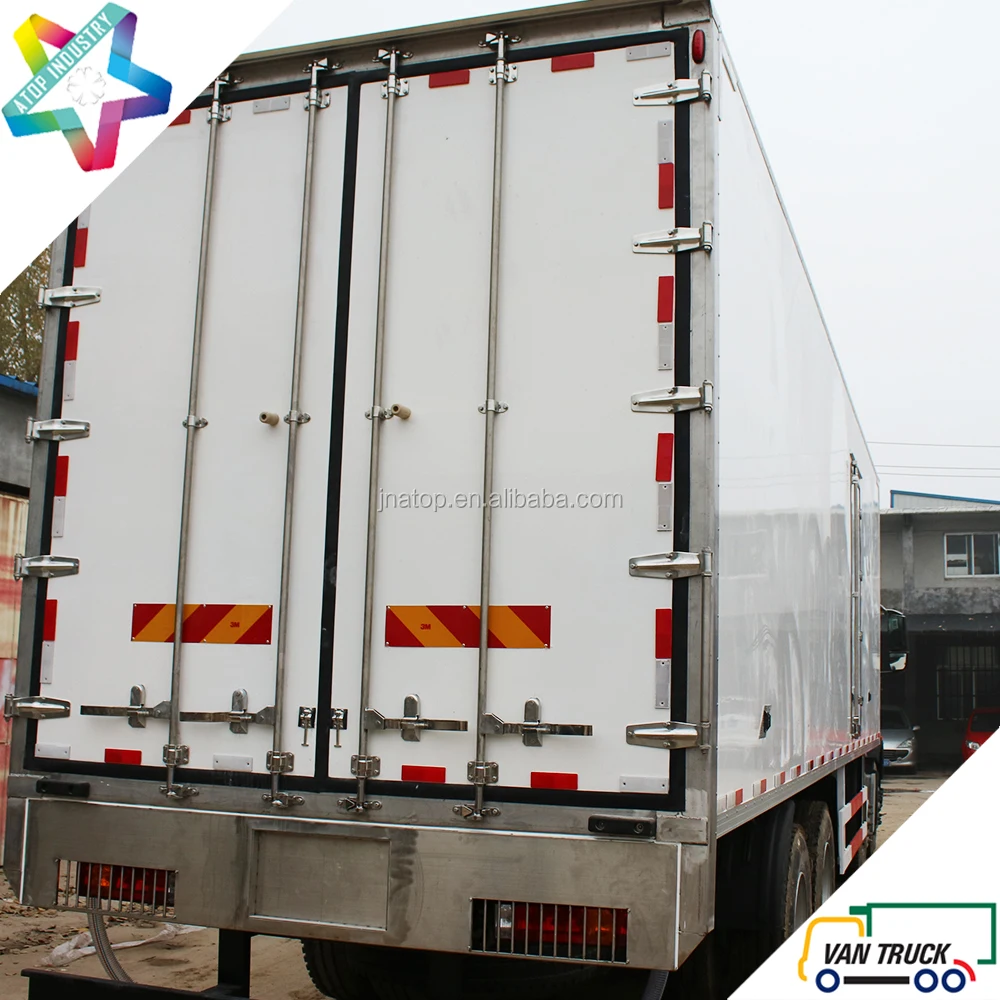

Rear Door Type
\t
Full Size Double Opening Rear Door, Right Hand Rear Door Open First
\t
Multi-Temperature
System Type
\t
None, Optional
\t
Truck Body Flooring
\t
Aluminum Alloy T Type Airflow Flooring
\t
Cargo Control System
\t
None, Optional
\t
Ceiling Light
\t
4 (Four) Sets of 12/24V Multi-Voltage LED
\t
Marker Light
\t
2 Sets Of White LED On Front;
2 Sets Of Red LED On Rear
\t
Ceiling Light Switch
\t
1 (One) Set of Automatic Time-Delayed 12/24V Multi-Voltage Switch
\t
Insulating Curtain
\t
European Standard -40C PVC Strip Curtain System For Rear Door
\t

Refrigeration Unit       Service Ladder

\t
Stainless Steel
\t
Refrigeration Unit Service Platform
\t
None, Unavailable

Aluminum alloy T type airflow circulation flooring

Specially designed rear door assembly with stainless steel lock sets & hinges

Zinc-coated access ladder for comfort working and loading & unloading

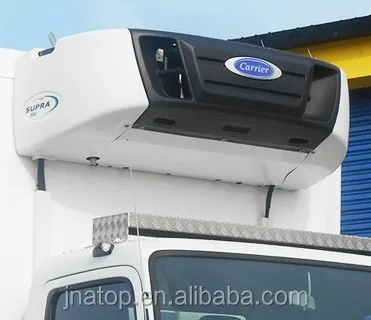

Refrigeration Unit
\t
Refrigeration Unit Brand
\t
Carrier
\t
Refrigeration Unit Model
\t
Supra 1050
\t
Refrigeration Unit Type
\t
Self-Powered Diesel Engine Driven, Condenser & Evaporator Combined
\t
Refrigerant
\t
HFC R404a
\t
Condenser Mounted Method
\t
Over-Cab
\t
Compressor Model
\t
05K4
\t
Compressor No. of Cylinders
\t
4
\t
Compressor Displacement
\t
400cm3
\t
Max. Recommended Speed
\t
\t

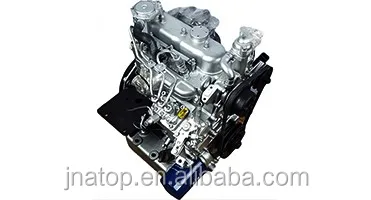

Self-Powered Diesel Engine
*Only For Self-Powered Diesel Engine Driven Refrigeration Unit
\t
Model
\t
CT3-69TV
\t
No. of Cylinders
\t
3
\t
Displacement
\t
1,123m3
\t
Maintenance Interval
\t
750Hrs/1,000Hrs
\t
Airflow
*On High Speed Engine Operation & 0Pa Static Pressure
\t
Airflow Volume
\t
3,350m3/Hr
\t
Discharge Velocity (Air Throw)
\t
\t
Refrigeration Capacity: System Net Cooling Capacity
@ +30C Ambient Temperature Per A.T.P. Procedure
\t

Return Air To Evaporator

\t
0C
\t
-20C
\t
Refrigeration Capacity
(On Engine Power)
\t
9,100W
\t
5,600W
\t
Electric Stand-By System
\t
Available
\t
Refrigeration Capacity
(On Electric Stand-By)
\t
7,800W
\t
5,000W
\t
Defrost
\t
Automatic Hot Gas Defrost/Manual Defrost

Powered by special clean and silent CT3-69TV diesel engine, which provides maximum cab clearance and reduced truck body height on conventional chassis

Automatic cooling by programmable temperature control system; In-cab remote display and control reefer truck reefer truck reefer truck reefer truck reefer truck reefer truck

Optional Items

Hydraulic Taillift

Aluminium alloy or steel platform hydraulic tail lift are available reefer truck reefer truck

Cargo Control System

Smart & customized cargo Loading control system reefer truck reefer truck reefer truck reefer truck reefer truck

Meat Hanging System

Heavy duty meat hanging system with stainless steel meat hooks and aluminum alloy sliding rails

Multi-Temperature Partition

Multi-temperature purpose longitudinally movable, insulated transverse partition wall

Cargo Versatile Shelving

Offers a wide variety of cargo shelving from stainless steel to aluminum alloy  reefer truck reefer truck reefer truck reefer truck reefer truck
