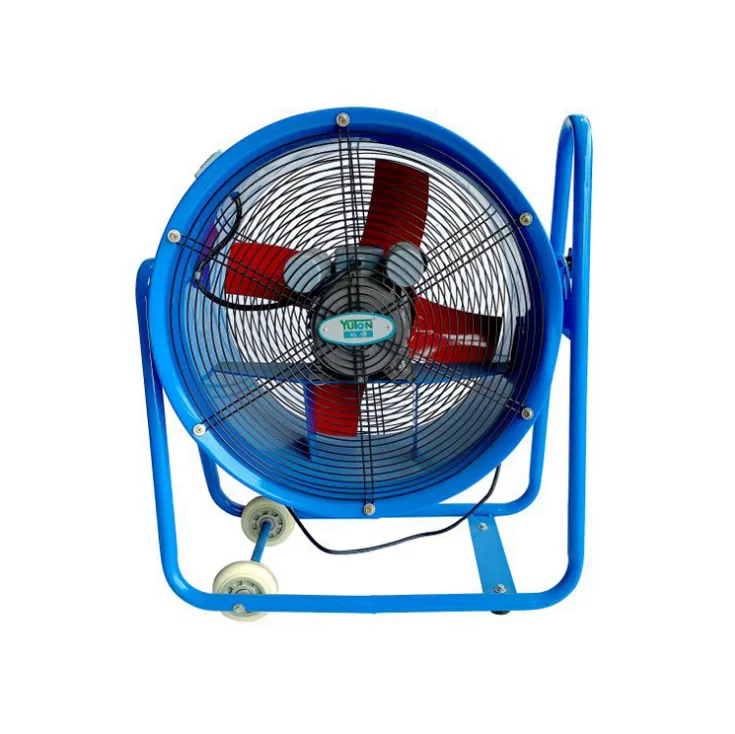

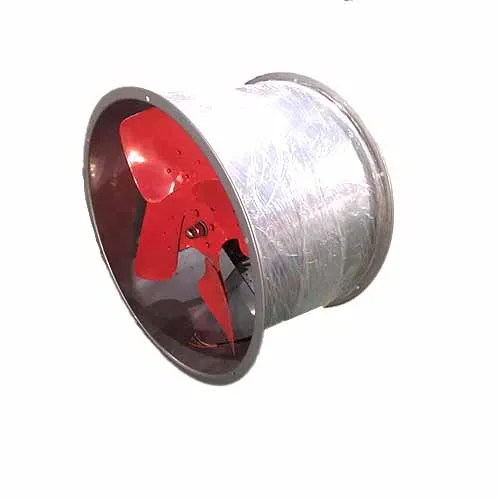

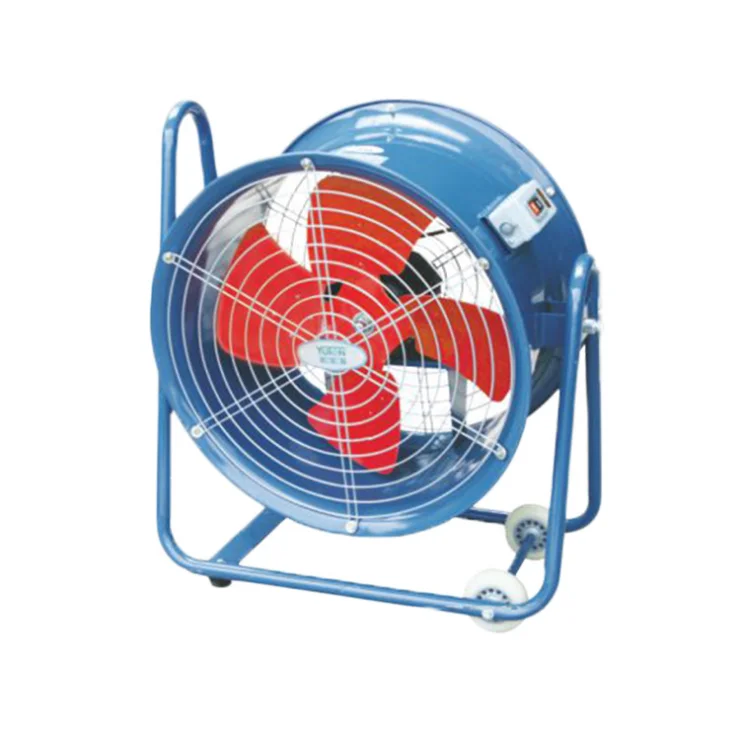

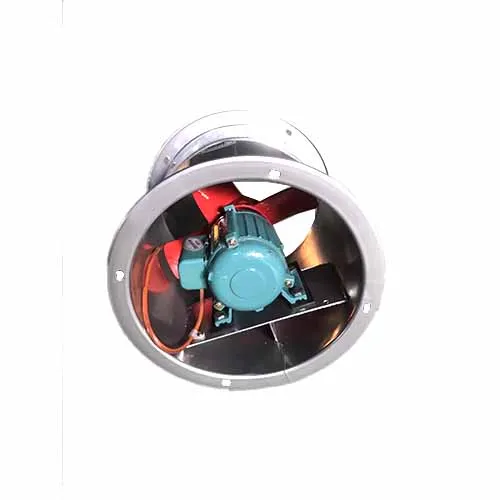

Axial fan 12 inch to 40 inch SF G Energy efficient Blower Low Noise explosion proof mobile custom blower cooler fan

Product Overview

Description

Optimized power saving AC ventilation fan
1. High efficiency
2. Excellent performance
3. Easy to maintain
4. Low noise

Description:

The fan blade of Optimize Energy Conservation High Efficiency AC Ventilation Fan adopts special twisting radian measure design, the housing of fan adopts flanging workmanship, that makes the noise lower and air volume larger. Excellent performance and easy to maintain, widely used for ventilation in warehouse, workshop and amusement building. It is used in the environment with no causticity air, inflammable and explosive air, the temperature of transmitted air must be below 60°C.

Technical Parameter

Model No.	Voltage (V)	Power (KW)	Revolution (rpm)	Air Volume (m3/h)	Noise dB(A)
3G	220/380	0.2	1450	2400	85
	220/380	0.37	2800	3000	230
3.5G	220/380	0.3	1450	4850	130
	220/380	0.75	2800	8000	300
4G	220/380	0.5	1450	5300	166
	220/380	1.1	2800	8000	300
5G-	220/380	0.65	1450	9350	205
	220/380	1.5	2800	14000	350
6G	220/380	2.2	1450	17500	280
	220/380	3	2800	18000	365
7G	380	1.1	960	18500	280
8G	380	1.5	960	20000	220



Packing: carton



Materials: high quality metal basing, cast iron blades, 100% copper motor, front and back close-mesh



The voltage and frequency could be customized.
