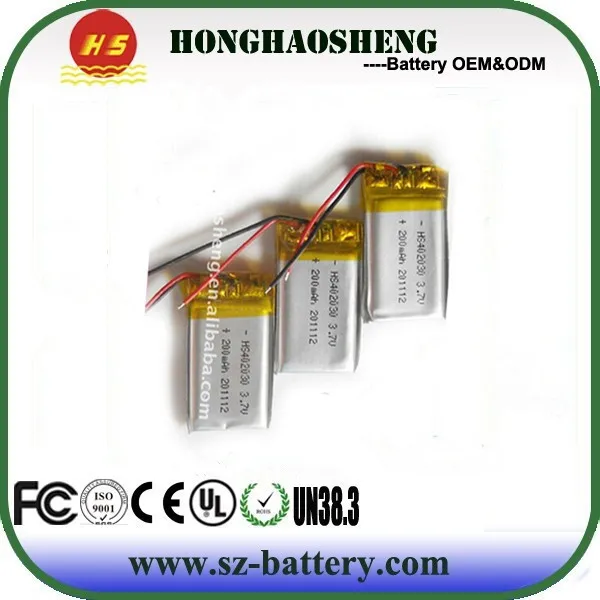

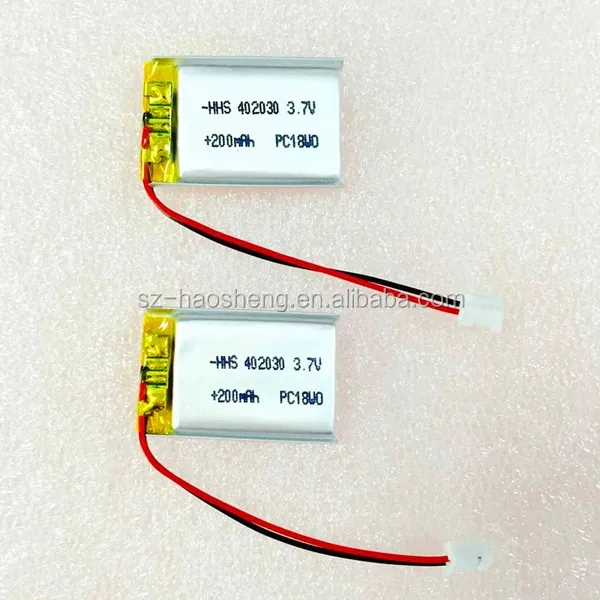

Hot selling rechargeable battery 3.7v 180 mah li po battery 402030 for camera pen

Product Overview

Description

Hot selling for camera pen rechargeable battery 3.7v 180 mah li po battery 402030



402030 specification:

Model	li-ion battery 042030
Nominal voltage	3.7v
Nominal capacity	180mAh
Size	thickness × width × length (mm)
	4±0.5×20±0.5×30±0.5mm (with PCM)
Weight	about 6g
Max charge current	1C
Charging method	charge with constant current 1C to 4.2v,then charge with constant voltage 4.2v, till charge current less than 0.01C
Max discharge current	1C
Discharge cut-off voltage	3v, the over-discharge detection voltage of PCM
Operating environment	Charging, 0°C ~ 45°C ; 65±20%RH
	Discharging, -20°C~60°C ; 65±20%RH
Storage environment	-20°C~45°C
	65±20%RH
	storage for a long time(>3 months) and the storage condition shall be:<35°C;65±20%RH;
CycleLife	>600times
(80% Prime Capacity) :
Charging Attention	Charging current and charging voltage should be less than specified in the Product Specification.
	The charger shall be designed to comply with Specification.
	It is dangerous that charging with higher current or voltage than Product Specification may cause damage to the cell electrical,mechanical safety performance.







402030 features:

1, Longer storage life than NiMH Batteries

2, Light weight and higher energy density than any rechargeable battery

3, Installed IC chip will prevent the battery pack from over charge and over discharge.

It helps protect battery chemistry integrity and prolongs battery life.

4, Installed polyswitch will cut off power if battery discharge current more than 6.6Ah

5, Perfect for building up battery pack for medical equipment Back-up or EPS Emergency Power

6, Supply which requires compact size and lighter weight



402030 advantages:

 1> Low self-discharge

 2>Long cycle life

 3>Dual IC chips, that can anti-shortcircuit, anti-overcharger, anti-overcurrent, anti-overload

 4>dimension and capacity can be customed according to your requirement.

 5>with qulity warranty

 6>applied to tablet pc,laptop,electronical tools and so on

 7> CE/ROSH/MSDS/UN38.3 standard

 8> super low internal resistance and fast charging



Aplication for 402030

1.Telecommunication: cellular phone, web phone, interphone, Bluetooth earphone.

2.Portable office devices: Notebook, PDA, portable electrograph, portable printer.

3.Video devices: GPS, digital camera, camcorder, portable DVD, portable television, MP3, MP4.

4.Portable exchange devices: POS, Handy,  Fingerprint machine, portable stock machine.

5.Illuminate devices: miner lamp, searchlight.

6.Others: toys, models.



About us:

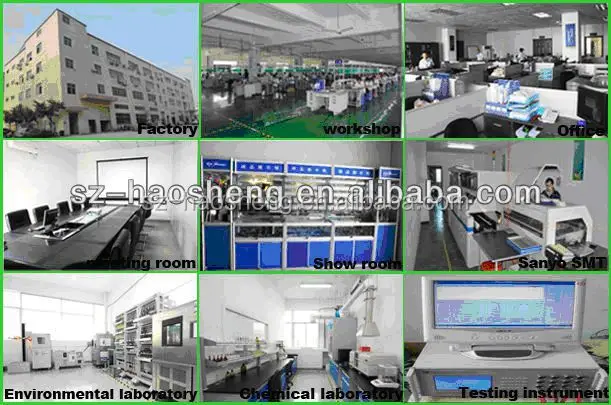

1.Professional lithium-ion battery pack for over 10 years,have own factory.

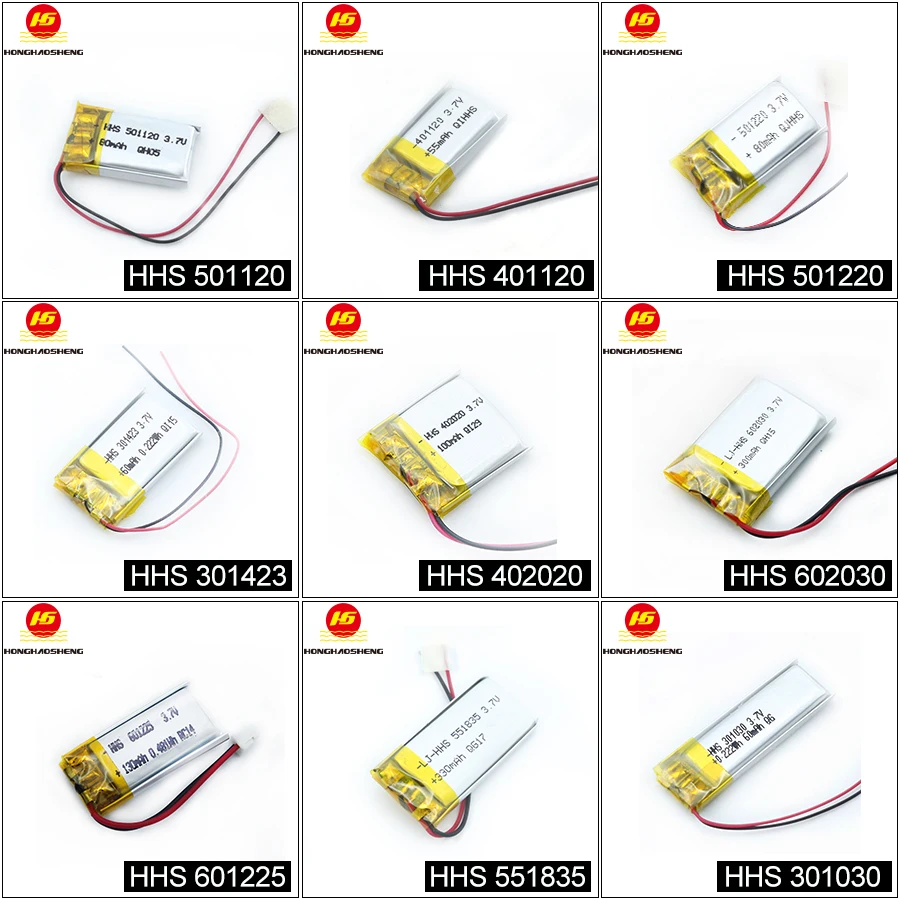

2.Many different li-po battery models in our company

NO.	Type	Model	Capacity	Voltage	Size			Weight
			(mAh)	(V)	T(max)	W(max)	L(max)	Typical
2	HHS-362040	362040P	250	3.7V	3.6mm	20mm	42mm	4.3g
3	HHS-502030	502030P	250	3.7V	5.0mm	20mm	37mm	4.3g
4	HHS-501835	501835P	280	3.7V	5.0mm	18mm	37mm	5.6g
5	HHS-701535	701535P	300	3.7V	7.0mm	15mm	37mm	5.6g
6	HHS-602030	602030P	300	3.7V	6.0mm	20mm	32mm	5.6g
7	HHS-552035	552035P	350	3.7V	5.5mm	20mm	37mm	7.8g
8	HHS-503030	503030P	430	3.7V	5.0mm	30mm	32mm	8.7g
9	HHS-602046	602046P	500	3.7V	6.0mm	20mm	48mm	8.9g
10	HHS-502560	502560P	800	3.7V	5.0mm	25mm	62mm	15.7g



Trade terms:

1) EXW,FOB,CIF price

2) Shipment: Ups/DHL/Fedex usually takes 4-8 working days to your country.

3) Packing:Using blister or as your requirement





Contact info:



Jenny Jiang
Shenzhen Honghaosheng Electronics Co., Ltd.
Tel: +86-755-28237685  Fax: +86-755-28016834
Mobile: +8615986673952
Skype:honghaosheng22
Whatsapp:+8615986673952
Website: //www.sz-battery.cn
              //www.sz-battery.com





 Welcome your e-mail,call,or inquiry any time.Have a nice day!
