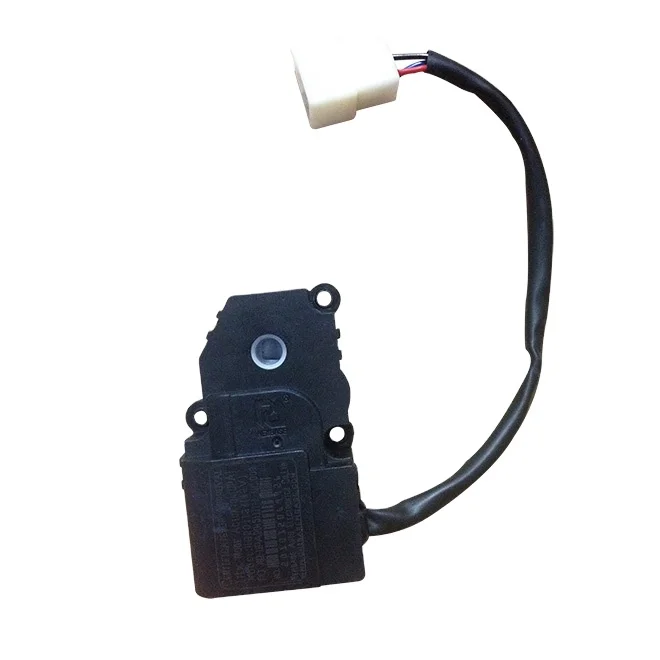

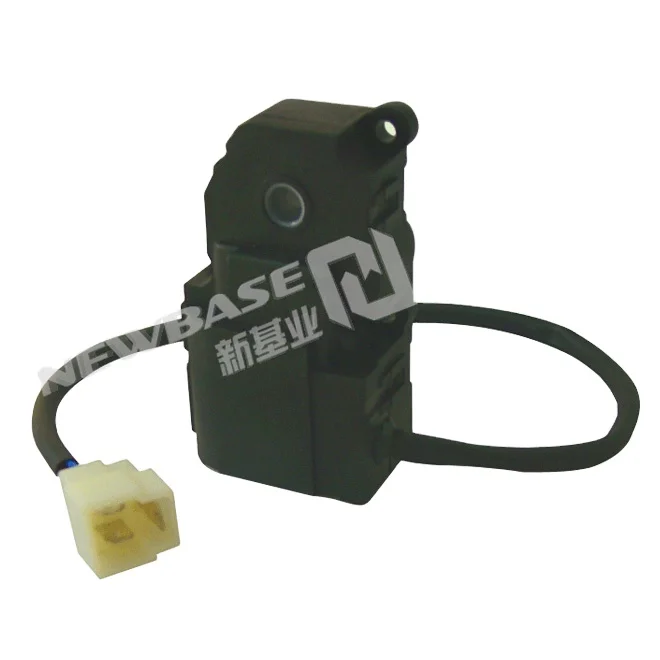

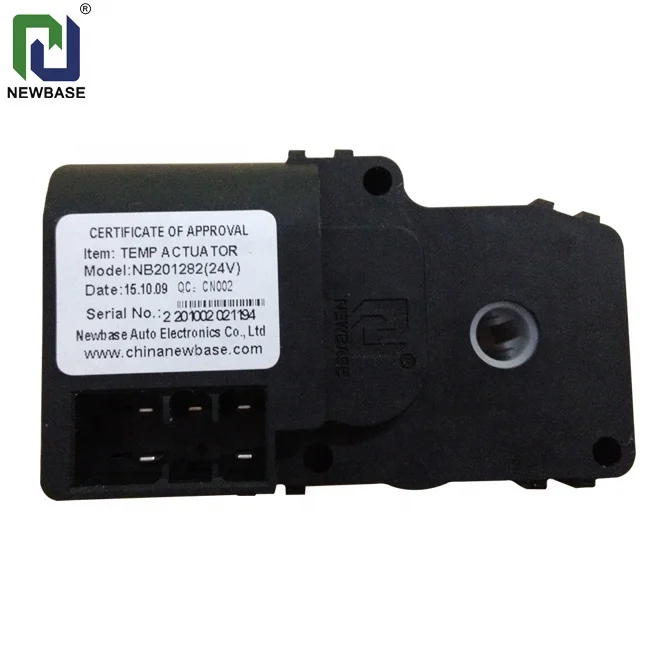

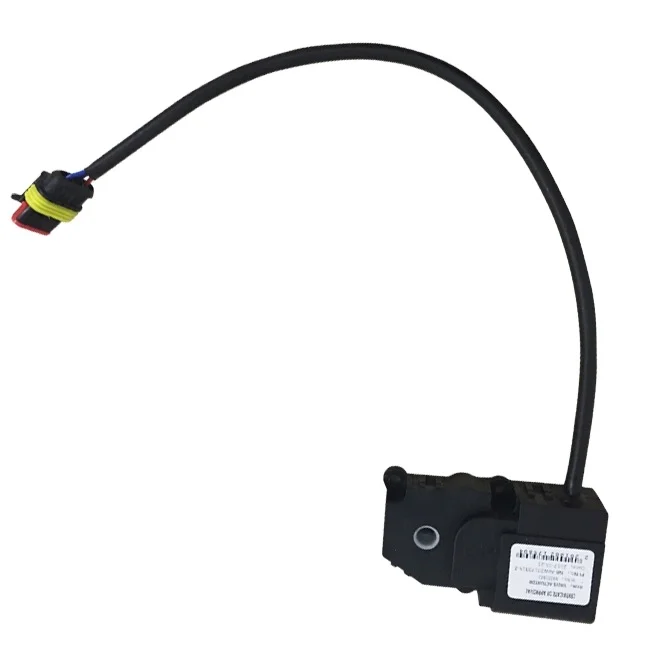

electric actuator motor DC12V/24V for bus car ac air damper,dc motor for actuator
- Category: >>>
- Supplier: Zhengzhou Newbase Auto Electronics Co. Ltd.
Share on (60464423445):
Product Overview
Description
DENSO electric actuator motor
1.Description:
MODE actuator (multi-position) applies to control the heating valve/air damper in the vehicle HVAC system.
The actuator operates by switching the polarity of wiring, also the different position pin connection, it could control the valve/damper to stop at different opening percentage, so as to get more linear water/air flow
2.Application:
WINIA MANDO, HYUNDAI, KIA, SSMC, DAIHAN
3.Technical data:
| Technical date | Mode |
| Power supply | DC12V(DC8V-DC16V)/DV24V(DC20V-DC30V) |
| Power consumption | 3W |
| Current | Max.70mA |
| Electrical connection | Max.1m X 0.5mm² |
| Direction of rotation | CW/CCW |
| Angle of rotation | 18°/20°/22°/30°±2°(adjustable) |
| Torque | 4kgf.cm |
| Running time | 7±1rpm |
| Locked torque | 12kgf.cm |
| Locked current | Max.250mA |
| Noise level | Max.43dB(A) |
| Ambient temperature | -30°c—80°c |
| Storage temperature | -40°c—85°c |
| Life | Max.500,000 cycle |
| Weight | 94g |
| Quality certifications | TS16949/ISO9001 |

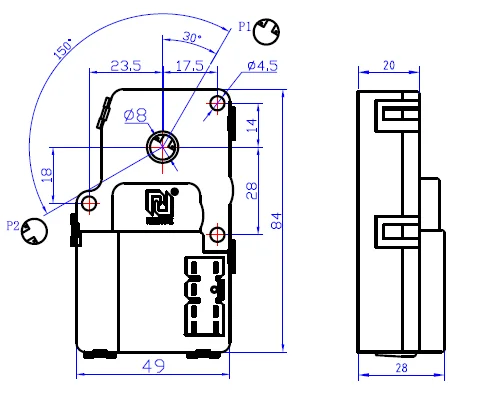

4.Dimensions:
