Product Overview

Description

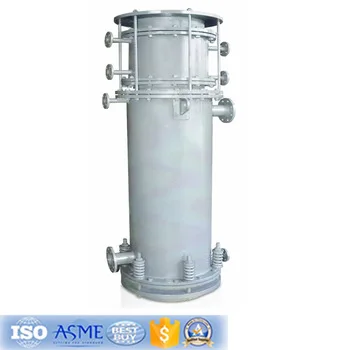

I.YKZ Round block hole double effect graphite heat exchanger





1.Structure And Features

The product uses the special processing technology,can achieve the purpose of heat exhange with two kinds

of corrosive medium.breaks the technology of the original steel lined anti-corrosion structure and avoids the equipment manage caused by different coefficients of expansion.The product has advantages such as good baffling effect,high heat transfer efficiency,stable and reliable operation,long service life,strong shock resistance and easy maintenance.

2.Technical Features
DESIGNED TEMPERATURE:
TUBE PASS: -30℃~180℃
SHELL PASS: -35℃~180℃
DESIGNED PRESSURE:
TUBE PASS: 0.5MPAG
SHELL PASS: 0.5MPAG
SIZE 5~1000m2

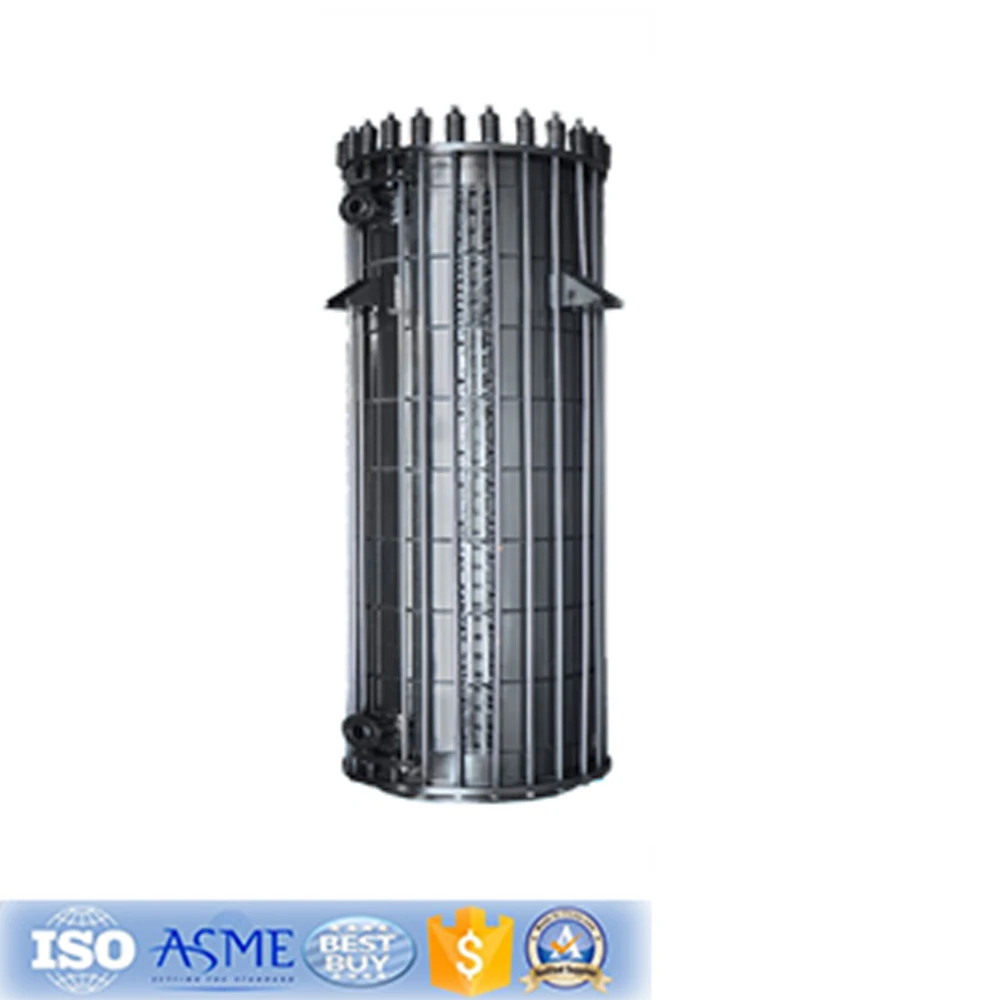

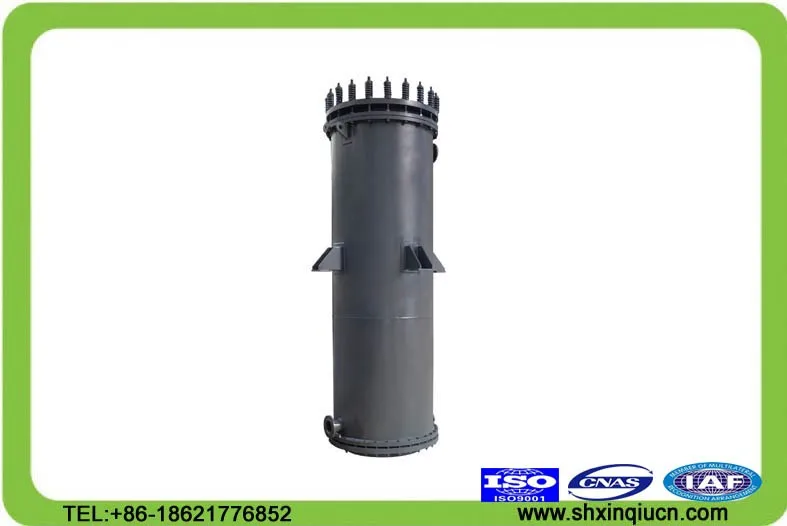

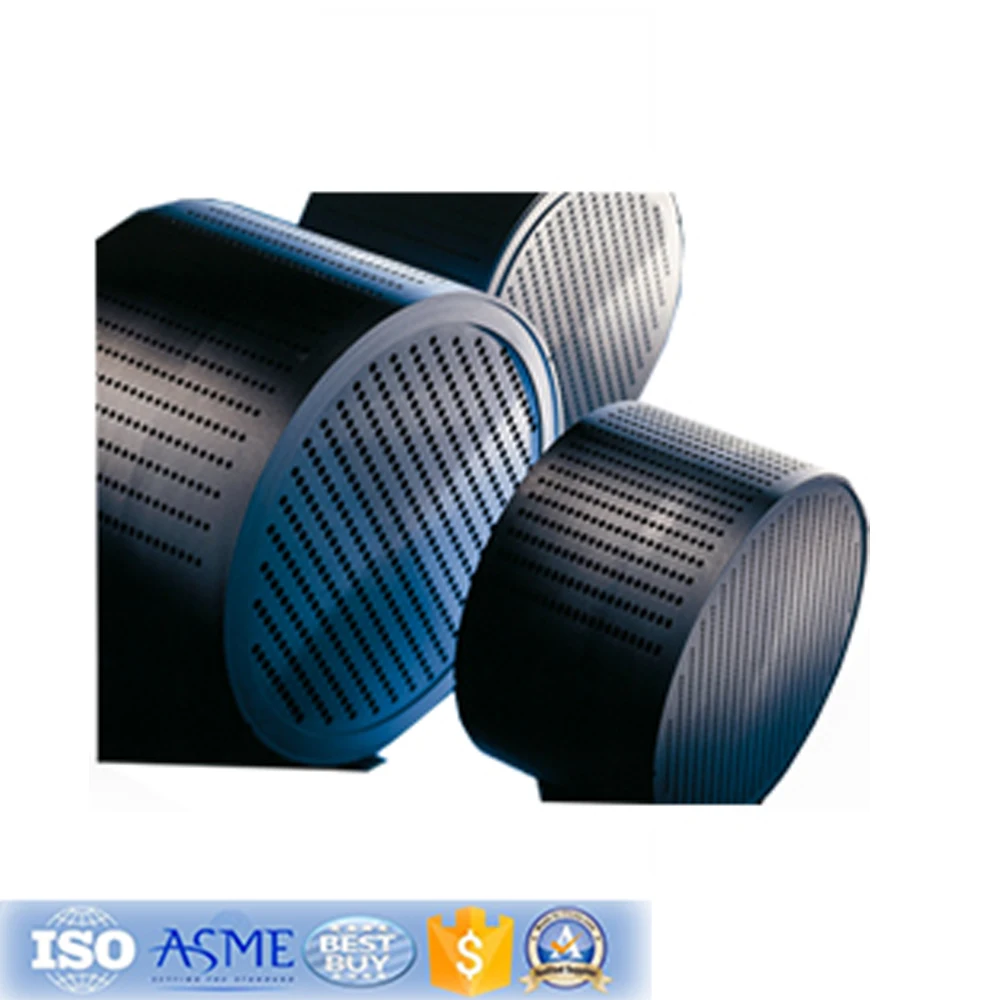

II.YKB Round block-hole type graphite heat exchanger

I.Structure And Features

The product is mainly composed of graphite heat exchanger block,head,shell,etc.,uses PTFE for sealing and is additionally equipped with pressure spring as automatic compensation device under expansion caused by heat and contract caused by cold.The graphite block is drilled with two groups of flow chanels that are not interlinked,and the purpose of heat exchange may be achieved when different fluids pass through the two flow channels.The product may use TFE emulsion,phenolic aldehyde,expoxy,furan resin and other impregnates depending on different media,can meet the use requirements of acids,alkalis and organic solvents and other working conditions,and have the advantages of high heat transfer,strong shock resistance ,stable performance and easy maintenance,etc.It is the ideal equipment used in evaporation,heating,cooling and condensing and other deivces.

2.Technical Features
DESIGNED TEMPERATURE:
TUBE PASS: -40℃~220℃
SHELL PASS: -40℃~220℃
DESIGNED PRESSURE:
TUBE PASS: 1.0MPAG
SHELL PASS: 1.6MPAG
SIZE 2~1200m2
Note:The equipment less than 2.4MpaG may also be manufactured according to user requirements.

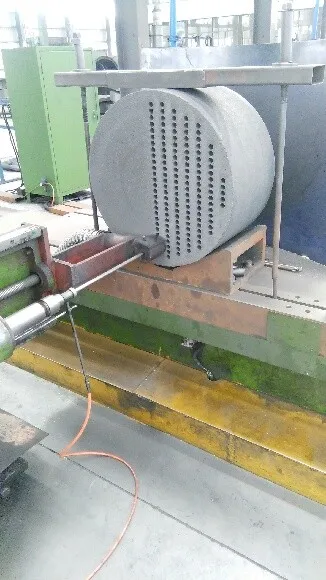

III.Production process











We can make according to your requirements!



III.Process of Business Transaction.



1.Sending the technical parameters(flow rate,material,working pressure,inlet and outlet temperature,etc.)



2.A normal drawing is the best.



3.We make a detail plan to you.



4.Discussion between each other.



5.Your confirmation.



6.Make a meating.



Welcome to contact us
