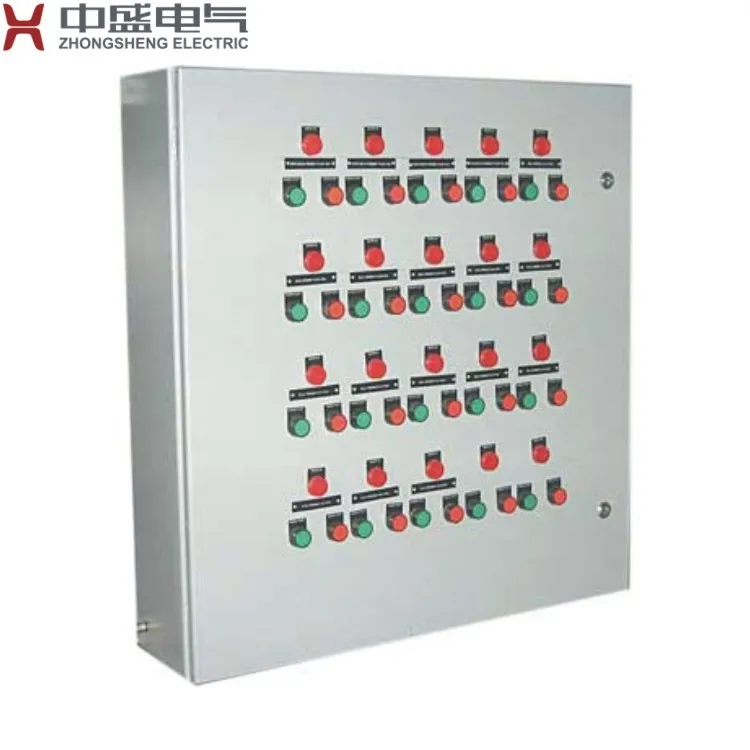

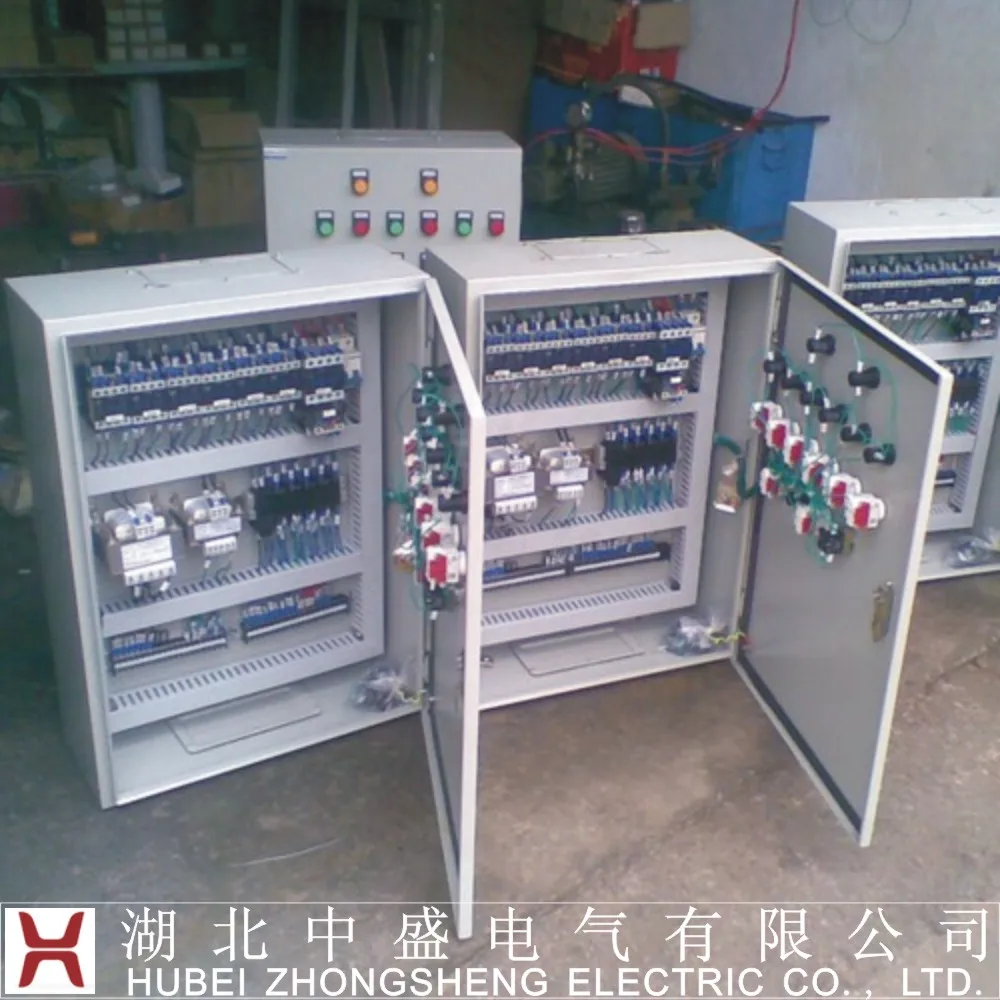

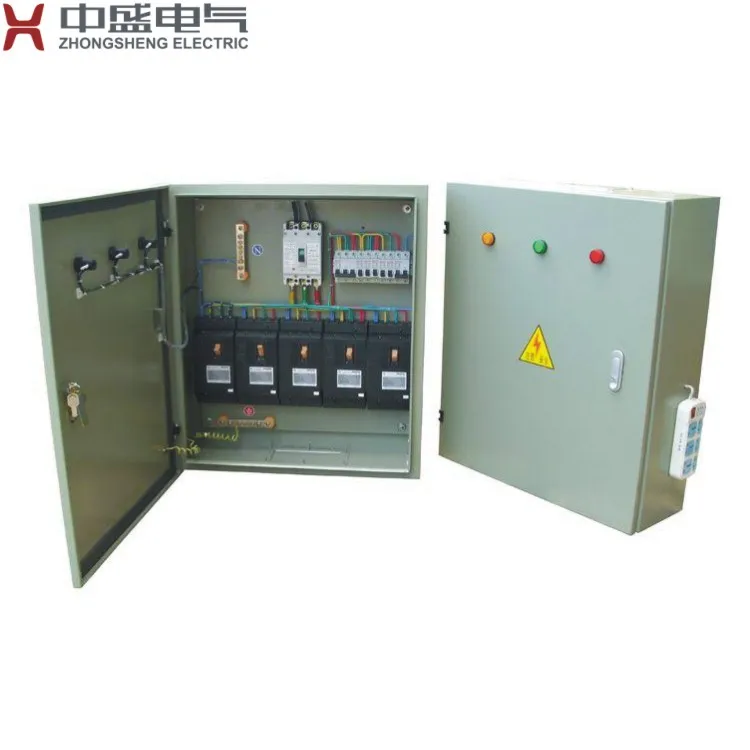

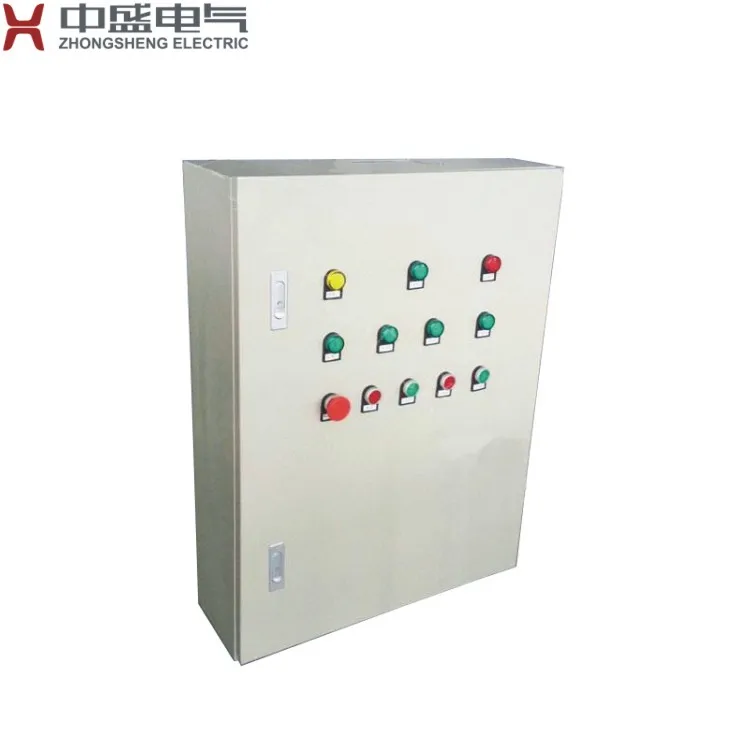

MCCB power distribution cabinet
- Category: >>>
- Supplier: Hubei Zhongsheng Electric Co. Ltd.
Share on (60464620671):
Product Overview
Description
Product Description
| Product name | Power distribution cabinet | ||
| Rated voltage | 380V | Rated insulation voltage | 660V |
| Rated current | 10A to 400A | Rated short-time withstand current | 10KA |
| Rated frequency | 50Hz, 60Hz | Degree of protection | IP30 |
| Standards and approvals | 1. Standards: IEC60439 and GB7251, design verification by testing. | ||
| 2. Quality and enviromental management system certification: ISO9001, ISO14001, OHSAS18001, CCC. | |||
| Service conditions | 1. Ambient temperature: -5℃ to +40℃, average temperature is not more than +35℃ in 24 hours. | ||
| 2. Relative humidity: no more than 50% of +40℃ ambient temperature. | |||
| 3. Altitude: up to 2000m. | |||
| 4. Special service conditions are available on request. | |||
