Product Overview

Description



Product Description

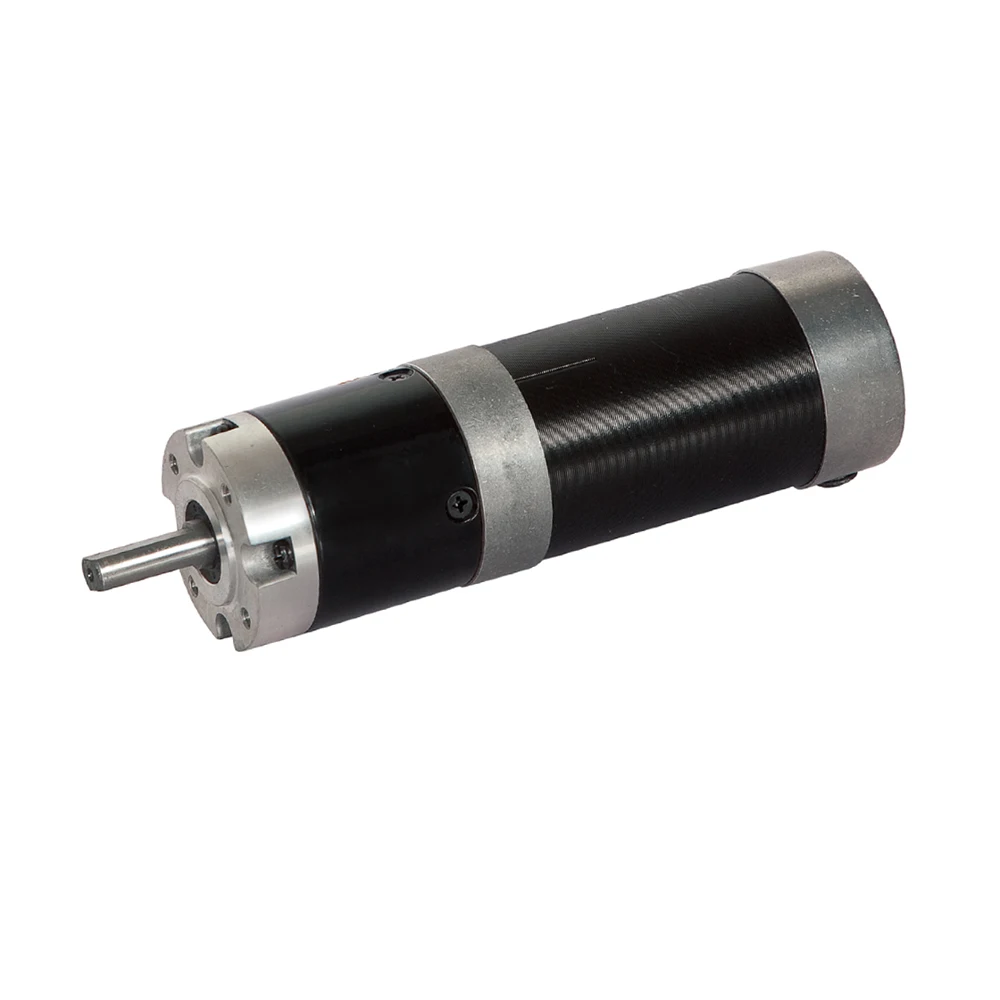

12V 24V 36V 48V Brushless DC Planetary Gear Reducer Motor with Planet Gearbox, Helical Gear Low Noise
BLDC Planetary Gear Motor
Model: 56JX200K/57ZWN95
Voltage: 12 ~ 400V DC
Rated torque up to 30N.m for continuous running
CE, UKCA,
Reach and RoHS approval
Optional components: magnetic/optical encoder; brake; cable connector Customized shaft & flange material and dimensions, and technical specifications are available upon requested.


Only Motor Technical Data:


电机型号
TYPE
额定电压
Rated
voltage
VDC
空载转速
No-load
speed
r/min
空载电流
No-load
current
mA
额定转速
Rated
speed
r/min
额定转矩
Rated
torque
mN.m
输出功率
Output
power
W
额定电流
Rated
current
A
57ZWN95-2420
24
2000
200
1450
400
60
4
57ZWN95-2430
24
3000
300
2000
400
80
6




Gear Motor Technical Data:


型号
Model No.
减速比
Reduction ratio
减速级数
Number of gear trains
减速器长度
Length(L)
mm
空载转速
No-load speed
r/min
额定转速
Rated speed r/min
额定转矩
Rated torque
N.m
最大瞬间允许负载
N.m Max. permissible load in a short time





57ZWN95-2420
3.6
1
41
556
403
1.3
6
4.25
1
41
471
341
1.5
6
13
2
53
154
112
4.2
25
15
2
53
133
97
4.9
25
18
2
53
111
81
5.8
25
32
2
53
63
45
10
25
47
3
64
43
31
14
50
55
3
64
36
26
16
50
65
3
64
31
22
19
50
76
3
64
26
19
20
50


型号
Model No.
减速比 Reduction ratio
减速级数 Number of gear trains
减速器长度Length(L)
mm
空载转速
No-load speed
r/min
额定转速
Rated speed
rmin
额定转矩
Rated torque
N.m
最大瞬间允许负载
N.m Max. permissible load in a short time






57ZWN95-2430
3.6
1
41
833
556
1.3
6
4.25
1
41
706
471
1.5
6
13
2
53
231
154
4.2
25
15
2
53
200
133
4.9
25
18
2
53
167
111
5.8
25
32
2
53
94
63
10
25
47
3
64
64
43
14
50
55
3
64
55
36
16
50
65
3
64
46
31
19
50
76
3
64
39
26
20
50




More Products:

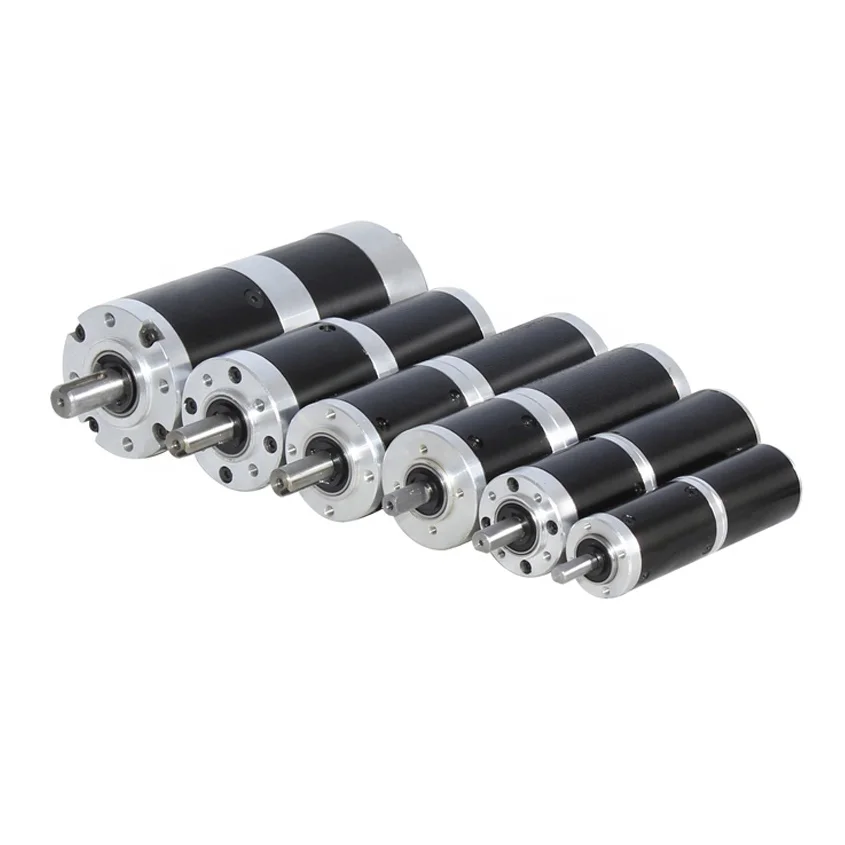

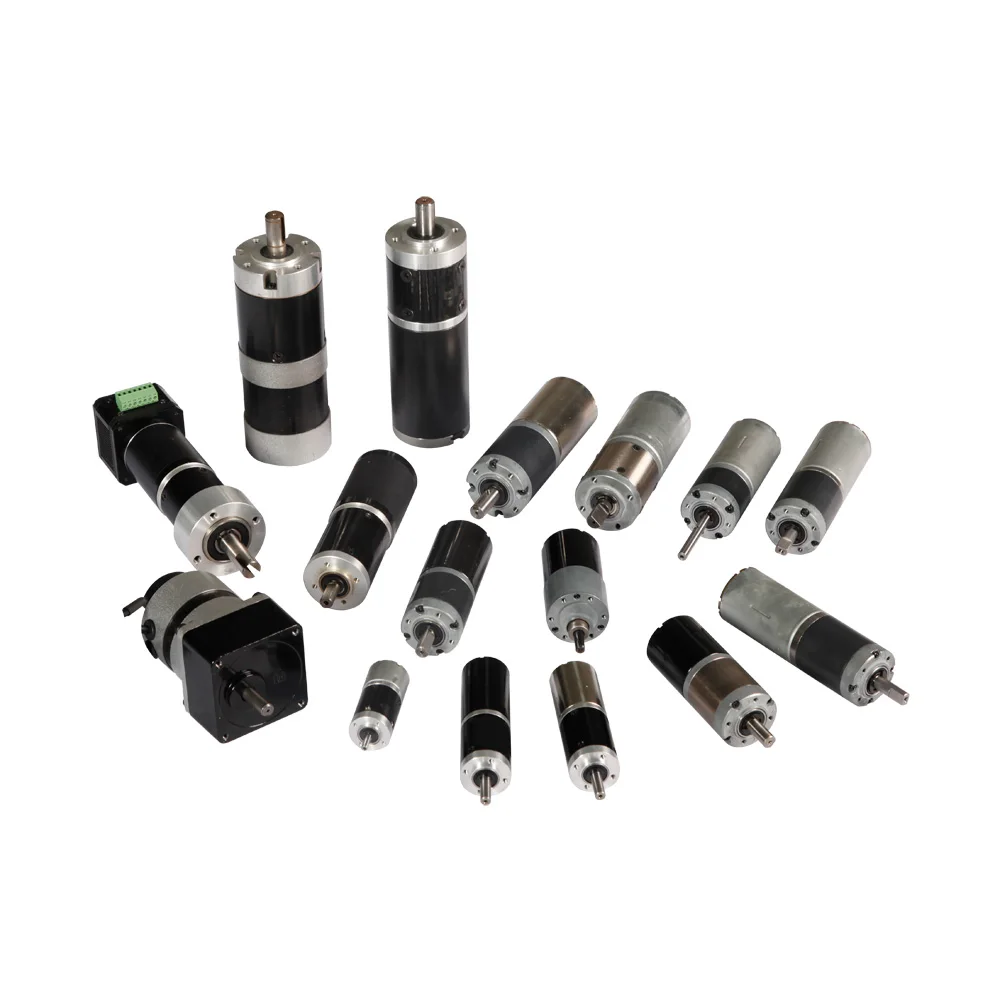

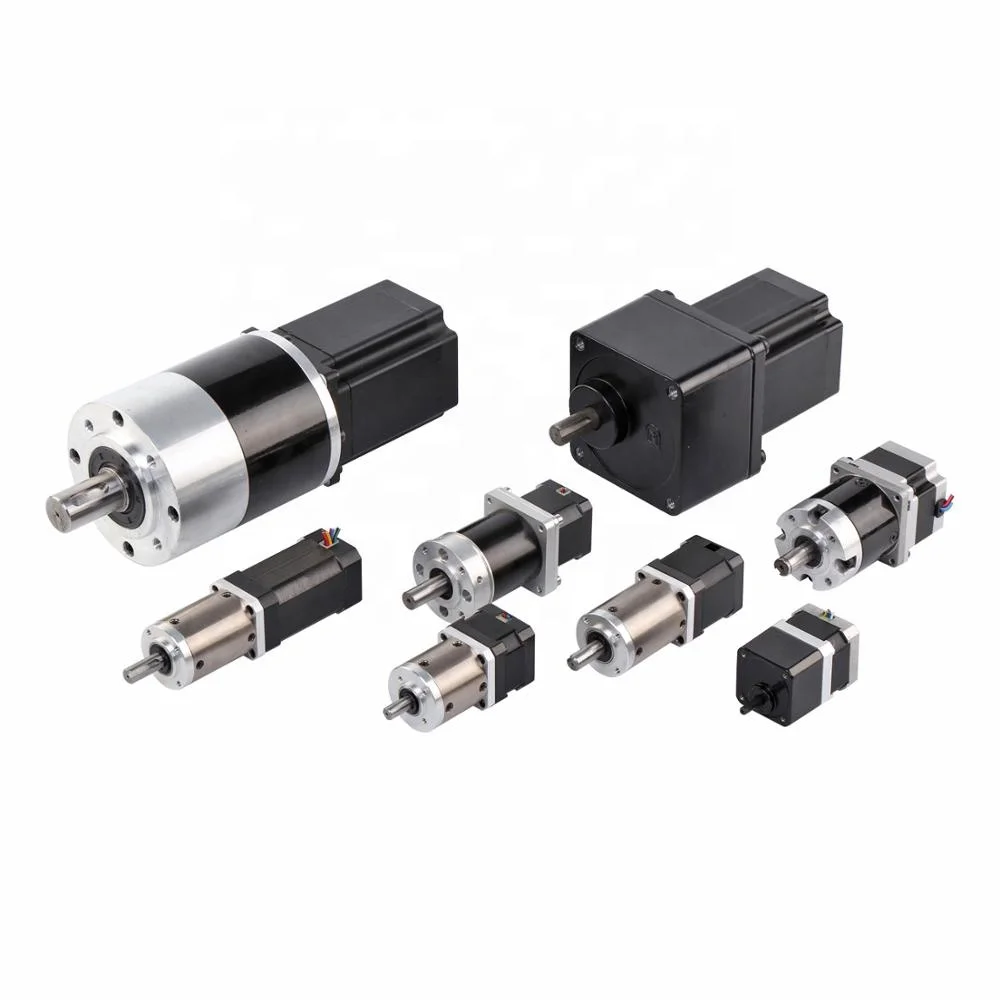

DC Planetary Gear Motors Characteristics
Gearbox diameter
16 ~ 120MM
Gear ratio
3.6 : 1 ~ 2000 : 1
Motor type
Brushed DC Motors, Brushless DC Motors, Stepper Motor
Motor diameter
20 ~ 170mm
Nominal voltage
6V ~ 400V DC
Nominal speed
1 ~ 900rpm
Rated torque
Up to 1000N.m
Nominal power
Up to 5KW
IP rating
Up to IP68
Option
Magnetic/optical encoder, power-on/power-off brake, connector




Customized Gear Motors for Typical Applications
Tarp Gear Motors


Slow Juicer Motors

Curtain & Window Motors
Robot Pool Cleaner Motors
Door & Gate Motors


Robot Lawn Mower Motors

Automatic Pool Cover Motors
Solar Tracking System Motors




Company Introduction




OVERVIEW
Dongyang City Dongzheng Motor Co., Ltd. is a state-level high-tech enterprises which Professionally involves in research, development, manufacture, and sales of various AC/DC Planetary Gear Motors, AC/DC Right Angle Gear Motors, AC/DC Parallel Shaft Gear Motors, Small DC Motors, Compact AC Motors, Brushless DC Gear Motors, Motor Magnets, Gearboxes etc..
CERTIFICATION & MANAGEMENT
All have passed the REACH, CE & CCC approval, RoHS Compliance, in part pass the UL approval; Adopting the ISO9001: 2015 Quality Management System, ISO14001 Environmental Management System as well as OHSAS18001 Occupational Health and Safety Management System.


Our Services & Strength
Sufficient Sales Teams for International Business
Strong R & D Capability
Large Production Capacities
Stable Massive Production Quality
Excellent Pre and after Sales Service


Certifications






Patents




Production and Testing Facilities






FAQ


Q1: Are you a trading company or manufacturer?
A1: We are a professional OEM manufacturer.
Q2: What is your main product range?
A2: We manufacture both motors and gearboxes. Our main products are various AC/DC Planetary Gear Motors, AC/DC Right Angle Gear Motors, AC/DC Parallel Shaft Gear Motors, Small DC Motors, Compact AC Motors, Brushless DC Gear Motors, Motor Magnets, Gearboxes etc..
Q3: How about the MOQ of your motors?
A3: Customized testing samples are available before serial production.
Q4: What is the warranty period of your motors?
A4: We offer free maintenance in warranty period of one year.
Q5: Which shipping ways are available?
A5: DHL, UPS, FedEx, TNT are available for sample shipment. Sea/air/train shipments are available for serial production.
