Automatic stainless steel 304 coarse sintered screen water filter for drip system
Automatic stainless steel 304 coarse sintered screen water filter for drip system
Automatic stainless steel 304 coarse sintered screen water filter for drip system
Automatic stainless steel 304 coarse sintered screen water filter for drip system
Automatic stainless steel 304 coarse sintered screen water filter for drip system
Automatic stainless steel 304 coarse sintered screen water filter for drip system
Automatic stainless steel 304 coarse sintered screen water filter for drip system

Automatic stainless steel 304 coarse sintered screen water filter for drip system

Share on (60464785088):


Price:$1,500.00 - $3,000.00

Quantity:


Product Overview

Description







Product Paramenters




Standard Design Pressure
10/16/25bar
Mini. Working Pressure
3bar (depend on the viscosity and filtration degree)
Flow rate Range
25~3000m³/h
Applicable Liquid
Viscous Liquid
Back-flushing Liquid
Filtered Clean Water
Filtration Degree
100-1000μm
Working Principle
Single Filter Continuous Filtration, Automatic Back-flushing
Design Temperature
0-120℃
Back-flushing Cycle
Differential Pressure and Time
Differential Pressure Instrument
Intelligent Differential Pressure Transmitter/switch
Inlet and Outlet Standard
ANSI Flange CLASS150/DIN Flange PN10/ Sanitary Coupling
Housing Wet Part Material
CS/304/316L
Filter Screen Material
304/316L
Sealing Material
NBR/EPDM/VITON/Silastic
Back-flushing Valve
Pneumatic Ball Valve/ Electric Butterfly Valve

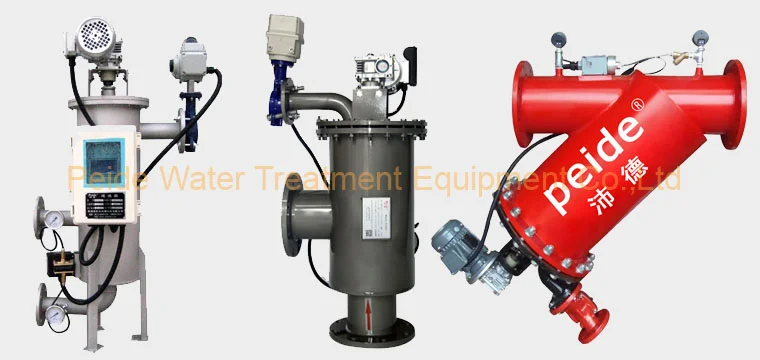

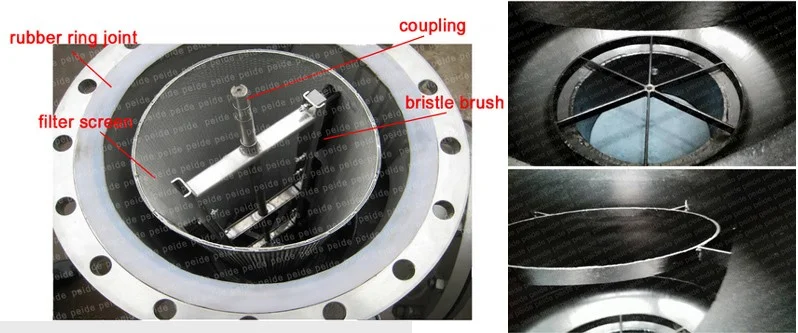

Automatic brushaway filter is composed of the drive mechanism, the control circuit (including the pressure switch), filter components, cleaning device, connecting flanges and other major component parts.It cleans sewage by the drive motor and the electric valve automatically, the operation mode is automatic operation (option:manual operation), with timing control or pressure difference control. Its automated part is controlled by reliable PLC programmable controller.
Water enters into the filter, the mechanical impurities are intercepted.When the impurities accumulate for a period, reaches 0.05MPa, then the differential pressure switch will send signal, while the PLC command is issued, transmission motor starts, the drain valve opens, the impurities deposited on the filter is brushed away, and drain out. The whole process is without personnel, without downtime. Besides, the device also has the function of timing and manual cleaning to ensure that the outlet water is safe under any circumstances.


Product Advantages




1.Filter precision from 100um to 3500um,big filter area,high sewage carrying capacity,customized product.
2.Simple turn-of-a-handle cleaning of the filter screen,adjust the parameter of the automatic cleaning system.Automatic cleaning.
3.Has motor overload protection, which can effectively protect the motor.
4.Eliminates the need for turning off the water and extracting the filter screen for rinsing.No interruption of the process water flow during cleaning,Low pressure loss:less than 1%.
5.Easy to maintenance,installation and disassemble.

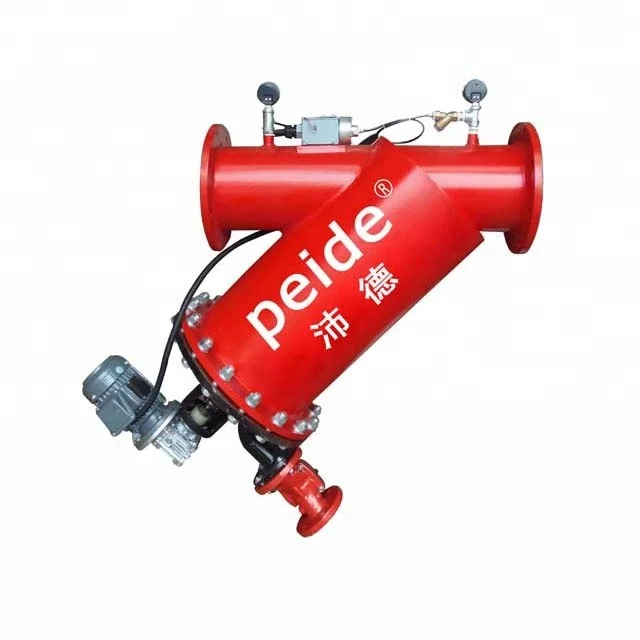

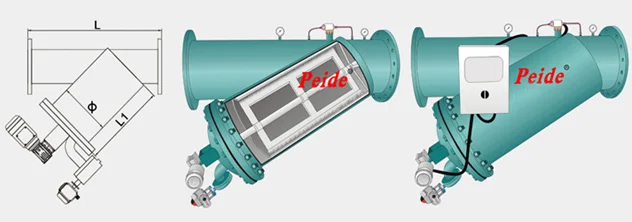

Y type automatic brushaway filter


Model
Inlet and outlet(DN)
Flow rate
(m3/h)
L
(mm)
∅
(mm)
L1
(mm)
Drain size
(mm)
Motor
(KW/r/min)
SLQ-2Y
50
19
600
159
300
25
0.18/1400
SLQ-3Y
80
50
600
159
300
25
0.18/1400
SLQ-4Y
100
80
700
159
300
40
0.18/1400
SLQ-5Y
125
125
750
219
350
40
0.18/1400
SLQ6Y
150
180
800
275
450
50
0.18/1400
SLQ-8Y
200
320
850
325
525
50
0.18/1400
SLQ-10Y
250
490
900
377
650
50
0.18/1400
SLQ-12Y
300
710
950
426
700
65
0.18/1400
SLQ-14Y
350
970
1170
478
820
65
0.18/1400

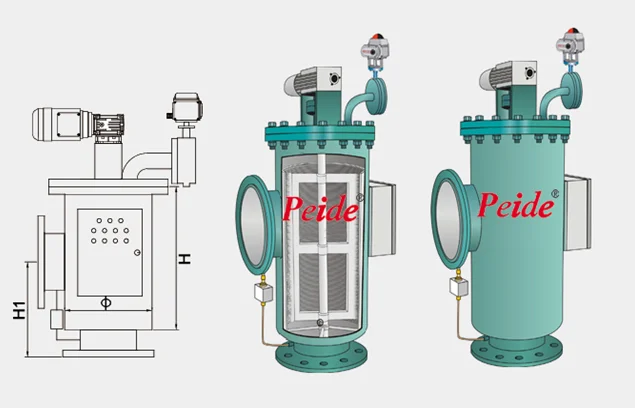

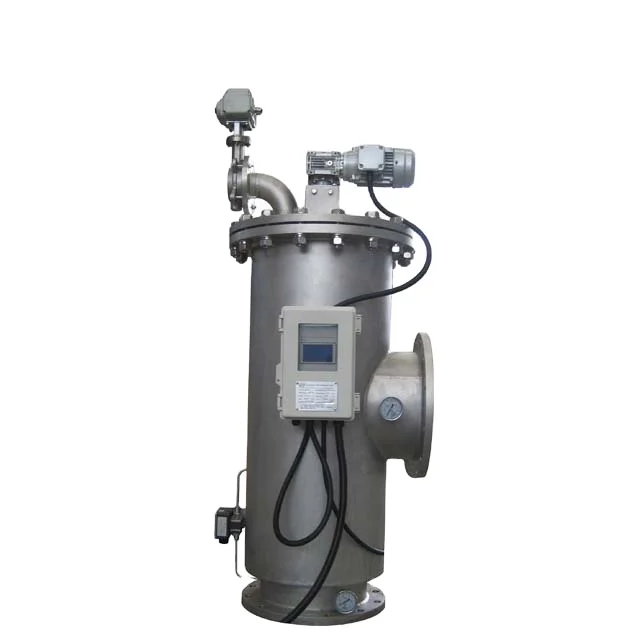

 Vertical type automatic filter


Model
Inlet and outlet(DN)
Flow rate (m3/h)
L (mm)
∅ (mm)
L1 (mm)
Drain size (mm)
Motor (KW/r/min)
SLQ-2F
50
19
300
159
225
25
0.18/1400
SLQ-3F
80
50
300
159
270
25
0.18/1400
SLQ-4F
100
80
300
159
300
40
0.18/1400
SLQ-5L
125
125
350
219
365
40
0.18/1400
SLQ6F
150
180
600
273
450
50
0.18/1400
SLQ-8F
200
320
700
325
560
50
0.18/1400
SLQ-10F
250
490
700
377
700
50
0.18/1400
SLQ-12F
300
710
1000
426
800
65
0.18/1400
SLQ-14F
350
970
1000
478
940
65
0.18/1400

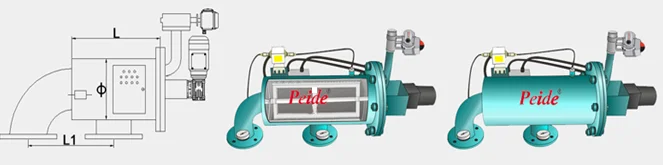

F type automatic filter


Model
Inlet and outlet(DN)
Flow rate (m3/h)
L (mm)
∅ (mm)
L1 (mm)
Drain size (mm)
Motor (KW/r/min)
SLQ-2L
50
19
300
159
250
25
0.18/1400
SLQ-3L
80
50
300
159
250
25
0.18/1400
SLQ-4L
100
80
300
159
250
40
0.18/1400
SLQ-5L
125
125
350
219
275
40
0.18/1400
SLQ6L
150
180
450
273
325
50
0.18/1400
SLQ-8L
200
320
525
325
360
50
0.18/1400
SLQ-10L
250
490
650
377
425
50
0.18/1400
SLQ-12L
300
710
700
426
450
65
0.18/1400
SLQ-14L
350
970
820
478
520
65
0.18/1400


Company Profile




FAQ


1. Q: What terms of payment do you accept?
A: Payment method:T/T,Paypal,western union.
2. Q: What is your delivery time?
A:Delivery term:10-30 working days.
3. Q: What's the minimum quantity of your order?
A: MOQ:1 Set.
4. Q: How long is the warranty?
A: Quality guarantee period:1 year
