Factory price small corn maize hammer mill for milling corn flour
- Category: Wood Crusher >>>
- Supplier: Laizhou,Chengda,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Mutifunctional straw wood chips hammer mill crusher
Hammer mill is a new-style and multipurpose machine, it is used for all kinds of straw, cotton stalk, alafalfa, peanuts shell and foodstuffs etc. The hammer mills can be driven by electrical motor, diesel engine and gasoline engine. Its working principle is that the raw materials will be beat by the high rotating hammer mill until to the power.
There are Several Types Hammer Mills for Your Choose
------------ CF158, CF198A. CF198, CF420A, CF420B, CF420C, CF500A, CF500, CF550, CF560, CF600 and CF800
Model | Power | Sieve Sreen Size | Sieve Screen Specification | Capacity | Packing Size | |||
CF158 | 2.2KW | 360*160mm | 1.5-10mm | 60-120kg/h | 48*58*63cm | |||
CF198A | 7.5HP | 510*200mm | 2-10mm | 200-300kg/h | 97*75*64cm | |||
CF198 | 4KW | 510*200mm | 2-10mm | 200-300kg/h | 96*62*105cm | |||
CF420A | 22HP | 680*280mm | 2-10mm | 200-500kg/h | 147*74*111cm | |||
CF420B | 7.5KW | 680*280mm | 2-10mm | 200-500kg/h | 112*82*107cm | |||
CF420C | 11KW | 680*280mm | 2-10mm | 200-500kg/h | 112*82*107cm | |||
CF500A | 55HP | 820*390mm | 2-10mm | 900-1100kg/h | 150*142*123cm | |||
CF500 | 22KW | 820*390mm | 2-10mm | 900-1100kg/h | 124*97*106cm | |||
Personal Design | 30KW, 37KW, 45KW, 55KW | We can design as your requirements. | ||||||
Detailed Images

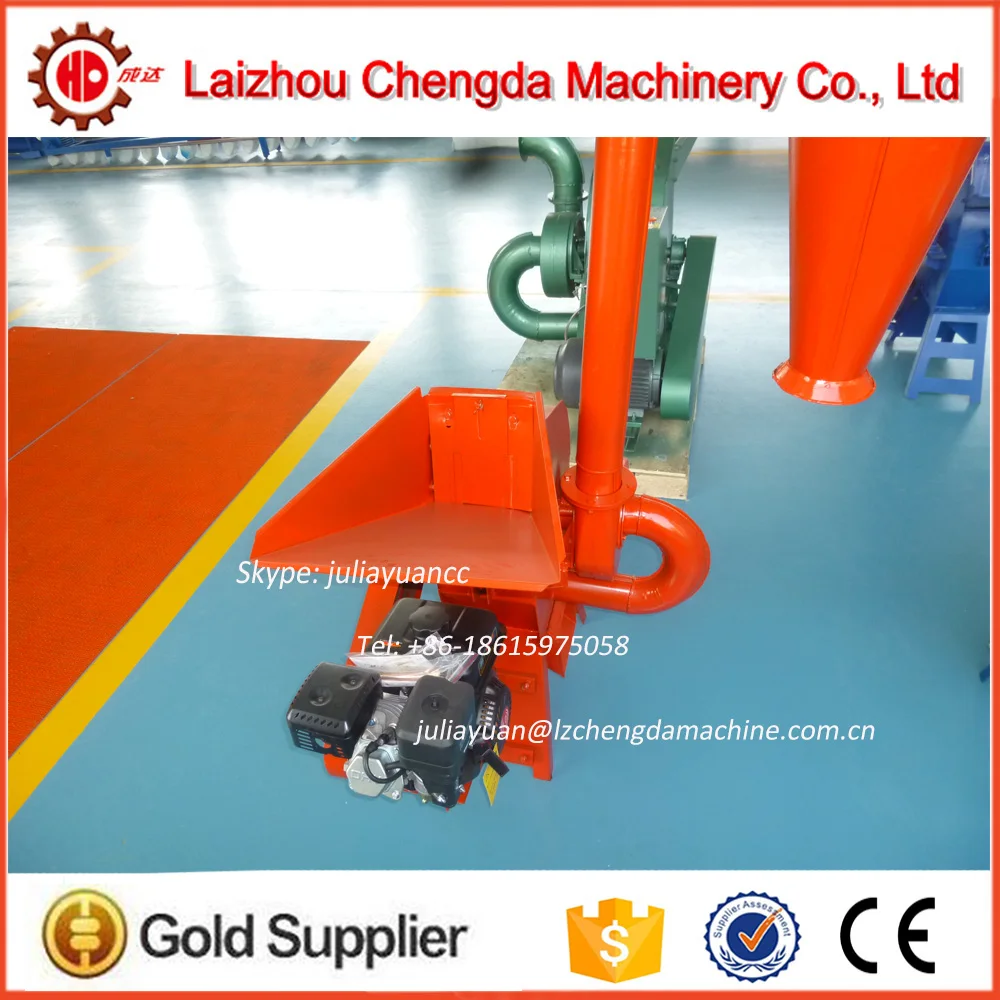

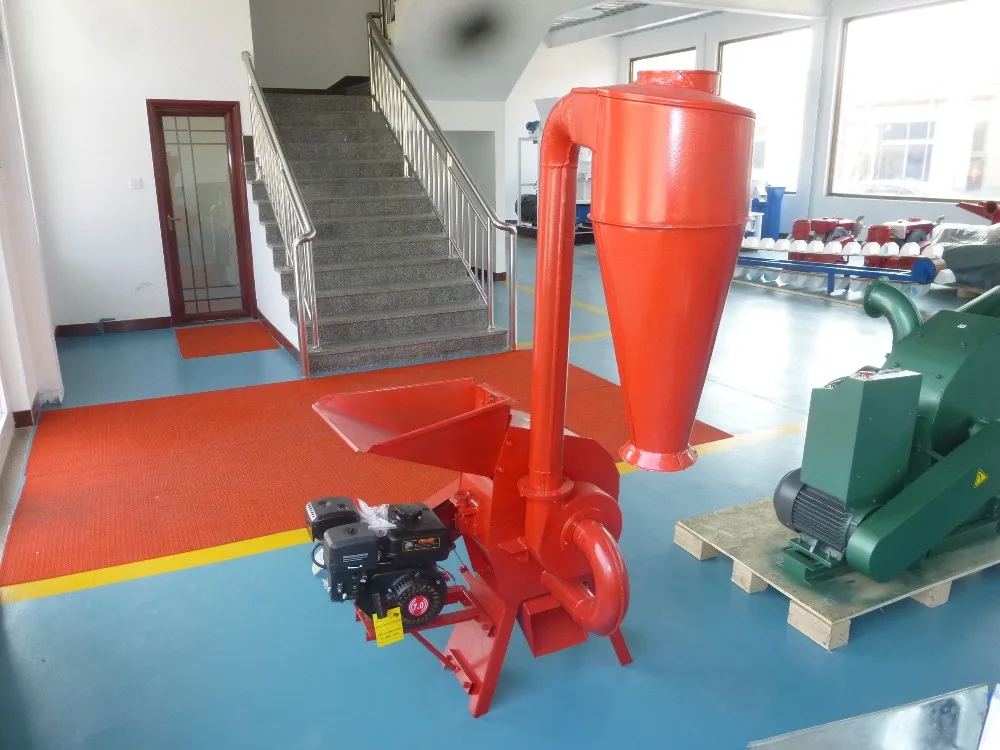

Features of CF198A Wood Hammer Mills
Main Parts 1.
Main Parts 2.
Raw Materials and Final Sawdust of Wood Hammer Mills
The raw materials include Sawdust, Wood Chips, Wheat Straw, Peanut-shell, Rice husk, Sugar Cane Bagasse, Paddy Straw, Sunflower Seed Husk, Sunflower Stalk, Cotton plant Stem, Tobacco waste, Mustard Stalk, Bamboo Dust, Palm husk and Feed pellet .
Features of CF198A Wood Hammer Mills
1. With capacity 200-300kg/h, this hammer mill can satisfy a large production demand on a daily basis.
2. CF198A hammer mill is driven by 7.5hp gasoline engine, its capacity is 200-300kg/h, it's very suitable for home use.
3. Main fore bearing parts adopt high alloy wearable material, life of wear part is several times of similar products.
4. It has simple construction, convenient operation, rational design, low consumption and high efficiency.
Main Parts of Hammer Mills----sieves and hammer sheet.
Main Parts 1.
Name: Sieve
Brand: chengda
Original: China, Shandong
The hole diameter can be 1.5mm, 2mm, 4mm, 6mm, 8mm and 10mm.
Main Parts 2.
Name: Hammer Sheet
Original: China, Shandong
The hammer sheet is made by iron sheet. If we use it in a right way, we can use it more than 1000 hours.

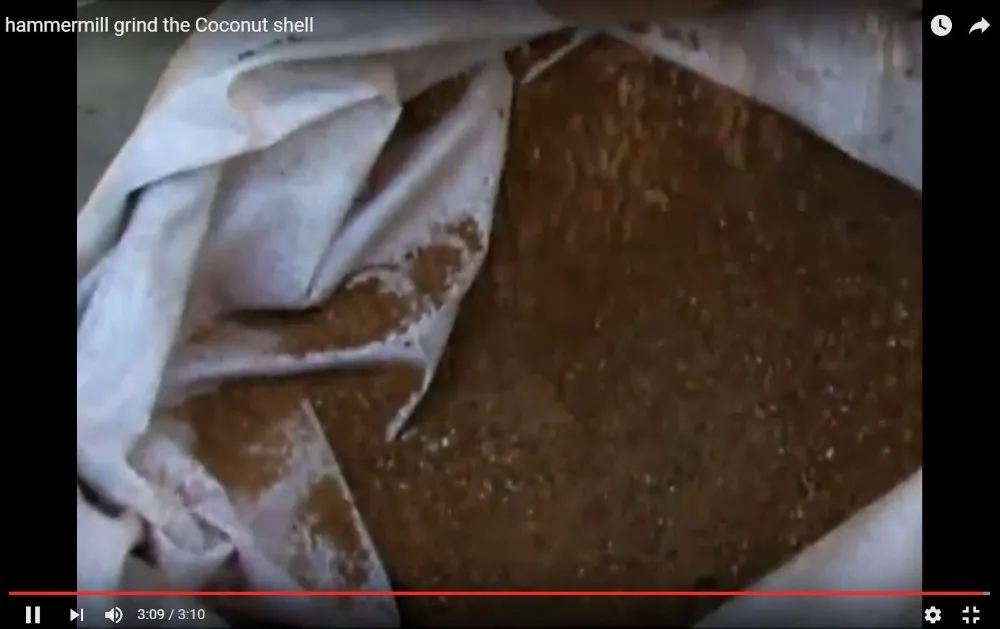

You can check our wood hammer mill operating video in YouTube.
Here is the Link: https://youtu.be/xyp-o-Ut_RA

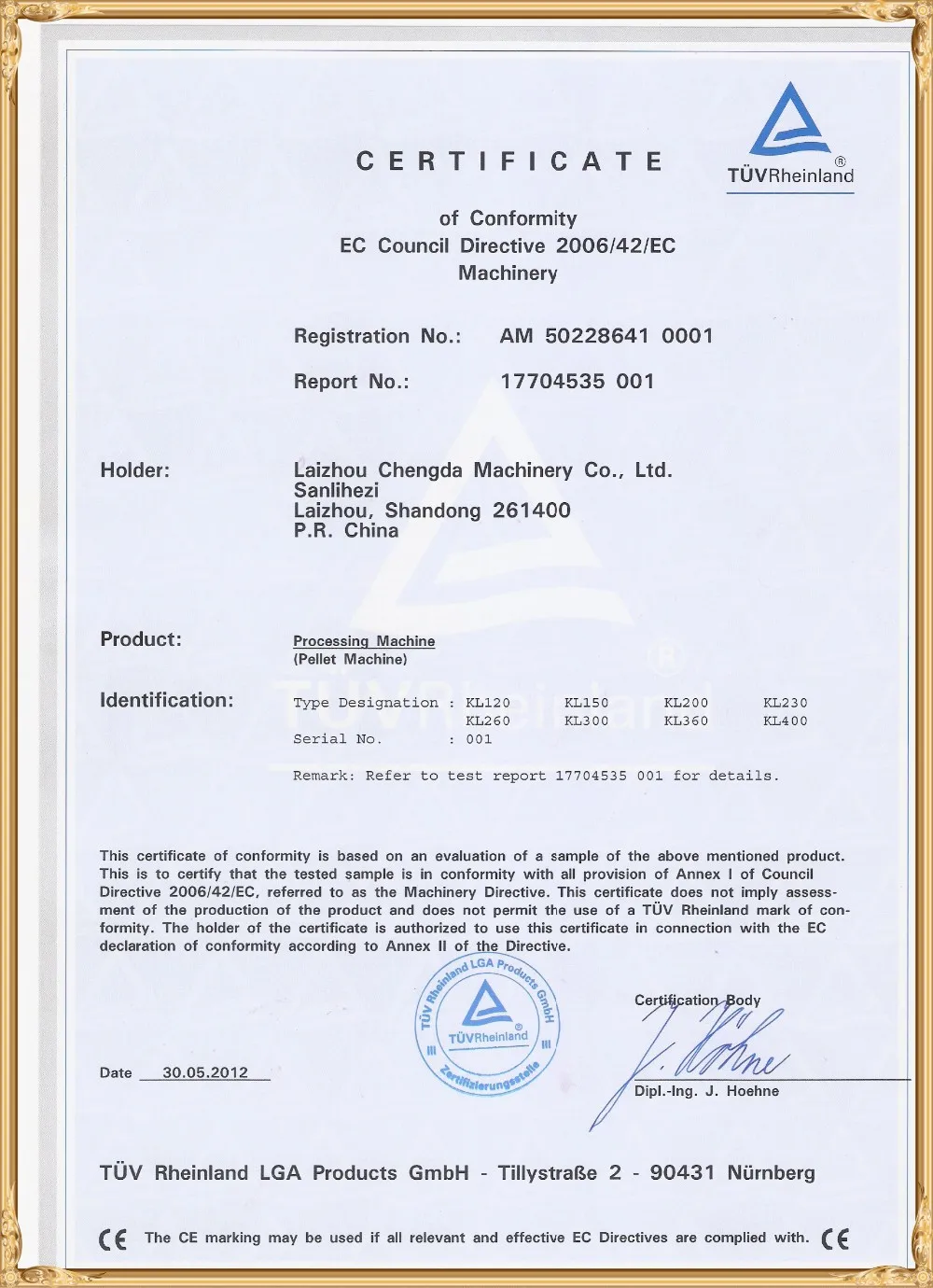

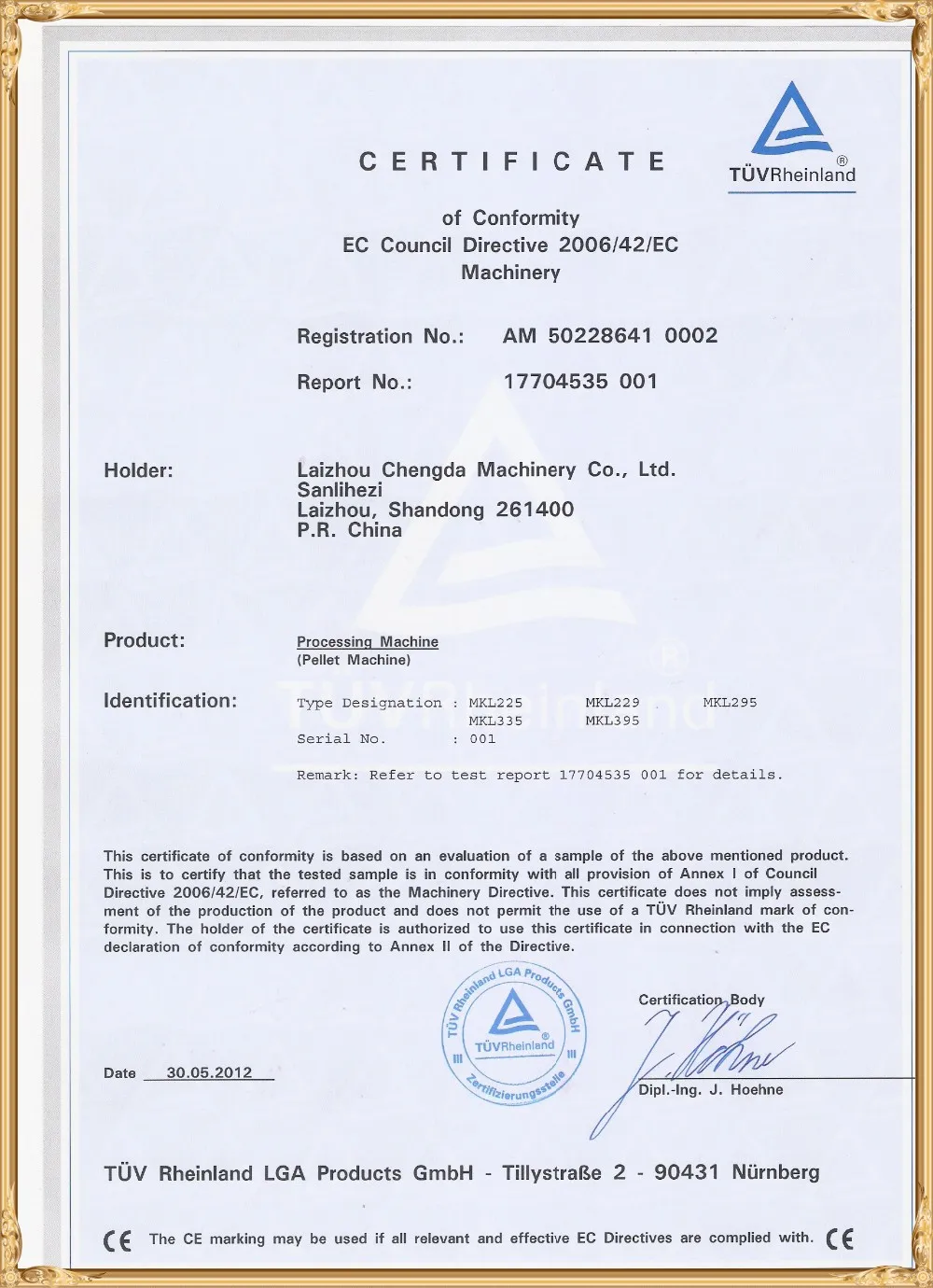

Certifications

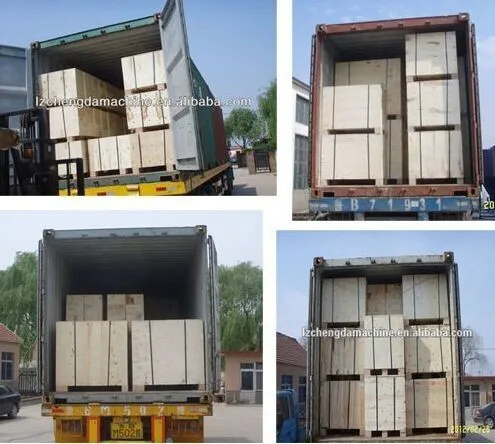

Packing & Delivery
Packaging | ||
Size | 96*62*105cm | |
Weight | 120/140kg | |
Packaging Details | Strong plywood case as exported standard, if your order is big we suggest shipping by container, we will calculate the total volume of your order and saving shipping cost for you. Shipping: By sea, By air; Express (DHL/FedEx; Railway; Highway) | |

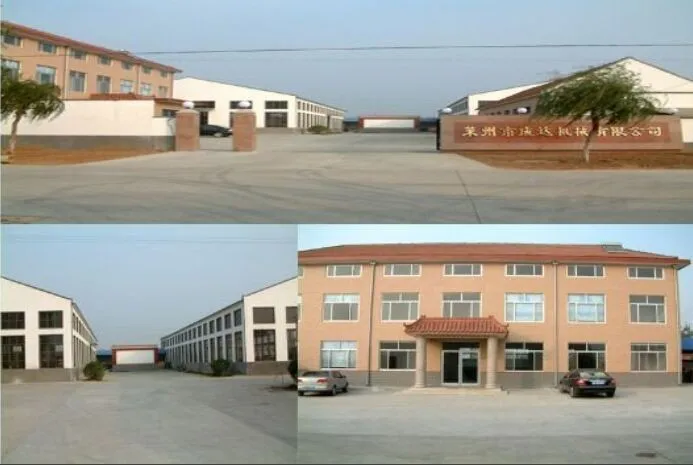

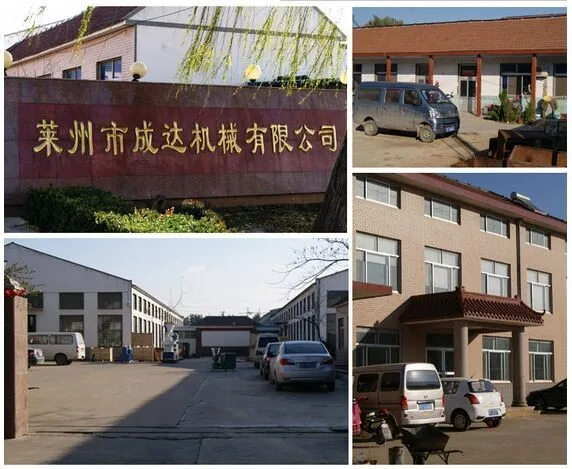

Our Company
We are Laizhou Chengda Machinery Co., Ltd in China, the professional factory of pellet machines with more than 24 years history in this field, we have professional engineering team,advanced equipment,wide product range,we import many core spare parts from foreign countries to ensure our equipment quality. We can make animal feed production line biomass pellets line and wood sawdust pellets line. We have clients in Indonesia, Sri Lanka, United Arab Emirates, Germany, America and etc., which give us best feedback. We believe, we are your best choice.
If you are interested in our pto wood pellet mill ,please contact us without any hesitation.
Looking forward to cooperating with clients all over the world.

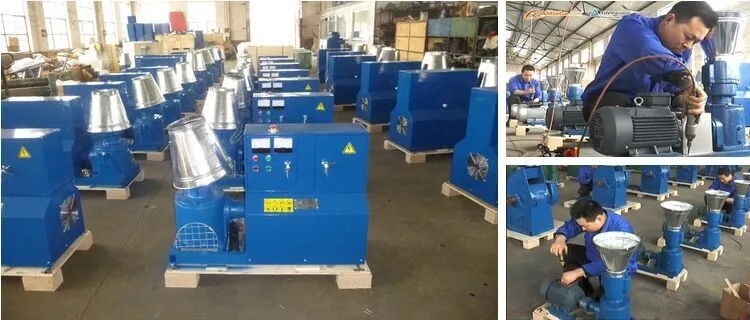

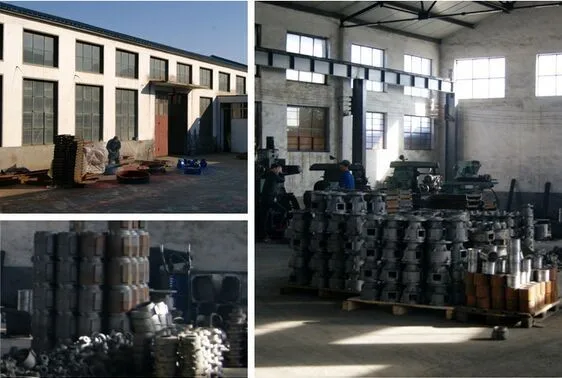

Our Workshop
