JXJ 600 High capacities PLC controller automatic sandwich machine

Product Overview

Description

JXJ 600 High capacities PLC controller automatic sandwich machine

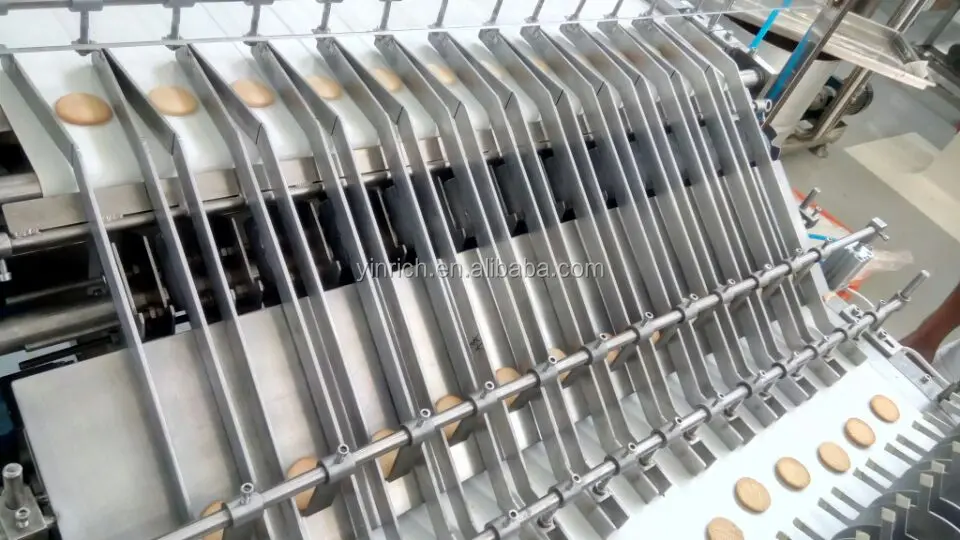

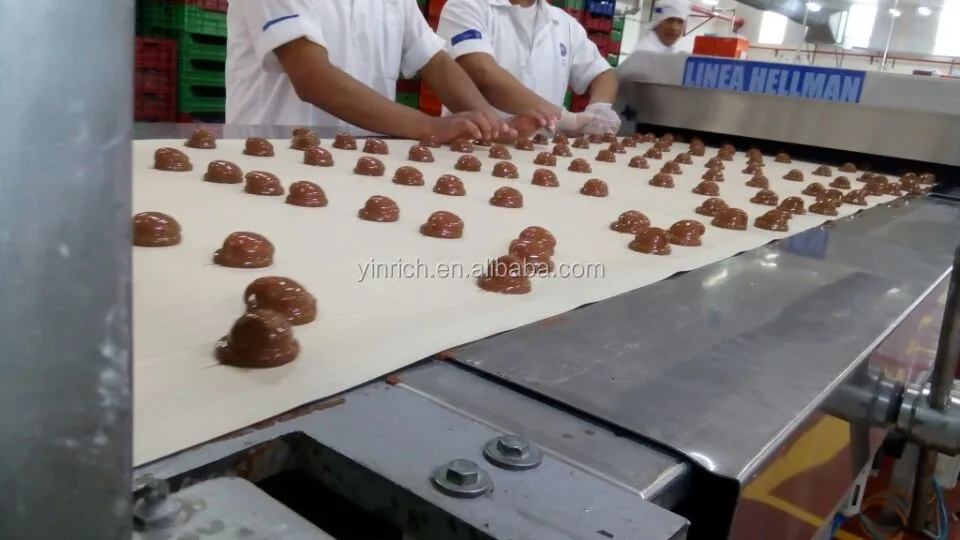

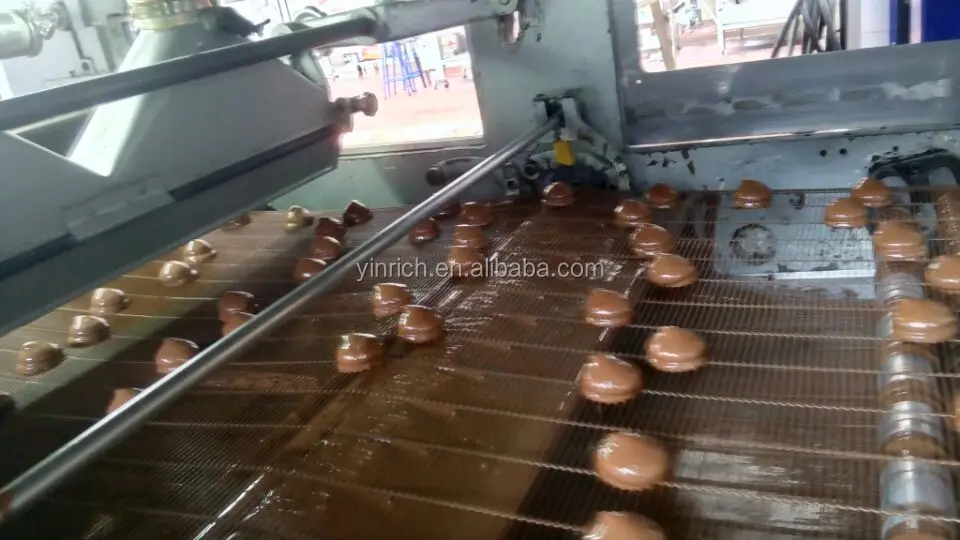

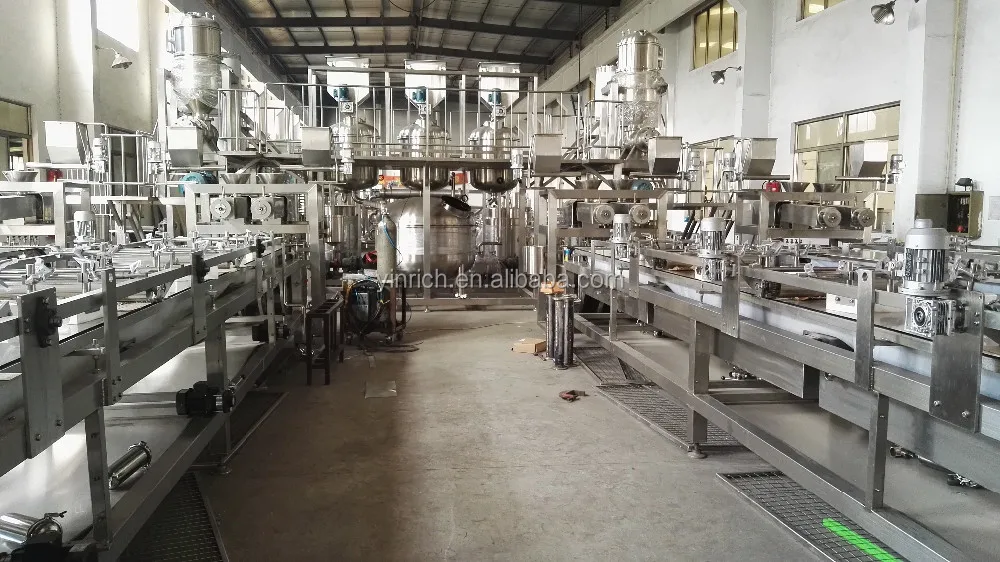

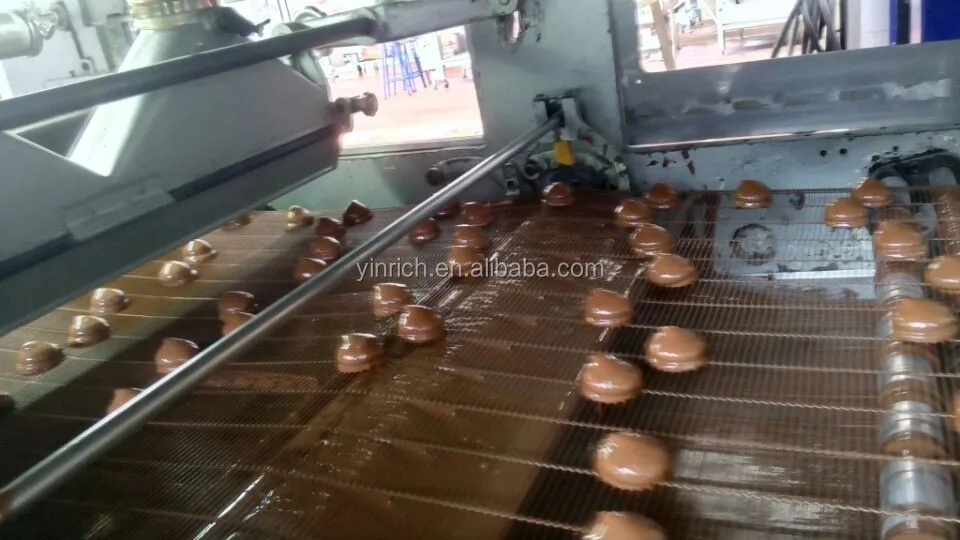

The images of the production line for biscuit and sandwich



Features:

This cookie capper can be connected to the outlet conveyor of the biscuit plant, and it can automatically align, deposit and cap at speeds of 300 cookies rows (150 rows of sandwiches) per minute. Various types of soft and hard biscuits ,cakes can be processed .

The cakes or biscuits are automatically transferred from your exiting conveyor to the in- feed of the machine( or via a Biscuit magazine feeder and indexing system). The machine then aligns, accumulates, synchronizes the products, deposits an accurate amount of filling, and then caps the top onto the products. The sandwiches are then automatically transported to the wrapping machine, or to an enrobing machine for further process.



The machine consists of:

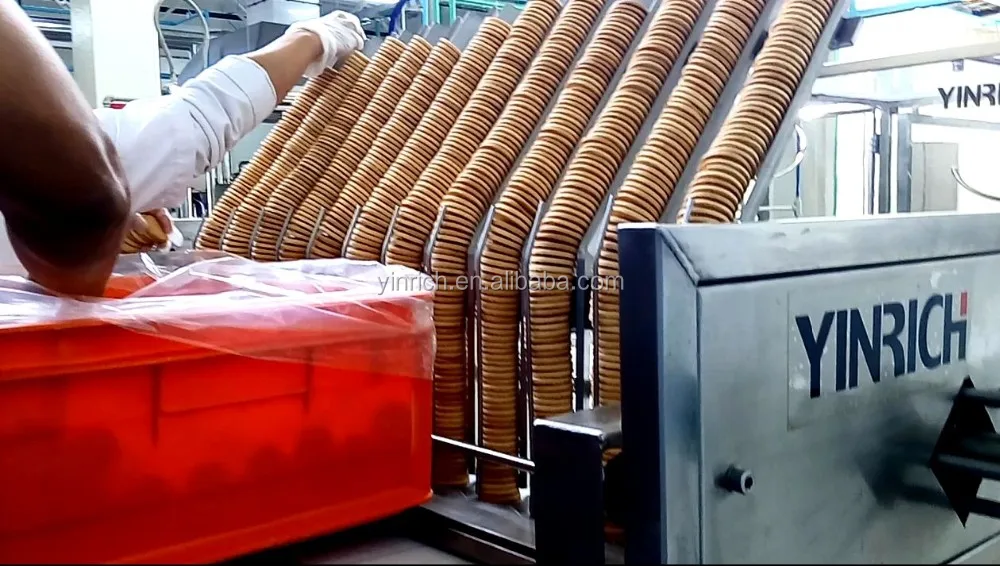

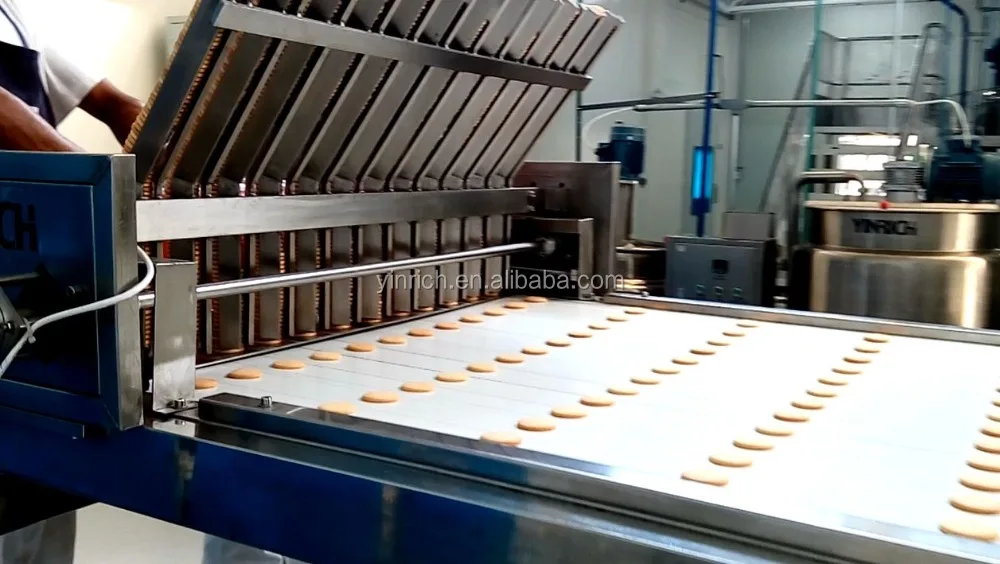

1)Biscuit magazine feeder;

2)Biscuit indexing device;

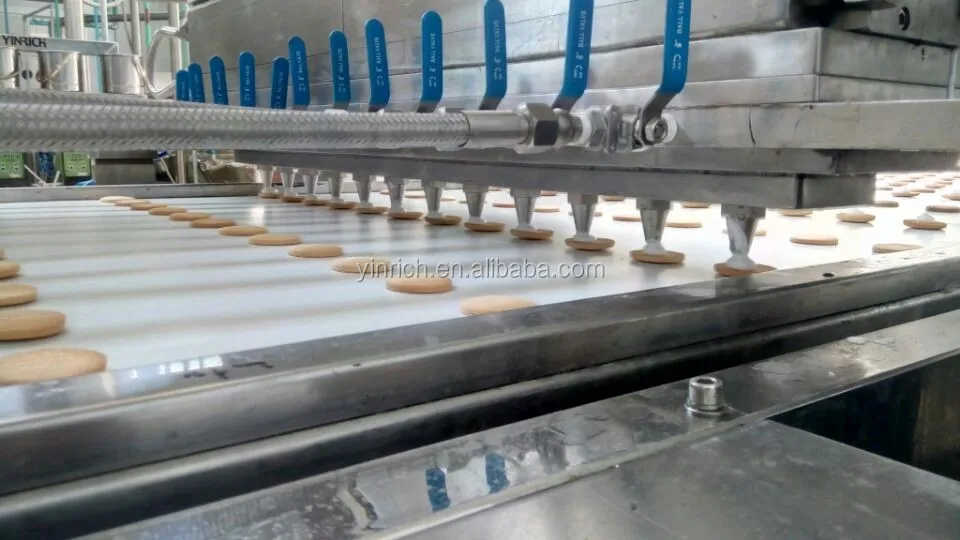

3)Depositing manifold(plain, center-filling, side-by side etc, as optional);

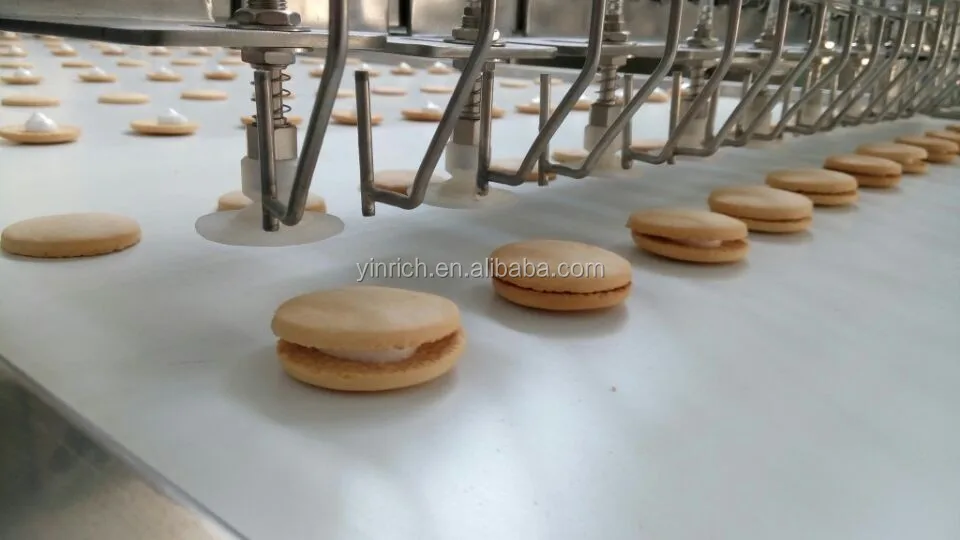

4) Top biscuit placing device;

5)PLC controller





Advantages

-Available for various kinds of filling or capping biscuits or cakes;

-PLC Servo controlled ,high speed capacities;

-Available to be connected to the conveyor of biscuit plant;

-Precision depositing on the cookies;

- Deposition variations:

1. marshmallow

2. aerated chocolate

3.caramels & toffee;

4. jams and jellies;

5.fresh & Non-dairy cream;

6. Butter & Margarines;

-Low labor cost, Quick pay back



Main Technical Specifications:

Production capacity:appro.9000 sandwiches/hour

Rated pieces output: 30 pcs/min

Depositing heads: 5 ~8

Cookie capping heads: 5~8

Width of belt: 600mm

Power: 380V/6KW

Dimension: L:3800 xW: 800 x H:1800mm

total weight:6000kgs
