Price:$6,500.00 - $6,560.00

Quantity:


Product Overview

Description

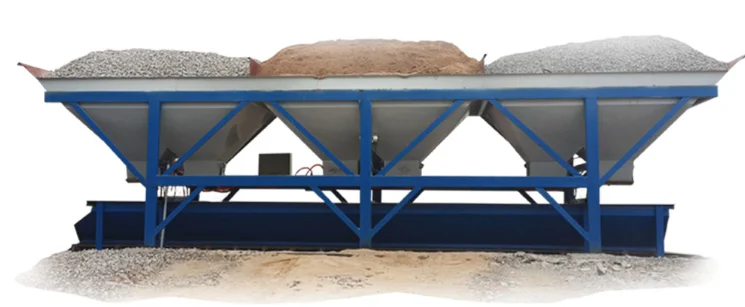

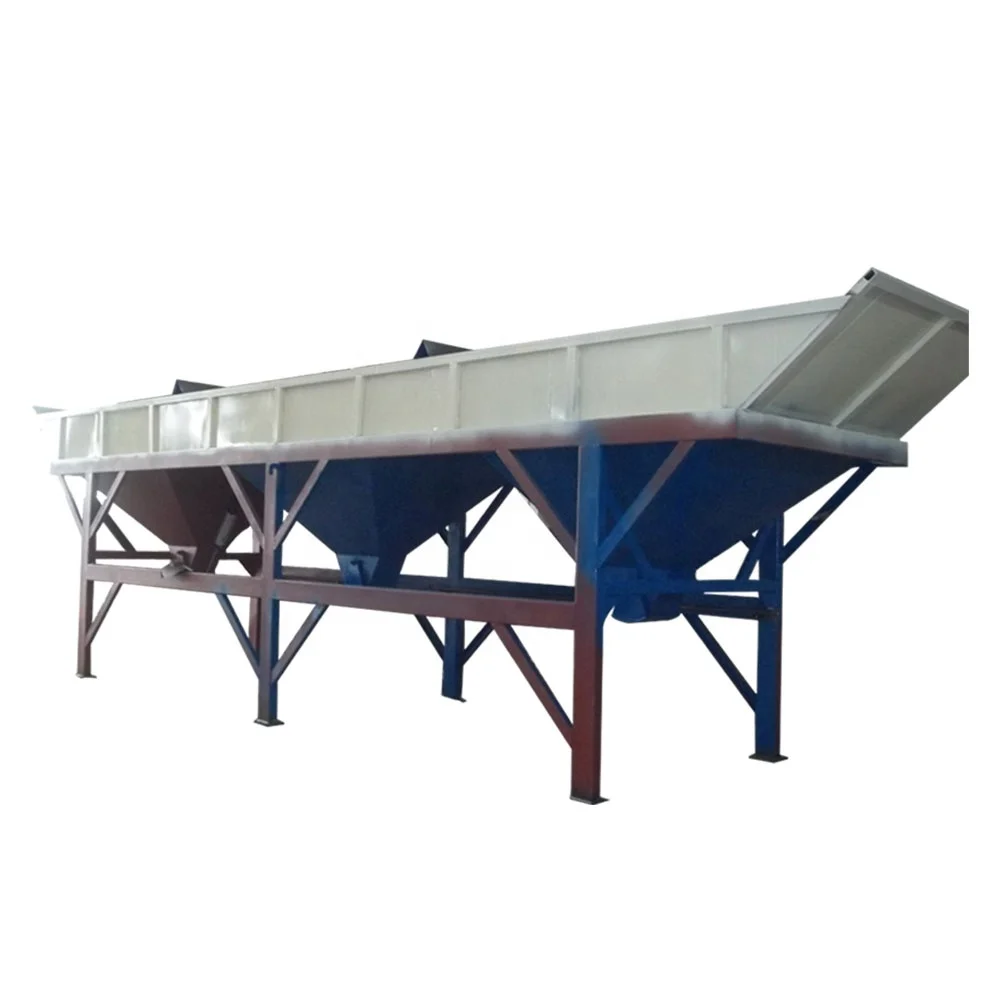

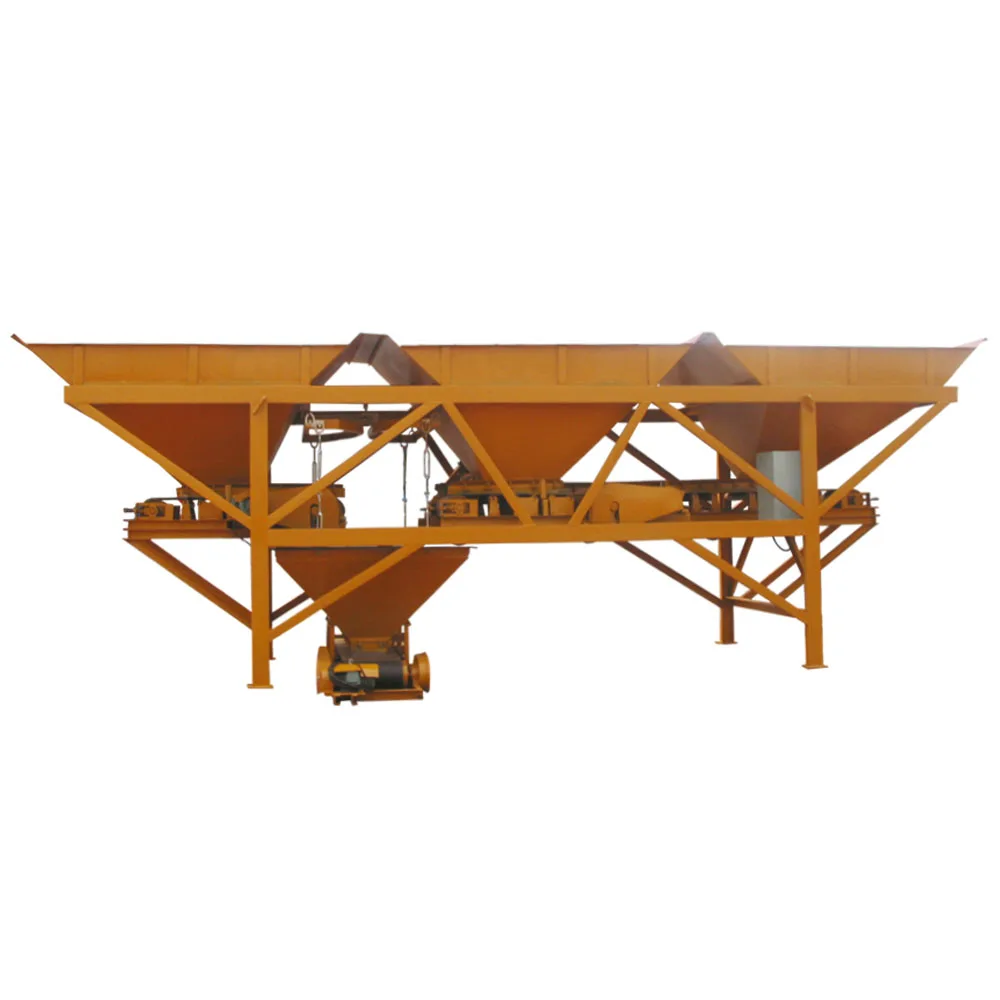

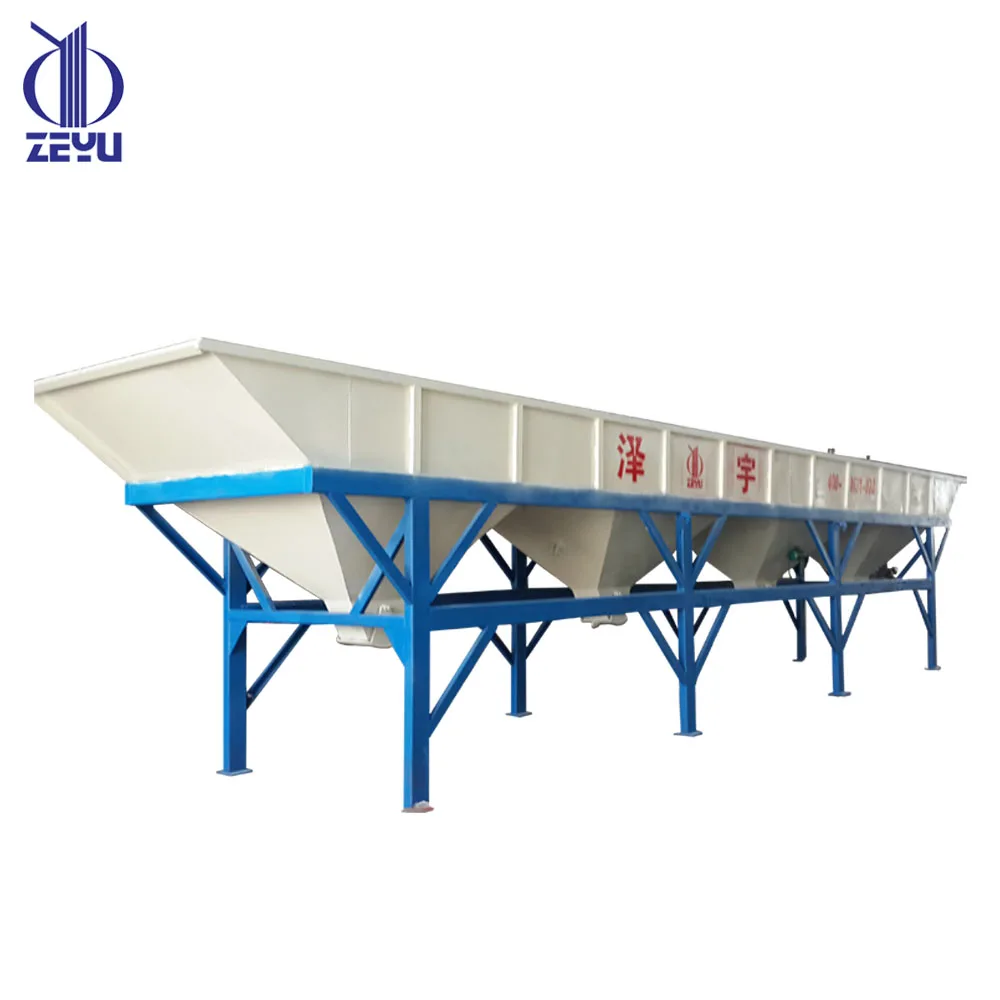

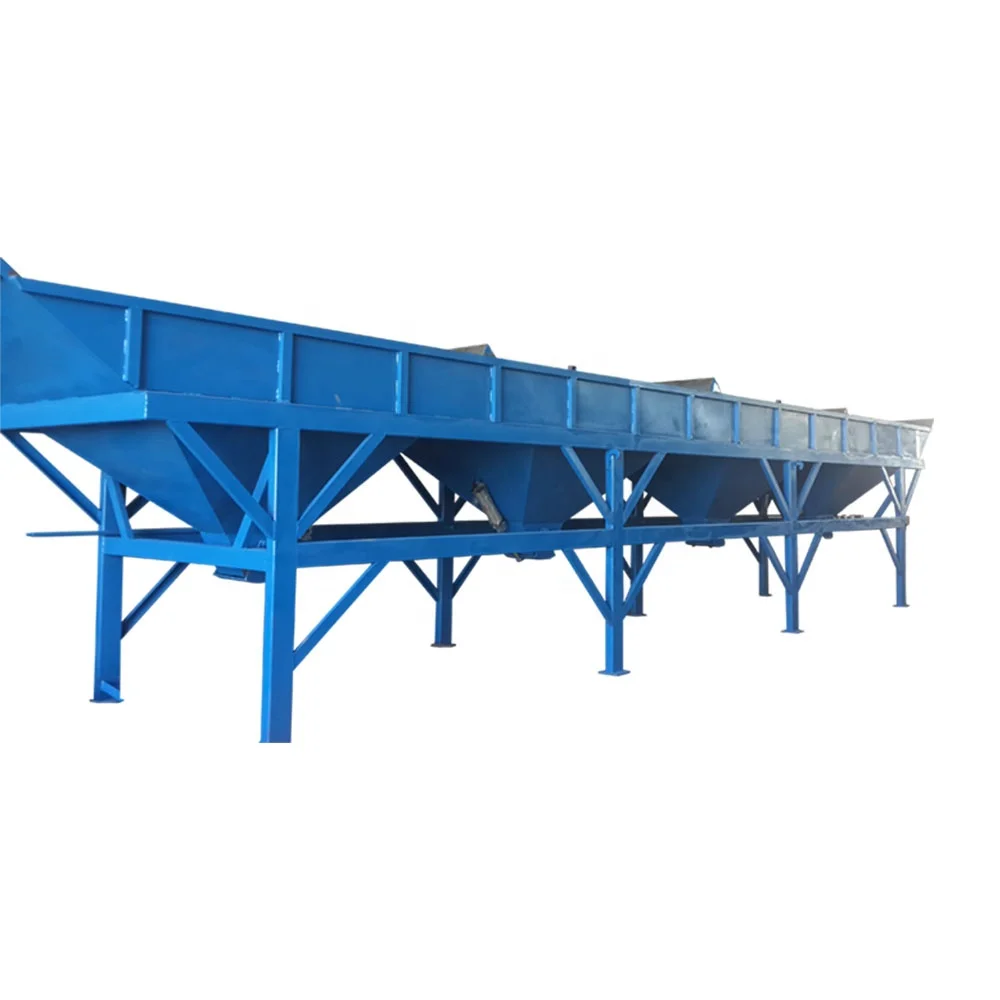

Factory directly sale pl1600 three bin automatic aggregates concrete batching machine

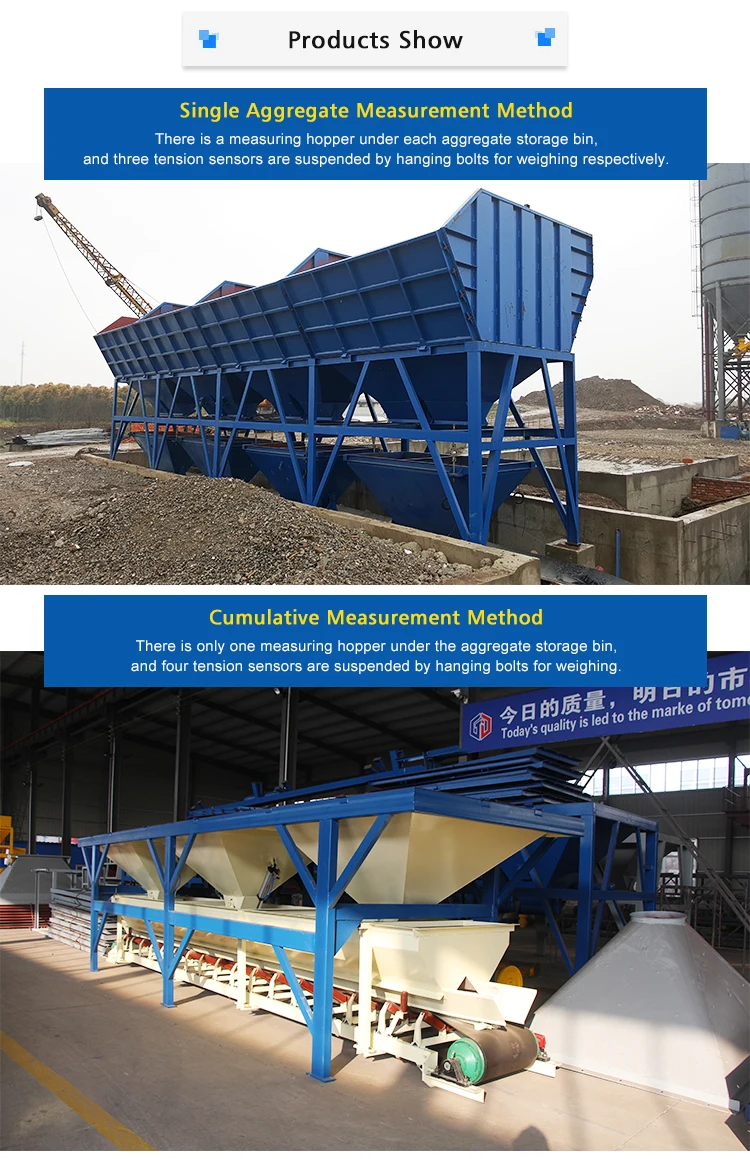

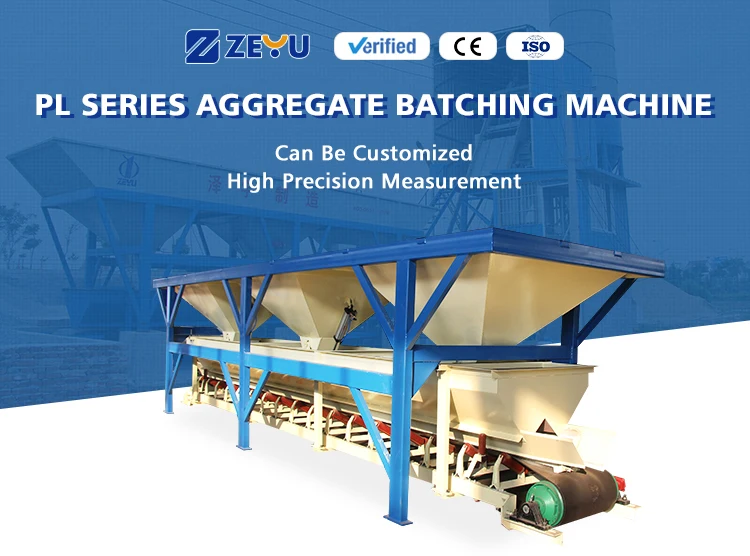

The PL series batching machine is used for the preparation of concrete sand and gravel. This machine can be equipped with a variety of aggregates according to user's needs. It is metered by electronic scale. It has the characteristics of high precision,adaptability, easy operation and reliable use. The ratio can be adjusted freely and is simple and intuitive.

PL series batching machine can be combined with JS series concrete mixer into a concrete mixing plant, suitable for large and medium-sized hydropower projects, construction sites and precast concrete factory use, improve production efficiency, reduce labor intensity, to ensure the quality of concrete ideal equipment.



Item Model
Weighing hopper volume
（m3）
Storage hopper volume
（m3）
Maximum weighing value
（kg）

Total power（kw）

Total weight
（kg）

Dimension
（L*W*H）
PL800 two hoppers
0.8
3
1500
6.6
2350
5600*1560*2760
PL800
three hoppers
0.8
3
1500
4
3600
8400*1560*2810
PL1200
three hoppers
1.2
4
2000
4
4200
9270*2060*2900
PL1200
four hoppers
1.2
4
2000
5.5
5700
11200*2000*2800
PL1600
three hoppers
1.6
6
3000
4
5500
9700*2115*5360
PL1600
four hoppers
1.6
6
3000
5.5
6000
12900*2115*3360
PL2400
four hoppers
2.4
8
4000
7.5
8100
12900*2115*3360
PL3200
four hoppers
3.2
16
5000
11
10500
14000*2325*3800
PL4800
four hoppers
4.8
20
6000
11
11000
14000*2325*3800














Company Profile


Shandong Zeyu Heavy Industry Science and Technology Co., Ltd. (For short: ZEYUZHONGGONG)-is located in the hospitable Shandong,the beautiful spring city, Jinan. At the same time, there are East China Shanghai Sales and Service Company, South China Guizhou Sales and Service Company, Northeast Hebei Sales and Service Company, etc. (still under construction).We are founded in 2007, the company is a team of passionate men who have been engaged in mixing machinery for more than ten years. The company has more than 100 employees, 30% of which are technical talents. The company's headquarters we have obtained more than ten utility model patents. We have passed the "ISO9001, ISO14001, OHSAS18001, EU, CE certification.The company currently has more than 60 varieties products in five major categories. The main products: concrete mixing plant, stabilized soil mixing plant, PC component production line, dry mortar mixing plant and wet mixing mortar mixing plant. It is Widely used in high-speed railway, highway, airport, bridge, port, hydropower and other infrastructure construction and commercial concrete industry. At the same time, our products have been sold to Southeast Asia, Central Asia, South Asia, the Middle East, Africa and Russia, Mongolia and other countries and regions, and enjoy a good reputation overseas.










FAQ


Q: Are you trading company or manufacturer?
A: We are factory. We can design and manufacturer products with our patent. Welcome to visit us to check it!
Q: What are the terms of payment in your formal trade?
A:Normally we can work on T/T term ,L/C term and Alibaba Trade Assurance Order Online . T/T: 30%T/T prepayment , 70% paid by T/T before delivery. L/C: 100% irrevocable L/C at sight.
Q: What’s your after-sale service?
A:12 months warranty for main parts since departure. On-site installation, debugging, workers training. Make sure that your workers operate properly and know daily maintenance well.
Q:What’s your delivery time?
A:The goods will be delivered in 30-45 days after the 30% of the total amout is paid as deposit, and maybe a little longer if busy in the factory.
B: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: What should I do if I experience a problem on our equipment?
A: You could email us the photos to show what happens or call us, and our service line is available 24/7, and then we will
feedback you immediately. Also on-site technician service available as request.
Q.How can we install the plant?
A:Our engineer will make installation drawing before we send the machine, and our engineer will go oversea to guide and train the installation after everything is already set in customer's construction site.
